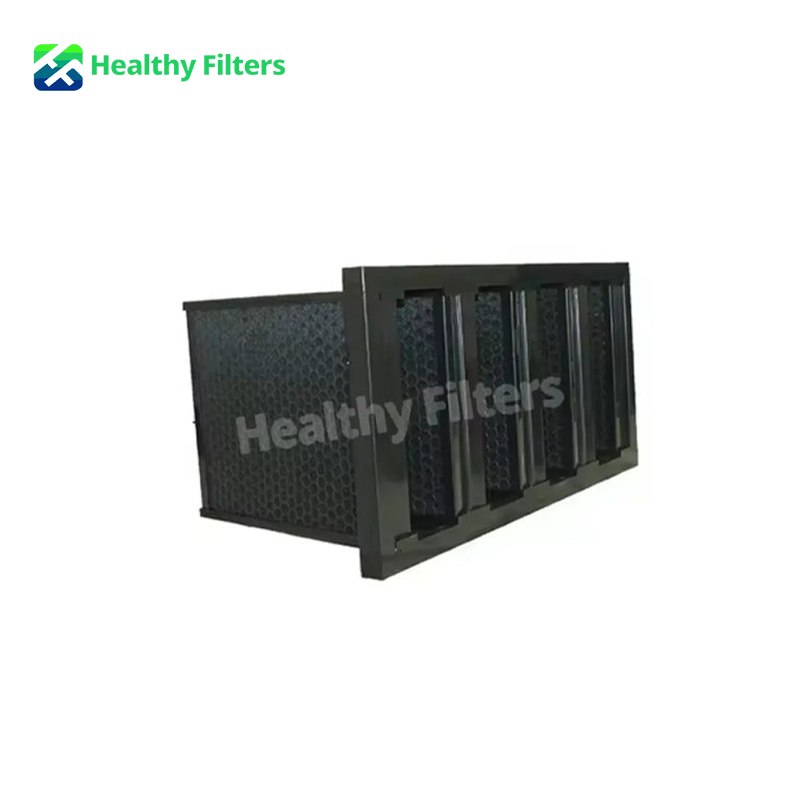

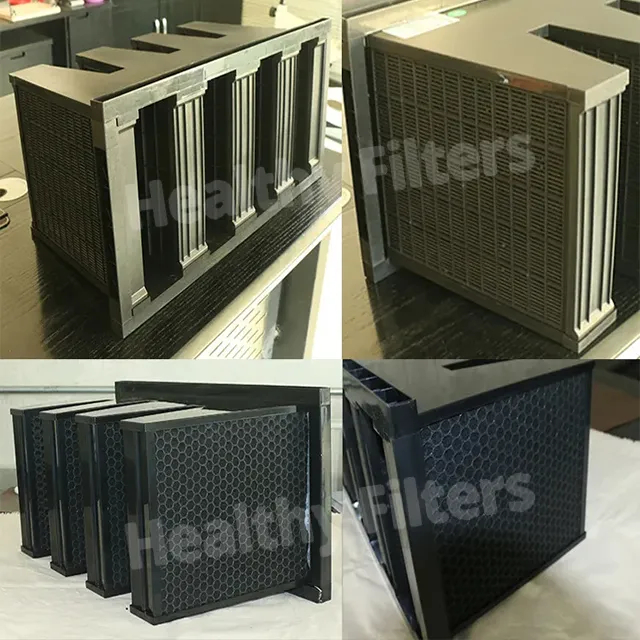

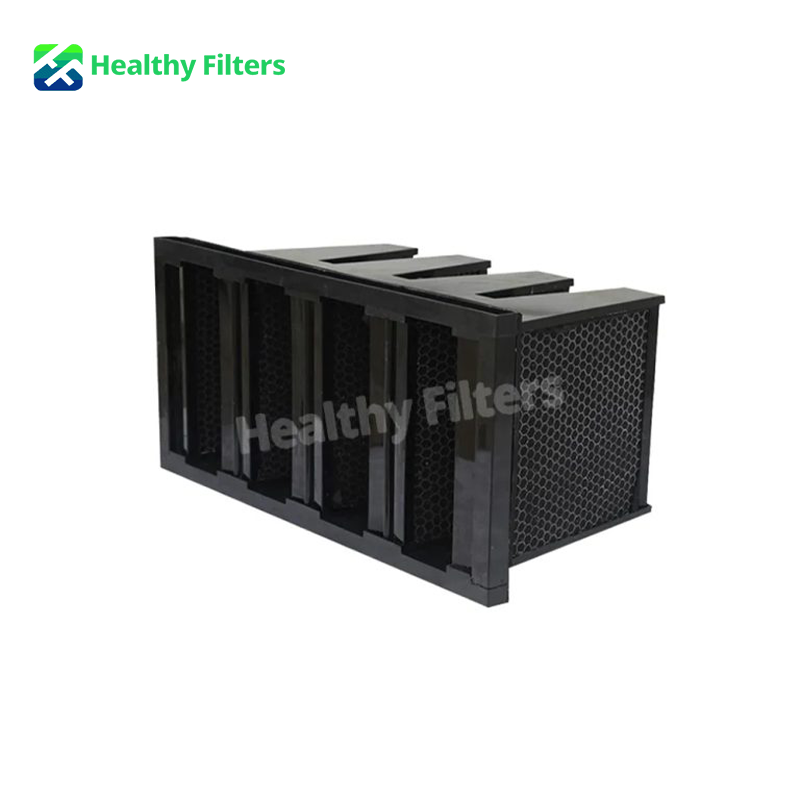

V Bank Activated Carbon Pleated Media Compact Air Filter Industrial Chemical Odor Removal 4V-Cell
V Bank Activated Carbon Pleated Media Compact Air Filter Industrial Chemical Odor Removal 4V-Cell
Features
- Activated carbon media for odor and gas-phase contaminant adsorption
- Suitable for selected VOC and chemical odor reduction
- Compact 4V and 5V filter configurations
- Large effective media area
- High adsorption capacity
- F8, H10 and H13 filtration options
- Combined particulate and gas-phase filtration available
- Stable performance under high airflow
- Rigid V-bank structure prevents media deformation
- Low-maintenance replaceable filter design
- Multiple frame configurations for different environments
- Suitable for standard AHU filter housings
- Standard and custom dimensions available
- Factory inspection before shipment
- OEM and private-label production supported
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description
The V-Bank Activated Carbon Filter is designed for gas-phase contaminant control and high-capacity air treatment in commercial HVAC systems, industrial ventilation units, laboratories and other facilities exposed to odors or low-concentration gaseous pollutants.

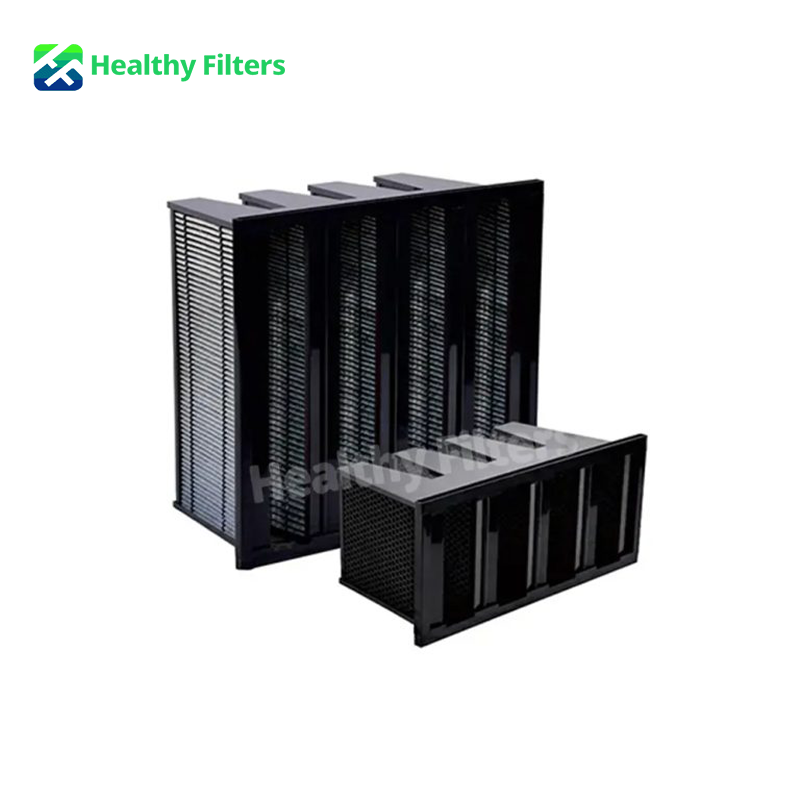

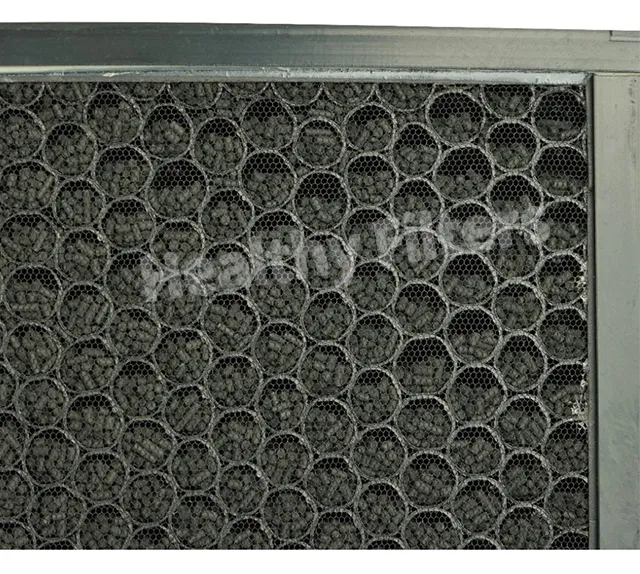

Its compact 4V or 5V structure provides a large effective media area within a limited installation depth. Activated carbon media adsorbs odors, selected volatile organic compounds and other gaseous contaminants, while optional F8, H10 or H13 particulate filtration configurations provide combined particle and gas-phase air treatment.
The rigid V-cell construction supports high airflow operation and helps maintain stable media positioning under demanding HVAC conditions. Standard and customized sizes are available for new air-handling equipment, retrofit projects and OEM filtration systems.
Technical Parameters
| Type | DimensionsW*H*D(mm) | Filter Area | Structure | Initial resistance&airflow(Pa&m3/h) | ||
| HF-HV | F8 | H10 | H13 | |||
| 287*592*292 | 8.4 | FlangedType(4V) | 90&1600 | 180&1600 | 240&1600 | |
| 592*592*292 | 18.8 | 90&3200 | 180&3200 | 240&3200 | ||
| 305*610*292 | 13.5 | Box Type(5V) | 90&1800 | 180&180 | 240&1800 | |
| 610*610*292 | 27 | 90&3600 | 180&3600 | 240&3600 | ||
Standard Model Options
| Item | Description |
|---|---|
| Product Name | V-Bank Activated Carbon Air Filter |
| Model Series | HF-HV |
| Product Type | Gas-Phase and Particulate Compact Filter |
| Carbon Media | Activated Carbon Fiber or Activated Carbon Composite |

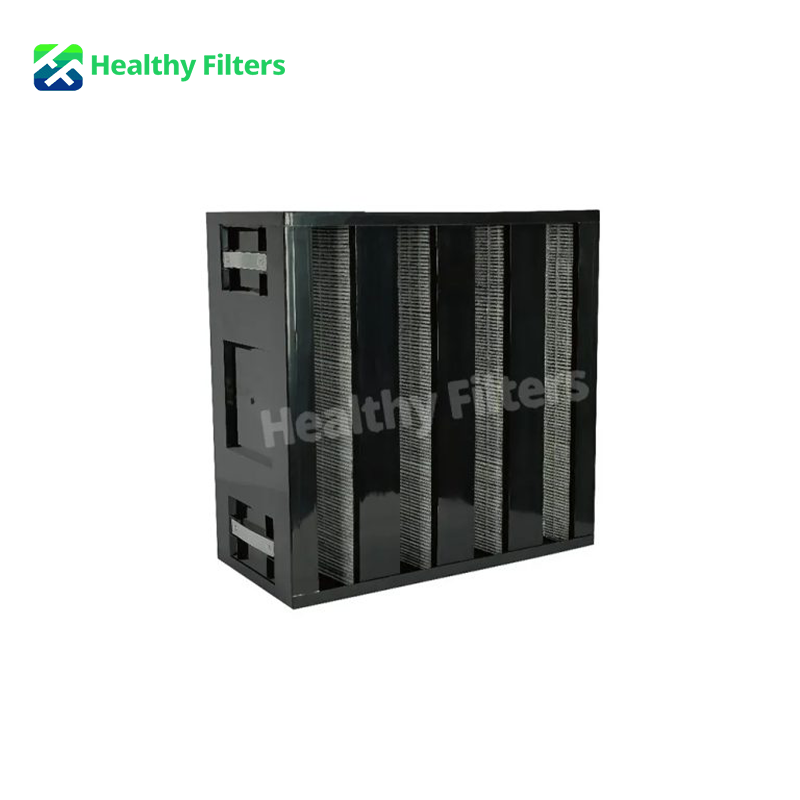

| Structure | 4V Flanged Type / 5V Box Type |
| Filtration Options | F8 / H10 / H13 |
| Main Function | Odor, VOC and Gaseous Contaminant Control |
| Additional Function | Fine-Particle Filtration |
| Standard Depth | 292 mm |
| Frame Type | Flanged or Box Construction |
| Filter Area | 8.4–27 m², depending on model |
| Installation Position | AHU Intermediate or Final Air-Treatment Stage |
| Recommended Pre-Filter | G3/G4 or Medium-Efficiency Pre-Filter |
| Custom Sizes | Available |
| OEM / ODM | Supported |
Applications
| Commercial Buildings | Hospitals & Laboratories | Industrial & Chemical Facilities | Airports & Public Facilities |
|---|---|---|---|
| Used in offices, hotels and shopping centers to reduce odors and improve indoor air quality in central HVAC systems. | Suitable for healthcare, laboratory and research ventilation where both particle and odor control may be required. | Applied in manufacturing plants, chemical areas and process ventilation systems exposed to selected low-concentration gaseous pollutants. | Used in airports, stations and public buildings where outdoor pollution, traffic odors or high occupant loads affect air quality. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom filter width, height and depth • 4V or 5V structure • Flanged or box-type frame • F8, H10 or H13 particulate configurations • Activated carbon type and loading • Impregnated carbon for selected gases • Custom media-pack quantity and V angle • Airflow and pressure-drop optimization • Frame material and color selection • Gasket and sealing configuration • Development from drawings or samples • Custom labels, model numbers and barcodes • Private-label and neutral export packaging • Bulk OEM production |
• Incoming inspection of carbon and filter media • Carbon loading and distribution verification • Frame dimension and squareness inspection • V-pack angle and spacing inspection • Media-pack sealing and bonding checks • Rated airflow and initial pressure-drop testing • Particulate efficiency testing upon request • Adsorption performance testing upon request • Leakage and bypass inspection • Structural-strength and handling inspection • Visual inspection for media or carbon loss • Packaging and labeling verification • Batch traceability and pre-shipment sampling |
