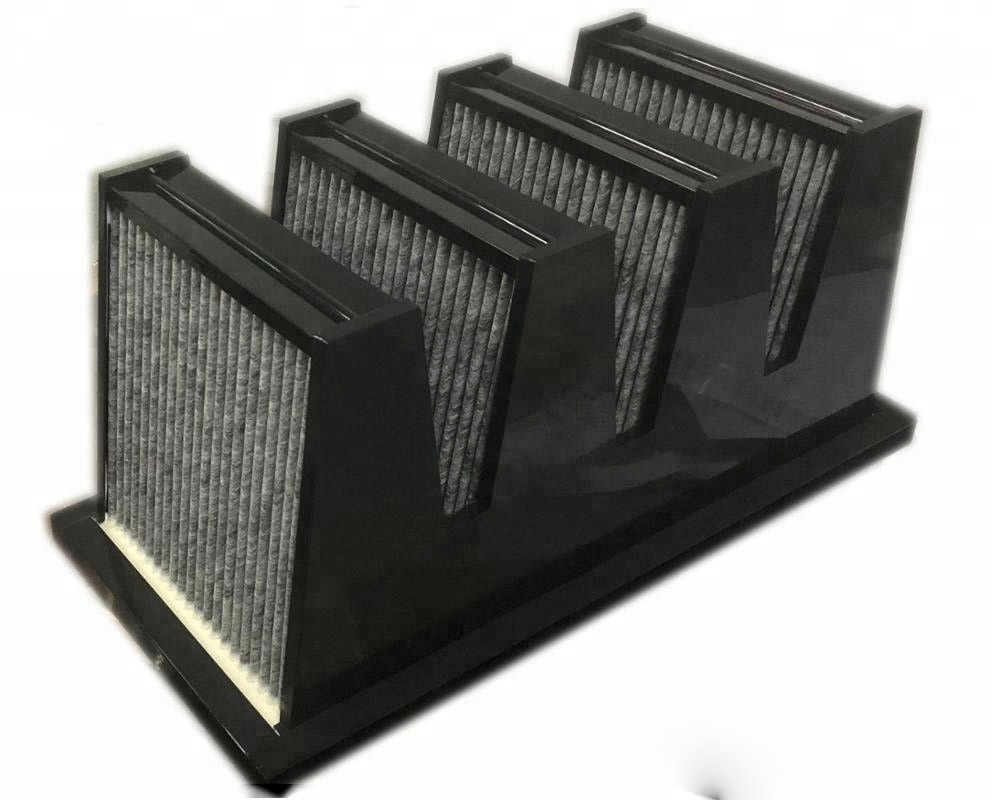

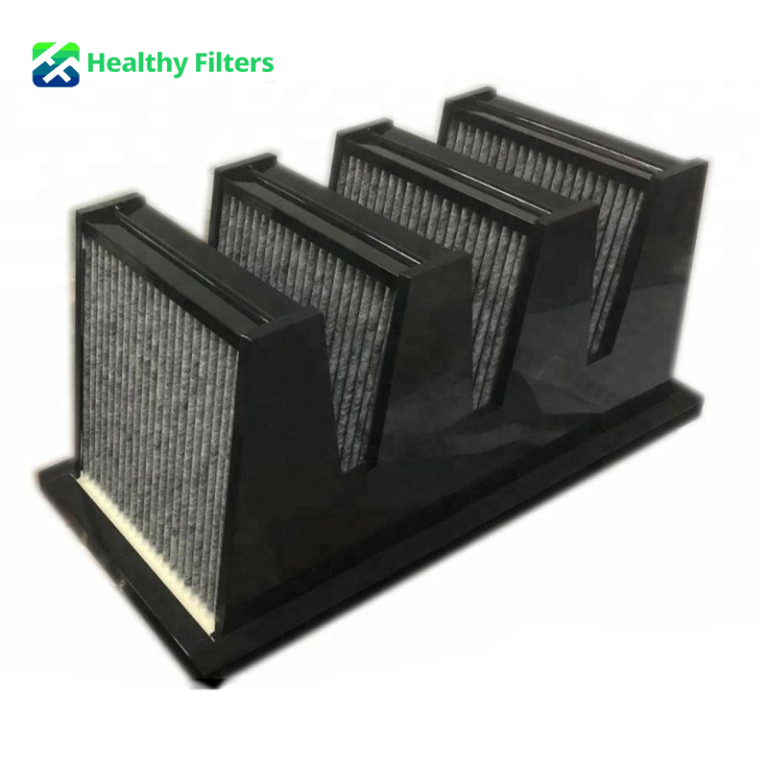

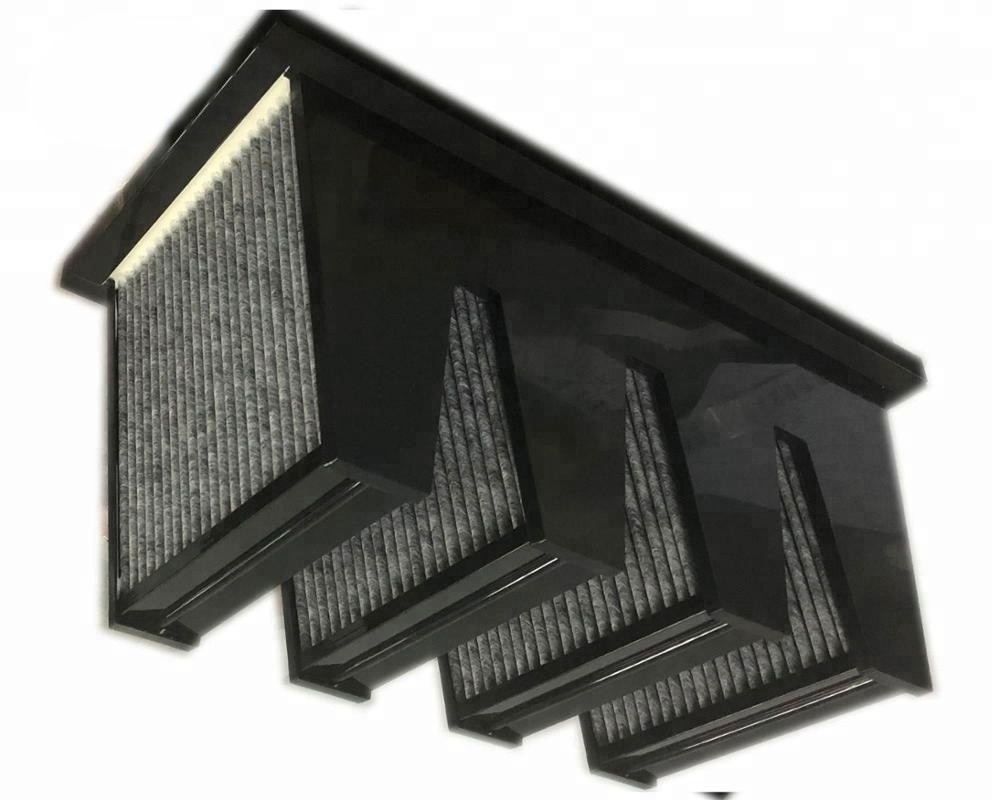

V-Bank Filter Clean Room HEPA Filter for Ventilation and Air Conditioning System
V-Bank Filter Clean Room HEPA Filter for Ventilation and Air Conditioning System
Features
- High-capacity activated carbon media for gas-phase filtration
- Efficient removal of odors, VOCs, benzene, formaldehyde, and harmful gases
- V-bank design maximizes airflow while reducing pressure loss
- Large filtration surface area for extended service life
- High dust holding capacity with stable airflow performance
- Excellent adsorption efficiency exceeding 90%
- Durable plastic or galvanized steel frame options
- Low operating resistance reduces HVAC energy consumption
- Easy installation and replacement
- OEM & ODM manufacturing supported
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description

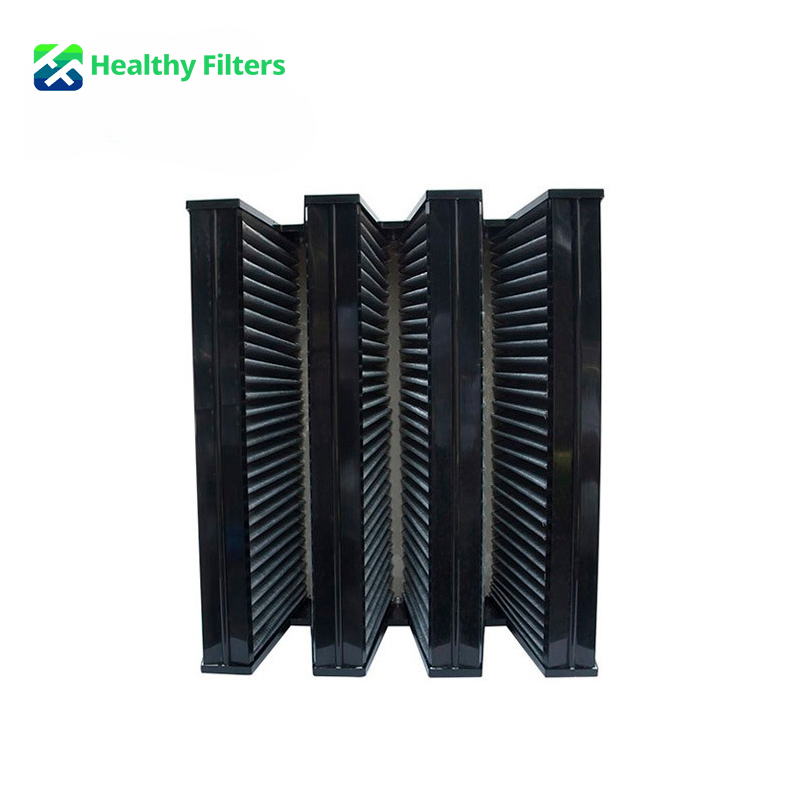

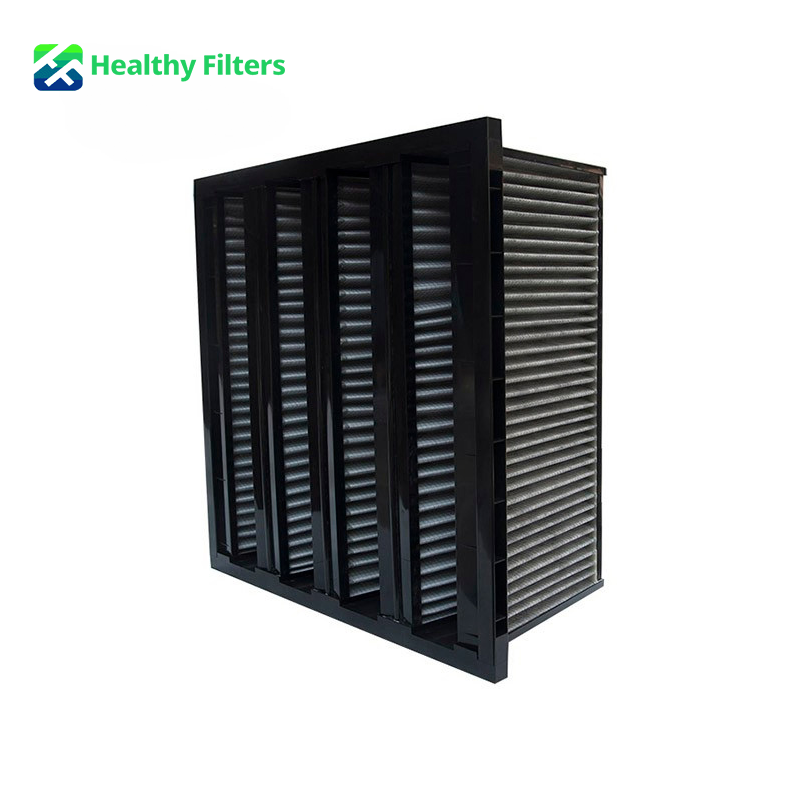

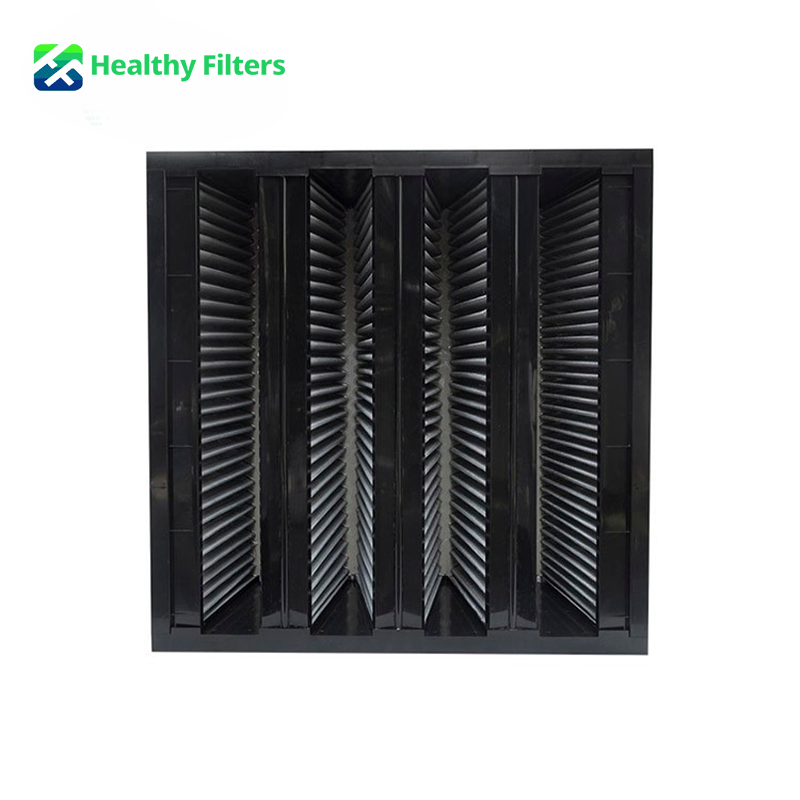

The V-Bank Activated Carbon Air Filter is specifically engineered for HVAC systems requiring high airflow and efficient molecular filtration. Its deep V-bank structure significantly increases the available filtration surface compared to conventional panel filters, enabling greater airflow capacity while maintaining a low pressure drop.
The premium activated carbon media effectively adsorbs odors, volatile organic compounds (VOCs), benzene, formaldehyde, sulfur compounds, ammonia, and other gaseous pollutants. This makes it an ideal solution for improving indoor air quality in environments where airborne gases are a primary concern.
Designed for long-term operation, the rigid frame construction ensures structural stability even under demanding ventilation conditions. Multiple frame materials, carbon media options, and airflow capacities are available to meet different project requirements.
Technical Parameters
| Model | Size
(mm) |
CMH | I.N.P
(Pa) |
Comprehensive
adsorption Rate (%) |
CTC
(%) |
Benzene
(%) |
Deodorizing
Performance (30mins) |
Frame material | Structure |
| ACVB7705FP-4V | 592*592*292-4V | 2000/3400 | <55/90 | >90% | >50% | >60% | >95% | Plastic | Single flange |
| ACVB7505FP-4V | 592*492*292-4V | 1500/2800 | <55/90 | >90% | >50% | >60% | >95% | Plastic | Single flange |
| ACVB7105FP-4V | 592*287*292-4V | 1000/1800 | <55/90 | >90% | >50% | >60% | >95% | Plastic | Single flange |
| ACVB8805FM-5V | 610*610*292-5V | 2600/4200 | <55/90 | >90% | >50% | >60% | >95% | Galvanized | Single flange |
| ACVB8805FM-4V | 610*610*292-4V | 2000/3400 | <55/90 | >90% | >50% | >60% | >95% | Galvanized | Single flange |
| ACVB8205FM-4V | 610*305*292-4V | 1000/1700 | <55/90 | >90% | >50% | >60% | >95% | Galvanized | Single flange |
| ACVB8805M-5V | 610*610*292-5V | 2600/4200 | <75/120 | >90% | >50% | >60% | >95% | Galvanized | Box |
| ACVB8805M-4V | 610*610*292-4V | 2000/3400 | <85/130 | >90% | >50% | >60% | >95% | Galvanized | Box |
| ACVB8205M-4V | 610*305*292-4V | 1000/1700 | <95/140 | >90% | >50% | >60% | >95% | Galvanized | Box |
Standard Model Options
| Item | Description |
|---|---|
| Product Name | V-Bank Activated Carbon Air Filter |
| Filter Type | Molecular Air Filter |
| Structure | Multi V-Bank |
| Filter Media | Activated Carbon Composite Media |
| Frame Material | Plastic / Galvanized Steel |
| Filtration Function | Gas Adsorption & Odor Removal |
| Carbon Type | Coconut Shell / Coal-Based / Impregnated Carbon |
| Installation | AHU / HVAC Systems |
| Temperature Resistance | ≤100°C |
| Humidity Resistance | ≤80% RH |
| OEM / ODM | Available |
Applications
| Commercial HVAC & Office Buildings | Healthcare, Laboratories & Cleanrooms | Industrial Gas & Odor Control | Public Facilities & Transportation Hubs |
|---|---|---|---|
| Designed for central HVAC systems in office buildings, shopping malls, schools, and commercial facilities to remove odors, VOCs, and gaseous contaminants while improving indoor air quality. | Suitable for hospitals, pharmaceutical production, laboratories, electronics manufacturing, and cleanrooms where molecular filtration helps reduce chemical pollutants and airborne odors. | Ideal for printing plants, paint shops, chemical processing, food manufacturing, wastewater treatment facilities, and industrial exhaust systems requiring efficient gas adsorption. | Installed in airports, railway stations, exhibition centers, hotels, museums, and public venues to maintain a fresh indoor environment by reducing unpleasant odors and volatile organic compounds. |
Customization & Quality Control
| Customization Services | Quality Assurance & Inspection |
|---|---|
| • Custom dimensions, depths, and V-bank configurations (4V / 5V / 6V) • Plastic, galvanized steel, or stainless steel frame options • Coconut shell, coal-based, impregnated, or specialty activated carbon media • Customized adsorption performance for VOCs, formaldehyde, ammonia, sulfur compounds, and other target gases • Adjustable carbon loading and media density • Low-pressure-drop designs for energy-efficient HVAC systems • OEM logo printing, labeling, and private packaging • Production based on customer drawings or technical specifications • Export-ready packaging solutions • Bulk OEM manufacturing with flexible MOQ |
• Incoming inspection of activated carbon media and frame materials • Carbon activity and adsorption consistency verification • V-bank assembly and dimensional accuracy inspection • Pressure drop and airflow performance testing • Comprehensive adsorption efficiency validation • Deodorization and gas adsorption testing (optional) • Seal integrity and structural strength inspection • Appearance, labeling, and packaging verification • Batch traceability throughout production • Final quality inspection prior to shipment |
