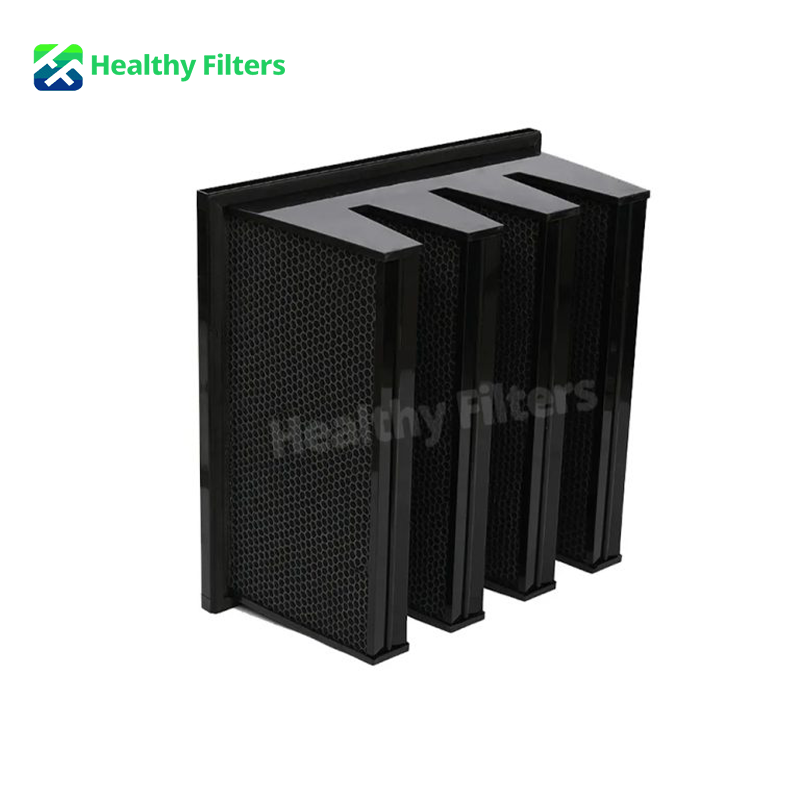

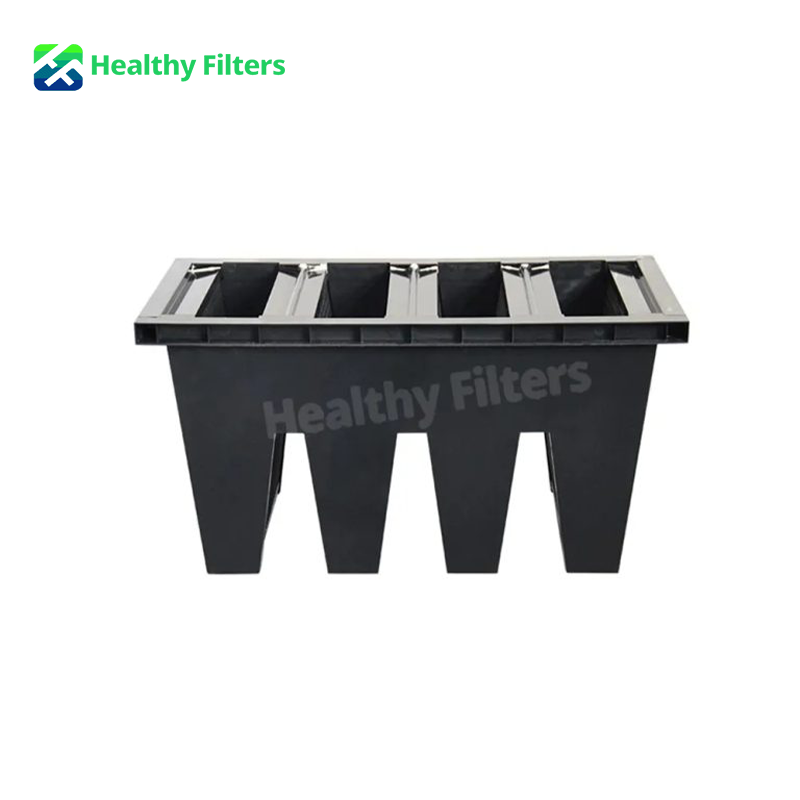

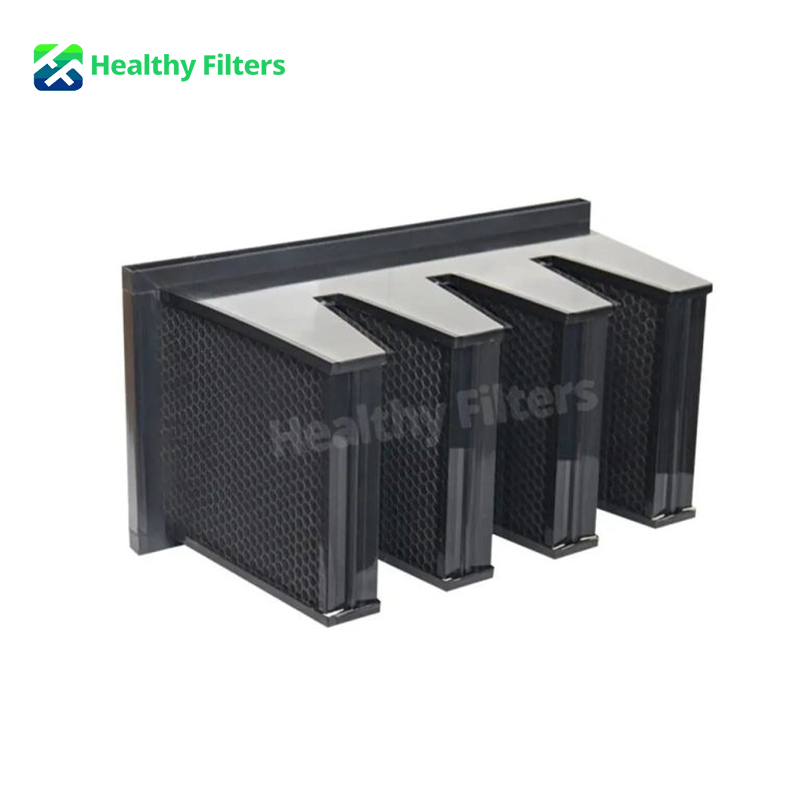

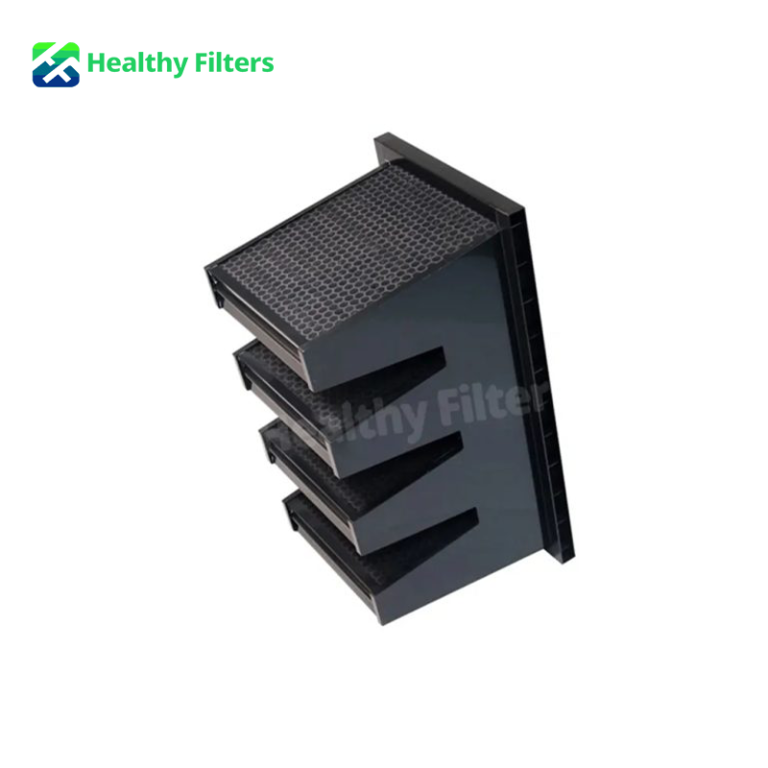

Activated V Bank Activated Carbon Filter Combined V Bank Air Filters for Plastic Activated Filter
Activated V Bank Activated Carbon Filter Combined V Bank Air Filters for Plastic Activated Filter
Features
- Activated carbon pellet media for gas and odor adsorption
- Designed to reduce selected chemical gases and VOCs
- Compact V-bank structure provides a large adsorption area
- Multiple interconnected carbon panels
- Lightweight, corrosion-resistant plastic frame
- Low airflow resistance for HVAC and process-air systems
- Optional upstream pre-filter for particulate protection
- Optional downstream post-filter for carbon-dust retention
- Helps reduce premature carbon blockage
- Suitable for demanding industrial environments
- Easy to install and replace
- Custom size and V-cell quantity available
- Different carbon types and impregnation options supported
- OEM and private-label manufacturing available
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description
The V-bank air filter serves as a second stage filtration in air handling units and is used as the final stage filtration in some commercial ventilation systems. It effectively removes fine dust particles larger than 0.5 microns, with efficiency ratings ranging from 65% to 95% depending on the grade.
The V-bank air filter provides excellent airflow rates with relatively low resistance. It also boasts a high dust-holding capacity. The mini pleat filter pack maximizes the filter area, and the V-bank construction allows for more filter media packs to be installed within a given housing.
An activated carbon filter, also known as a charcoal filter, is a type of air or water filter that uses activated carbon to remove impurities and contaminants. Activated carbon is a form of carbon that has been treated with oxygen to create millions of tiny pores between the carbon atoms. This increases its surface area and makes it highly effective at adsorbing impurities.
Technical Parameters
| Type | Carbon V-Bank |
| Frame | Plastic |
| Features | Contaminants Removed by Activated Carbon |
| Media Type | Activated Carbon |
| Size | Customizable |
Standard Model Options
| Item | Description |
|---|---|
| Product Name | V-Bank Activated Carbon Filter |
| Product Type | Gas-Phase Adsorption Air Filter |
| Structure | Multi-Panel V-Bank |
| Frame Material | Engineering Plastic |
| Filter Media | Activated Carbon Pellets |
| Primary Function | Chemical Gas, VOC and Odor Removal |
| Optional Pre-Filter | Available |
| Optional Post-Filter | Available |
| Airflow Characteristic | Low Resistance |
| Carbon Panel Quantity | Customizable |
| Filter Dimensions | Customizable |
| Installation Position | AHU or Process-Air Gas Filtration Stage |
| Replacement Type | Replace When Carbon Is Saturated |
| OEM / ODM | Supported |
Applications
| Microelectronics & Semiconductor | Pharmaceutical & Laboratory Facilities | Chemical & Environmental Systems | Light Industrial Ventilation |
|---|---|---|---|
| Used in process-air and cleanroom-support systems to reduce selected gaseous contaminants that may affect sensitive production. | Suitable for laboratory exhaust treatment, pharmaceutical support areas and controlled ventilation systems requiring odor or gas reduction. | Applied in environmental treatment equipment and industrial air systems exposed to low-concentration chemical pollutants. | Used in workshops, manufacturing facilities and general process ventilation where nuisance odors or VOCs must be controlled. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom width, height and depth • Custom V-cell quantity and spacing • Different activated carbon pellet types • Customized carbon loading • Impregnated carbon for selected gases • Optional upstream and downstream particulate layers • Plastic frame material and structural adjustment • Airflow and pressure-drop optimization • Gasket and sealing configuration • Development from drawings or physical samples • Custom model numbers, labels and barcodes • Neutral and private-label packaging • Bulk OEM manufacturing |
• Incoming inspection of activated carbon and frame materials • Carbon particle-size and appearance verification • Carbon loading and distribution inspection • Frame dimension and squareness checks • V-cell spacing and panel-position inspection • Media and panel sealing verification • Initial pressure-drop testing • Rated airflow verification • Adsorption testing upon request • Carbon-dust shedding inspection • Structural-strength and handling checks • Packaging and labeling verification • Batch traceability and pre-shipment sampling |

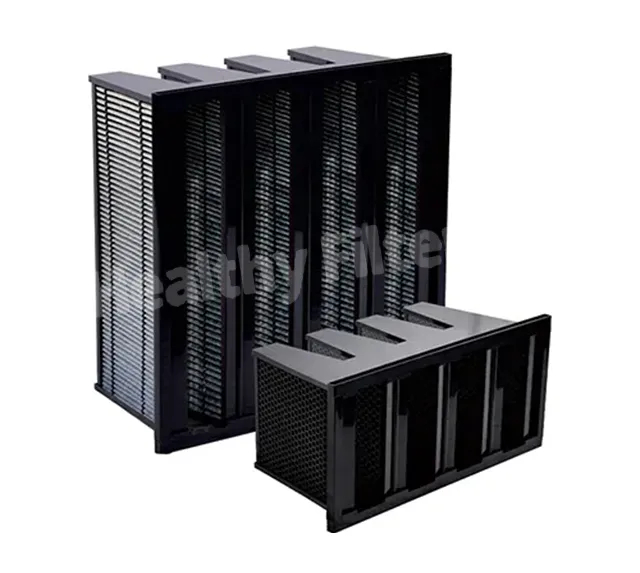

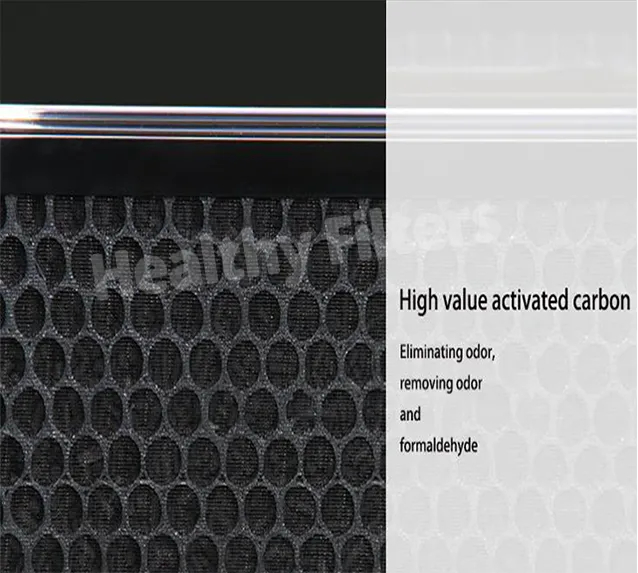

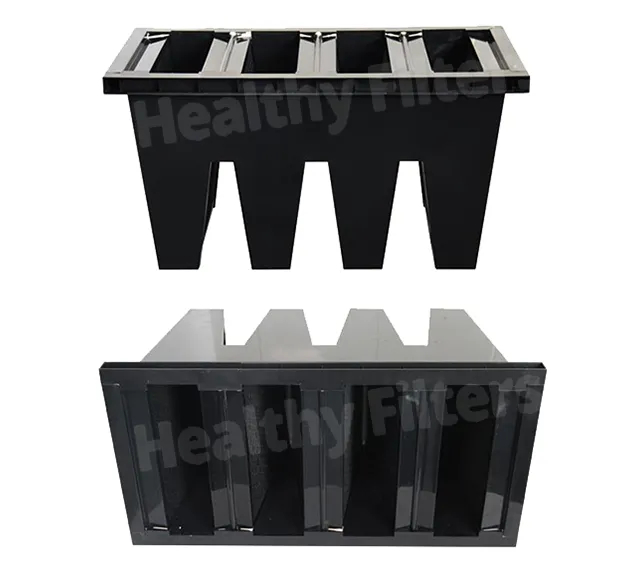

PRODUCT DETAILS
 |
 |
 |
RELATED PRODUCT
✔ High-capacity V-bank pleated design
✔ Premium granular activated carbon media
✔ Excellent VOC and odor removal pe...

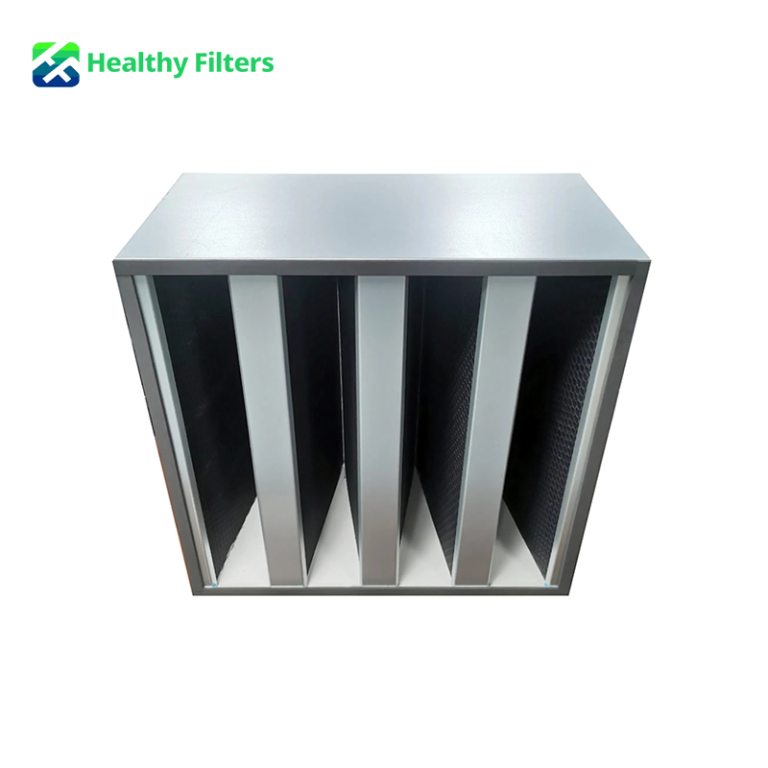

High-efficiency micro fiberglass filter media
Available in MERV 12, MERV 13, MERV 14, MERV 15 and MERV 16
V-bank de...

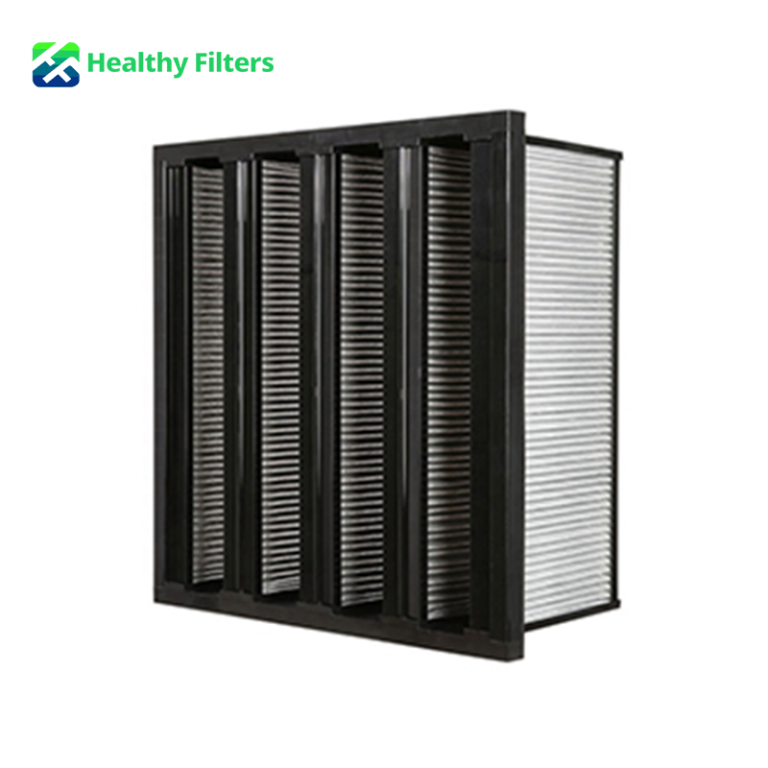

V Bank Activated Carbon Filter The outer frame is made of ABS plastic frame or galvanized frame, with...
