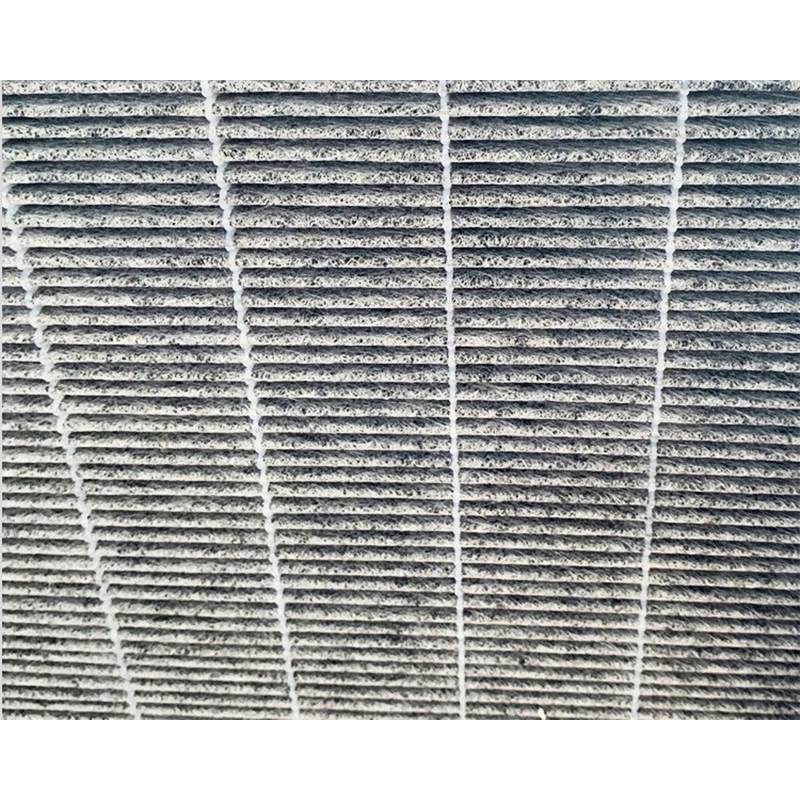

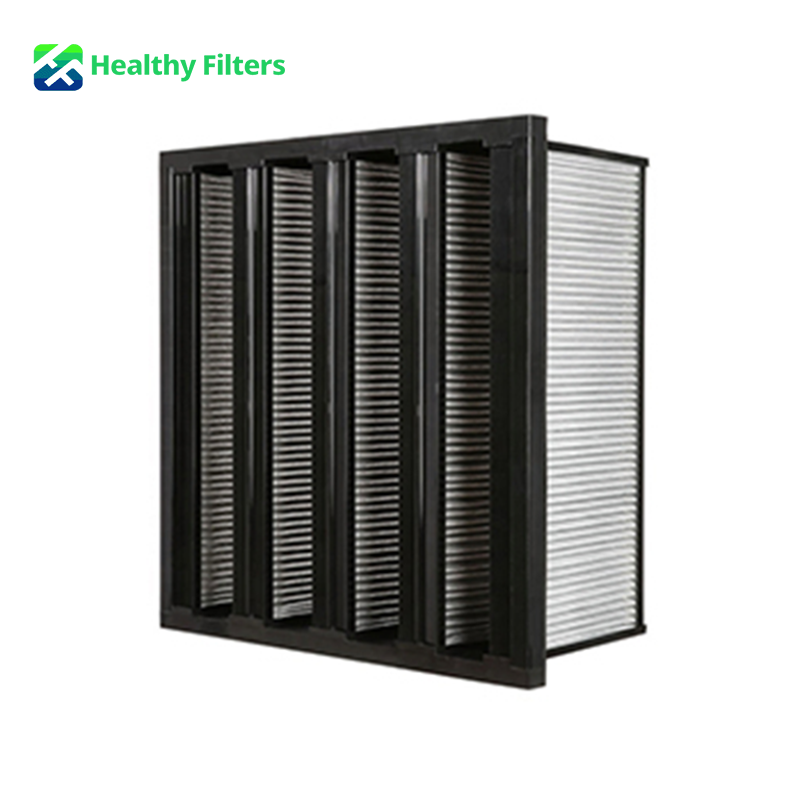

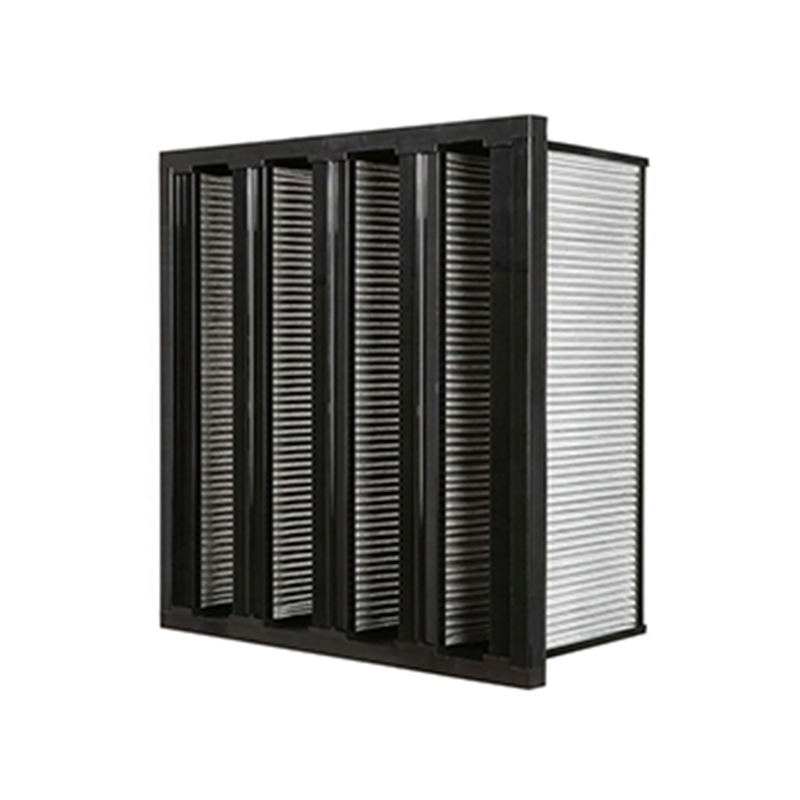

4V V Bank Activated Carbon Air Filter with Galvanized Frame
4V V Bank Activated Carbon Air Filter with Galvanized Frame
Features
V Bank Activated Carbon Filter The outer frame is made of ABS plastic frame or galvanized frame, with beautiful appearance and convenient installation. The materials can be customized according to needs.
Melt blown composite materials, glass fiber and PTFE are used,
low resistance, large dust capacity, high efficiency and firmness.
V-shaped structure design, large filtering area, large dust capacity, small resistance, can reduce costs, and can be used in windy environment.
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description
The V Bank Activated Carbon Filter is specifically designed for ventilation systems requiring both high airflow and effective gas adsorption. Its deep V-shaped configuration significantly increases the effective filtration area compared with conventional panel filters, resulting in higher airflow capacity, lower resistance, and longer operational life.
The activated carbon media efficiently removes odors, volatile organic compounds (VOCs), smoke, formaldehyde, sulfur compounds, ammonia, and other gaseous pollutants. The rigid V-bank construction minimizes airflow turbulence while ensuring consistent filtration performance even under demanding operating conditions.
Available in multiple sizes and carbon media options, this filter can be customized for various commercial, industrial, and institutional HVAC systems.
Technical Parameters
| Nominal size(inch)
W×H×D |
Actual size
(mm) W×H×D |
Model | (Pa) | Comprehe
nsiveadsorption Rate(%) |
Partition
(V) |
Rated air volume
(m3/h) |
| 12×24×12 | 287×592×292 |
MA600
|
80
|
>90% | 2V | 1200 |
| 24×12×12 | 592×287×292 | MA800 |
110
|
>90% | 4V | 1200 |
| 24×20×12 | 592×492×292 | MA600 |
75
|
>90% | 4V | 2200 |
| 24×24×12 | 592×592×292 | MA800 |
100
|
>90% | 4V | 2700 |
| 12×24×12 | 305×610×292 | MA600 |
90
|
>90% | 2V | 1400 |
| 24×24×12 | 610×610×292 | MA800 |
120
|
>90% | 4V | 3000 |
Standard Model Options
| Item | Description |
|---|---|
| Product Name | V Bank Activated Carbon Air Filter |
| Filter Type | V Bank Gas Phase Air Filter |
| Frame Material | Galvanized Steel / ABS Plastic |
| Filter Media | Activated Carbon Composite Media |
| Structure | Multi V-Bank Configuration |
| Filtration Function | Odor Removal & Gas Adsorption |
| Carbon Type | Coconut Shell / Coal-Based / Impregnated Carbon (Optional) |
| Filtration Grade | Primary / Molecular Filtration |
| Operating Temperature | ≤80°C |
| Installation | HVAC Air Handling Units (AHU) |
| OEM / ODM | Available |
Applications
| Commercial HVAC Systems | Healthcare & Cleanroom Facilities | Industrial Manufacturing Plants | Public Buildings & Transportation Hubs |
|---|---|---|---|
| Installed in office buildings, shopping malls, schools, and commercial ventilation systems to remove odors, VOCs, and airborne gaseous pollutants while improving indoor air quality. | Suitable for hospitals, pharmaceutical plants, laboratories, and cleanrooms requiring reliable molecular filtration to reduce chemical odors and improve air cleanliness. | Widely used in electronics manufacturing, food processing, printing, painting, chemical plants, and industrial workshops to control exhaust gases and unpleasant odors. | Ideal for airports, railway stations, exhibition centers, hotels, theaters, and other high-traffic public facilities where fresh, odor-free air is essential for occupant comfort. |
Customization & Quality Control
| Customization Services | Quality Assurance & Inspection |
|---|---|
| • Custom filter dimensions and V-bank configurations (2V–6V) • Galvanized steel, ABS plastic, or stainless steel frame options • Coconut shell, coal-based, bamboo, or impregnated activated carbon media • Adjustable carbon loading for different adsorption capacities • Customized airflow, pressure drop, and filtration performance • Multiple filter depths and thickness options • OEM logo printing and private label packaging • Export carton and pallet packaging customization • Production according to customer drawings or samples • Bulk manufacturing with flexible MOQ support |
• Incoming inspection of frame materials and activated carbon media • Carbon loading uniformity and media distribution verification • V-bank assembly strength and dimensional accuracy inspection • Airflow and initial pressure drop performance testing • Structural integrity and sealing inspection • Appearance and workmanship verification • Optional gas adsorption performance testing upon request • Packaging integrity and labeling inspection • Batch traceability and production record management • Final quality inspection before shipment |
