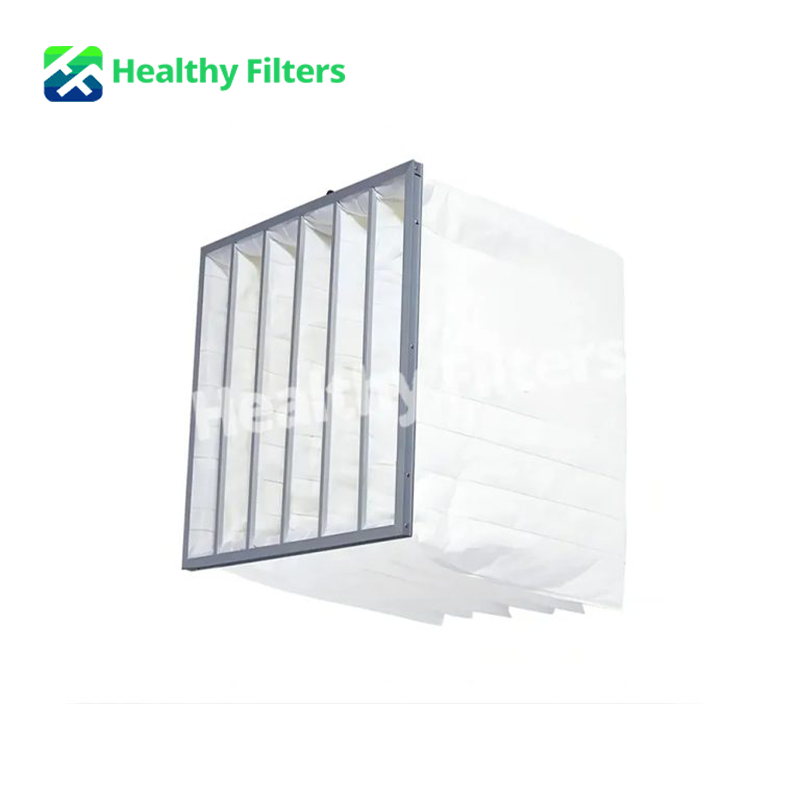

Synthetic Fiber Pocket Filters Bag Air Filter G3 G4 F5 F6 F7 F8 F9 With Aluminum Frame For HVAC AC
Synthetic Fiber Pocket Filters Bag Air Filter G3 G4 F5 F6 F7 F8 F9 With Aluminum Frame For HVAC AC
Features
The Synthetic Fiber Pocket Medium Filter is offered in various efficiency ratings, spanning from low to high, according to specific filtration requirements. It is widely employed in HVAC systems of residential, commercial, and industrial establishments to deliver fresh and healthy air for occupants. This filter is crucial in minimizing the likelihood of respiratory problems and enhancing indoor air quality.
- Premium Quality Material: Constructed with durable synthetic fiber for long-lasting performance.
- High Dust Capacity: Designed to capture and retain a large volume of dust particles, ensuring efficient filtration.
- Efficient Filtration: Filters out airborne contaminants, including dust, pollen, and pet dander, to maintain a healthier indoor environment.
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.

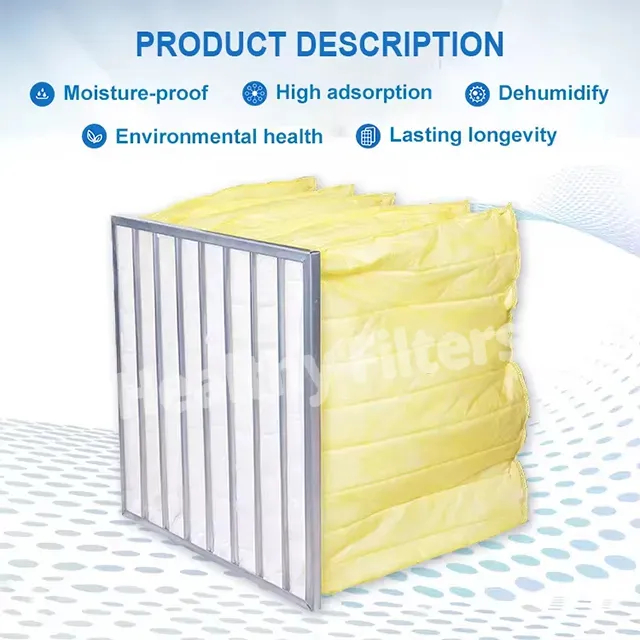

Description
Bag type medium-effect filter is used in the intermediate filtration of air-conditioning system, which can better protect the next level of filter and the system itself. Bag filter is characterized by large filtration area, large dust capacity, small resistance and large ventilation; the frame and support bracket can be reused, and only the filter bag needs to be replaced when replacing the filter, and it is convenient and quick to greatly reduce the running cost of the enterprise. Bag filter with its unique bag structure ensures that the airflow is balanced to fill the whole bag, which can prevent overcrowding or leakage between the bags, thus reducing the resistance and making the dust capacity reach a large amount, and the reinforcing wire can prevent the filter from being deformed or coming out of the frame under the extremely poor working environment.
- Frame: Galvanized steel /Aluminium profile/ Stainless steel / Plastic
- Media: Synthetic fiber
- Std. EN779: 2012: F5-F9
- Std. ASHRAE 52.2-2007: MERV10-MERV16
- Color: Orange / Green / Pink / Yellow / White
- Maximum temperature: 93ºC
Technical Parameters
| Product | Bag Filter |
| Medium material | Synthetic Fiber/ melt blown |
| 6 pockets(Customizable) | |
| Standard | According to EN779 standard |
| Dimension | Customizable |
| Range | F9 |
| Color | White（customizable） |
| OEM | Welcome |
| Frame | Aluminum or Galvanized |
Standard Model Options
| Item | Specification |
|---|---|
| Product Name | Synthetic Fiber Pocket Bag Filter |
| Product Type | Medium-Efficiency HVAC Bag Filter |
| Model Series | HF-PBF |
| Filter Media | Synthetic Fiber / Melt-Blown Composite |
| Available Grades | M5 / M6 / F7 / F8 / F9 |
| Standard Grade Shown | F9 |
| Standard Pocket Quantity | 6 Pockets |
| Pocket Quantity | Customizable |
| Frame Options | Aluminum / Galvanized Steel / Stainless Steel / Plastic |
| Standard Color | White |
| Optional Colors | Orange / Green / Pink / Yellow / Customized |
| Standard | EN779:2012 |
| Reference Classification | MERV 10–16 |
| Maximum Temperature | 93°C |
| Dimensions | Customized |
| OEM / ODM | Available |
Applications
| Commercial HVAC Systems | Healthcare & Pharmaceutical Facilities | Industrial Ventilation | Pre-Filtration Before HEPA |
|---|---|---|---|
| Used in AHUs, central air-conditioning systems, offices, hotels, shopping malls, airports, schools, and public buildings. | Suitable for hospitals, laboratories, pharmaceutical production, clinics, and controlled indoor environments. | Applied in manufacturing plants, workshops, warehouses, electronics factories, food-processing facilities, and general ventilation systems. | Installed upstream of HEPA and other final filters to capture medium and fine particles, reduce downstream loading, and extend filter service life. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom filter width, height, and pocket depth • M5 / M6 / F7 / F8 / F9 grades • 4 / 6 / 8 pockets or project-specific quantity • Aluminum, galvanized steel, stainless steel, or plastic frames • White, orange, green, pink, yellow, or custom colors • Custom rated airflow and resistance requirements • Flange, gasket, and sealing options • OEM labels, branding, samples, and export packaging |
• Frame dimension and squareness inspection • Media grade and color verification • Pocket number, depth, and seam inspection • Media-to-frame sealing and air-leakage check • Rated airflow and initial-resistance testing • Filtration-efficiency testing upon request • Pocket stability and structural-strength inspection • Final appearance, labeling, and packaging inspection |

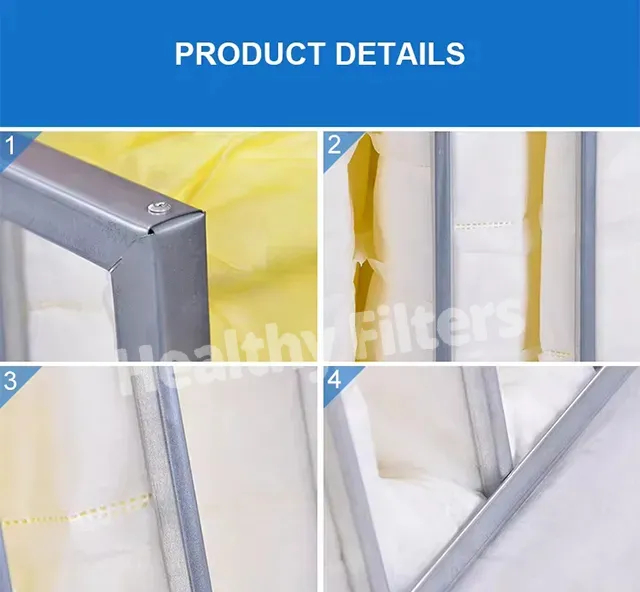

PRODUCT DETAILS
 |
 |
 |
