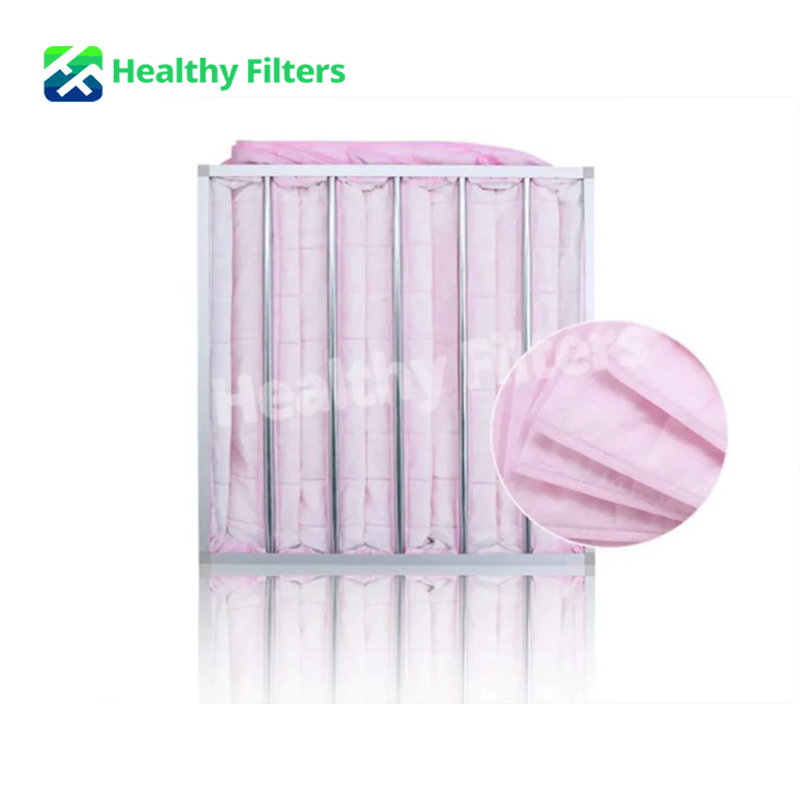

F7 Medium Efficiency Pocket Filter Bag Filter Pink Glass Fiber Bag Filter

F7 Medium Efficiency Pocket Filter Bag Filter Pink Glass Fiber Bag Filter

Features

Bag filter media is composed of synthetic non-woven fabric and consists of three layers. The initial layer captures larger dust particles in the air, followed by a layer that traps smaller dust particles, and finally, an outer protective layer. The use of ultrasonic welding technology ensures no air flow leakage due to wind areas, reduces resistance, and increases the capacity to retain dust.
  1. Wide Compatibility: Compatible with a variety of HVAC and AC systems, making them a versatile solution for different applications.
  2. Energy Efficiency: Optimized airflow design minimizes energy consumption, contributing to lower utility bills and environmental sustainability.
  3. Compliance: Compliance with industry standards for air filtration, ensuring peace of mind and regulatory adherence.

Fast Sampling Support

Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.

Advanced Production Equipment & Stable Quality

Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.

Mass Production & On-Time Shipment

Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.

ISO Standard Strict Quality Control

All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.

Description

Bag filter media is composed of synthetic non-woven fabric and consists of three layers. The initial layer captures larger dust particles in the air, followed by a layer that traps smaller dust particles, and finally, an outer protective layer. The use of ultrasonic welding technology ensures no air flow leakage due to wind areas, reduces resistance, and increases the capacity to retain dust.

Bag filters are an important part of any HVAC system and need to operate effectively and keep the air in your home healthy. This doesn’t mean you need to stick with standard filters, as these can be upgraded.

What are the benefits of a quality bag filter?

EASY TO USE: Using a bag filter is much easier than you might think. All you need to know is the mechanism of operation of the model and how to clean it. It helps if you don’t have to worry about bills either, as they don’t consume much electricity.
Remove Fly Ash: Fly ash is a gas that you don’t want to inhale, so you should filter it out of your home. A bag filter is ideal for this because it focuses on resistant particles.
More efficient HVAC: Different filters offer different levels of efficiency when it comes to filtration. Therefore, choosing a high-quality filter and maintaining it will ensure that your air quality remains clean and healthy.

Technical Parameters

Product Bag Filter
Medium material Synthetic Fiber/ melt blown
Certification ISO9001
Standard According to EN779 standard
Dimension Customizable
Range F7
Color Pink(customizable)
OEM Welcome
Frame Metal

Standard Model Options

Item Specification
Product Name F7 Medium Efficiency Pocket Bag Air Filter
Product Type Pocket Filter / Bag Filter
Filter Class F7
Filter Media Synthetic Fiber / Melt-Blown Media
Media Construction 2 / 3 / 4-Layer Composite Media
Optional Media Layers PP Fabric + Melt-Blown Fabric + Non-Woven Fabric
Frame Material Metal
Standard Color Pink
Custom Colors Available
Dimensions Customizable
Manufacturing Method Ultrasonic Welding
Filtration Stage Medium / Secondary Filtration
Standard According to EN779
Quality Management ISO 9001
OEM / ODM Available

Applications

Commercial HVAC & Air Conditioning Healthcare & Pharmaceutical Electronics & Precision Manufacturing High-Efficiency Pre-Filtration
Suitable for central air-conditioning systems, commercial buildings, offices, shopping centers, and other HVAC air handling applications. Used in hospitals, pharmaceutical facilities, medical environments, and other controlled spaces requiring reliable medium-stage air filtration. Suitable for electronics, computers, communications, optics, precision machinery, and controlled industrial production environments. Used as a secondary filter or high-efficiency pre-filter upstream of HEPA filters to reduce downstream dust loading and extend final-filter service life.

Customization & Quality Control

Customization Available Quality Inspection
• Custom width, height, and pocket depth
• Custom pocket quantity and configuration
• 2-, 3-, or 4-layer filter media options
• Synthetic fiber and melt-blown media combinations
• Custom filter color according to project requirements
• Custom metal frame dimensions
• OEM / ODM branding and private labeling
• Custom packaging and replacement filter specifications
• Incoming filter media inspection
• Media layer and material verification
• Frame dimensional accuracy inspection
• Pocket size and configuration inspection
• Ultrasonic weld and seam integrity inspection
• Airflow resistance and filtration performance testing
• Visual and structural quality inspection
• Final packaging inspection before shipment

PRODUCT DETAILS

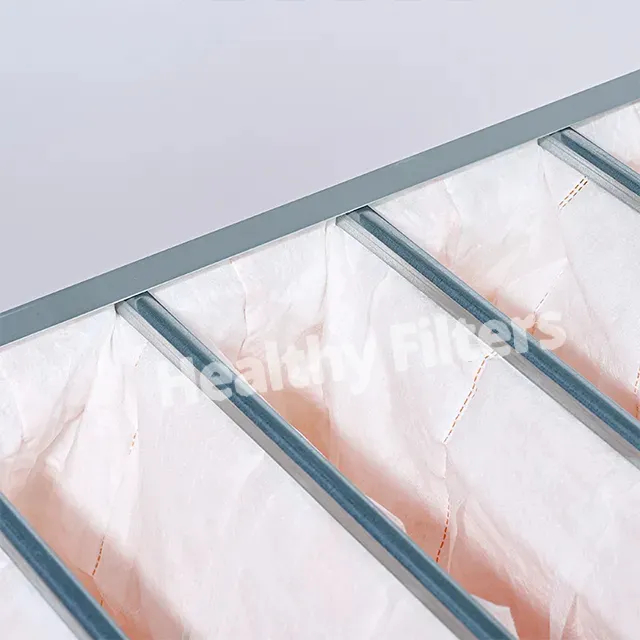

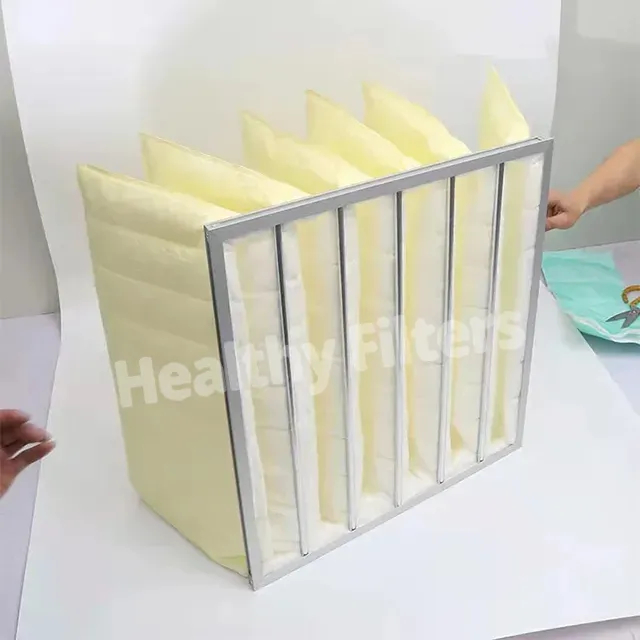

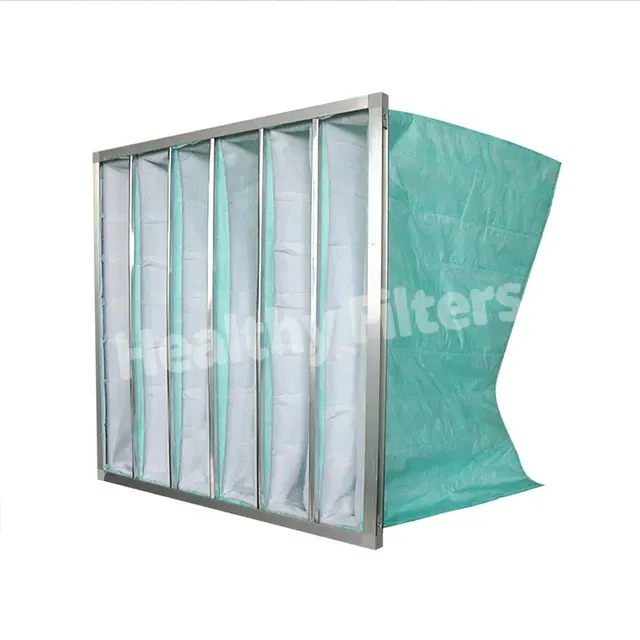

F7 Medium Efficiency Pocket Filter Bag Filter Pink Glass Fiber Bag Filter (1) F7 Medium Efficiency Pocket Filter Bag Filter Pink Glass Fiber Bag Filter (1) F7 Medium Efficiency Pocket Filter Bag Filter Pink Glass Fiber Bag Filter (1)
