Merv 11 12 13 14 15 ABS Galvanised Metal Frame PP Fiberglass HVAC System V Bank V-Shape HEPA Air Filters
Merv 11 12 13 14 15 ABS Galvanised Metal Frame PP Fiberglass HVAC System V Bank V-Shape HEPA Air Filters
Features
- Compact V-bank design with large filtration surface
- Available in H10, H11, H12, H13, and H14 efficiency grades
- Low pressure drop for reduced energy consumption
- High dust holding capacity for extended service life
- Strong ABS plastic or galvanized metal frame options
- PP synthetic media or fiberglass media available
- Stable airflow performance under continuous operation
- Lightweight yet durable construction
- Suitable for high-volume HVAC systems
- Multiple colors and frame materials available
- Easy installation and replacement
- OEM and customized production supported
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description

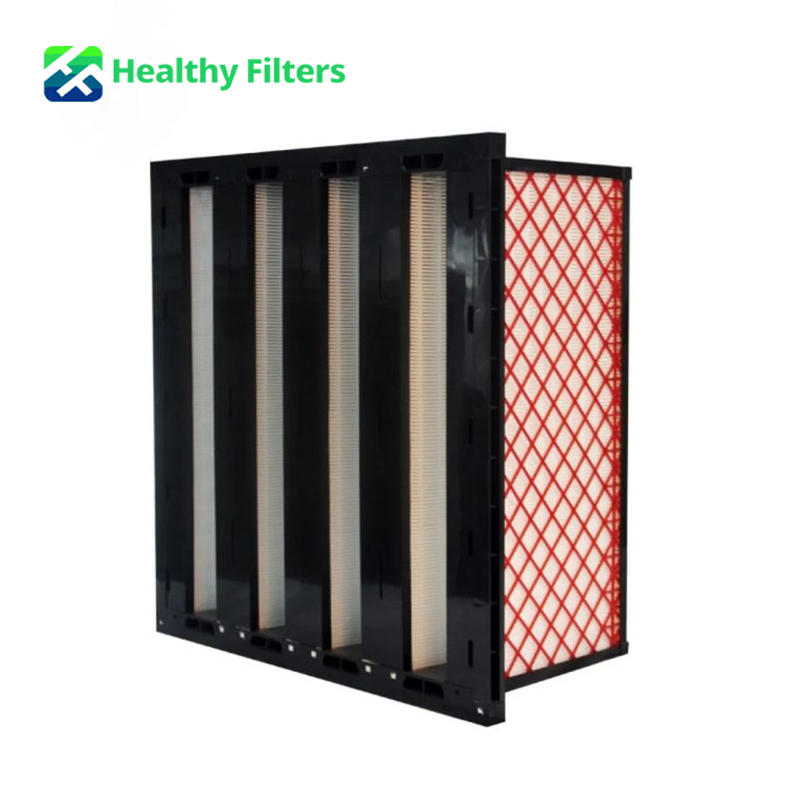

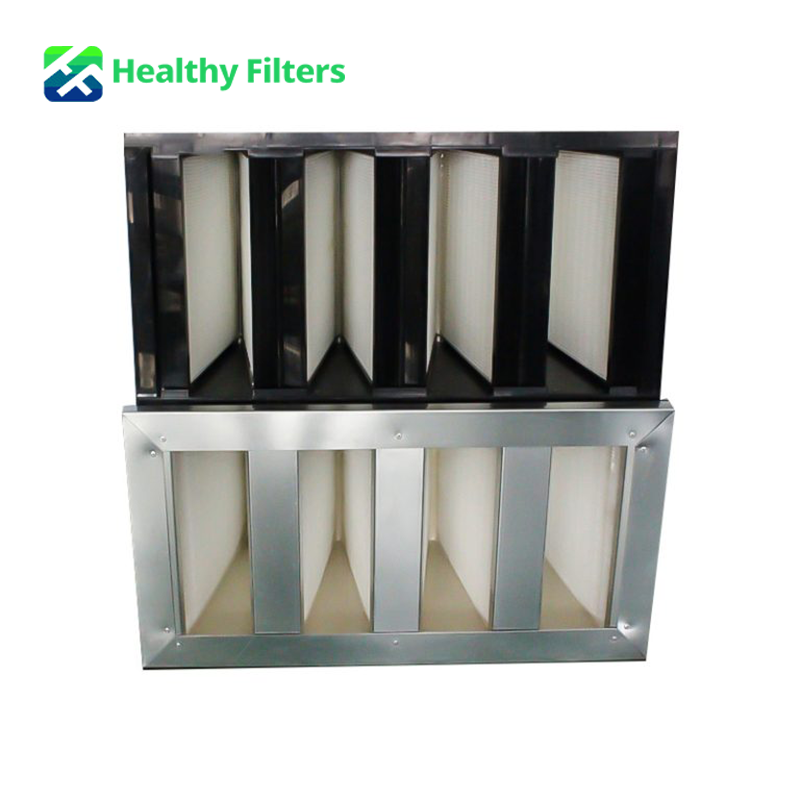

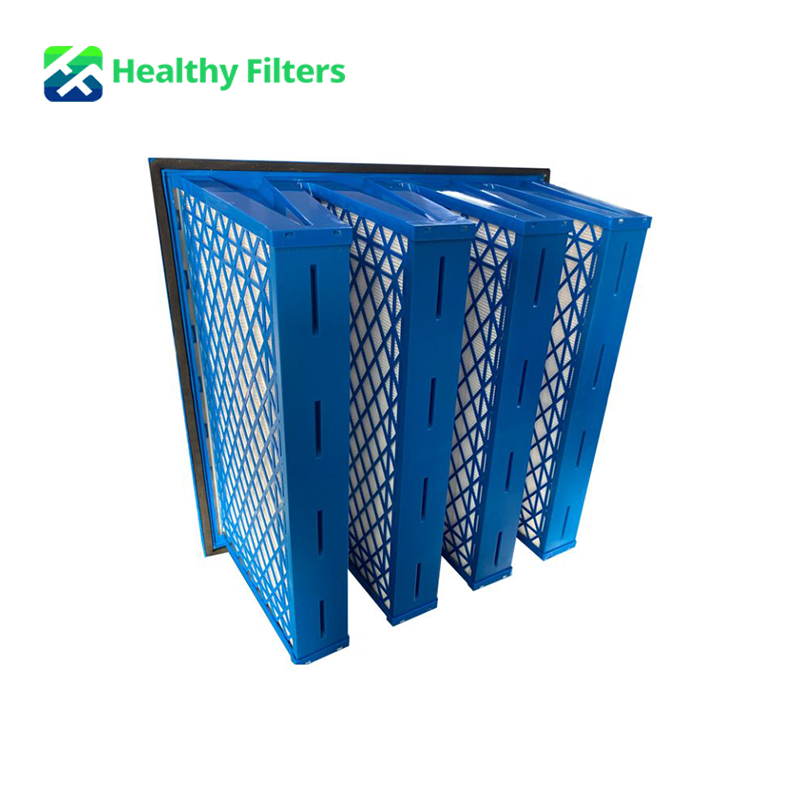

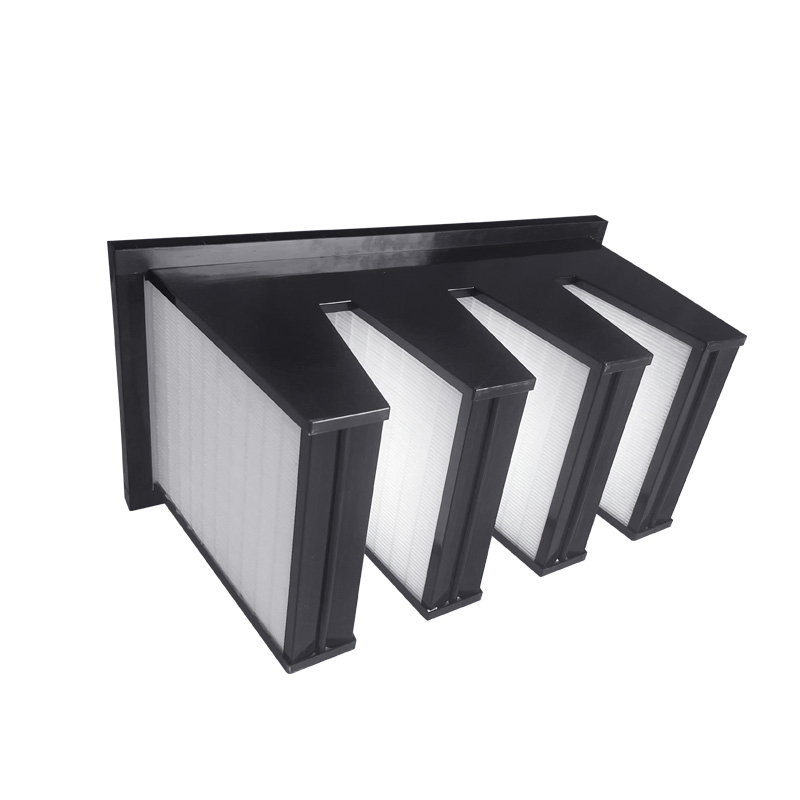

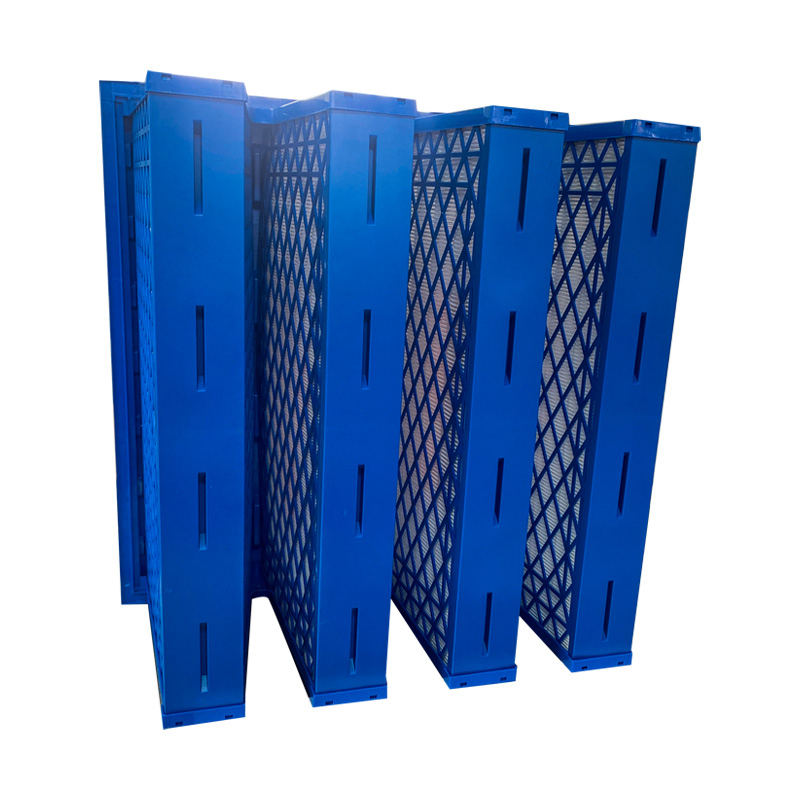

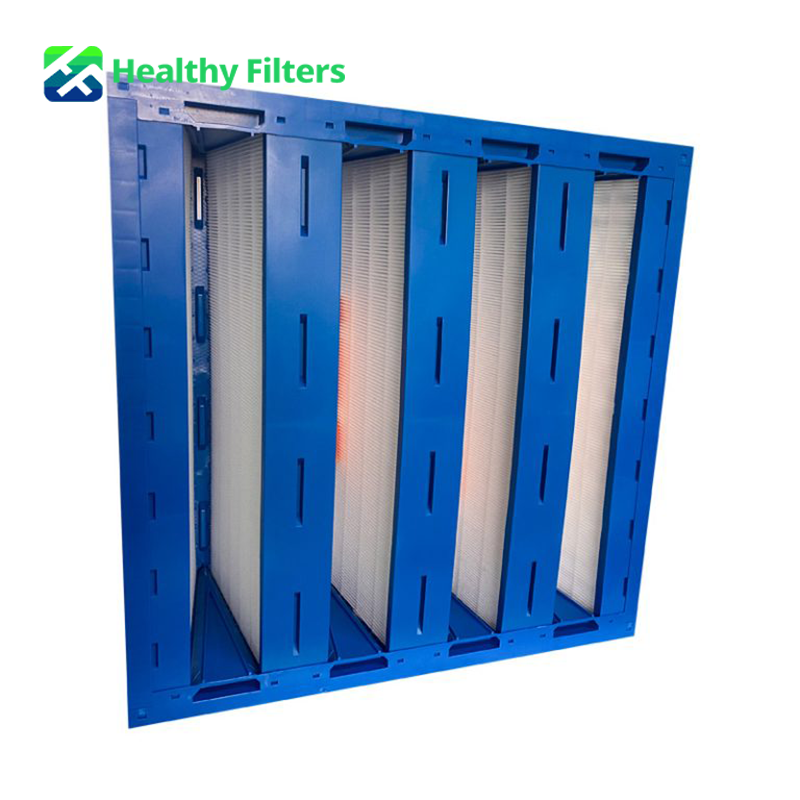

The V-bank Compact Filter is a highly efficient and compact air filtration solution, suitable for use as the final filter in high-efficiency filtration systems or as pre-filtration for ultra-high-efficiency filtration systems. It features a durable ABS frame and fiberglass filter media, offering superior filtration performance. Widely used in large airflow systems such as electronics, pharmaceuticals, hospitals, laboratories, food processing, and optical facilities, this filter ensures clean and safe air quality. Packaged in sturdy cartons and shipped on pallets, it is designed for easy installation and maintenance in HVAC and air conditioning systems, making it an ideal air filtration solution for various industries and environments.
Technical Parameters
|
Types
|
HEPA FILTER
|
|
Efficiency
|
95%-99.99% can be customized.
|
|
Grades
|
H10 H11 H12 H13 H14 or Customized
|
|
Resistance
|
11Pa 18Pa 32Pa
|
|
Frame
|
Cardboard ,non-woven cotton,plastic and metal.
|
|
Colour
|
White,yellow,blue,purple,green,grey and black or customized
|
|
Shape
|
rectangle square or customized.
|
|
Usage
|
Air purifier,air conditioning,vacuum cleaner,etc.
|
|
Package
|
Blank Plastic Bag and Cardboard Box or customized Logo.
|
Standard Model Options
| Item | Specification |
|---|---|
| Product Name | V-Bank Compact HEPA Filter |
| Filter Type | Compact V-Bank Air Filter |
| Efficiency Grades | H10 / H11 / H12 / H13 / H14 |
| Filter Media | PP Synthetic Media / Fiberglass |
| Frame Material | ABS Plastic / Galvanized Steel / Aluminum / Metal |
| Filter Configuration | Multi V-Bank Mini-Pleat |
| Initial Resistance | 11 / 18 / 32 Pa (Typical Options) |
| Filtration Efficiency | 95%–99.99% (Custom Available) |
| Color Options | White, Yellow, Blue, Purple, Green, Gray, Black |
| Installation | HVAC Air Handling Units |
| Service Life | Long Operating Life |
| OEM Service | Available |
Applications
| Commercial HVAC Systems | Industrial Manufacturing | Healthcare & Laboratories | Electronics & Cleanrooms |
|---|---|---|---|
| Intermediate and final filtration for commercial air handling units and centralized ventilation systems. | Air purification for manufacturing plants, food processing, chemical, and industrial facilities. | Reliable particle removal in hospitals, laboratories, pharmaceutical production, and healthcare environments. | High-efficiency filtration for semiconductor fabrication, electronics manufacturing, and ISO-class cleanrooms. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom dimensions and V-bank configuration • H10–H14 efficiency options • ABS, aluminum, galvanized steel, or metal frame • PP synthetic or fiberglass filter media • Custom airflow and pressure drop design • Multiple frame colors available • OEM logo, packaging, and labeling • Project-specific filtration solutions |
• Overall dimension inspection • Frame strength and assembly verification • Filter media and pleat quality inspection • Airflow and pressure drop testing • Filtration efficiency verification • Structural integrity inspection • Final appearance inspection • Packaging inspection before shipment |
