Custom Multi Function Compact Box Filters V-Bank Filter H10 H12 H13 H14 U15 HEPA Air Filter
Custom Multi Function Compact Box Filters V-Bank Filter H10 H12 H13 H14 U15 HEPA Air Filter
Features
- Compact 3V, 4V, and 6V configurations
- Efficiency options from H10 to U15
- High airflow capacity within a compact housing
- Fiberglass filter media for fine-particle capture
- Lightweight and corrosion-resistant plastic frame
- Uniform pleat spacing with hot-melt adhesive separators
- Large filtration area and high dust-holding capacity
- Initial pressure drop from 180 Pa, depending on grade and structure
- Recommended final pressure drop of up to 600 Pa
- Maximum operating temperature: 180°F
- Filter pack colors available in white, blue, green, or black
- Suitable for industrial and commercial HVAC systems
- Custom sizes and OEM configurations available
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description

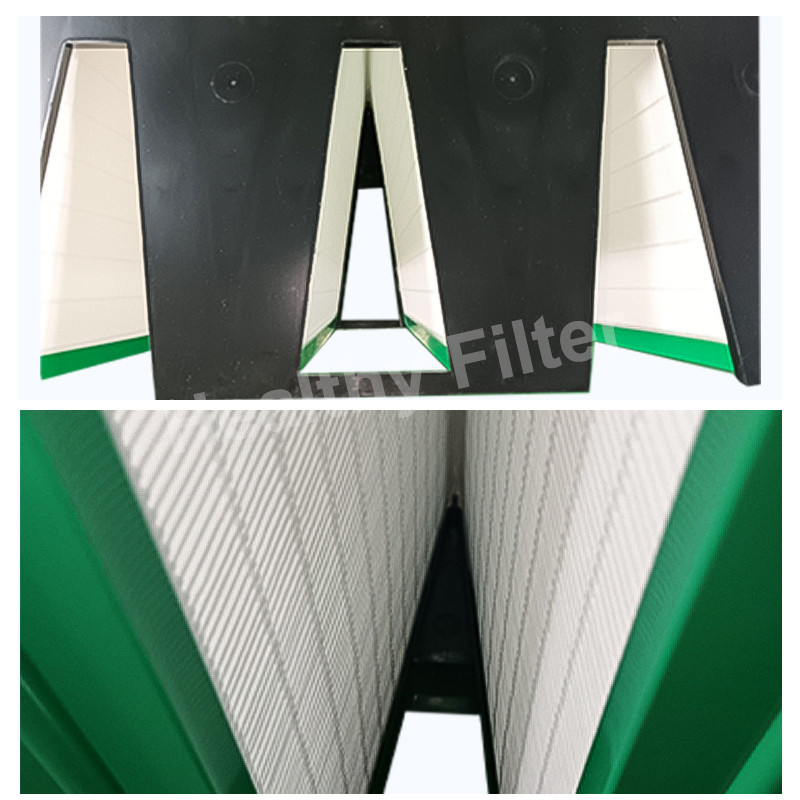

V bank hepa filter structure
1). High dust holding capacity, no partition design: The filter is made of ultra-fine, moisture-proof and fire-resistant glass
fiber. The thermoplastic separator ensures the same fold distance and ensures the best airflow with the least resistance. The same pleat spacing makes full use of the entire depth of the filter material to ensure a greater dust holding capacity.
2). V-type air volume filter adopts ABS engineering plastic frame, light weight, low initial resistance This filter is especially
suitable for complex operating systems, such as: high wind speed system, variable air volume system, high humidity or corrosive environment and other special The required system.
3). Temperature: 80 °C
4). Humidity: 100%
5). The V bank filter efficiency include highly efficient, sub-high efficiency and medium efficiency three
6). The frame is made of galvanized steel or plastic, filter material using ultra-fine polypropylene filter paper or glass fiber
filter paper
Technical Parameters
| Nominal size W×H×D ( in.) |
Actual size W×H×D ( mm) |
Filter Rating (EN779:2012) | Air flow (m³/h) |
InitialP.D. (Pa) |
Recommended Final P.D.(Pa) |
| 12×24×12 | 305×610×292×3V | H11 | 1700 | 180 | ≤600 |
| 24×24×12 | 610×610×292×6V | 3400 | 180 | ||
| 24×24×12 | 610×610×292×4V | 3400 | 200 | ||
| 12×24×12 | 305×610×292×3V | H13 | 1700 | 280 | |
| 24×24×12 | 610×610×292×6V | 3400 | 280 | ||
| 24×24×12 | 610×610×292×4V | 3400 | 300 | ||
| 12×24×12 | 305×610×292×3V | H14 | 1700 | 280 | |
| 24×24×12 | 610×610×292×6V | 3400 | 280 | ||
| 24×24×12 | 610×610×292×4V | 3400 | 3 |
Standard Model Options
| Item | Specification |
|---|---|
| Product Name | Multi-Function Compact V-Bank HEPA Air Filter |
| Filter Type | Compact Box / V-Bank HEPA Filter |
| Model Series | HF-VB |
| Efficiency Range | H10 / H11 / H12 / H13 / H14 / U15 |
| Displayed Standard Grades | H11 / H13 / H14 |
| Filter Media | Fiberglass |
| Frame Material | Plastic |
| Structure Options | 3V / 4V / 6V |
| Pleat Separator | Hot-Melt Adhesive |
| Media Colors | White / Blue / Green / Black |
| Initial Pressure Drop | From 180 Pa, depending on grade and configuration |
| Recommended Final Pressure Drop | ≤600 Pa |
| Maximum Operating Temperature | 180°F, approximately 82°C |
| Main Advantages | High Airflow, Compact Size, Large Media Area |
| Application System | HVAC, AHU, Cleanroom and Industrial Ventilation |
Applications
| Healthcare & Pharmaceutical | Semiconductor & Electronics | Food & Industrial Production | Commercial HVAC Systems |
|---|---|---|---|
| Final or high-efficiency filtration for hospitals, pharmaceutical plants, laboratories, and controlled production areas. | Fine-particle filtration for chip plants, PCB factories, photovoltaic facilities, and electronics manufacturing. | Clean air supply for food plants, machinery workshops, paint booths, glass factories, and manufacturing facilities. | High-volume filtration for office buildings, shopping centers, hotels, public facilities, and central air-conditioning systems. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom filter width, height, and depth • H10 / H11 / H12 / H13 / H14 / U15 grades • 3V, 4V, or 6V configurations • Fiberglass media specifications • White, blue, green, or black media colors • Project-specific airflow and pressure drop • Gasket and sealing configurations • OEM labels, packaging, and project samples |
• Dimension and plastic-frame inspection • Media surface and pleat-spacing check • Hot-melt separator inspection • V-bank assembly and structural check • Sealant and air-bypass inspection • Airflow and initial-resistance testing • Efficiency and leakage testing upon request • Final appearance and packaging inspection |

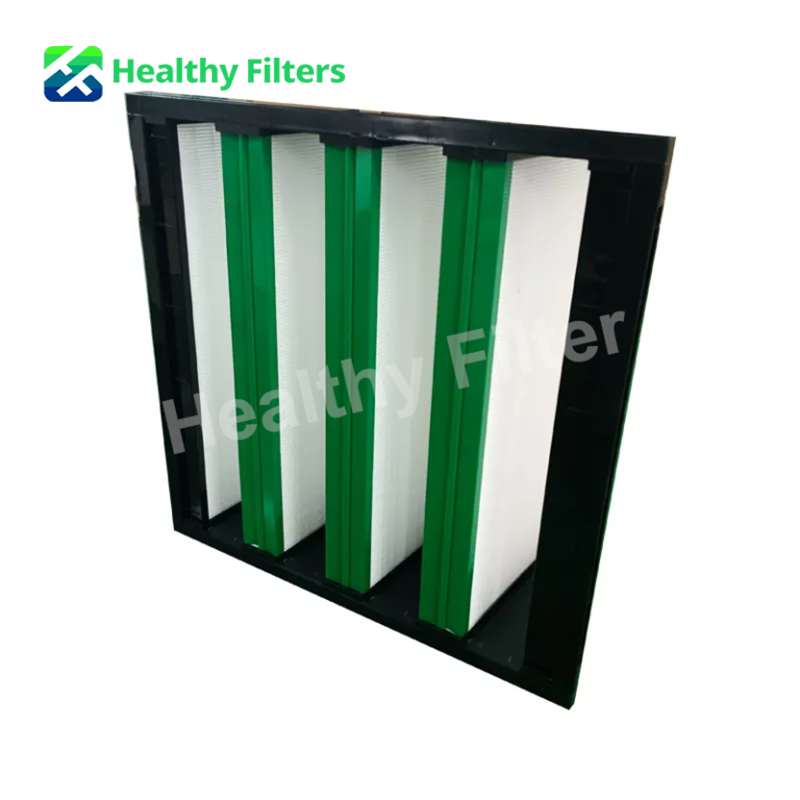

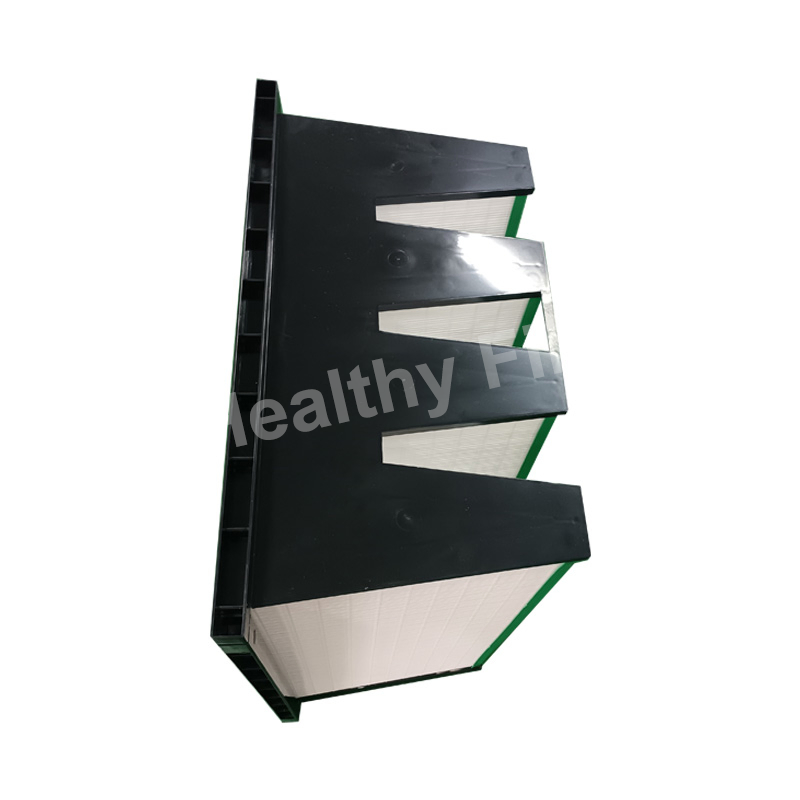

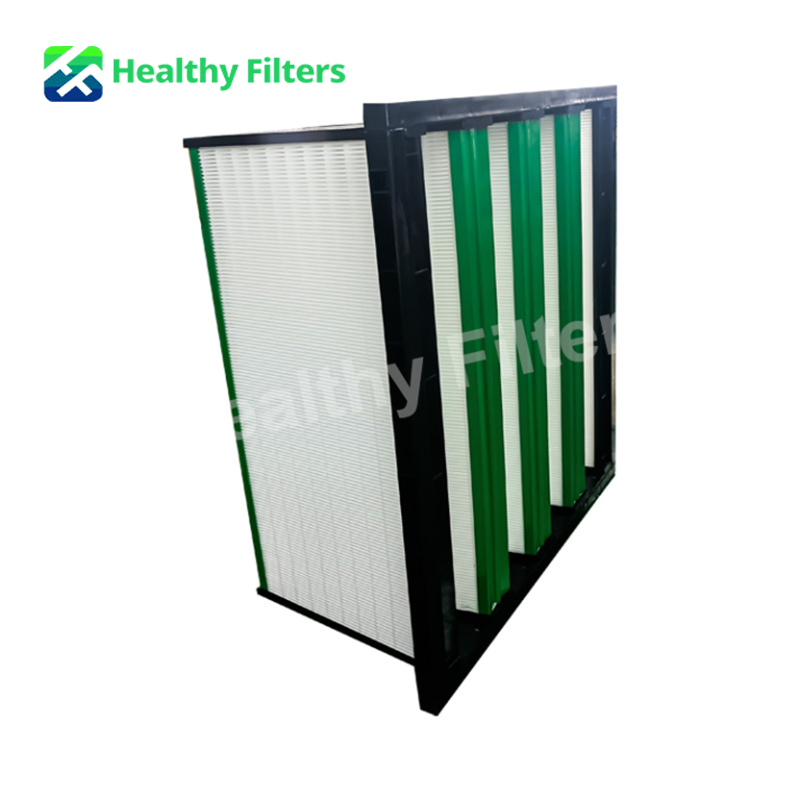

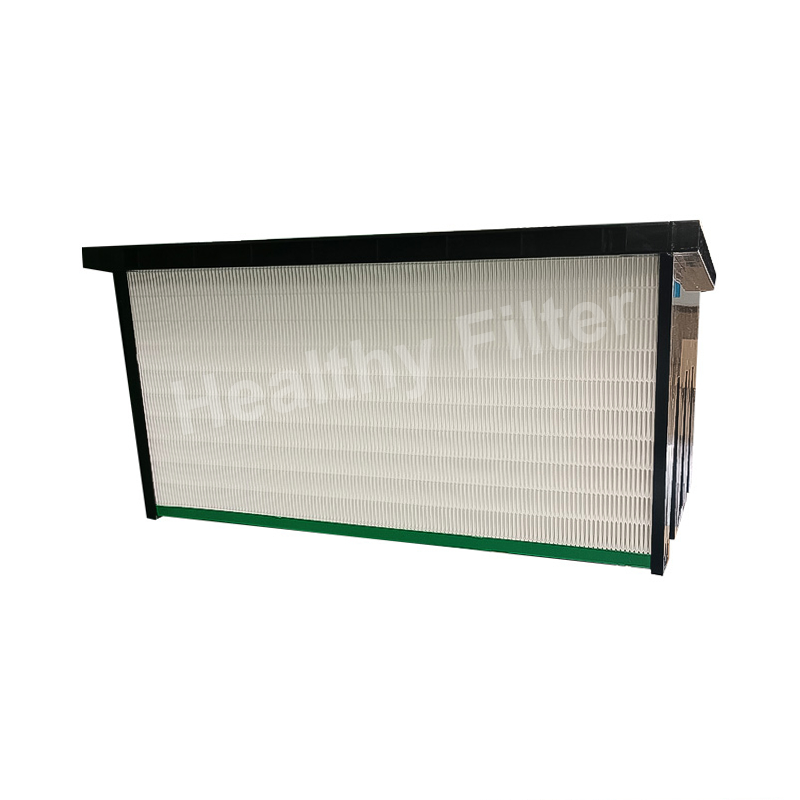

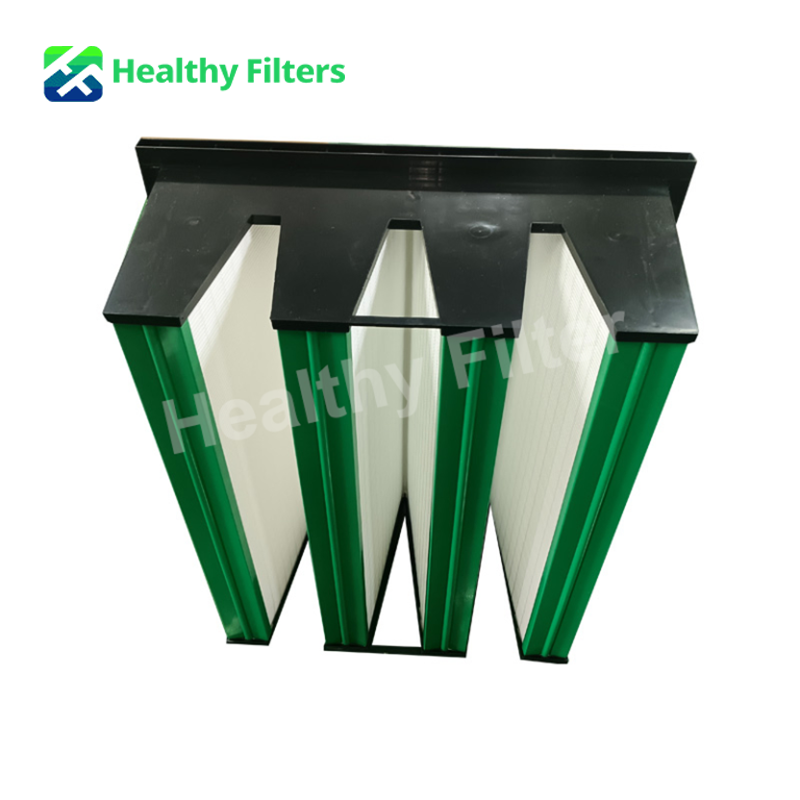

PRODUCT DETAILS
 |
 |
 |
