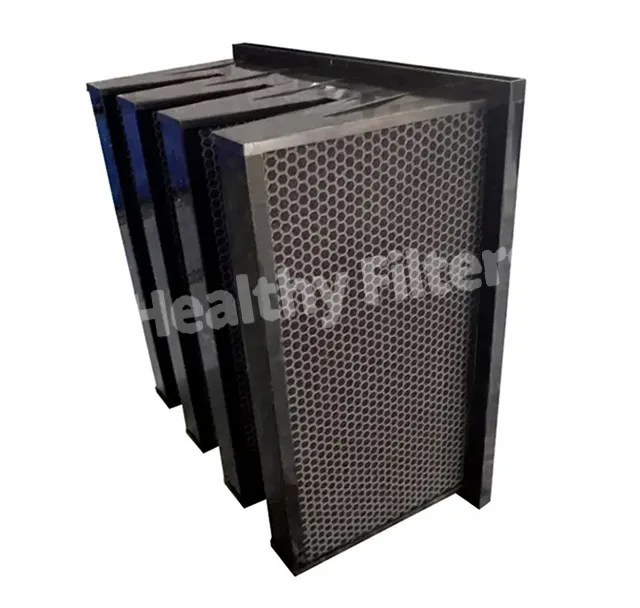

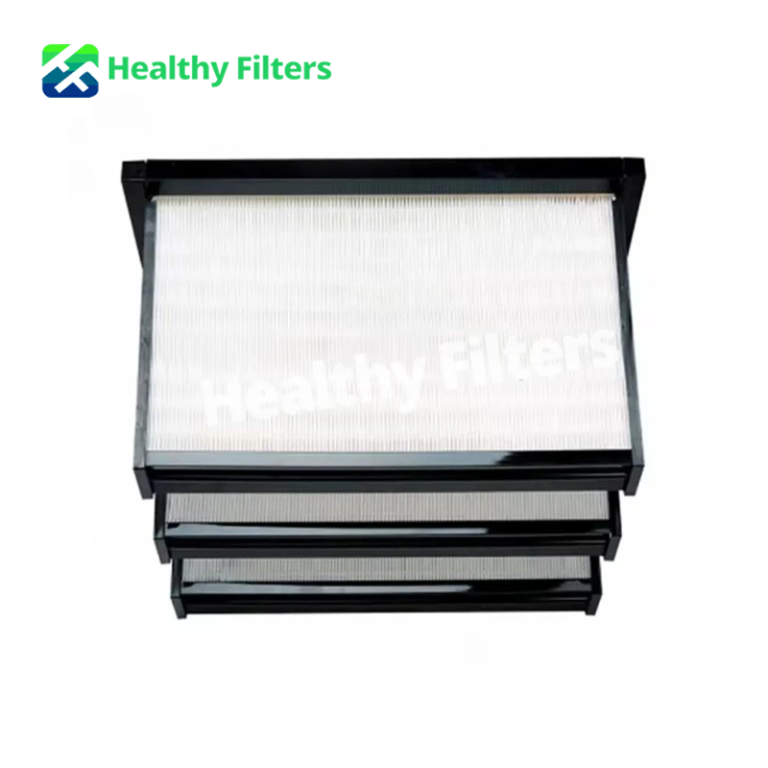

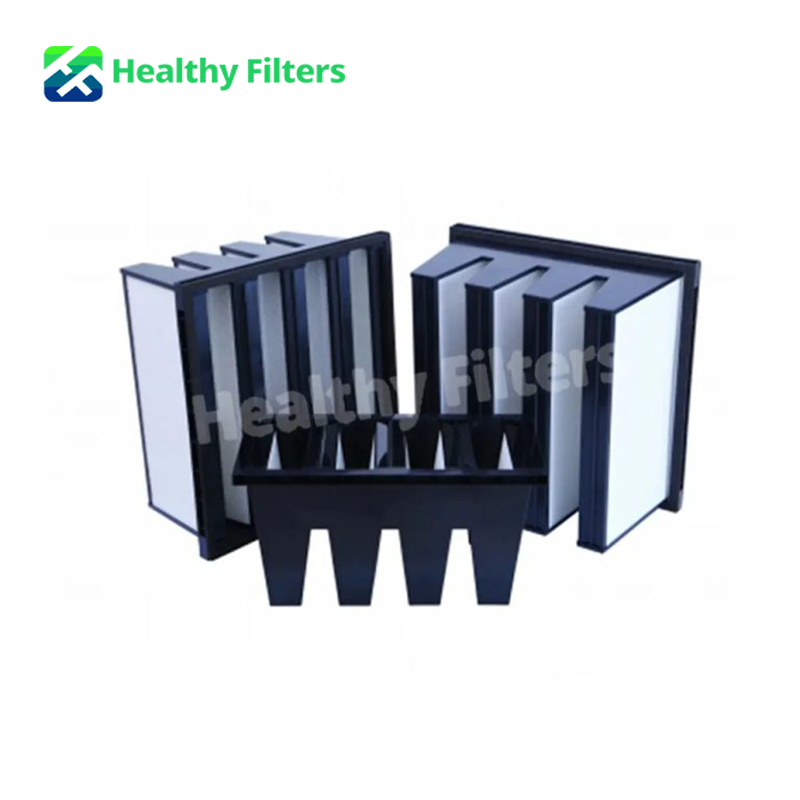

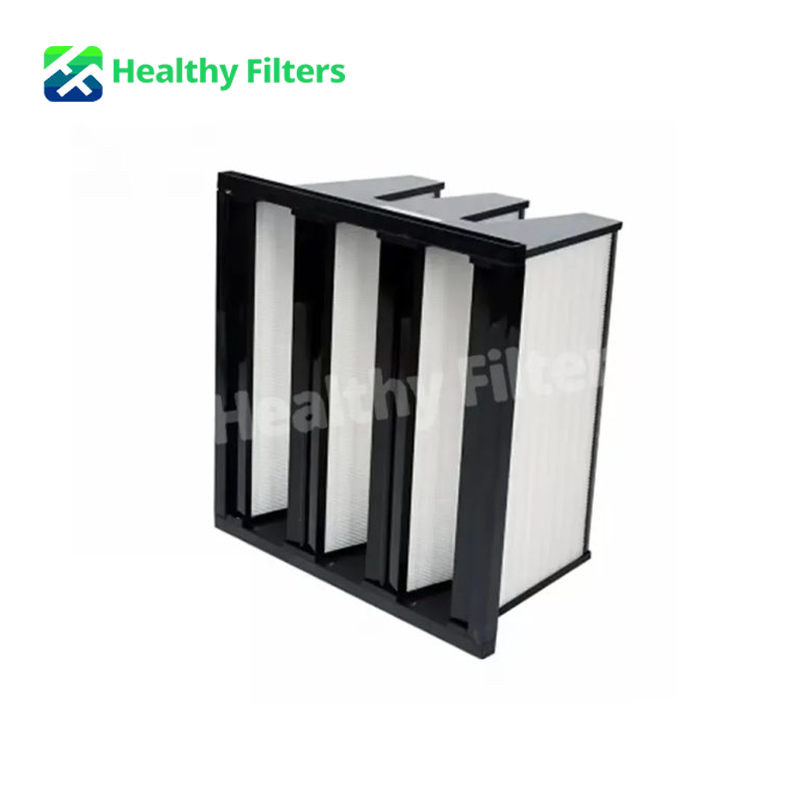

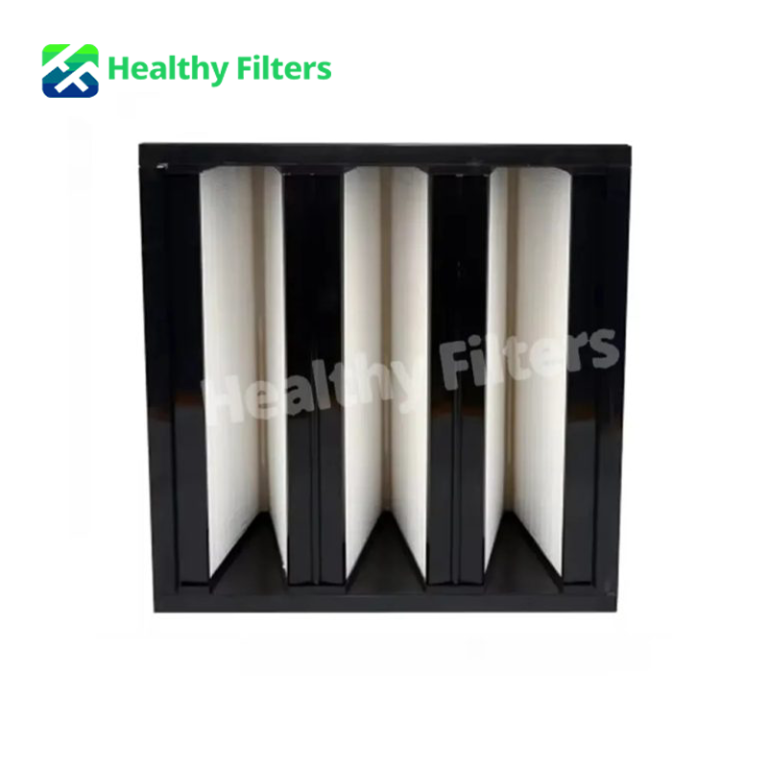

Industrial H13-U16 Plastic Frame Hepa Filter for Ventilation HVAC Air Conditioning System
Industrial H13-U16 Plastic Frame Hepa Filter for Ventilation HVAC Air Conditioning System
Features
V-type compact filter is a high-efficiency air filtration equipment, suitable for various high-demand air filtration environments. Its unique V-shaped design greatly increases the filtration area, thereby improving filtration efficiency and service life. This filter is compact and easy to install and replace. Its excellent filtration performance can effectively remove particles in the air and ensure air quality. In addition, V-shaped compact filters have low operating costs and simple maintenance, making them ideal for high-efficiency air filtration.
- HEPA Grade: V bank filters are typically available in various HEPA grades, such as H13, H14, and U15, which can capture up to 99.995% of particles as small as 0.3 microns.
- High Capacity: Despite its compact size, the V bank filter offers high dust-holding capacity, making it suitable for environments where space is limited.
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description
V-bank hepa filter, also known as large air volume /W type/combined filter, combined high efficiency filter frame is divided into: plastic frame, galvanized frame, aluminum frame, stainless steel frame, commonly used plastic frame combined high efficiency filter. It is suitable for use in research and production departments where various processes require less than 100,000 class cleanliness (<0.5um dust particles). Because the filter has good bacterial filtration performance, it is especially suitable for pharmaceutical industry, biological laboratory, hospital operating room, food industry, cosmetics industry.
This high-performance V bank filter provides superior protection for your livestock, optimizing airflow and minimizing maintenance expenses. Furthermore, its robust design ensures durability during handling, installation, operation, and replacement, even in the face of challenges posed by farm pests.
Working Principle: The use of air flow filter core fiber microporous or narrow, zigzag filter channel when multiple collisions, so that the dust particles are blocked or adhered to the filter, so as to achieve the effect of air purification.
Technical Parameters
| V Bank HEPA Filter – Box type | ||||||||
| Model | Size (mm) |
CMH | I.N.P (Pa) |
F.N.P (Pa) |
Filter object (μm) |
EFF. (%) |
Filtration Class |
Filtration Area (m2) |
| HF-VB8805M-5V08 | 610*610*292-5V | 2200/4200 | <65/120 | <450/600 | 90≤E<95 | 0.5 | F8 | 24.40 |
| HF-VB8805M-4V08 | 610*610*292-4V | 1800/3600 | <65/120 | <450/600 | 90≤E<95 | 0.5 | F8 | 19.52 |
| HF-VB8205M-4V08 | 610*305*292-4V | 1000/2000 | <65/120 | <450/600 | 90≤E<95 | 0.5 | F8 | 9.87 |
| HF-VB8805M-5V09 | 610*610*292-5V | 2200/4200 | <75/135 | <450/600 | 95≤E | 0.5 | F9 | 24.40 |
| HF-VB8805M-4V09 | 610*610*292-4V | 1800/3600 | <75/135 | <450/600 | 95≤E | 0.5 | F9 | 19.52 |
| HF-VB8205M-4V09 | 610*305*292-4V | 1000/2000 | <75/135 | <450/600 | 95≤E | 0.5 | F9 | 9.87 |
| HF-VB8805M-5V10 | 610*610*292-5V | 2200/4200 | <90/160 | <450/600 | 85≤E<95 | 0.3 | E10 | 24.40 |
| HF-VB8805M-4V10 | 610*610*292-4V | 1800/3600 | <90/160 | <450/600 | 85≤E<95 | 0.3 | E10 | 19.52 |
| HF-VB8205M-4V10 | 610*305*292-4V | 1000/2000 | <90/160 | <450/600 | 85≤E<95 | 0.3 | E10 | 9.87 |
| HF-VB8805M-5V11 | 610*610*292-5V | 2200/4200 | <110/190 | <450/600 | 85≤E<95 | 0.3 | E11 | 24.40 |
| HF-VB8805M-4V11 | 610*610*292-4V | 1800/3600 | <110/190 | <450/600 | 85≤E<95 | 0.3 | E11 | 19.52 |
| HF-VB8205M-4V11 | 610*305*292-4V | 1000/2000 | <110/190 | <450/600 | 85≤E<95 | 0.3 | E11 | 9.87 |
| HF-VB8805M-5V12 | 610*610*292-5V | 2200/4200 | <140/230 | <450/600 | 99.5≤E<99.95 | 0.3 | E12 | 24.40 |
| HF-VB8805M-4V12 | 610*610*292-4V | 1800/3600 | <140/230 | <450/600 | 99.5≤E<99.95 | 0.3 | E12 | 19.52 |
| HF-VB8205M-4V12 | 610*305*292-4V | 1000/2000 | <140/230 | <450/600 | 99.5≤E<99.95 | 0.3 | E12 | 9.87 |
| HF-VB8805M-5V13 | 610*610*292-5V | 2200/4200 | <200/300 | <450/600 | 99.95≤E<99.995 | 0.3 | H13 | 24.40 |
| HF-VB8805M-4V13 | 610*610*292-4V | 1800/3600 | <200/300 | <450/600 | 99.95≤E<99.995 | 0.3 | H13 | 19.52 |
| HF-VB8205M-4V13 | 610*305*292-4V | 1000/2000 | <200/300 | <450/600 | 99.95≤E<99.995 | 0.3 | H13 | 9.87 |
| HF-VB8805M-5V14 | 610*610*292-5V | 2200/4200 | <220/330 | <450/600 | 99.995≤E<99.9995 | 0.3 | H14 | 24.40 |
| HF-VB8805M-4V14 | 610*610*292-4V | 1800/3600 | <220/330 | <450/600 | 99.995≤E<99.9995 | 0.3 | H14 | 19.52 |
| HF-VB8205M-4V14 | 610*305*292-4V | 1000/2000 | <220/330 | <450/600 | 99.995≤E<99.9995 | 0.3 | H14 | 9.87 |
Standard Model Options
| Item | Specification |
|---|---|
| Product Name | Plastic Frame V-Bank HEPA Air Filter |
| Filter Type | Compact V-Bank / High-Airflow Air Filter |
| Model Series | HF-VB |
| Standard Filtration Classes | F8 / F9 / E10 / E11 / E12 / H13 / H14 |
| Higher Efficiency Options | U15 / U16 available subject to project confirmation |
| Filter Media | Polypropylene or Fiberglass |
| Frame Material | Plastic |
| Structure | 4V / 5V Box Type |
| Particle Size Reference | 0.5 μm for F8–F9; 0.3 μm for E10–H14 |
| Recommended Final Pressure Drop | <450 / 600 Pa |
| Main Advantages | High Airflow, Large Media Area, Low Resistance, Lightweight |
| Application System | HVAC, AHU, Cleanroom and Industrial Ventilation Systems |
Applications
| Cleanrooms & Laboratories | Commercial HVAC Systems | Healthcare & Pharmaceutical Facilities | Industrial Manufacturing |
|---|---|---|---|
| Final or high-efficiency filtration for controlled environments with strict air cleanliness requirements. | High-airflow filtration for AHUs, central air-conditioning systems, offices, malls, and public buildings. | Particulate control for hospitals, laboratories, pharmaceutical production, and controlled processing areas. | Clean air filtration for electronics, precision manufacturing, food production, and industrial ventilation systems. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom filter width, height, and depth • F8 / F9 / E10 / E11 / E12 / H13 / H14 classes • U15 / U16 configuration subject to technical confirmation • 4V or 5V compact structure • Polypropylene or fiberglass media • Customized airflow and pressure-drop requirements • Frame, gasket, and sealing configuration • OEM branding, labels, packaging, and project samples |
• Dimension and plastic-frame inspection • Filter media surface and pleat-spacing check • V-bank assembly and structural inspection • Sealant, gasket, and air-bypass inspection • Rated airflow and initial-resistance testing • Filtration efficiency testing upon request • Leakage or scan testing for HEPA grades upon request • Final appearance and packaging inspection |
PRODUCT DETAILS
 |
 |
 |
RELATED PRODUCT
V-bank mini-pleat structure for larger filtration area
Suitable for high airflow ventilation systems
Low initial resist...
Compact 3V, 4V, and 6V configurations
Efficiency options from H10 to U15
High airflow capacity within a compact housing...
Compact W-type and V-bank construction
F6, F7, F8, and F9 efficiency options
Large effective filtration area
High dust-holdi...
3V / 4V / 5V / 6V combined V-bank structure
Large filtration area
High efficiency and low resistance
H13–H14 efficiency grade...
