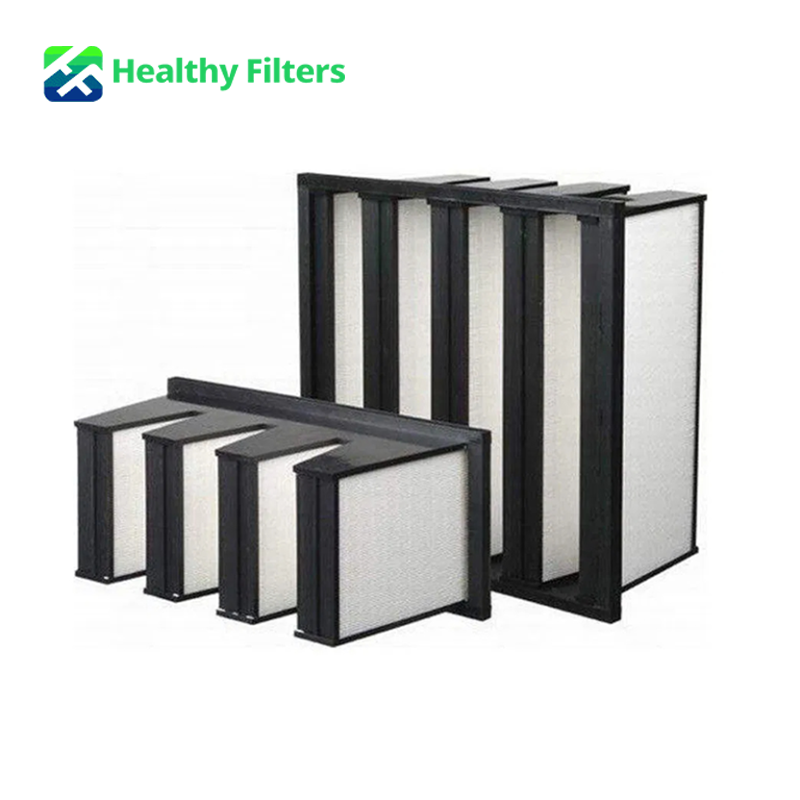

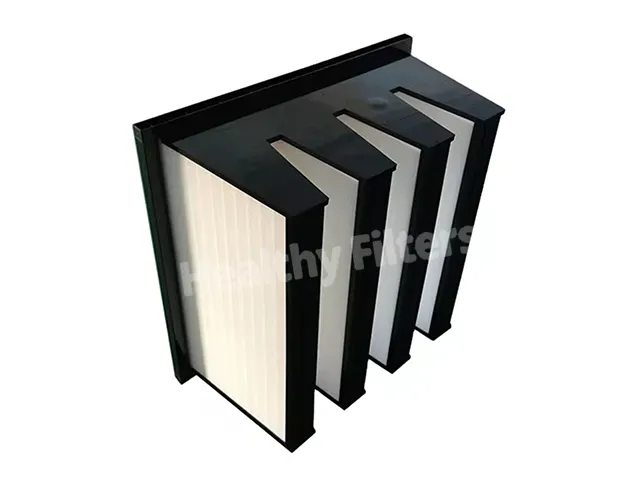

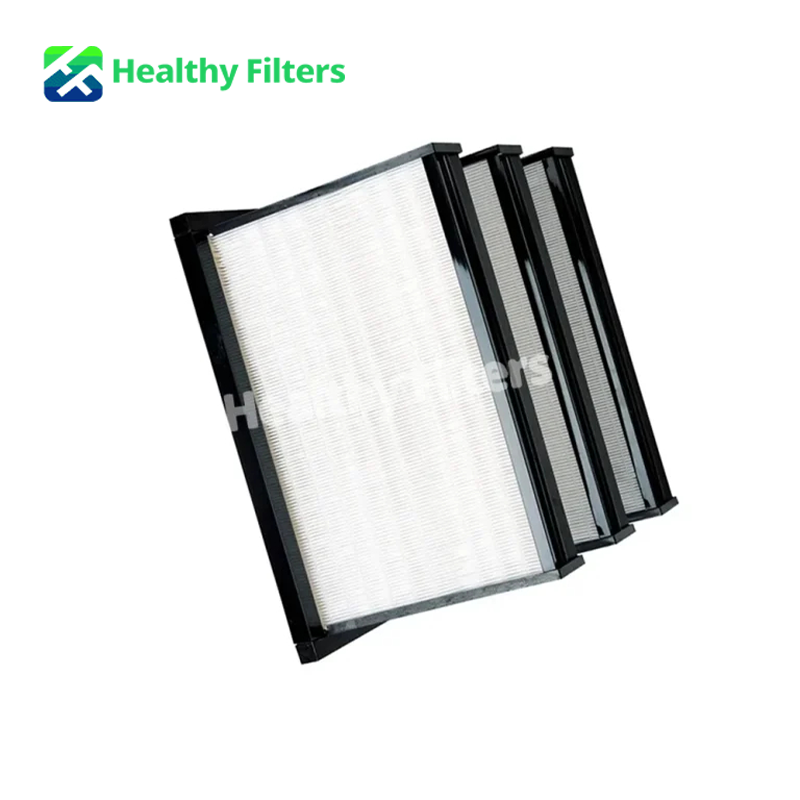

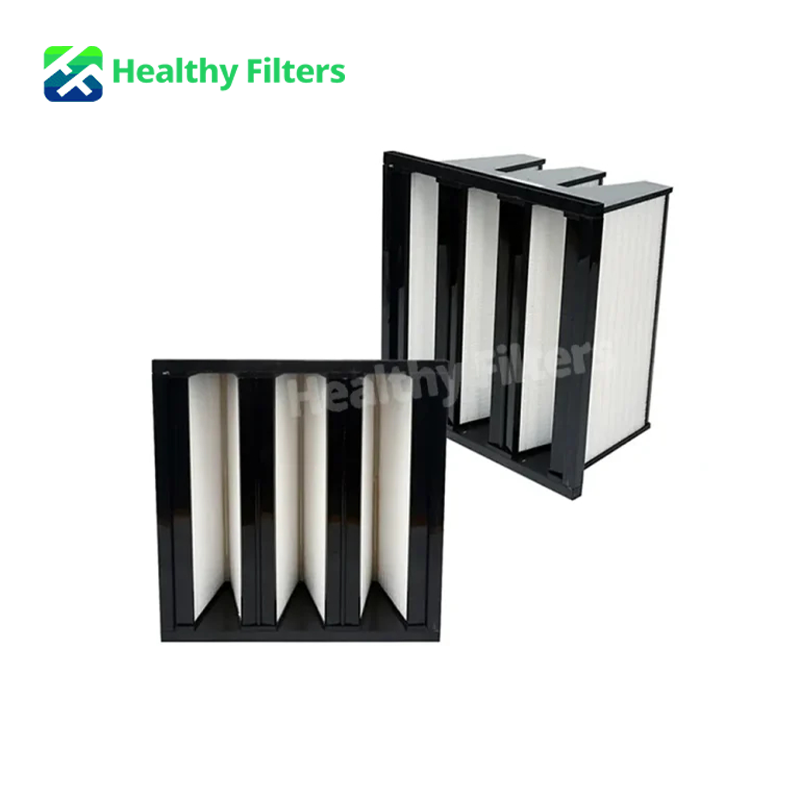

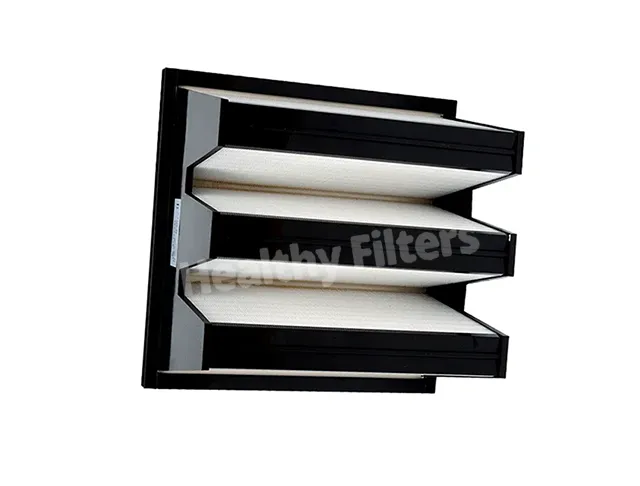

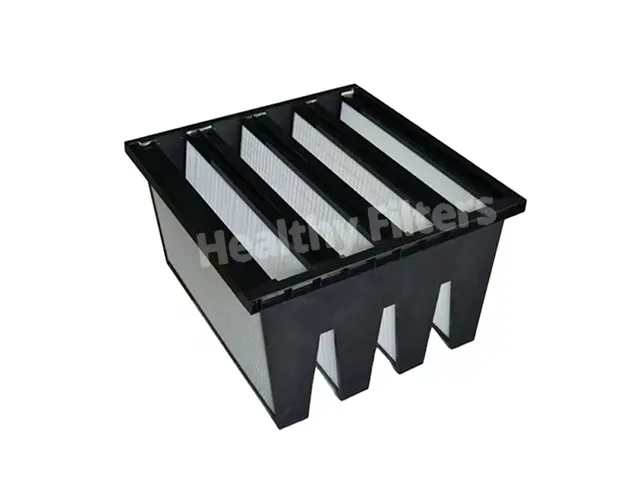

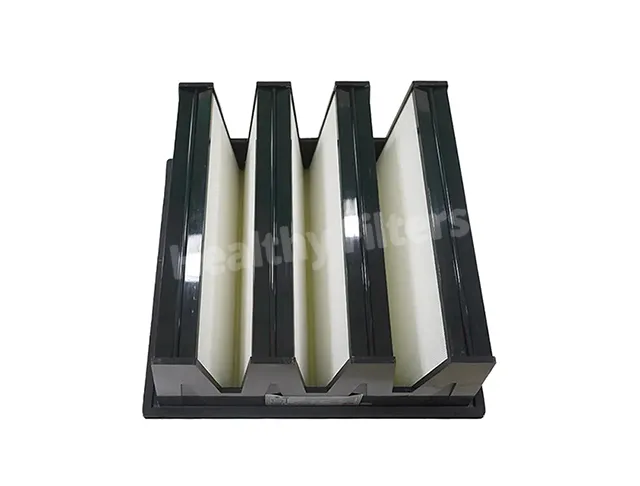

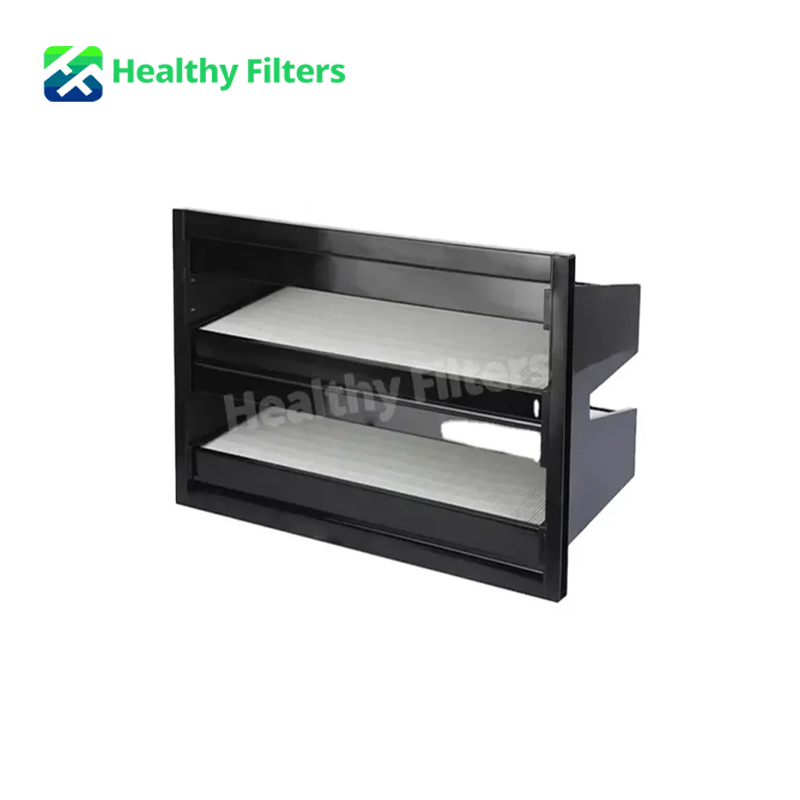

Customized HEPA Air Filter H13 H14 99.99% V Bank Type Glassfiber Media Replacement Filter
Customized HEPA Air Filter H13 H14 99.99% V Bank Type Glassfiber Media Replacement Filter
Features
- Compact 4V and 5V filter configurations
- Large effective filtration area
- High airflow capacity with low pressure drop
- Standard F8, H10, and H13 performance options
- H14 configuration available for customized projects
- Fiberglass or polypropylene filter media
- Aluminum, galvanized steel, or plastic frame options
- Flange-type and box-type installation structures
- Lightweight yet structurally stable construction
- Suitable for variable airflow and high-humidity environments
- Customized dimensions and airflow ratings available
- OEM and ODM manufacturing supported
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description
V-type compact filter is a high-efficiency air filtration equipment, suitable for various high-demand air filtration environments. Its unique V-shaped design greatly increases the filtration area, thereby improving filtration efficiency and service life. This filter is compact and easy to install and replace. Its excellent filtration performance can effectively remove particles in the air and ensure air quality. In addition, V-shaped compact filters have low operating costs and simple maintenance, making them ideal for high-efficiency air filtration.
1. Increased Surface Area: The V-shaped design maximizes the filter surface area within a compact frame, allowing for more media to capture particles and enhancing the filter’s dust-holding capacity.
2. Robust Materials: Typically constructed from high-quality materials such as galvanized steel or aluminum frames and synthetic or fiberglass filter media, ensuring durability and long-lasting performance.
Technical Parameters
| Type | Dimensions W*H*D(mm） |
Filter Area | Structure | Initial resistance&airflow(Pa&m³/h) | ||
| HF-HV | F8 | H10 | H13 | |||
| 287*592*292 | 8.4 | FlangedType | 90&1600 | 180&1600 | 240&1600 | |
| 4V | ||||||
| 592*592*292 | 18.8 | 90&3200 | 180&3200 | 240&3200 | ||
| 305*610*292 | 13.5 | Box Type | 90&1800 | 180&180 | 240&1800 | |
| 5v | ||||||
| 610*610*292 | 27 | 90&3600 | 180&3600 | 240&3600 | ||
Standard Model Options
| Item | Specification |
|---|---|
| Product Name | Customized V-Bank HEPA Air Filter |
| Filter Type | Compact V-Bank / High-Airflow HEPA Filter |
| Model | HF-HV |
| Standard Efficiency Options | F8 / H10 / H13 |
| Customized Efficiency Option | H14 |
| Filter Media | Fiberglass or Polypropylene |
| Frame Material | Aluminum, Galvanized Steel, or Plastic |
| Structure Options | 4V Flange Type / 5V Box Type |
| Main Function | Fine-Particle Filtration and Final-Stage Air Purification |
| Main Advantages | Large Media Area, High Airflow, Low Pressure Drop |
| Installation | HVAC Filter Housing, AHU, Central Air-Conditioning System |
| Customization | Size, Efficiency, Frame, Media, Airflow, and Packaging |
Applications
| Commercial HVAC Systems | Healthcare Facilities | Industrial Clean Air Systems | Public & High-Traffic Buildings |
|---|---|---|---|
| High-airflow final filtration for AHUs, central air-conditioning systems, and ventilation equipment. | Fine-particle control for hospitals, clinics, laboratories, and controlled medical environments. | Air purification for electronics, food processing, precision manufacturing, and clean production areas. | Suitable for airports, hotels, casinos, offices, cultural venues, and other large indoor spaces. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom filter width, height, and depth • F8 / H10 / H13 efficiency options • Customized H14 configurations • 4V flange-type or 5V box-type structure • Fiberglass or polypropylene media • Aluminum, galvanized steel, or plastic frame • Project-specific airflow and resistance requirements • OEM branding, labels, packaging, and samples |
• Dimension and frame inspection • Filter media surface and pleat inspection • V-bank assembly and structural check • Sealant and air-bypass inspection • Rated airflow and initial resistance testing • Efficiency and leakage testing upon request • Final appearance and packaging inspection before shipment |
