Mini Pleat 3V 4V 5V 6V Combined V Bank HVAC Terminal Compact HEPA Air Filter
Mini Pleat 3V 4V 5V 6V Combined V Bank HVAC Terminal Compact HEPA Air Filter
Features
- 3V / 4V / 5V / 6V combined V-bank structure
- Large filtration area
- High efficiency and low resistance
- H13–H14 efficiency grade
- Captures dust, pollen, mold spores, and fine airborne particles
- Suitable for high-volume ventilation systems

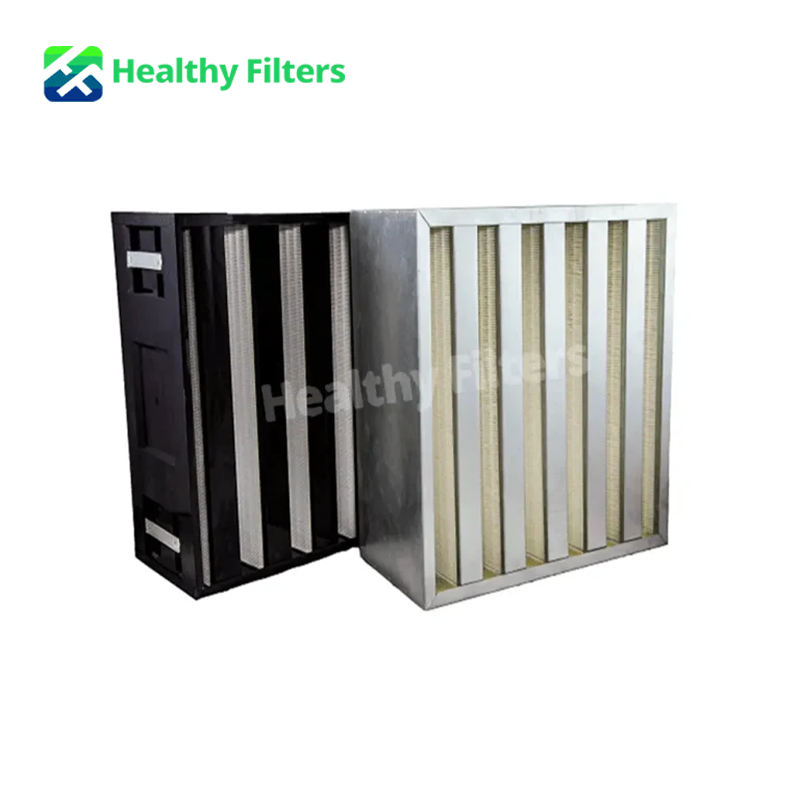

- Aluminum, galvanized, or plastic frame options
- Polypropylene or fiberglass filter media
- Custom sizes available
- Used as final filtration in air cleaning systems
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description

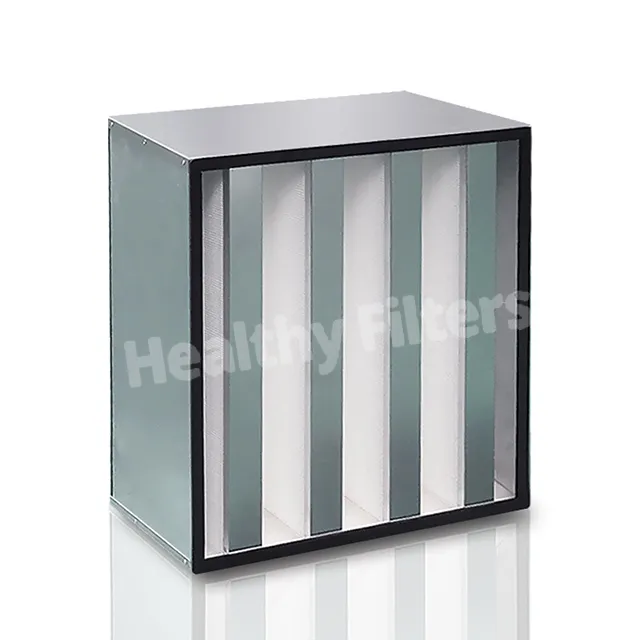

V-type compact filter is a high-efficiency air filtration equipment, suitable for various high-demand air filtration environments. Its unique V-shaped design greatly increases the filtration area, thereby improving filtration efficiency and service life. This filter is compact and easy to install and replace. Its excellent filtration performance can effectively remove particles in the air and ensure air quality. In addition, V-shaped compact filters have low operating costs and simple maintenance, making them ideal for high-efficiency air filtration.

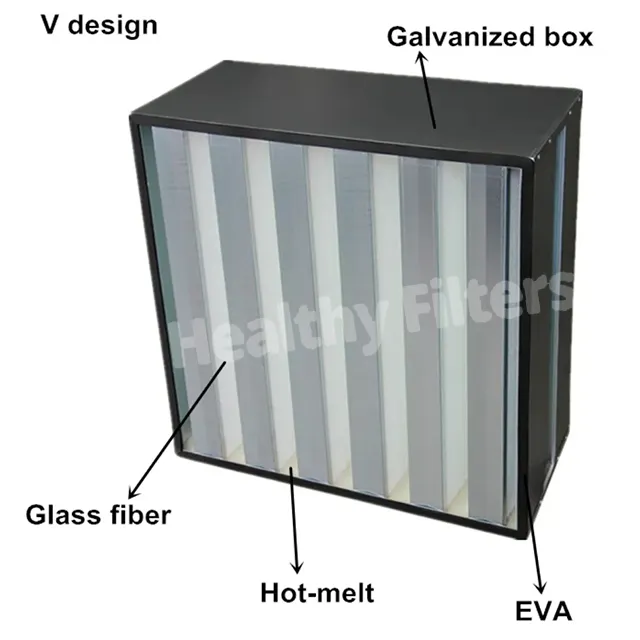

V-Bank HEPA filters are designed for high airflow air-conditioning systems. The flat box design provides a larger media area compared to other types of filters. The metal frame makes the filter exceptionally strong and able to withstand significant impact. The entire filter uses professional polyurethane adhesive to reinforce the frame without the need for rivets, ensuring better protection during installation into the frame.
Technical Parameters
| Model NO. | Actual Siz | Air Flow | Media Area | Velocity | Efficiency | Media |
| HxWxD (mm) | (m³ /h) | Flow (㎡) | （m/s） | (Pcs) | ||
| HEPA FILTER | 289*289*292 | 500 | 5.5 | 1.66 | H13-H14 | 4 |
| 289*594*292 | 900 | 8.23 | 1.46 | H13-H14 | 6 | |
| 594*594*292 | 1800 | 16.5 | 1.42 | H13-H14 | 6 | |
| 289*594*292 | 1200 | 10.97 | 1.94 | H13-H14 | 8 | |
| 289*594*292 | 2450 | 21.9 | 1.93 | H13-H14 | 8 | |
| 594*594*292 | 1500 | 13.72 | 2.43 | H13-H14 | 10 | |
| 594*594*292 | 3000 | 27.48 | 2.36 | H13-H14 | 10 | |
| 610*610*292 | 3050 | 28.2 | 2.28 | H13-H14 | 10 | |
| 610*610*292 | 3650 | 33.84 | 2.72 | H13-H14 | 12 |
Standard Model Options
| Item | Specification |
|---|---|
| Product Name | Combined V-Bank Compact HEPA Air Filter |
| Filter Type | Compact HEPA / V-Bank HEPA Filter |
| Structure | 3V / 4V / 5V / 6V Combined V-Bank |
| Efficiency Grade | H13–H14 |
| Filter Media | Polypropylene or Fiberglass |
| Frame Material | Aluminum, Galvanized Steel, or Plastic |
| Function | Final Filtration, Fine Particle Removal, Air Purification |
| Application System | HVAC, Cleanroom, AHU, Air Cleaning Equipment |
| Size | Customized / Standard Options Available |
Applications
| Cleanrooms | Pharmaceutical Facilities | Hospitals & Healthcare | Commercial HVAC Systems |
|---|---|---|---|
| Final filtration for controlled environments requiring high air cleanliness. | High-efficiency air purification for production, packaging, and laboratory areas. | Clean air supply for medical ventilation systems and controlled rooms. | High-volume terminal filtration for AHUs, airports, malls, offices, and public buildings. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom filter size and depth • 3V / 4V / 5V / 6V structure options • H13 / H14 efficiency grades • Polypropylene or fiberglass media • Aluminum, galvanized, or plastic frame • Airflow and resistance requirements • OEM label, packaging, and project samples |
• Dimension and frame check • Media surface and V-bank assembly inspection • Sealing and leakage inspection • Airflow and resistance test • Efficiency test upon request • Packaging inspection before shipment |
