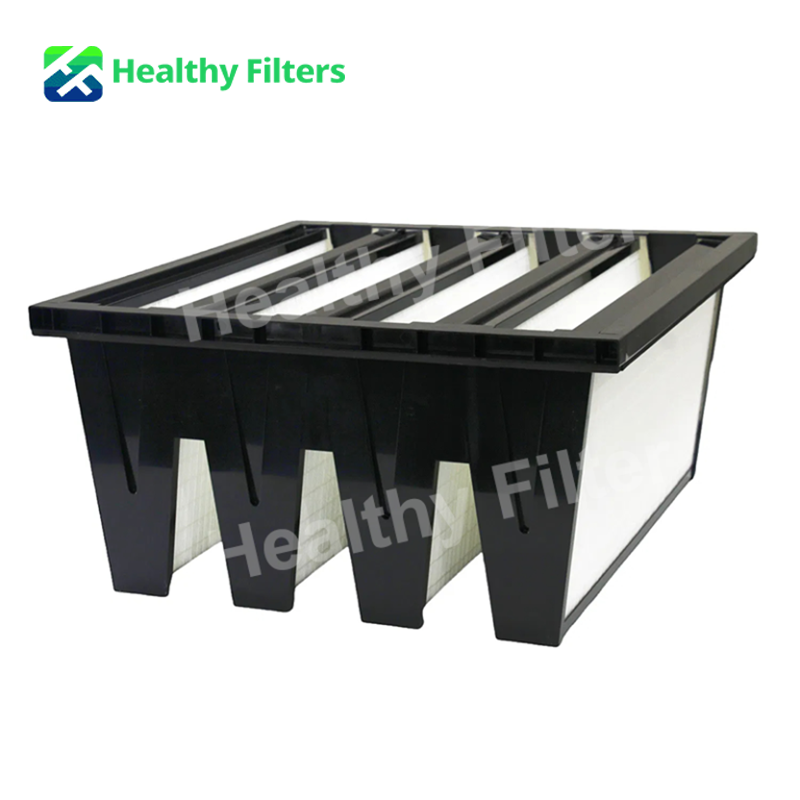

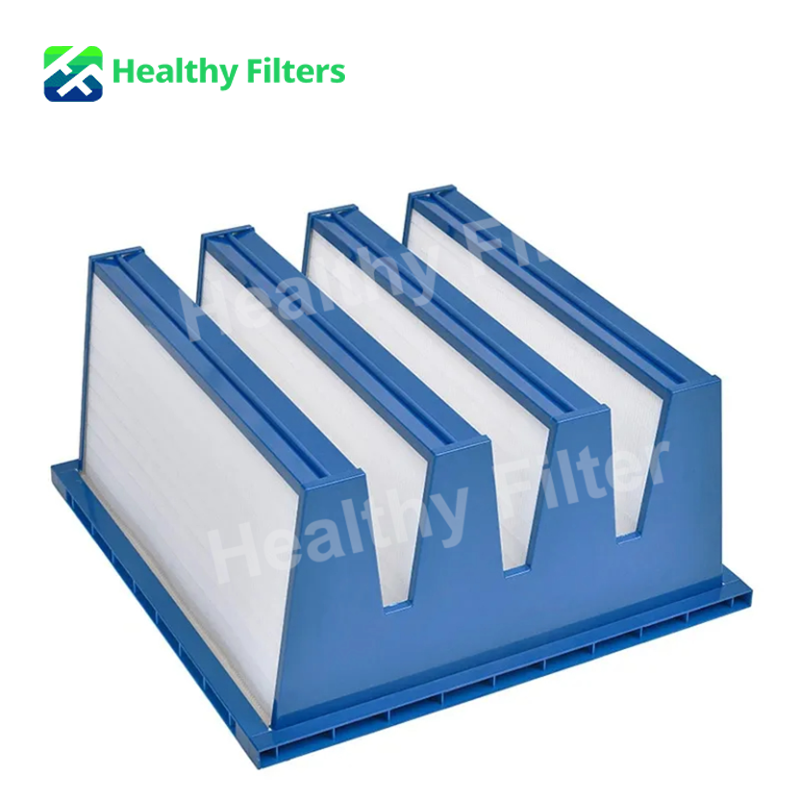

Compact Medium Air Filter with Header Frame HEPA W Type V Shape Air Filter Bank Type Filter for HVAC System

Compact Medium Air Filter with Header Frame HEPA W Type V Shape Air Filter Bank Type Filter for HVAC System

Features

Healthy Filters W-V HEPA cassette combines H13-grade media rated ≥99.97 % on 0.3 µm particles with only 340 Pa initial ΔP at design airflow, cutting fan energy and noise. The deep-pleated V-pack nearly doubles media area, extending service intervals to one year under typical duty. A built-in header frame allows 30-second slide-in replacement, while UL 900 flame resistance and EN 1822 compliance ensure safe operation up to 80 °C. Custom sizes are available to fit any HVAC or clean-room air-handling unit.

Custom Sizes Are Available Upon Request.

We Offer Extensive Customization Options To Meet Your Specific Needs.

Rigorous Quality Control Procedures

Each Shipment Is Accompanied By A Comprehensive Quality Inspection Certificate, To Ensure They Meet The Release Standard.

Extremely Fast Delivery !

Expedited Processing Available For Urgent Orders, Guaranteeing 1~2 Week Delivery.

Free Samples For Quality Check !

To Facilitate Your Evaluation, We Offer Complimentary A4 Samples. Additionally, We Welcome Factory Tours To Showcase Our Machinery And Production Processes Firsthand.

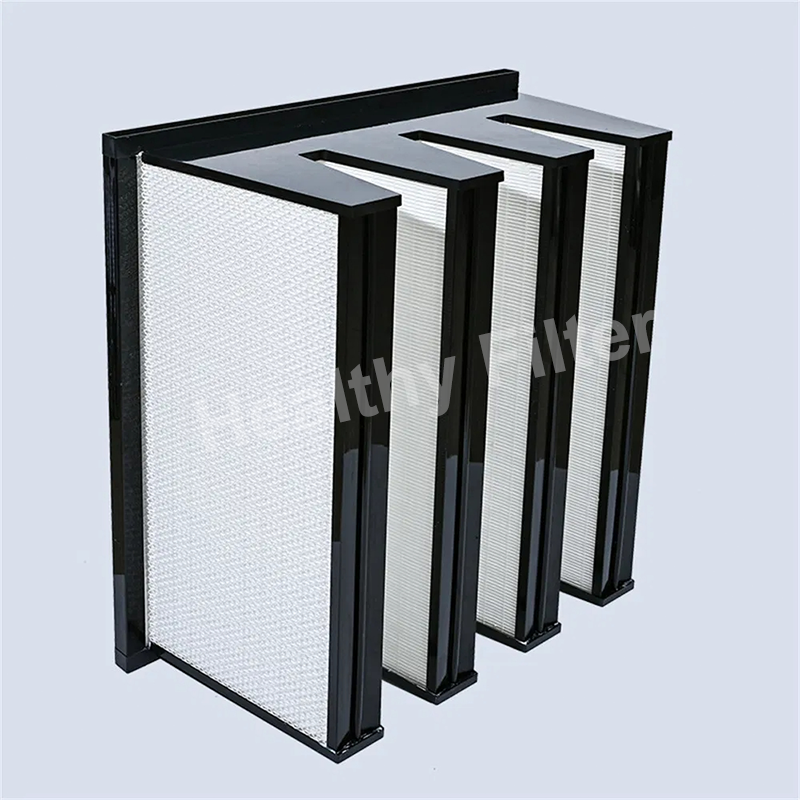

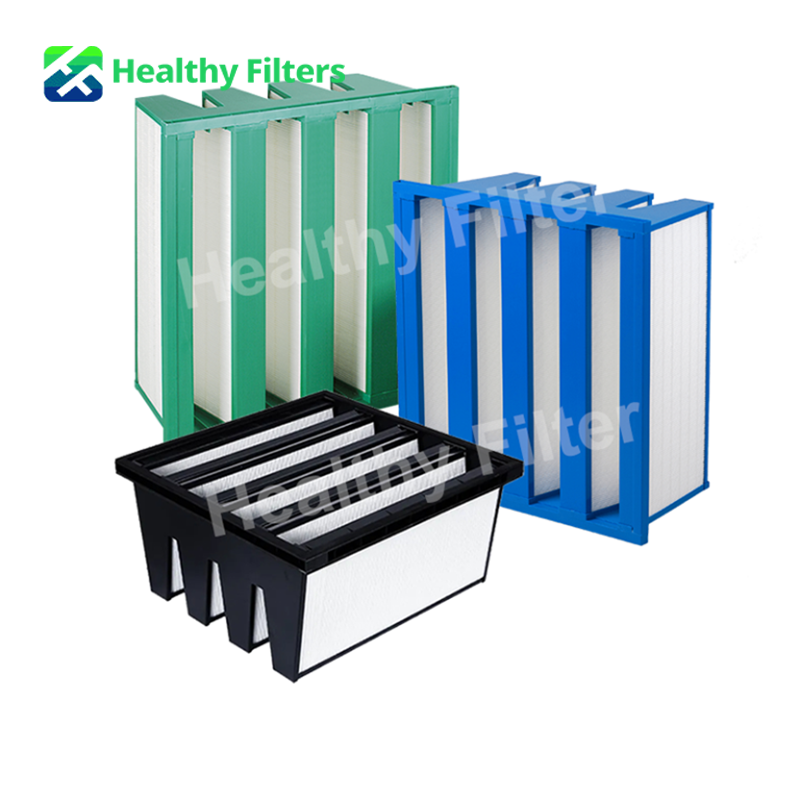

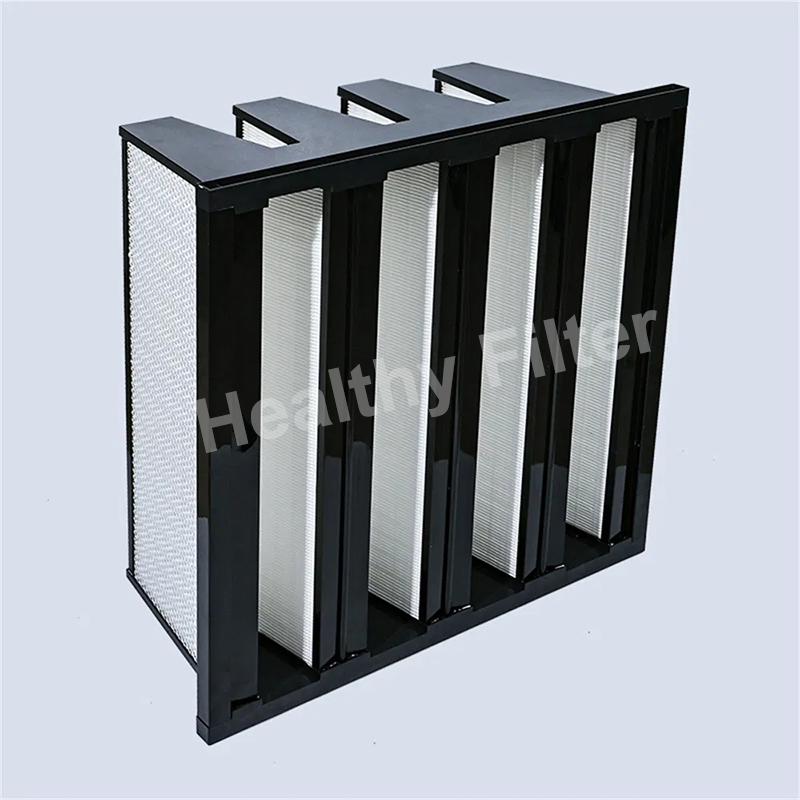

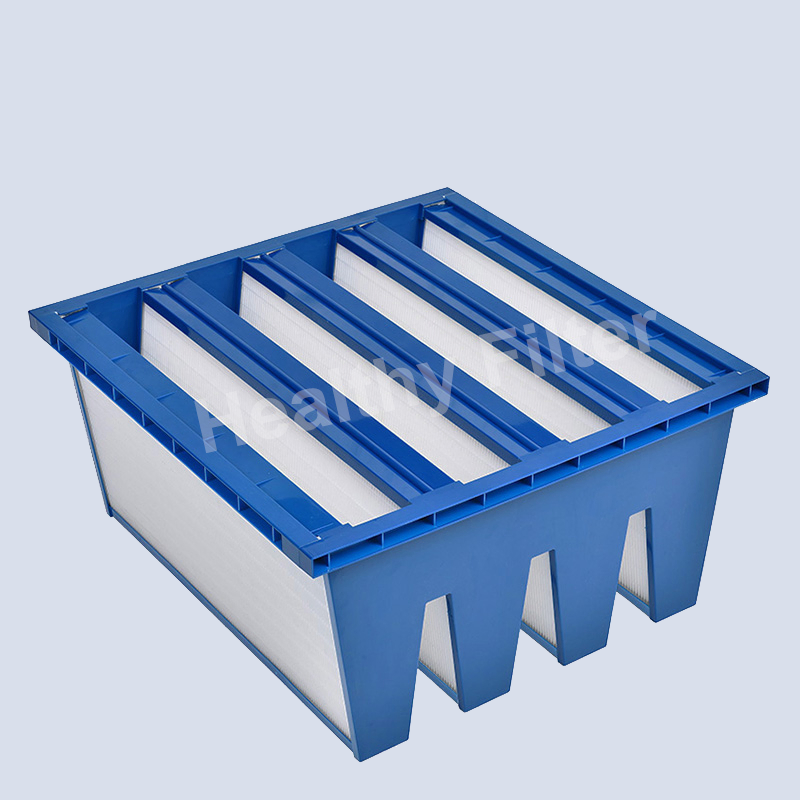

V-bank HEPA filter can extend the filtration areas compares with standard sized filter. It is usually made from cost-effective plastic frames. It can be made of steel frame or aluminium frame for special sizes. V-bank HEPA filter is widely used for applications as Hospital, Pharmaceutical plants, Chip plants, Stockbreeding, Glass screen factory, Photovoltaic plants, PCB factory, Painting booth, Semi-conductor plant, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Home Use, Construction works, Energy & Mining, Animal husbandry, there’s a great demand for v-bank HEPA filters especially in Animal husbandry industry in recent years.

FEATURES

● Large filtration area and large dust holding capacity

● Uniform pleat spacing

● High air flow and low resistance

● Water and moisture resistance

● Resistance to temperature ≤ 50°C

● Humidity resistance (relative humidity) ≤ 100%

APPLICATIONS

It is suitable for the final stage of filtration in various ventilation equipment, dust removal equipment, and air supply systems with high requirements for cleanliness.

SPECIFICATIONS

Model Width Height Depth Media
area
Airflow and pressure drop Efficiency
(mm) (mm) (mm) (m2) (m3/h&pa)
WBK592-592-292 592 592 295 16.8 2500/40 3600/80 4500/120 F6
WBK490-592-292 490 592 295 12.6 1875/40 2700/80 3375/120
WBK287-592-292 287 592 295 8.4 1250/40 1800/80 2250/120
WBK592-490-292 592 490 295 13.8 2000/40 2900/40 3600/120
WBK592-287-292 592 287 295 7.3 1250/45 1800/85 2100/130
WBK592-592-292 592 592 295 16.8 2500/60 3600/100 4500/140 F7
WBK490-592-292 490 592 295 12.6 1875/60 2700/100 3375/140
WBK287-592-292 287 592 295 8.4 1250/60 1800/100 2250/140
WBK592-490-292 592 490 295 13.8 2000/60 2900/100 3600/140
WBK592-287-292 592 287 295 7.3 1250/65 1800/105 2100/150
WBK592-592-292 592 592 295 16.8 2500/75 3600/125 4500/165 F8
WBK490-592-292 490 592 295 12.6 1875/75 2700/125 3375/165
WBK287-592-292 287 592 295 8.4 1250/75 1800/125 2250/165
WBK592-490-292 592 490 295 13.8 2000/80 2900/130 3600/170
WBK592-287-292 592 287 295 7.3 1250/80 1800/135 2100/180
WBK592-592-292 592 592 295 16.8 2500/75 3600/125 3600/200 F9
WBK490-592-292 490 592 295 12.6 1875/75 2700/125 2700/200
WBK287-592-292 287 592 295 8.4 1250/75 1800/125 1800/200
WBK592-490-292 592 490 295 13.8 2000/80 2900/130 2900/205
WBK592-287-292 592 287 295 7.3 1250/80 1800/135 1700/205

PRODUCT DETAILS
