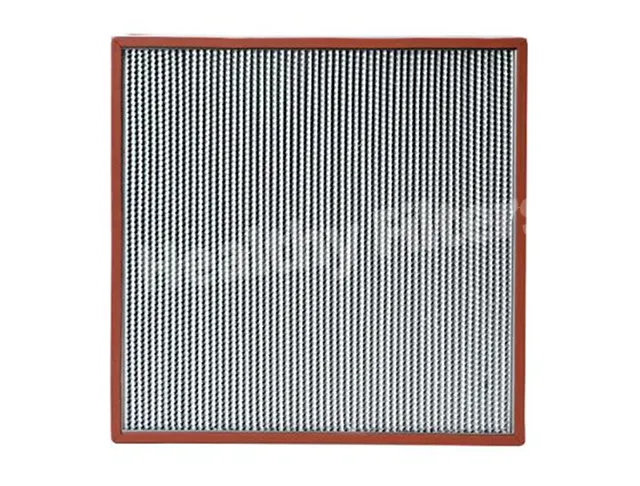

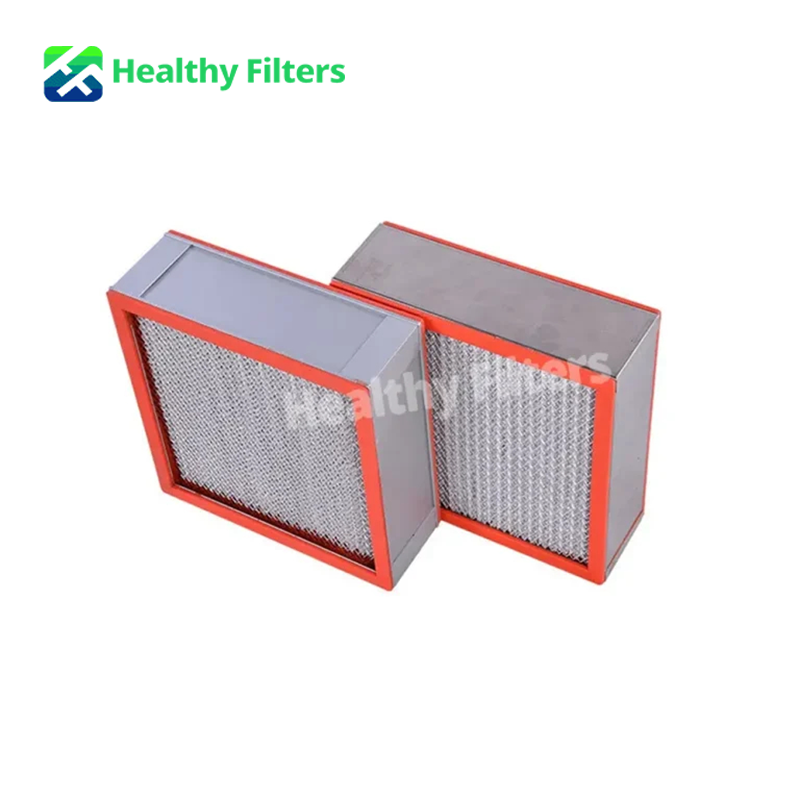

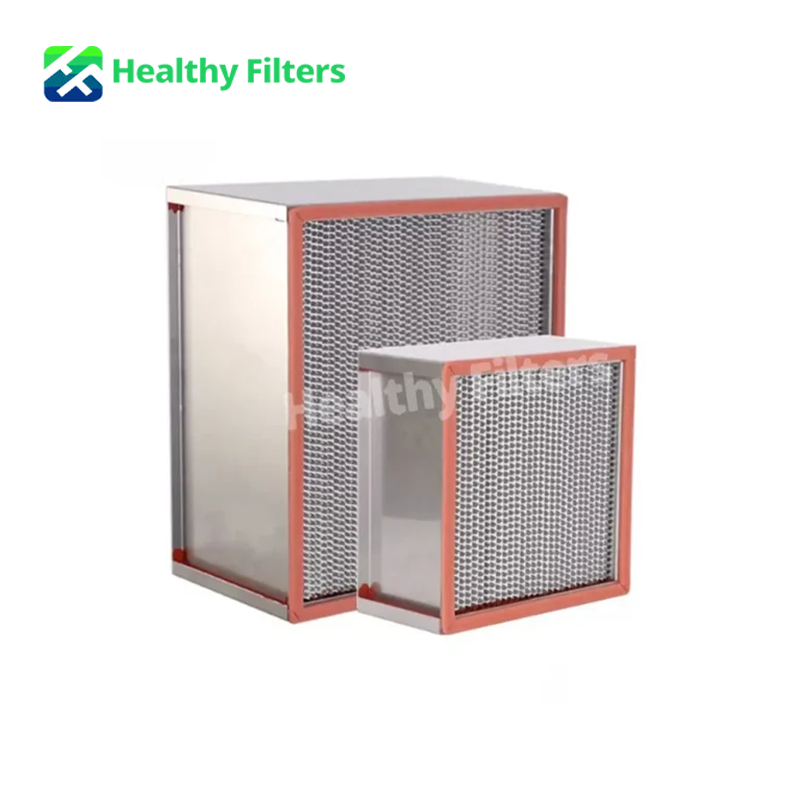

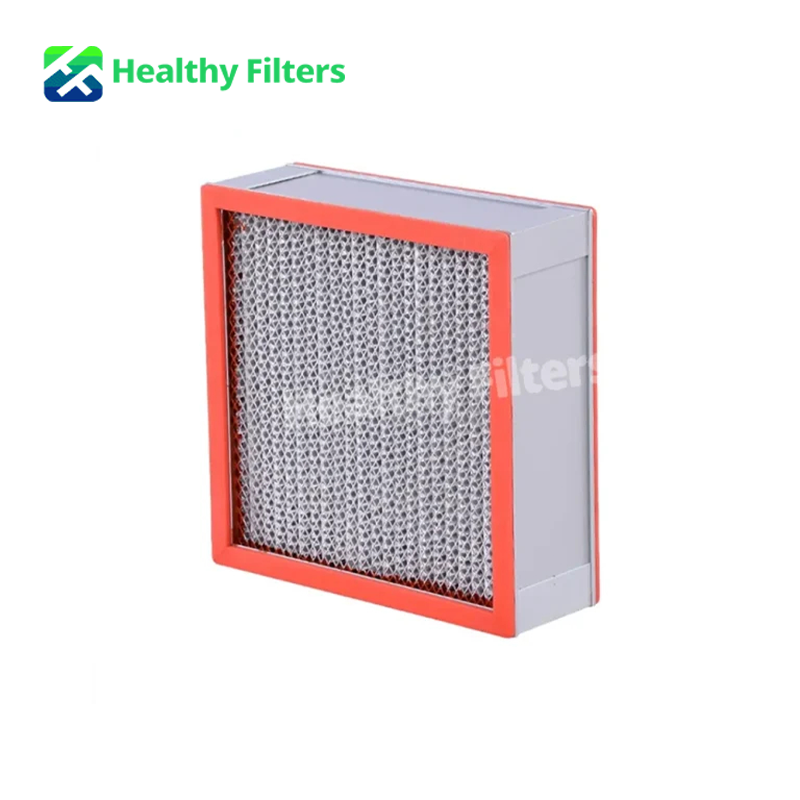

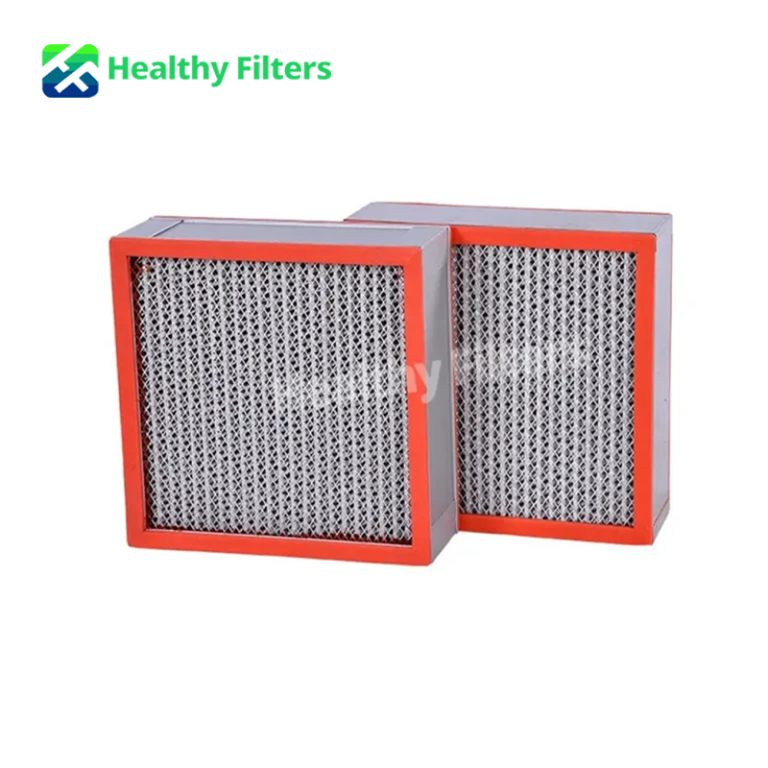

OEM H14 High Air Filters Glass Fiber High Temperature HEPA Industrial Filter
OEM H14 High Air Filters Glass Fiber High Temperature HEPA Industrial Filter
Features
- High-temperature resistance up to 250°C
- H10 / H12 / H13 / H14 efficiency options
- High filtration efficiency with average arrestance >99.97%
- Large filtration area for increased dust-holding capacity
- Superfine fiberglass filter paper media
- Low airflow resistance and stable performance
- Heat-resistant silicone sealing technology
- Galvanized steel or aluminum frame options
- Suitable for industrial ovens, furnaces, and thermal processing systems
- OEM and customized solutions available
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description

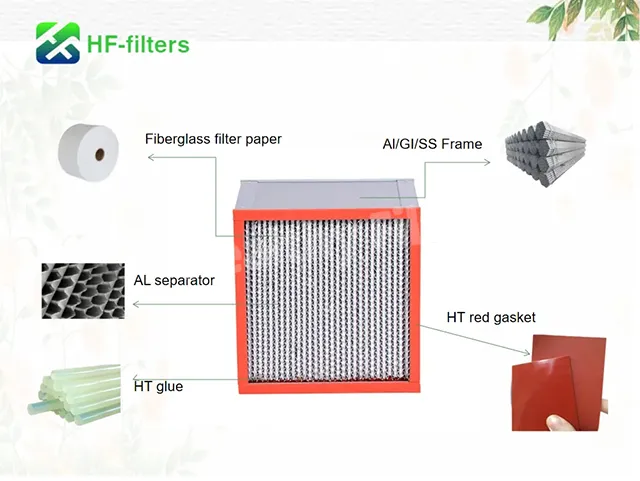

High-temperature air filters are assembled with ultra-fine glass fiber media, aluminum foil partition, stainless steel frame, and special high-temperature sealant, and can be used in high-temperature environments ranging from 250~350℃, with a wide range of choices of frame materials and thicknesses, and each filter has been rigorously tested before leaving the factory.

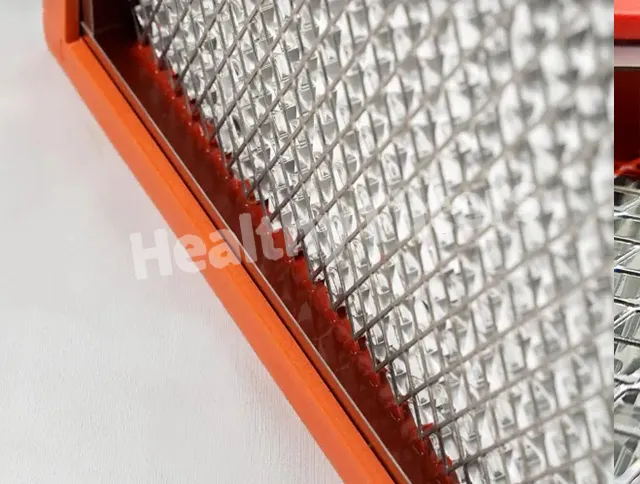

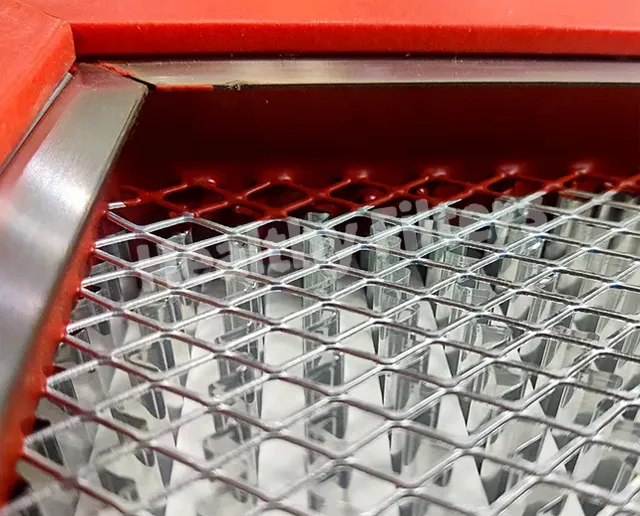

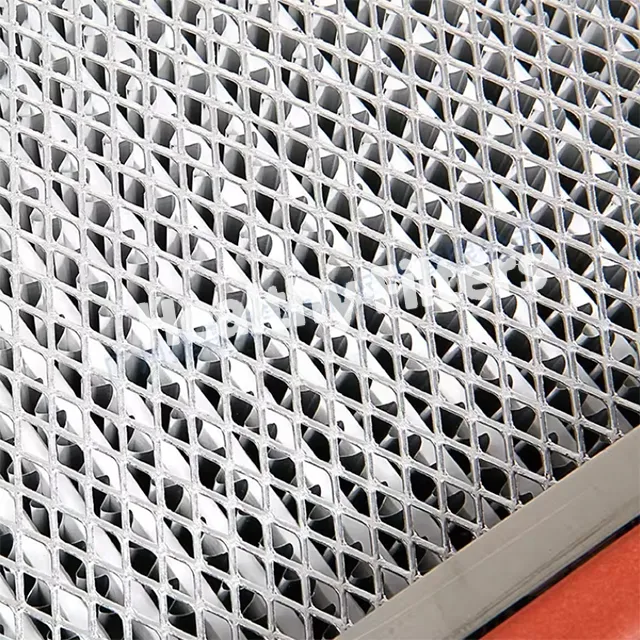

The filter material of the high-temperature-resistant high efficiency filter with partition is high-temperature-resistant ultra-fine glass fiber filter paper and the spacer plate is corrugated aluminum foil. The filter paper is fixed and sealed in the outer frame of SUS304 stainless steel plate with special high-temperature resistant silicone or ceramic adhesive. The installation sealing material is silicone rubber, PTFE or glass fiber cotton. Temperature resistant 250°C, 280°C, 350°C and other specifications for customers to choose. Mainly used in tunnel ovens and ultra-clean ovens and other equipment and systems requiring high-temperature air purification.
Technical Parameters
| Model | Size(mm) | Rated Airflow | Filter Area(㎡) | Initial Resistance(Pa) | Average Arrestance | |||
| HF-HT | H10 | H12 | H13 | H14 | ||||
| 484x484x150 | 530 | 6 | <150 | <190 | <220 | <240 | >99.97% | |
| 610x610x150 | 1000 | 10.2 | ||||||
| 1220x610x150 | 2000 | 20.6 | ||||||
| 484x484x220 | 1000 | 9.8 | ||||||
| 610x610x220 | 1600 | 15.8 | ||||||
| 1220x610x220 | 3000 | 31.6 | ||||||
| 305*610*292 | 1000 | 10.1 | ||||||
| 610*610*292 | 2000 | 20.9 | ||||||
Standard Model Options
| Item | Specification |
|---|---|
| Product Name | High Temperature HEPA Air Filter |
| Filter Type | High Temperature HEPA Filter |
| Model | HF-HT |
| Filter Media | Superfine Fiberglass Filter Paper |
| Efficiency Grade | H10 / H12 / H13 / H14 |
| Temperature Resistance | Up to 250°C |
| Frame Material | Galvanized Steel / Aluminum |
| Seal Material | High Temperature Resistant Silicone Seal |
| Structure | Deep Pleated HEPA Filter |
| Average Arrestance | >99.97% |
| Function | High Temperature Particle Filtration |
| Application System | Industrial Air Purification, Cleanroom, Thermal Processing Equipment |
Applications
| Pharmaceutical & Chemical Industry | Semiconductor Manufacturing | Industrial Ovens & Furnaces | Cleanroom Systems |
|---|---|---|---|
| High-temperature clean air filtration for pharmaceutical production and chemical processing areas. | Precision particle control for electronics, semiconductor, and micro-electronics manufacturing. | Air filtration for ovens, furnaces, incinerators, and thermal processing equipment. | Final filtration for cleanrooms requiring high-efficiency and heat-resistant performance. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom filter size and depth • H10 / H12 / H13 / H14 efficiency selection • Superfine fiberglass media customization • Aluminum or galvanized steel frame options • High-temperature silicone sealing customization • Airflow and pressure drop requirements • OEM label, packaging, and project samples |
• Dimension and frame inspection • Media surface and pleat structure inspection • High-temperature sealing inspection • Airflow and resistance testing • Efficiency and leakage testing upon request • Temperature resistance verification • Packaging inspection before shipment |
