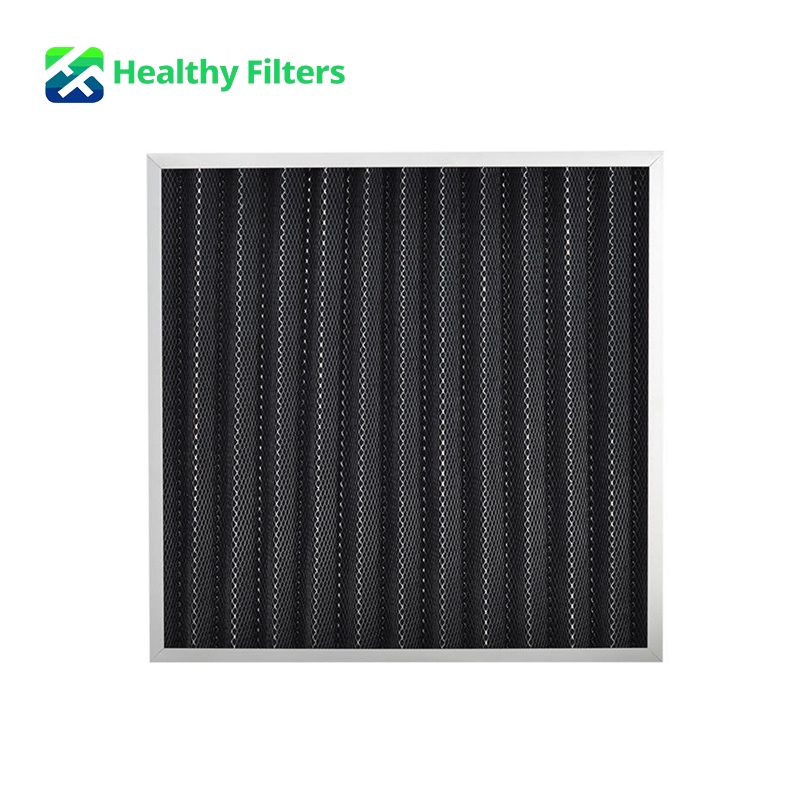

Activated Carbon Odor-Control Panel Filter for EV Charging Stations and Charging Cabinets
Activated Carbon Odor-Control Panel Filter for EV Charging Stations and Charging Cabinets
Features
- Developed for EV charging point and charging cabinet ventilation
- Activated carbon composite media for odor adsorption
- Helps reduce selected VOCs and gaseous contaminants
- Suitable for outdoor and semi-outdoor charging equipment

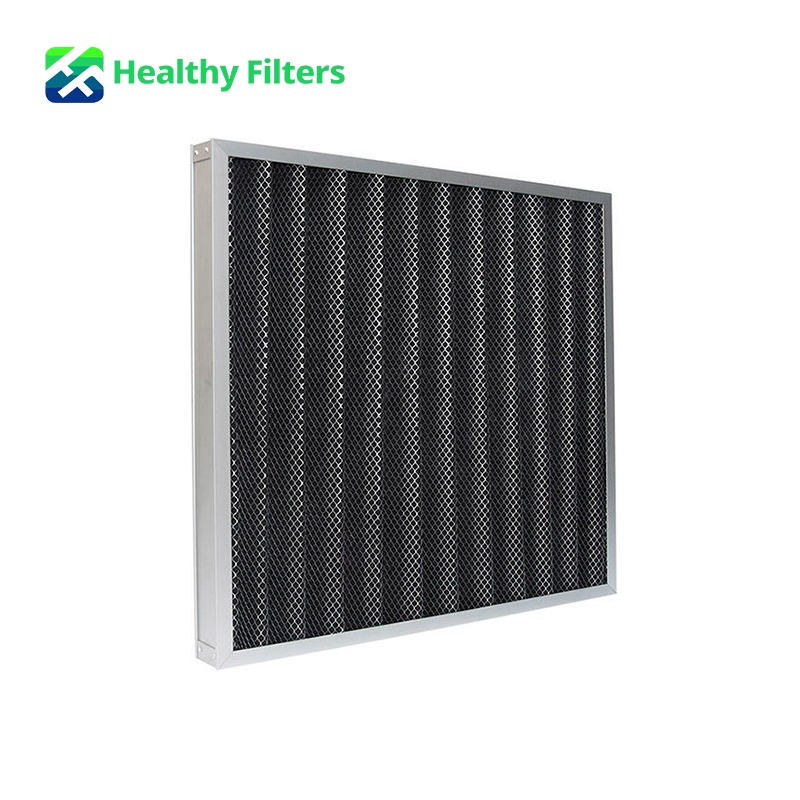

- Pleated construction increases the effective adsorption area
- Nominal initial pressure drop of 40 Pa
- Supports continuous cooling and ventilation airflow
- Aluminum-alloy and galvanized-steel frame options
- Helps protect internal charging equipment from contaminated air
- Suitable for fresh-air, recirculation or exhaust-air sections
- Easy-to-replace panel construction
- Can be combined with a particulate pre-filter
- Multiple standard face sizes available
- Custom dimensions and carbon loading supported
- OEM production for EV charger manufacturers
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description

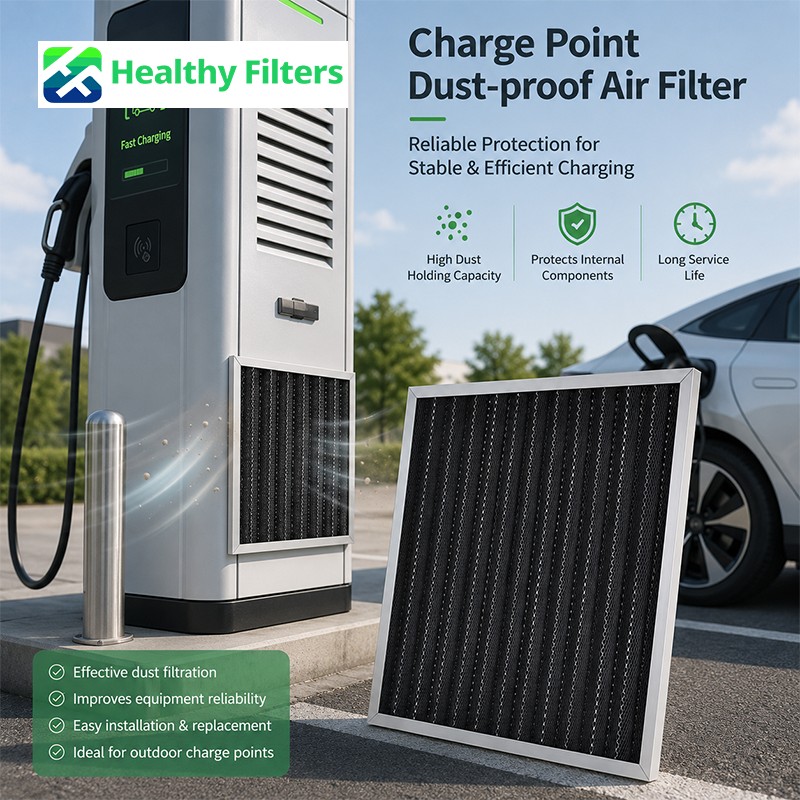

The HF-HXT Activated Carbon Panel Filter is designed for air treatment in EV charging stations, charging cabinets, outdoor charging piles and related electrical enclosures.
Using activated carbon composite media in a pleated panel structure, the filter helps reduce odors, low-concentration volatile organic compounds and selected gaseous contaminants carried by ventilation air. It can also intercept part of the airborne dust load when combined with suitable support media.
Installed in the charging point ventilation path, the filter supports cleaner air circulation around power modules, cooling fans, circuit boards and control components. Its nominal initial pressure drop of 40 Pa provides a practical balance between adsorption performance and cooling airflow.
For best service life, this filter is recommended for use downstream of a coarse dust pre-filter such as a nylon mesh, metal mesh or G3/G4 panel filter.
Technical Parameters

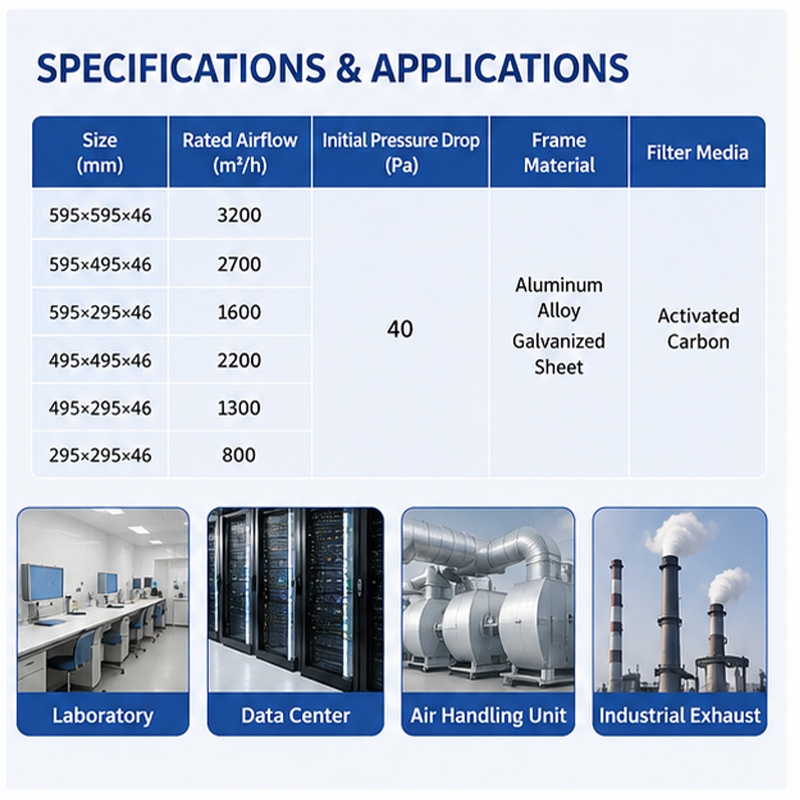

| Model | Size (mm) | Rated Airflow (m³/h) | Initial Pressure Drop (Pa) | Frame | Media |
|---|---|---|---|---|---|
| HF-HXT | 595 × 595 × 46 | 3,200 | 40 | Aluminum Alloy / Galvanized Steel | Activated Carbon |
| HF-HXT | 595 × 495 × 46 | 2,700 | 40 | Aluminum Alloy / Galvanized Steel | Activated Carbon |
| HF-HXT | 595 × 295 × 46 | 1,600 | 40 | Aluminum Alloy / Galvanized Steel | Activated Carbon |
| HF-HXT | 495 × 495 × 46 | 2,200 | 40 | Aluminum Alloy / Galvanized Steel | Activated Carbon |
| HF-HXT | 495 × 295 × 46 | 1,300 | 40 | Aluminum Alloy / Galvanized Steel | Activated Carbon |
| HF-HXT | 295 × 295 × 46 | 800 | 40 | Aluminum Alloy / Galvanized Steel | Activated Carbon |
The above values are nominal. Actual resistance, adsorption capacity and service life depend on airflow, contaminant concentration, temperature, humidity, carbon loading and system design.
Standard Model Options
| Item | Description |
|---|---|
| Product Name | Activated Carbon Panel Filter |
| Model Series | HF-HXT |
| Product Type | Odor and Gas-Phase Air Filter |
| Filter Media | Activated Carbon Composite Media |
| Structure | Pleated Carbon Media with Protective Mesh |
| Frame Options | Aluminum Alloy / Galvanized Steel |
| Standard Depth | 46 mm |
| Main Function | Odor and Selected VOC Adsorption |
| Particulate Function | Supplementary Dust Capture |
| Nominal Initial Pressure Drop | 40 Pa |
| Installation Position | Intake, Recirculation or Exhaust Section |
| Recommended Pre-Filter | Nylon Mesh, Metal Mesh or G3/G4 Panel Filter |
| Primary Application | EV Charging Stations and Charging Cabinets |
| Replacement Type | Replace When Adsorption Capacity Is Exhausted |
| Custom Sizes | Available |
| OEM / ODM | Supported |
Applications
| EV Charging Cabinets | Fast-Charging Stations | Power & Control Compartments | OEM Charging Equipment Integration |
|---|---|---|---|
| Installed in charging cabinets to reduce odors and selected gaseous contaminants in fresh-air or recirculation ventilation paths. | Suitable for high-power DC charging stations where continuous cooling airflow and improved enclosure air quality are required. | Used around power modules, control boards and electrical compartments requiring cleaner ventilation air. | Designed for EV charger manufacturers, cabinet suppliers and charging infrastructure integrators requiring standard or customized carbon filters. |
Benefits for Charge Point Systems
| Odor Reduction | Ventilation Compatibility | Internal Air Quality Support | Multi-Stage Filtration |
|---|---|---|---|
| Activated carbon helps reduce odors from heated plastics, insulation, electrical components and nearby environmental sources. | The pleated design provides a larger adsorption surface while maintaining a nominal 40 Pa initial pressure drop. | Cleaner enclosure air can reduce unpleasant odors around maintenance and operating areas. | The filter can be installed downstream of nylon, metal mesh or G3/G4 dust filters for combined particle and gas control. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom filter width, height and depth • Activated carbon type and loading adjustment • Custom media thickness and pleat quantity • Aluminum-alloy or galvanized-steel frames • Customized frame profile and reinforcement • Airflow and pressure-drop optimization • Odor- or VOC-specific media options upon request • Compatibility with charger louvers and cooling modules • Development from drawings or physical samples • Custom model numbers, labels and barcodes • Neutral or private-label export packaging • Bulk OEM production for EV charging projects |
• Incoming inspection of activated carbon media • Carbon loading and media-uniformity verification • Filter dimension and frame-squareness inspection • Pleat spacing and effective media-area inspection • Media sealing and frame-assembly checks • Rated airflow and initial pressure-drop testing • Adsorption performance testing upon request • Frame-strength and structural inspection • Visual inspection for carbon loss or media damage • Packaging and labeling verification • Batch identification and production traceability • Pre-shipment random sampling inspection |
Product Details
 |
 |
 |
