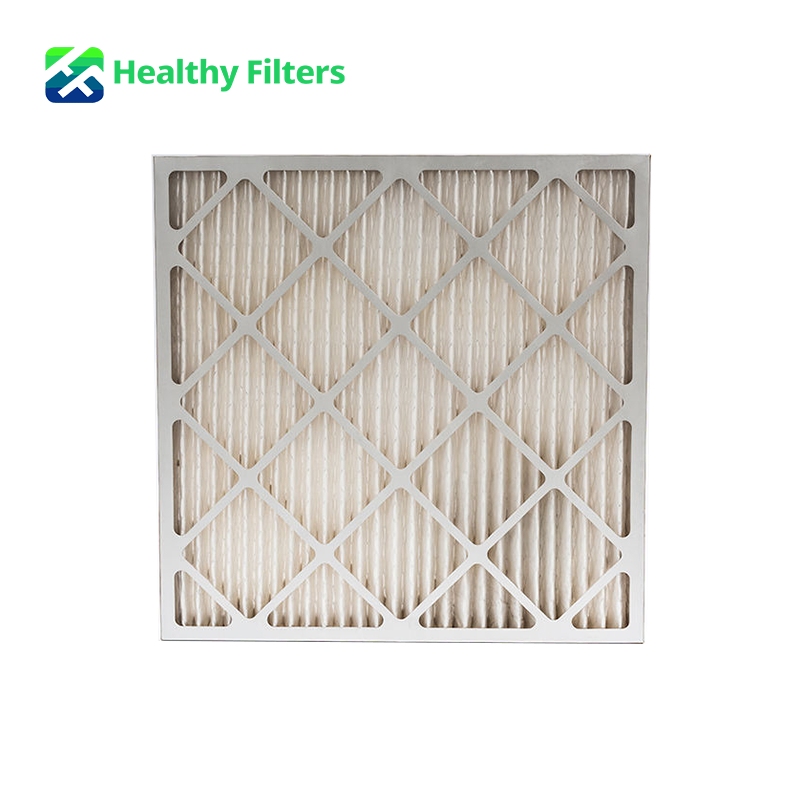

Foldaway Paper Frame Dust Filter for EV Charging Stations and Outdoor Charging Cabinets
Foldaway Paper Frame Dust Filter for EV Charging Stations and Outdoor Charging Cabinets
Features
- Designed specifically for EV charging point dust-proof ventilation systems
- Suitable for charging piles, charging cabinets and outdoor electrical enclosures
- G3/G4 primary filtration grades available
- Pleated synthetic fiber media increases filtration surface area
- High dust-holding capacity
- Low initial pressure drop for efficient cooling airflow
- Moisture-resistant paper frame construction
- Lightweight and easy installation
- Protects charging modules, cooling fans and electrical components
- Reduces dust accumulation inside charging equipment
- Supports continuous ventilation operation
- Cost-effective disposable pre-filter solution
- Customized dimensions available
- OEM and private-label production supported
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description
The Foldaway Paper Frame Filter Mesh is designed for dust protection and airflow filtration in electric vehicle charging stations, charging cabinets, power distribution enclosures and outdoor electrical equipment.

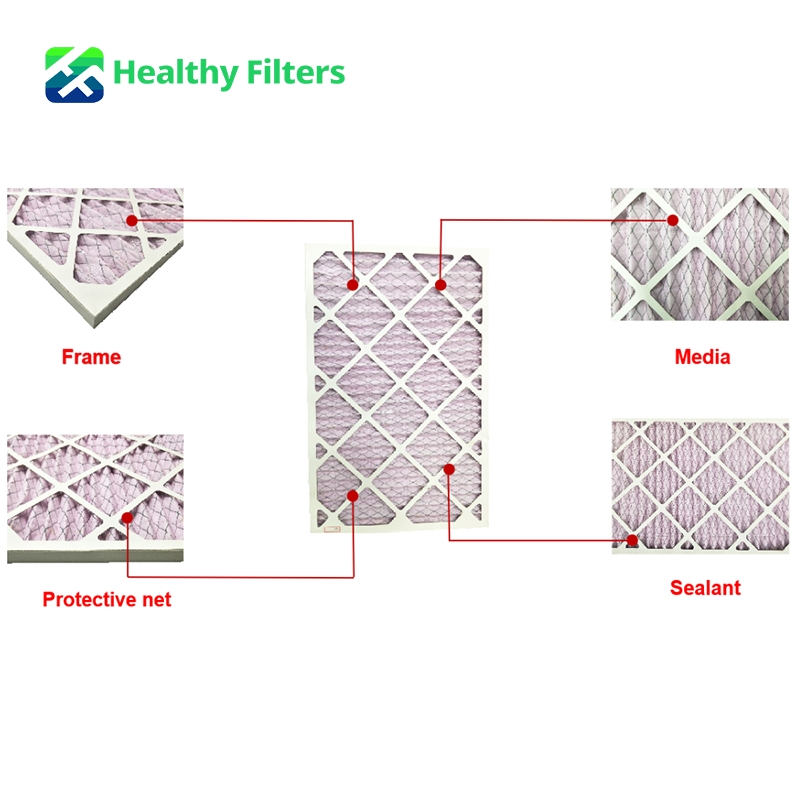

Featuring a pleated synthetic fiber filter media combined with a moisture-resistant paper frame, this lightweight panel filter provides high dust-holding capacity, low airflow resistance and reliable particle capture performance.

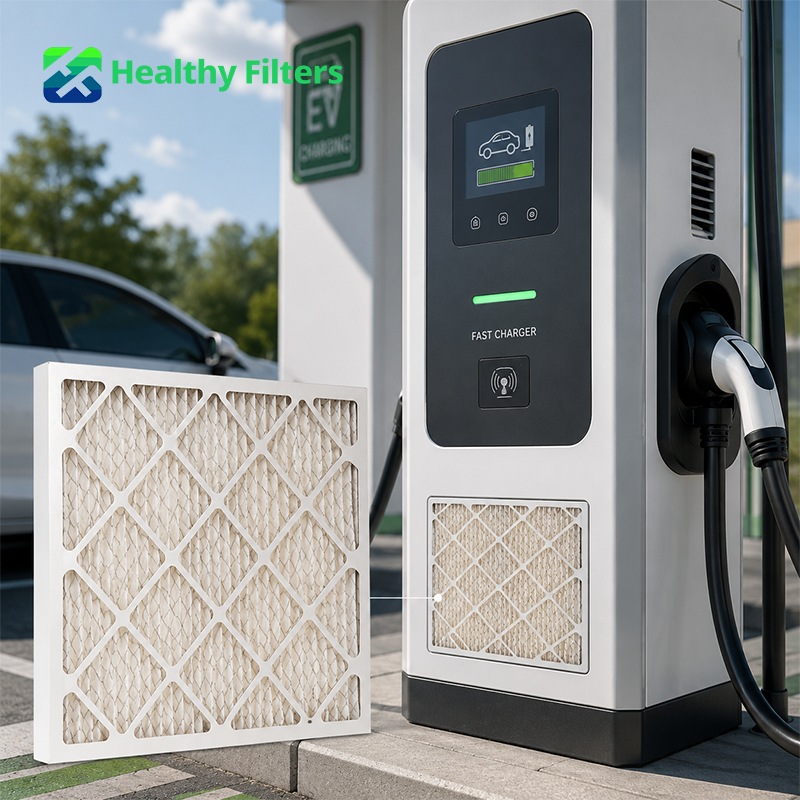

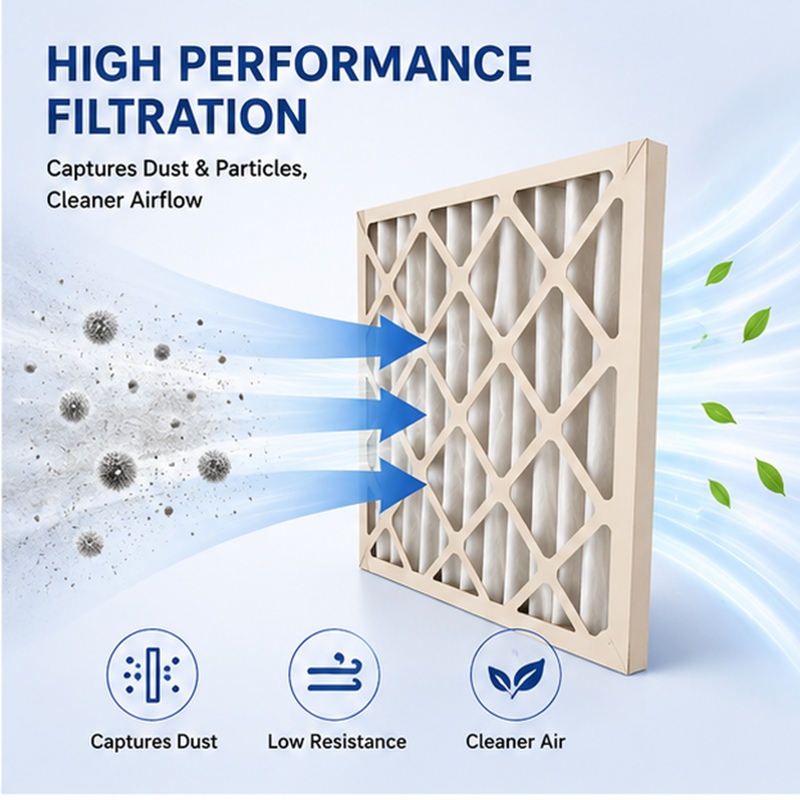

Installed at the air inlet of charging equipment, the filter prevents dust, fibers, sand particles and airborne contaminants from entering internal cooling components, helping protect fans, heat sinks, power modules and electronic control systems.
With G3 and G4 filtration options, the filter provides an economical and efficient solution for EV charging infrastructure manufacturers requiring stable ventilation protection and customized OEM filter designs.
Technical Parameters
| Model | Size (mm) | Rated Airflow (m³/h) | Initial Pressure Drop (Pa) | Final Pressure Drop (Pa) | Average Arrestance |
|---|---|---|---|---|---|
| HF-ZD-G3 | 595 × 595 × 46 | 3200 | 35 | 250 | 85% |
| HF-ZD-G3 | 495 × 595 × 46 | 2700 | 35 | 250 | 85% |
| HF-ZD-G3 | 295 × 595 × 46 | 1600 | 35 | 250 | 85% |
| HF-ZD-G3 | 495 × 495 × 46 | 2200 | 35 | 250 | 85% |
| HF-ZD-G4 | 595 × 595 × 46 | 3200 | 42 | 250 | 95% |
| HF-ZD-G4 | 495 × 595 × 46 | 2700 | 42 | 250 | 95% |
| HF-ZD-G4 | 295 × 595 × 46 | 1600 | 42 | 250 | 95% |
| HF-ZD-G4 | 495 × 495 × 46 | 2200 | 42 | 250 | 95% |
Performance values may vary depending on installation conditions, airflow velocity, dust concentration and equipment design.
Standard Model Options
| Item | Description |
|---|---|
| Product Name | Foldaway Paper Frame Filter Mesh |
| Product Type | Pleated Panel Pre-Filter |
| Application | Charge Point Dust-Proof Air Filter |
| Filtration Grade | G3 / G4 |
| Filter Media | Synthetic Fiber |
| Frame Material | Moisture-Resistant Paper Frame |
| Structure | Foldaway Pleated Panel |
| Main Function | Dust Protection & Cooling Air Filtration |
| Installation Position | Air Intake / Ventilation Opening |
| Particle Capture | Dust, Fibers, Sand, Outdoor Contaminants |
| Airflow Characteristic | High Air Permeability |
| Pressure Drop | Low Initial Resistance |
| Service Type | Disposable Replacement Filter |
| Custom Size | Available |
| OEM / ODM | Supported |
Applications
| EV Charging Stations | Charging Cabinets | Outdoor Electrical Equipment | OEM Charging Systems |
|---|---|---|---|
| Installed in EV fast chargers and charging piles to prevent dust entering cooling airflow channels and protect internal power components. | Used in charging control cabinets and power cabinets to filter incoming air while maintaining ventilation efficiency. | Suitable for outdoor electrical boxes, distribution cabinets and industrial enclosures exposed to dust and weather conditions. | Designed for EV charger manufacturers, charging infrastructure suppliers and electrical equipment integrators requiring customized filter solutions. |
Application Benefits in Charge Point Systems
| Electronic Component Protection | Cooling Efficiency | Low Maintenance Cost | Outdoor Reliability |
|---|---|---|---|
| Prevents dust accumulation on PCB boards, power modules and electrical components. | Low resistance design supports stable airflow for cooling fans and heat exchangers. | High dust capacity extends replacement intervals and reduces maintenance frequency. | Paper frame and synthetic media design provide economical protection for outdoor charging equipment. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom length, width and thickness • G3/G4 efficiency selection • Customized synthetic fiber media • Special dust-capacity requirements • Customized paper frame dimensions • Reinforced frame structure • Customized airflow resistance • Charging cabinet compatibility design • OEM logo printing • Custom labels and packaging • Prototype development based on samples |
• Incoming inspection of filter media and frame materials • Filter size measurement • Frame strength inspection • Pleat spacing inspection • Media bonding inspection • Airflow performance testing • Initial pressure-drop testing • Filtration efficiency testing upon request • Appearance inspection • Packaging inspection • Batch production traceability |
