White Spray Paint Booth Ceiling Filter Media Polyester Cotton Fabric Filter Cloth Hepa For G2/G3/G4/F5
White Spray Paint Booth Ceiling Filter Media Polyester Cotton Fabric Filter Cloth Hepa For G2/G3/G4/F5
Features
Ceiling filter media is a type of air filtration material specifically designed for use in the ceilings of spray booths, clean rooms, and other controlled environments. This media plays a crucial role in ensuring a contaminant-free workspace by trapping airborne particles, dust, and paint overspray that can affect the quality of the final product.
- Available in various sizes and configurations to fit different ceiling grid systems.
- Capable of holding large amounts of dust and particles before needing replacement.
- Eco-Friendly
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description

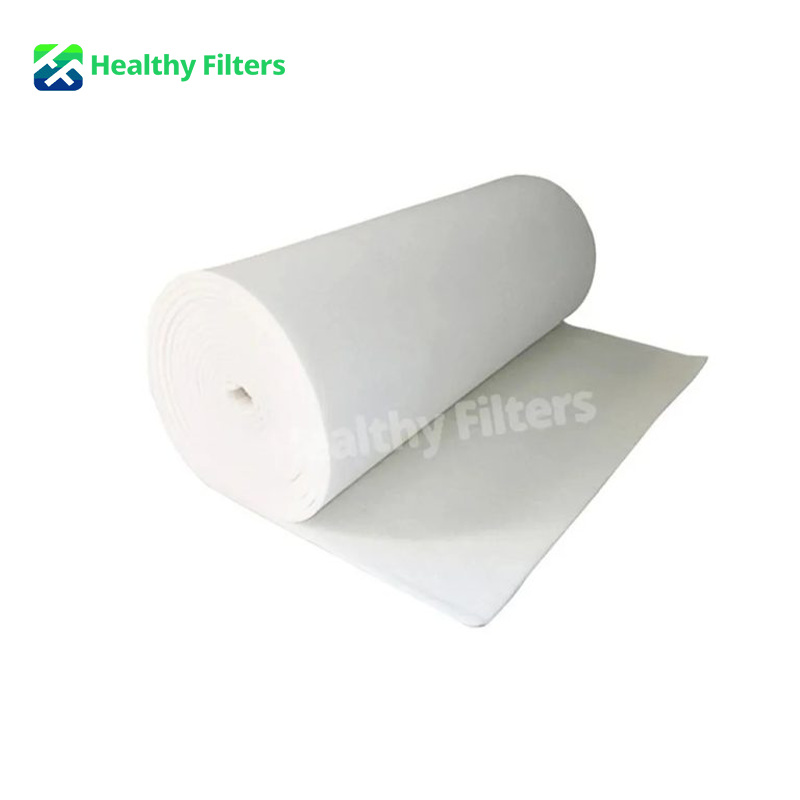

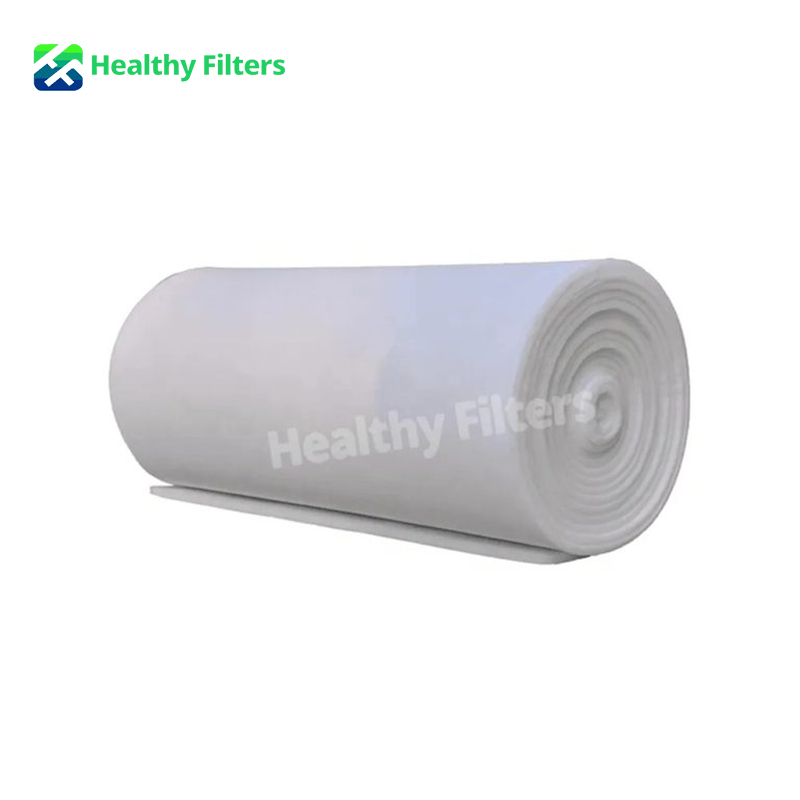

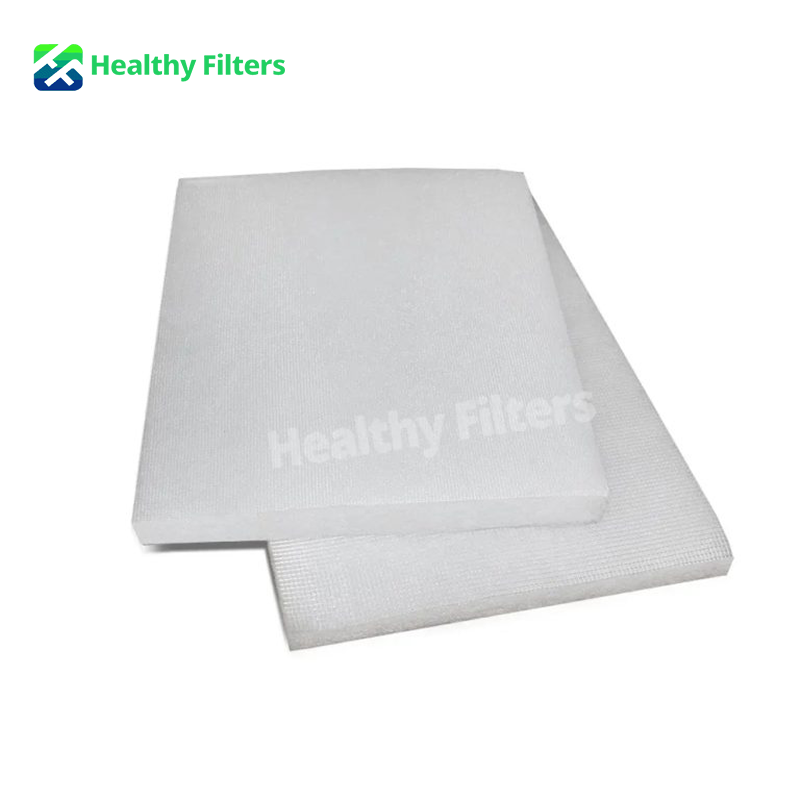

Spray booth intake filters, also known as ceiling filters, represent the second stage of the air filtration process. They resemble large “blankets” made from thicker polyester batting, often quilted together. They can also be composed of individual pads designed to fit into frames. Some spray booth filter pads feature integrated metal frames to enhance their rigidity. Ceiling Filters available in rolls,suitable for high efficiency filtration of intake air in pressurized paint spray booths and ovens in automobile repair shop and for the pre-filtration of more efficient filters.

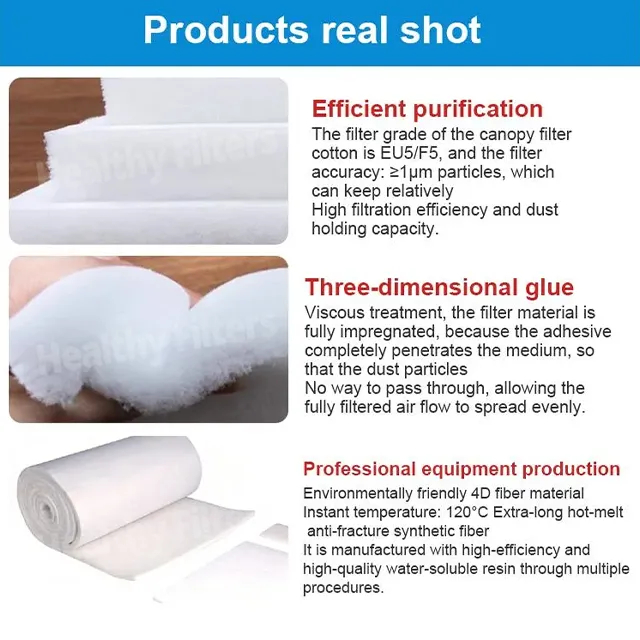

This Ceiling Filters is made from long, hot-melt, anti-break synthetic fibers and high-quality water resin. Our production process involves full solid glue spraying steps, with fiber density increasing layer by layer, resulting in a more uniform filter surface that efficiently blocks and absorbs tiny particles.
Technical Parameters
| Type | Filtration Class | Initial Pressure Drop (Pa) | Final Pressure Drop(pa) | Rated Air Flow (m3/h) | Air Velocity (m/s) | Dust Holding Capacity (g/m2) | Thickness |
| HF-600G | F5 | 30 | 450 | 900 | 0.25 | 480 | 20-25mm |
| HF-560G | F5 | 25 | 450 | 900 | 0.25 | 450 | |
| Standard size: 2x20M | |||||||
Standard Model Options
| Item | Specification |
|---|---|
| Product Name | White Spray Booth Ceiling Filter Media Roll |
| Product Type | Ceiling Filter / Air-Supply Filter Media |
| Model Series | HF |
| Standard Models | HF-600G / HF-560G |
| Standard Filter Class | F5 |
| Other Grades | G2 / G3 / G4 or Customized, Subject to Confirmation |
| Filter Material | Polyester Synthetic Fiber |
| Structure | Progressive-Density Non-Woven Media |
| Reinforcement | Clean-Air-Side Support Mesh |
| Surface Treatment | Adhesive Impregnation |
| Standard Color | White |
| Standard Roll Size | 2 × 20 m |
| Thickness | 20–25 mm |
| Rated Air Velocity | 0.25 m/s |
| Humidity Resistance | Up to 100% RH |
| Flame Retardancy | DIN 53438 F1 / UL 900 Class 2 Option |
| Supply Form | Roll / Cut Pad / Framed Filter |
Applications
| Automotive Paint Booths | Industrial Coating Rooms | Cleanrooms & Controlled Areas | HVAC Air-Supply Systems |
|---|---|---|---|

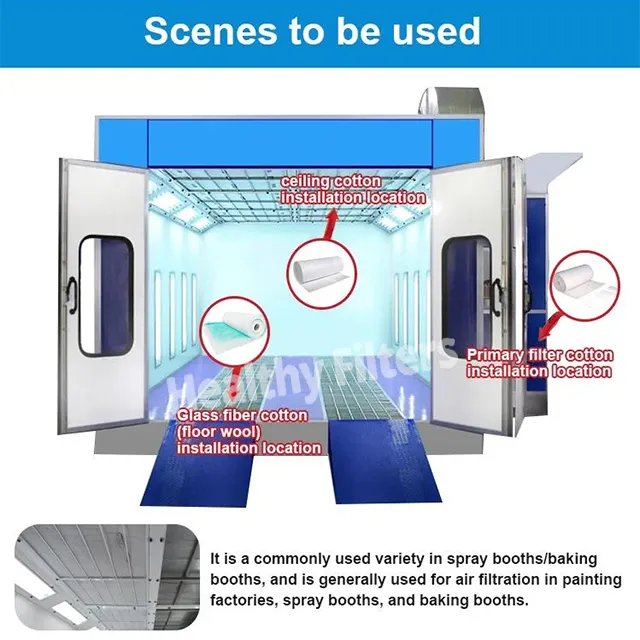

| Installed in paint booth ceilings to prevent dust and fibers from contaminating freshly painted vehicle surfaces. | Suitable for furniture, machinery, electronics, aerospace, and other industrial surface-coating operations. | Used in controlled production rooms where stable, low-contamination air supply is required. | Applied as final or secondary supply-air media in ventilation units, ceiling grids, and air-handling systems. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom roll width and length • Custom thickness and media density • F5, G2, G3, G4, or project-specific grades • Roll, cut-pad, or framed-filter supply • Custom airflow and resistance requirements • Support-mesh and adhesive-treatment options • OEM labels, private branding, and export packaging • Samples for spray booth installation testing |
• Roll width, length, and thickness inspection • Fiber density and gradient-structure verification • Support-mesh and adhesive-treatment inspection • Surface uniformity and particle-shedding check • Rated airflow and pressure-drop testing • Dust-holding capacity testing upon request • Flame-retardancy verification upon request • Final appearance, roll winding, and packaging inspection |
