Description
Spray booth extract filters are essential for maintaining high-quality standards within a spray booth and ensuring the health and safety of workers outside. Pre-filtering the air entering the booth prevents contaminants from compromising the spray booth environment, while filtering the air exiting the booth ensures that hazardous chemicals do not reach the workers outside. Glass fiber panels used in these filters make sizing and fitting straightforward, as they can be easily applied to a filter, and multiple panels can be combined to cover larger areas effortlessly. These filters need to be installed on both ceiling and wall vents to create an optimal working environment.
By reducing the release of harmful and hazardous chemicals from the spray booth, spray booth extract filter glass fiber panels help decrease pollution and minimize the environmental impact of manufacturing and painting processes. Besides the environmental and health benefits of an effective filtration system, these panels also ensure that the quality of the painting is not compromised. This dual benefit makes them an indispensable component of any spray booth setup.
| Type | Thickness(mm) | Test Air Velocity (m/s) | Average arrestance (EN779) | Initial
Resistance (pa) |
Dust Holding Capacity (g/m2) | Filtration
Grade |
Size (m) | Temperature
Resistance°C |
| PS-60 | 60 | 1.5 | 85 | 20 | 3200 | G3 | lm*20m | 170 |
| PS-100 | 100 | 1.5 | 90 | 25 | 4500 | G4 | 2m*20m | 170 |
| Available thickness: 50mm, 75mm ,80mm | ||||||||
| Item | Specification |
|---|---|

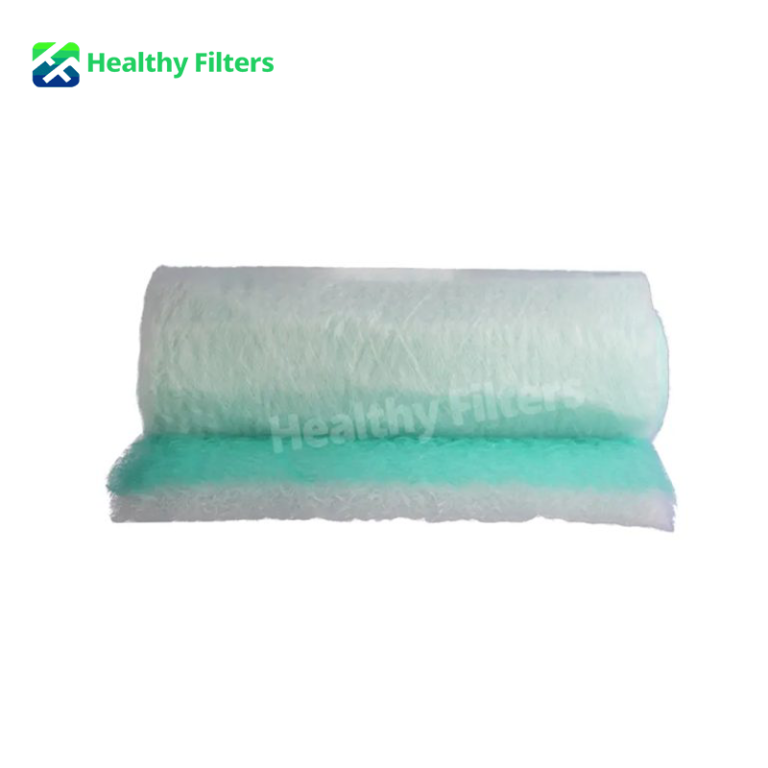

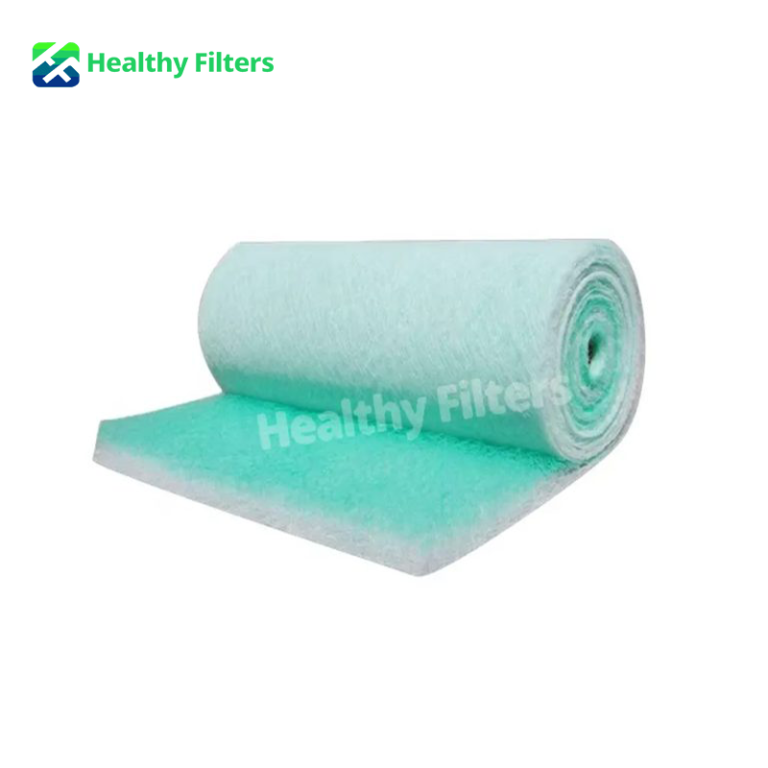

| Product Name | Fiberglass Paint Arrestor Filter Media Roll |
| Product Type | Paint Stop Filter / Spray Booth Floor Filter |
| Model Series | HF-PS |
| Filter Media | Continuous Fiberglass |

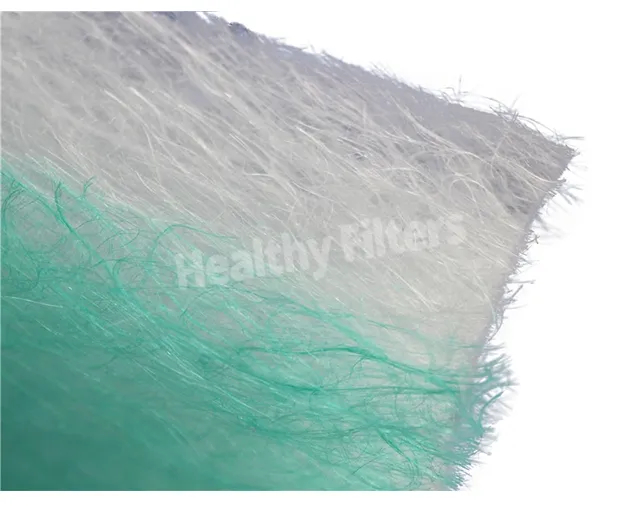

| Structure | Progressive-Density Non-Woven Glass Fiber |
| Efficiency Grades | G3 / G4 |
| Standard Models | HF-PS-60 / HF-PS-100 |
| Standard Thicknesses | 60 mm / 100 mm |
| Optional Thicknesses | 50 mm / 75 mm / 80 mm |
| Air-Inlet Side | Green |
| Air-Outlet Side | White |
| Test Air Velocity | 1.5 m/s |
| Initial Resistance | 20–25 Pa |
| Temperature Resistance | Up to 170°C |

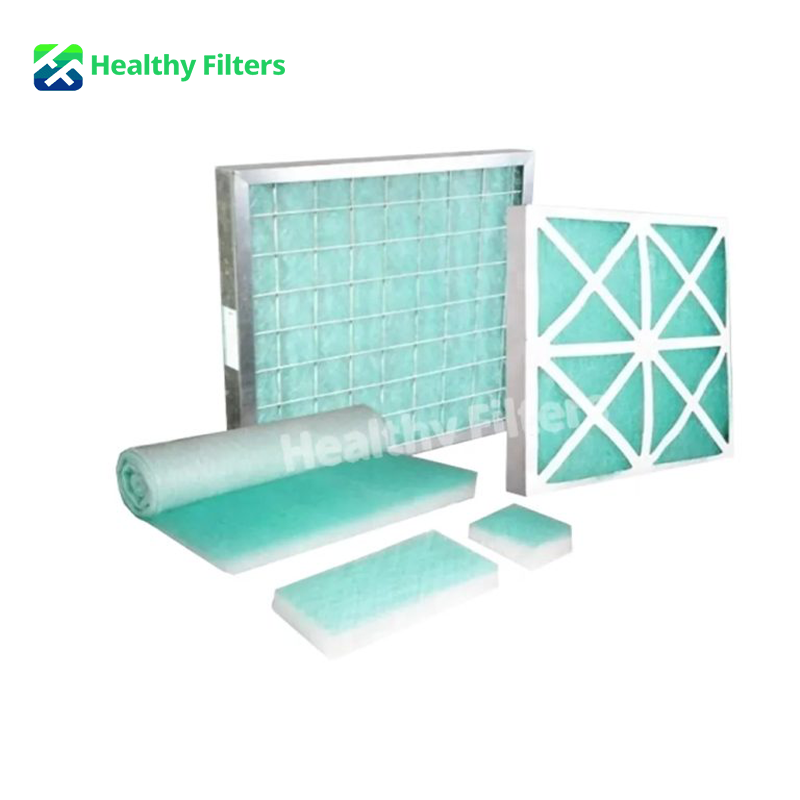

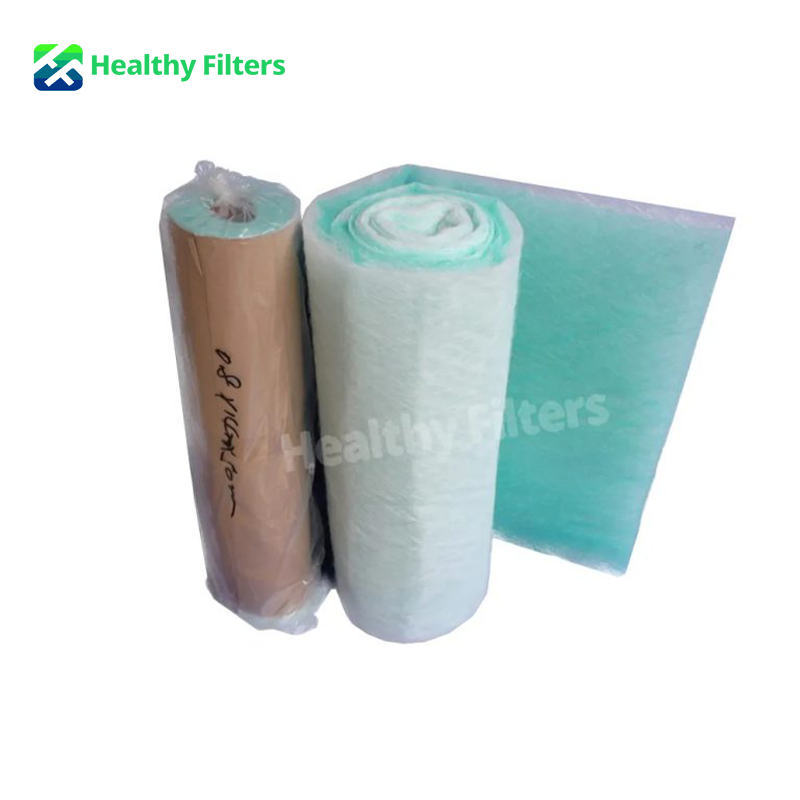

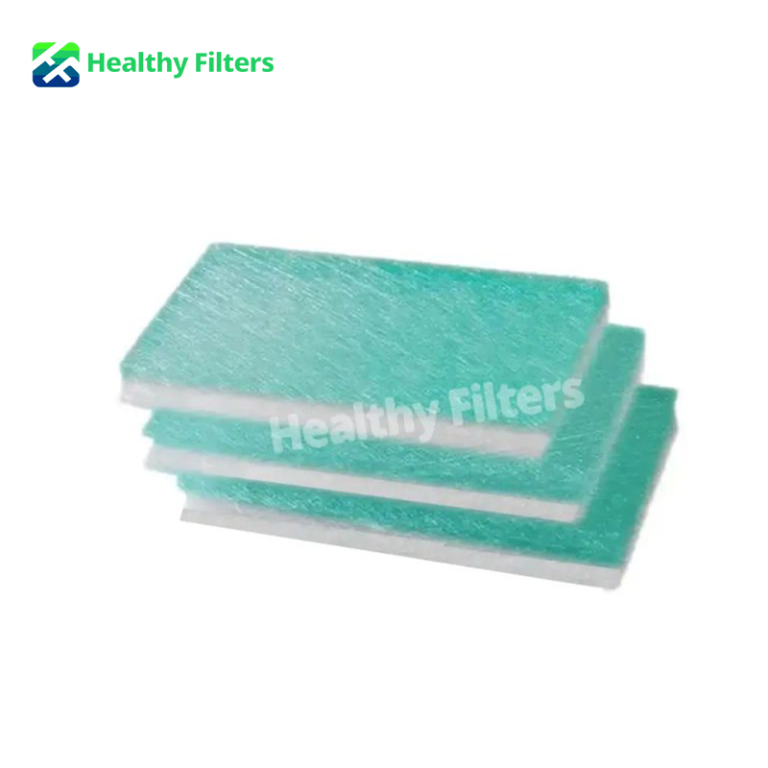

| Supply Form | Roll / Cut Sheet / Pad / Framed Filter |
| Main Function | Paint Mist, Overspray and Coarse Dust Capture |
| Automotive Spray Booths | Furniture & Wood Coating | Industrial Painting Lines | Spray Booth Exhaust Systems |
|---|---|---|---|
| Captures paint overspray in automotive refinishing, vehicle assembly, and component coating booths. | Used in furniture, cabinet, panel, and decorative wood finishing applications. | Suitable for machinery, metal parts, aerospace, and general industrial coating systems. | Protects exhaust fans, ducts, heat-recovery units, and downstream filters from paint mist and coarse particles. |
| Customization Available | Quality Inspection |
|---|---|
| • Custom roll width and length • 50 / 60 / 75 / 80 / 100 mm thickness options • G3 / G4 filtration configurations • Custom fiber density and gradient structure • Roll, cut-pad, or framed-filter supply • Paper, galvanized steel, or aluminum frame options • OEM labels, private branding, and export packaging • Samples for spray-booth performance testing |
• Roll width, length, and thickness inspection • Fiberglass density and uniformity check • Green and white airflow-side identification • Initial resistance and airflow testing • Average arrestance testing upon request • Paint- and dust-holding capacity verification • Compression recovery and structural inspection • Final packaging inspection before shipment |
