Fiberglass Material Paint Room Stop Filter Media Roll Spray Booth Floor Filter
Fiberglass Material Paint Room Stop Filter Media Roll Spray Booth Floor Filter
Features
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description

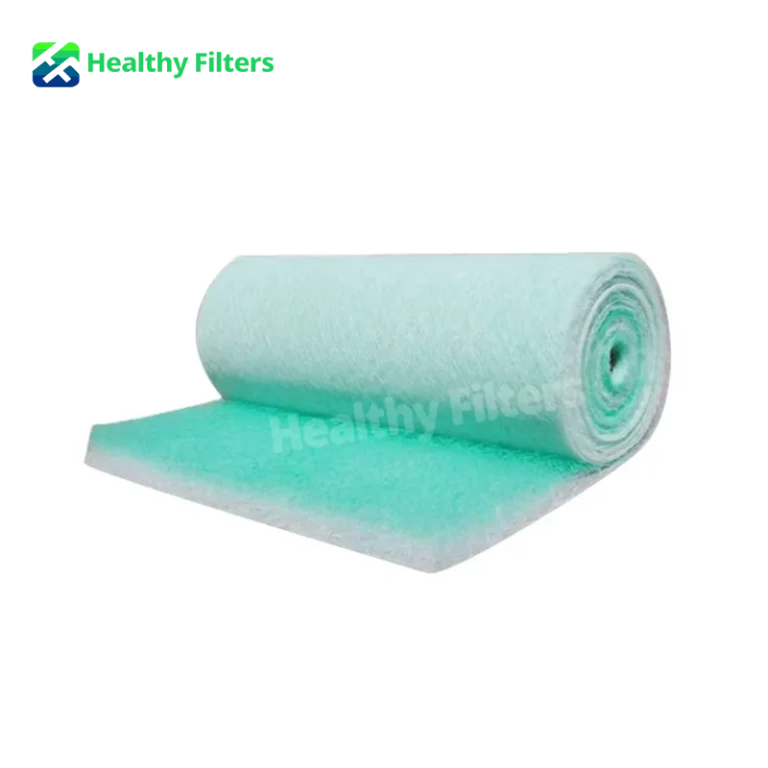

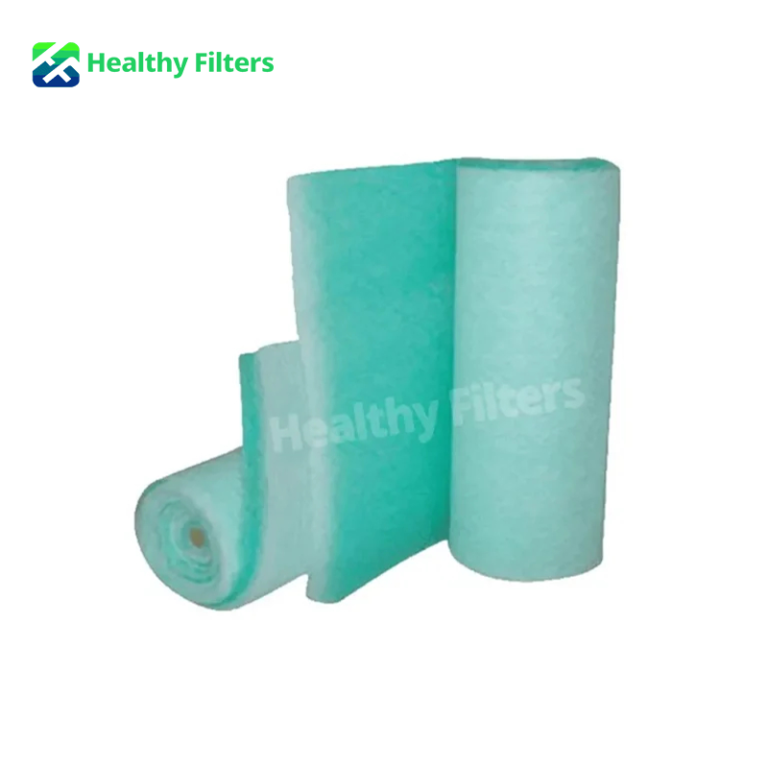

Fiberglass Media Floor Filter is made of long fiberglass in non-woven way, large ventilation quantity, small resistance, good efficiency of the dust arrestance for the over-spray. High quality fiberglass floor filters designed specifically for spray booths. Roll sizes are customizable and feature progressive density fiberglass filter media. Ideal for automotive paint booth floors or as a secondary filter in most rooms. Increased build-up capability is enhanced with a protective laminate treatment.
● Fiberglass filter media is made from long fiberglass in a non-woven format, offering high ventilation capacity, low resistance, and effective dust arrestance for over-spray
● It is used for high-quality spray coating filtration, with high dust capture efficiency for PA-50/60/PA-100, and is particularly suitable for use in heat recovery systems

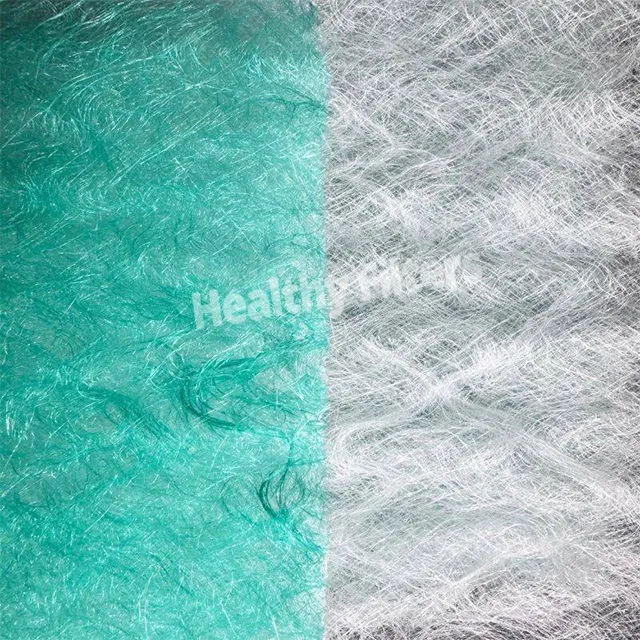

● Features a high-strength fiberglass structure, with the windward side in green and the leeward side in white

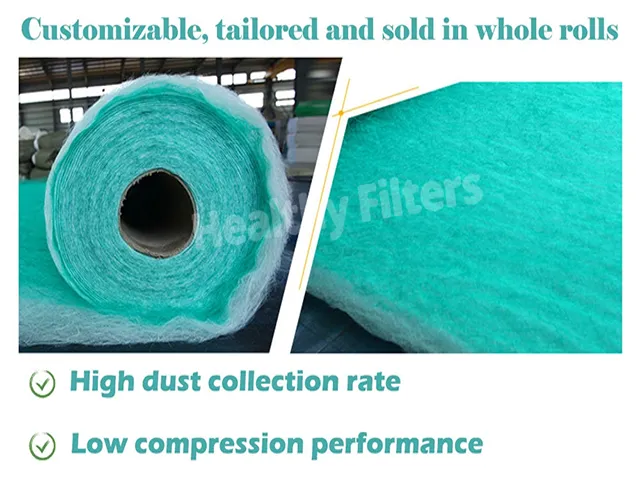

● The low compression performance maintains its shape, making the filtration fiber effective for capturing oil mist and dust
● Nonflammable and resistant to temperatures up to 170°C

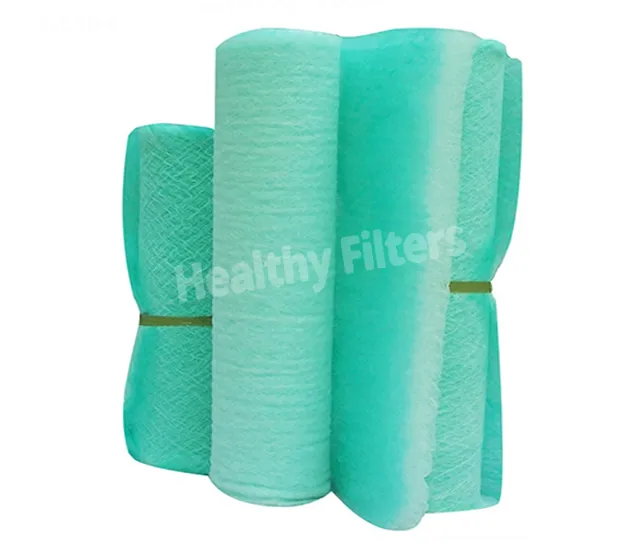

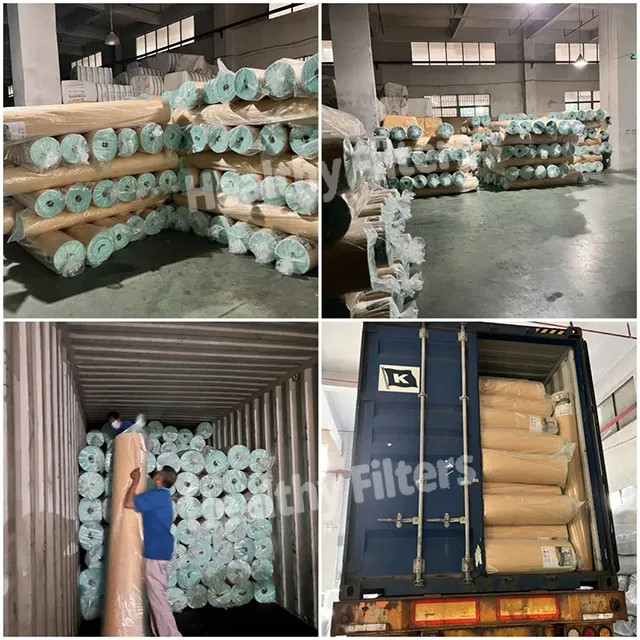

● Compression packing saves on transportation and storage costs, and the filter regains its original condition after decompression
● The outer frame can be made from paper, galvanized iron, or aluminum alloy
Technical Parameters
| Type | Thickness(mm) | Test Air Velocity (m/s) | Average arrestance (EN779) | Initial Resistance (pa) |
Dust Holding Capacity (g/m2) | Filtration Grade |
Size (m) | Temperature Resistance°C |
| PS-60 | 60 | 1.5 | 85 | 20 | 3200 | G3 | lm*20m | 170 |
| PS-100 | 100 | 1.5 | 90 | 25 | 4500 | G4 | 2m*20m | 170 |
| Available thickness: 50mm, 75mm ,80mm | ||||||||
Standard Model Options
| Item | Specification |
|---|---|
| Product Name | Fiberglass Paint Arrestor Filter Media Roll |
| Product Type | Spray Booth Floor Filter / Paint Mist Filter Media |
| Model Series | HF-PS |
| Filter Media | Long Fiberglass Non-Woven Media |
| Efficiency Grades | G3 / G4 |
| Standard Models | PS-60 / PS-100 |
| Standard Thickness | 60 mm / 100 mm |
| Additional Thicknesses | 50 mm / 75 mm / 80 mm |
| Air-Inlet Side | Green |
| Air-Outlet Side | White |
| Test Air Velocity | 1.5 m/s |
| Initial Resistance | 20–25 Pa |
| Temperature Resistance | Up to 170°C |
| Supply Form | Roll / Cut Pad / Framed Filter |
| Main Function | Paint Mist, Overspray, Oil Mist and Dust Capture |
Applications
| Automotive Spray Booths | Furniture & Wood Coating | Industrial Painting Lines | Exhaust & Dust Collection Systems |
|---|---|---|---|
| Captures paint overspray in automotive refinishing, vehicle assembly, and component coating booths. | Used for cabinets, furniture, wood panels, and decorative finishing processes. | Suitable for aerospace, machinery, metal finishing, and general industrial coating systems. | Protects fans, ducts, heat-recovery units, and downstream filters from paint mist, soot, and coarse dust. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom roll width and length • 50 / 60 / 75 / 80 / 100 mm thickness options • G3 / G4 performance configurations • Roll, cut-pad, or framed-filter supply • Paper, galvanized steel, or aluminum frame options • Custom media density and paint-holding capacity • OEM labels, private branding, and export packaging • Samples for spray-booth performance testing |
• Roll width, length, and thickness inspection • Fiberglass media density and uniformity check • Inlet and outlet side identification inspection • Initial resistance testing • Average arrestance testing upon request • Dust- and paint-holding capacity verification • Temperature-resistance inspection upon request • Compression recovery and packaging inspection |
