Glass Fibre Cotton G2 G3 Air Filter Paint Stop Media Filter High Efficiency Floor for Spray Booth Room
Glass Fibre Cotton G2 G3 Air Filter Paint Stop Media Filter High Efficiency Floor for Spray Booth Room
Features
Painting stop filter media ensures optimal airflow while effectively trapping paint particles. This results in a cleaner, safer working environment and enhances the overall quality of the painting process.
- Reduces pressure drop, ensuring the smooth operation of ventilation systems.
- Available in standard and custom sizes to fit various spray booth configurations.
- Ensures uniform paint application by maintaining a clean spray booth environment.
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description

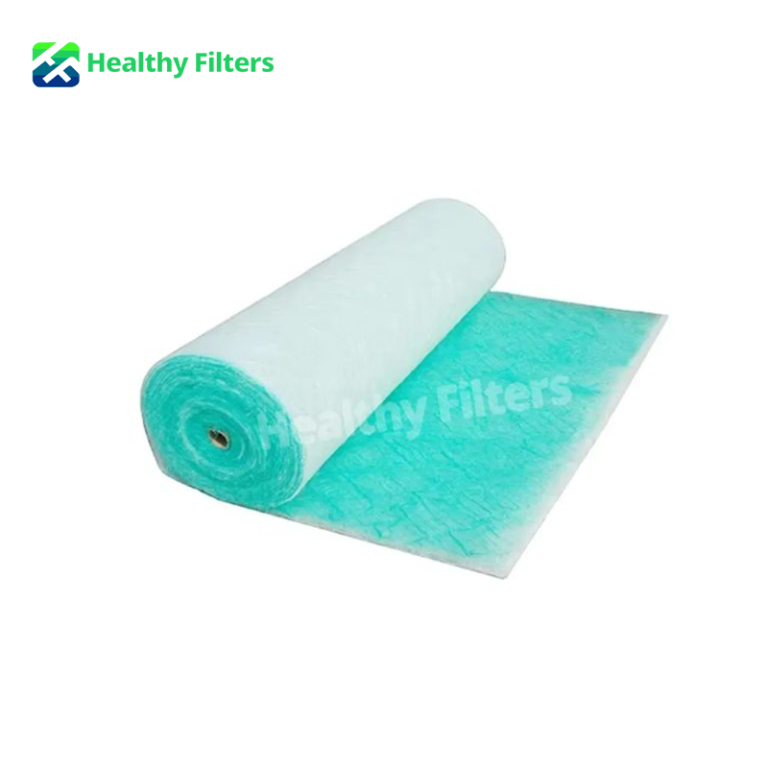

Fiberglass Media Floor Filter is made of long fiberglass in non-woven way, large ventilation quantity, small resistance, good efficiency of the dust arrestance for the over-spray.
Glass fiber cotton is made using long glass fibers in a non-woven, progressively dense structure, providing high ventilation and low air resistance. It is primarily used for filtering paint mist emissions in coating systems or industrial oil mist emissions, and can also serve as pre-filtration in general ventilation systems.
- High quality painting-spray filtration
- High strength fiberglass increasing structure
- PS-50/60/PS-100 is suitable for using heat recovery system
- The low compression performance ensures the filter retains its shape, making it highly effective for capturing oil mist and dust with its filtration fibers

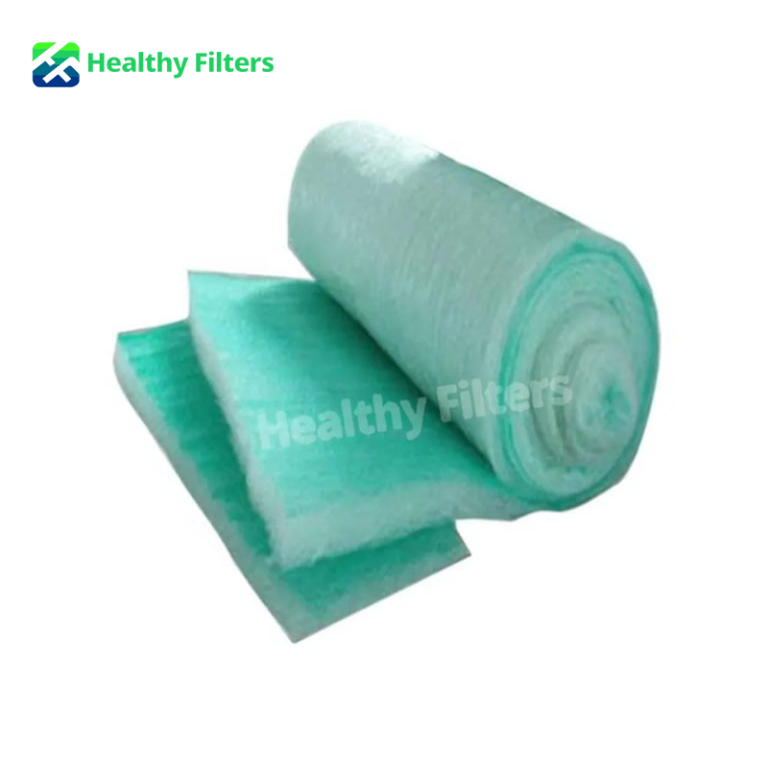

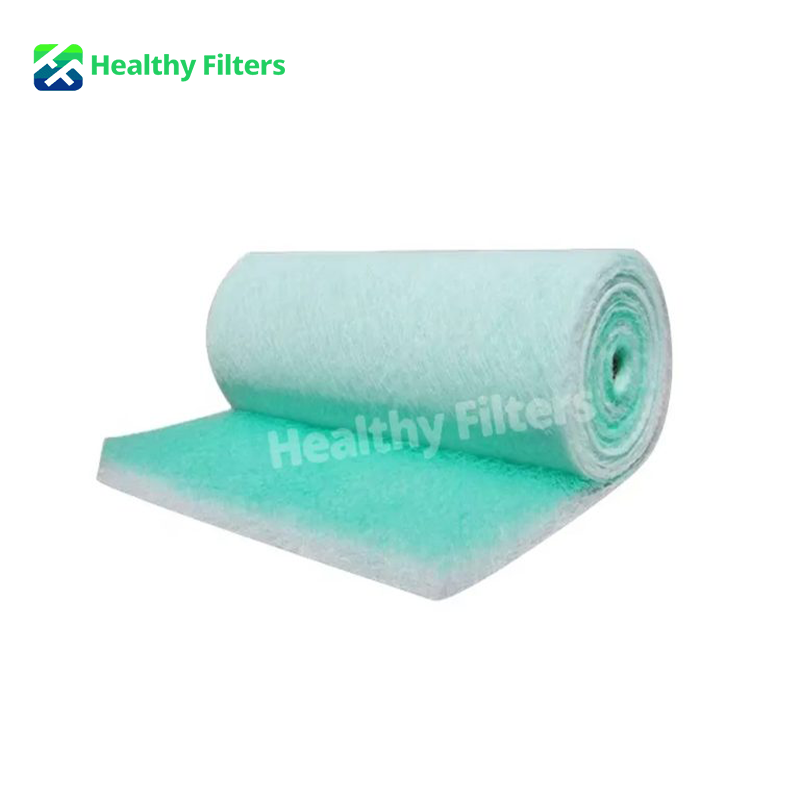

- Made from glass fiber material with a progressive structure: the air inlet side (green) is fluffy, while the air outlet side (white) is gradually densified, improving filtration and paint mist retention
- The fluffy structure has good elasticity, maintaining its shape under pressure. It can be compressed for transportation, saving space
- Suitable for filtering high-quality paint mist sprayed on surfaces, offering high capture efficiency
- Exhibits excellent corrosion resistance, and can withstand various solvents, acids, alkalis, and high temperatures
Technical Parameters
| Type | Thickness(mm) | Test Air Velocity (m/s) | Average arrestance (EN779) | Initial
Resistance (pa) |
Dust Holding Capacity (g/m2) | Filtration
Grade |
Size (m) | Temperature
Resistance°C |
| PS-60 | 60 | 1.5 | 85 | 20 | 3200 | G3 | lm*20m | 170 |
| PS-100 | 100 | 1.5 | 90 | 25 | 4500 | G4 | 2m*20m | 170 |
| Available thickness: 50mm, 75mm ,80mm | ||||||||
Standard Model Options
| Item | Specification |
|---|---|
| Product Name | Fiberglass Paint Stop Filter Media Roll |
| Product Type | Paint Arrestor / Spray Booth Floor Filter |
| Model Series | HF-PS |
| Filter Media | Progressive-Density Fiberglass |
| Standard Grades | G3 / G4 |
| Standard Models | HF-PS-60 / HF-PS-100 |
| Standard Thicknesses | 60 mm / 100 mm |
| Optional Thicknesses | 50 mm / 75 mm / 80 mm |
| Air-Inlet Side | Green |
| Air-Outlet Side | White |
| Test Air Velocity | 1.5 m/s |
| Initial Resistance | 20–25 Pa |
| Average Arrestance | 85–90% according to the shown EN779 data |
| Dust-Holding Capacity | 3200–4500 g/m² |
| Temperature Resistance | Up to 170°C |

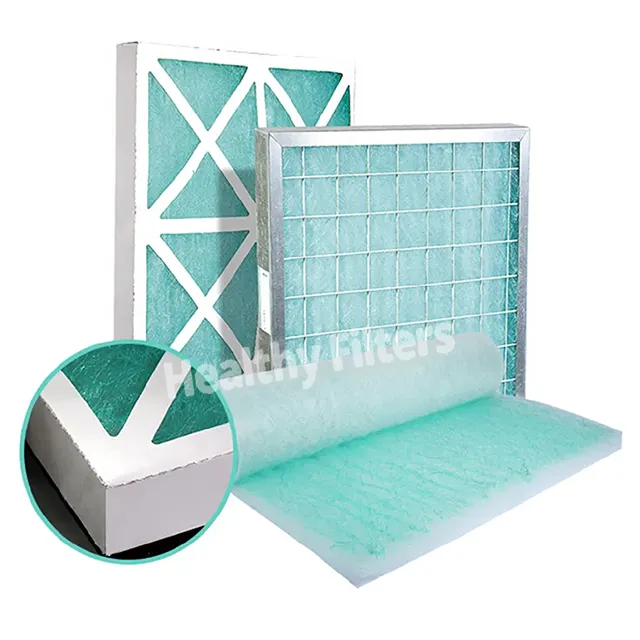

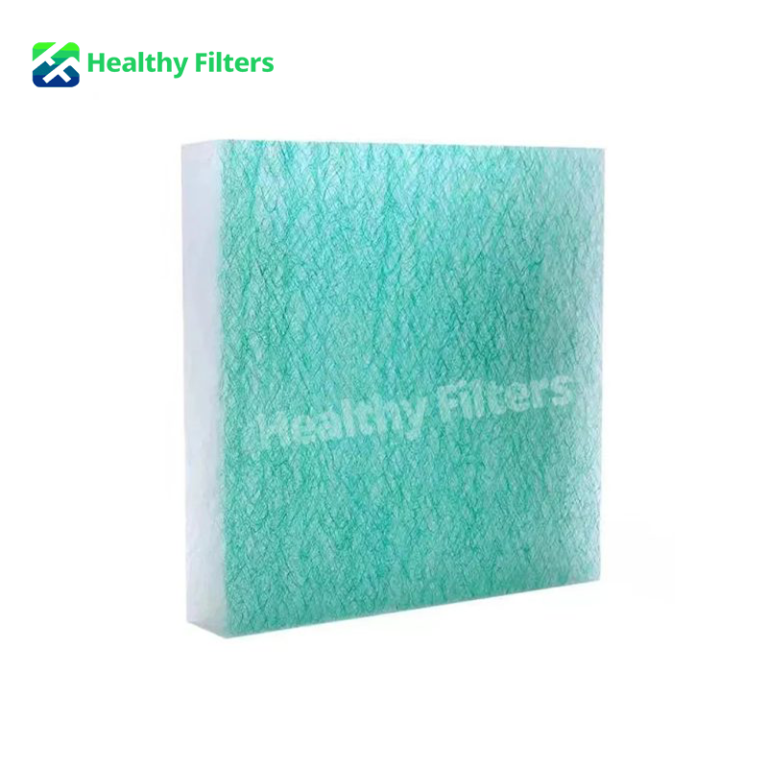

| Supply Form | Roll / Sheet / Cut Pad / Framed Filter |
| Main Function | Paint Mist, Overspray, Oil Mist and Coarse Dust Collection |
Applications

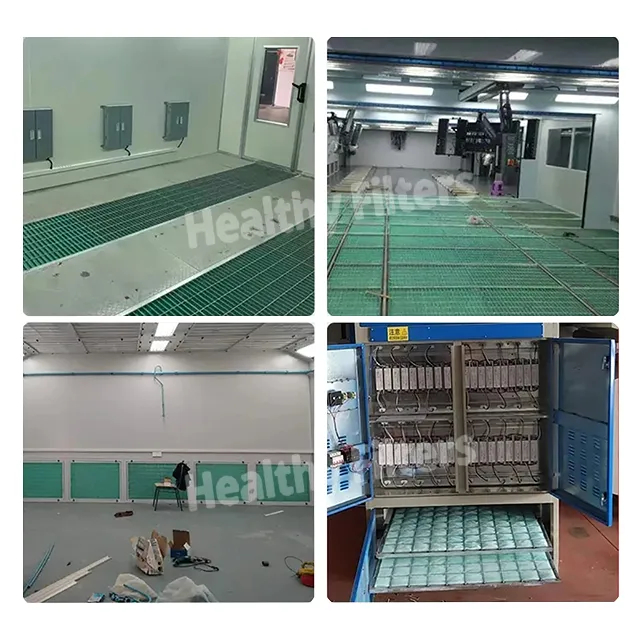

| Automotive Spray Booths | Industrial Painting Equipment | Furniture & Wood Coating | Exhaust and Pre-Filtration Systems |
|---|---|---|---|
| Captures paint mist and overspray in vehicle refinishing, automotive assembly, and component painting booths. | Suitable for machinery, metal products, aerospace components, and general industrial coating lines. | Used in furniture, cabinets, wood panels, and decorative finishing processes requiring clean exhaust airflow. | Protects exhaust fans, ducts, heat-recovery units, and downstream purification equipment from paint and oil mist. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|

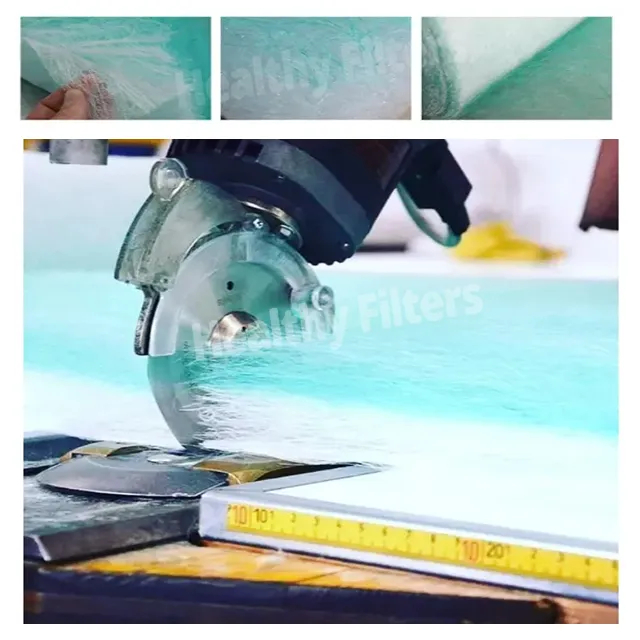

| • Custom roll width and length • 50 / 60 / 75 / 80 / 100 mm thickness options • G2 / G3 / G4 project configurations • Custom fiberglass density and gradient structure • Roll, sheet, cut-pad, or framed-filter supply • Custom airflow and resistance requirements • OEM labels, private branding, and export packaging • Samples for spray booth installation trials |
• Roll width, length, and thickness inspection • Fiberglass density and surface-uniformity check • Green and white airflow-side identification • Initial resistance and airflow testing • Average arrestance testing upon request • Paint- and dust-holding capacity verification • Compression recovery and structural inspection • Final appearance and packaging inspection |
