Washable G2 Metal Pre-Filter for Battery Energy Storage Containers and Electrical Cabinets
Washable G2 Metal Pre-Filter for Battery Energy Storage Containers and Electrical Cabinets
Features
- Designed for energy storage boxes and containerized BESS ventilation
- G2 coarse filtration with approximately 65% average arrestance
- Multi-layer corrugated aluminum mesh filter media
- Stainless-steel support mesh improves structural stability
- Washable and reusable for repeated maintenance cycles
- High airflow capacity with low initial resistance
- Captures coarse dust, fibers, insects and outdoor debris
- Helps protect battery racks, cooling coils and ventilation fans
- Reduces contamination of PCS, inverter and control compartments
- Suitable for warm and high-temperature ventilation areas
- Resistant to moisture, acids and alkalis
- Available in 21 mm, 25 mm and 46 mm depths
- Standard and customized dimensions available
- OEM manufacturing for BESS integrators and cabinet manufacturers
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description

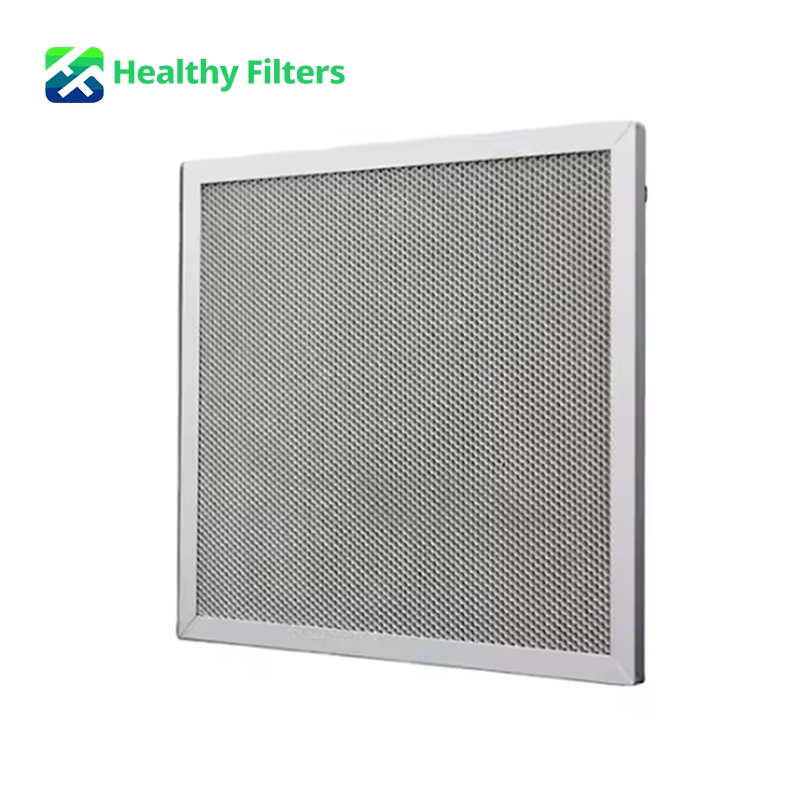

The HF-JS Metal Mesh Air Filter is a washable and reusable primary filtration solution developed for energy storage boxes, containerized battery energy storage systems, battery cabinets and PCS ventilation compartments.

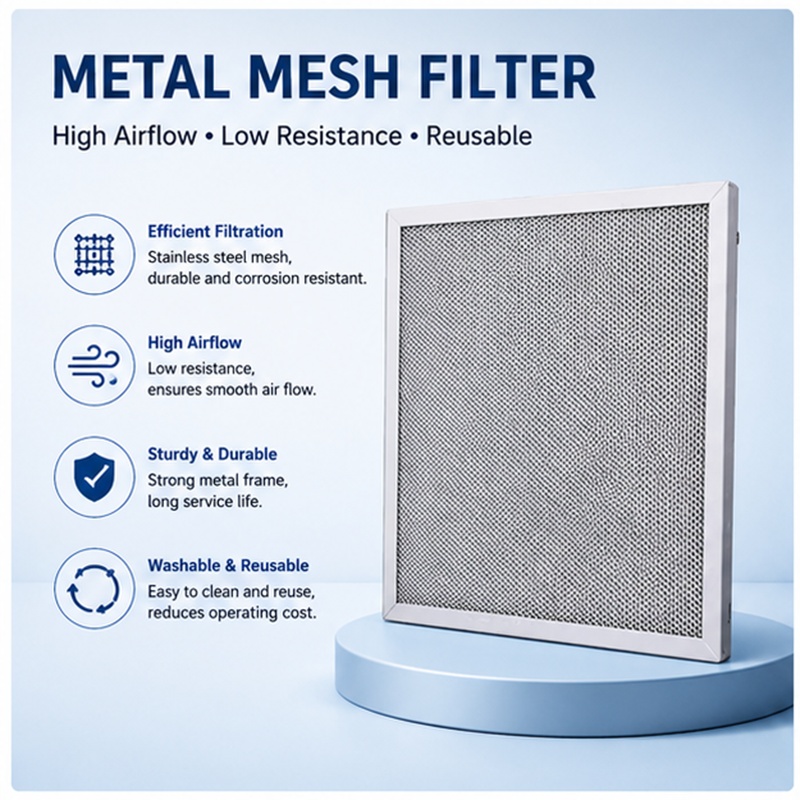

Constructed with multiple layers of corrugated aluminum mesh and a stainless-steel support layer, the filter provides high airflow capacity, low initial pressure drop and reliable mechanical strength. It captures coarse dust, fibers, insects and airborne debris before they enter battery compartments, cooling fans, heat exchangers and sensitive electrical equipment.
Its all-metal construction offers good resistance to heat, moisture, cleaning chemicals and repeated maintenance. With 21 mm, 25 mm and 46 mm depth options, the filter can be selected according to available installation space, airflow requirements and site dust conditions.

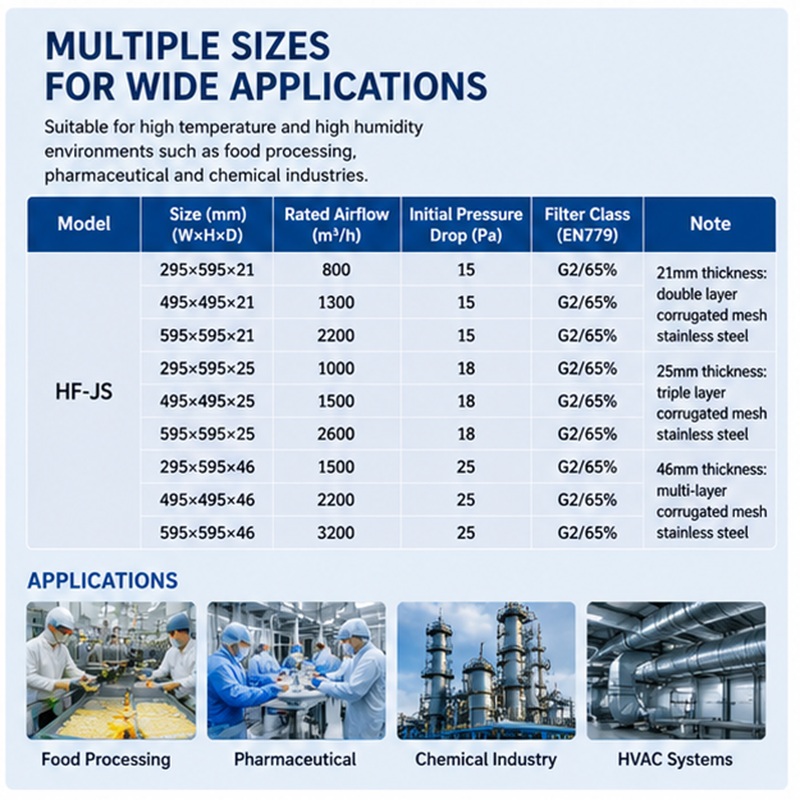

Technical Parameters
| Model | Size (mm) | Rated Airflow (m³/h) | Initial Pressure Drop (Pa) | Average Arrestance | Mesh Configuration |
|---|---|---|---|---|---|
| HF-JS | 295 × 595 × 21 | 800 | 15 | G2 / 65% | 2 corrugated aluminum layers + stainless-steel support mesh |
| HF-JS | 495 × 495 × 21 | 1,300 | 15 | G2 / 65% | 2 corrugated aluminum layers + stainless-steel support mesh |
| HF-JS | 595 × 595 × 21 | 2,200 | 15 | G2 / 65% | 2 corrugated aluminum layers + stainless-steel support mesh |
| HF-JS | 295 × 595 × 25 | 1,000 | 18 | G2 / 65% | 3 corrugated aluminum layers + stainless-steel support mesh |
| HF-JS | 495 × 495 × 25 | 1,500 | 18 | G2 / 65% | 3 corrugated aluminum layers + stainless-steel support mesh |
| HF-JS | 595 × 595 × 25 | 2,600 | 18 | G2 / 65% | 3 corrugated aluminum layers + stainless-steel support mesh |
| HF-JS | 295 × 595 × 46 | 1,500 | 25 | G2 / 65% | 6 corrugated aluminum layers + stainless-steel support mesh |
| HF-JS | 495 × 495 × 46 | 2,200 | 25 | G2 / 65% | 6 corrugated aluminum layers + stainless-steel support mesh |
| HF-JS | 595 × 595 × 46 | 3,200 | 25 | G2 / 65% | 6 corrugated aluminum layers + stainless-steel support mesh |
The listed values are nominal specifications. Actual airflow and resistance may vary according to face velocity, mesh density, dust loading, installation sealing and system design.
Standard Model Options
| Item | Description |
|---|---|
| Product Name | Metal Mesh Air Filter |
| Model Series | HF-JS |
| Product Type | Washable Industrial Air Pre-Filter |
| Filtration Grade | G2 |
| Average Arrestance | Approx. 65% for particles above 5 μm |
| Filter Media | Corrugated Aluminum Mesh |
| Support Media | Stainless-Steel Mesh |
| Standard Depths | 21 mm / 25 mm / 46 mm |
| Structure | Multi-Layer Metal Mesh Panel |
| Main Function | Coarse Dust and Debris Filtration |
| Washability | Washable and Reusable |
| Airflow Characteristic | High Airflow Capacity |
| Pressure-Drop Characteristic | Low Initial Resistance |
| Installation Position | BESS Air Intake or Primary Filtration Section |
| Primary Application | Energy Storage Boxes and Battery Cabinets |
| Custom Dimensions | Available |
| OEM / ODM | Supported |

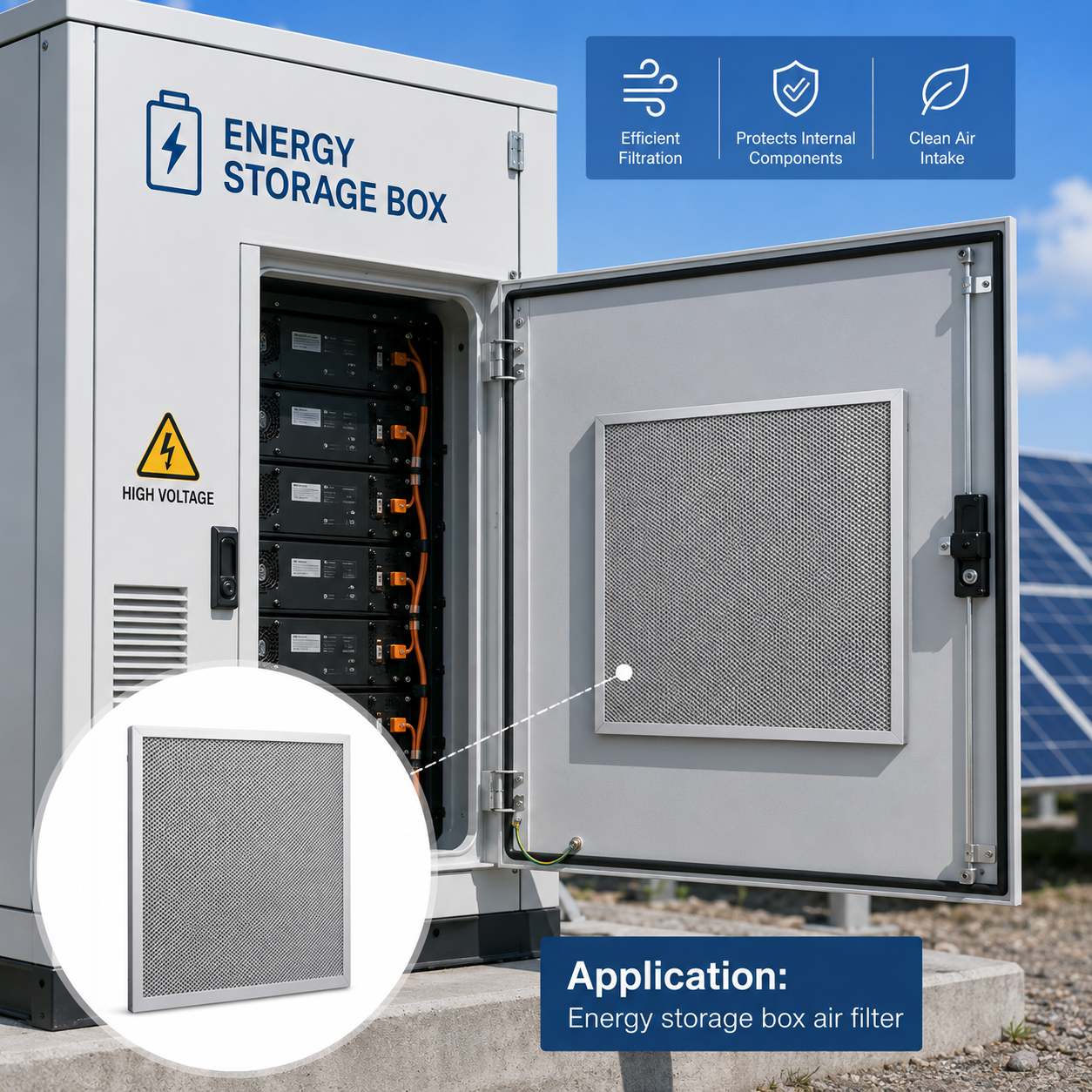

Applications
| Containerized BESS Units | Battery Cabinet Cooling | PCS & Inverter Compartments | OEM Energy Storage Equipment |
|---|---|---|---|
| Used as a washable first-stage intake filter in containerized battery energy storage systems to reduce the entry of coarse dust and outdoor debris. | Installed upstream of cooling fans, coils and heat exchangers to help maintain clean airflow passages and stable thermal management. | Suitable for PCS modules, inverter cabinets, UPS compartments and electrical control sections requiring continuous filtered ventilation. | Designed for BESS integrators, battery cabinet manufacturers, enclosure suppliers and cooling-system producers requiring standard or customized metal filters. |
Benefits for Energy Storage Boxes
| High Cooling Airflow | Reusable Maintenance | Equipment Protection | Demanding-Environment Durability |
|---|---|---|---|
| Low initial resistance helps preserve the airflow required for battery cooling and enclosure temperature control. | The all-metal filter can be cleaned and returned to service, reducing disposable-filter consumption. | Coarse particles are intercepted before reaching batteries, fans, heat exchangers and power electronics. | Metal construction provides reliable strength under heat, humidity, vibration and repeated cleaning. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom filter width, height and depth • Customized quantity of corrugated mesh layers • Different mesh densities and opening sizes • Aluminum or stainless-steel media options • Customized frame material and profile • Reinforcement for vibration-prone BESS installations • Airflow and pressure-drop optimization • Compatibility with battery cabinet louvers and cooling modules • Development from drawings or physical samples • Custom model numbers, labels and barcodes • Neutral or private-label export packaging • Bulk OEM production for energy storage projects |
• Incoming inspection of metal mesh and frame materials • Filter dimensions and frame-squareness verification • Mesh-layer quantity and arrangement inspection • Mesh opening and density verification • Frame-joint and structural-strength inspection • Rated airflow and initial pressure-drop testing • Coarse-particle arrestance testing upon request • Washability and structural-retention evaluation • Corrosion-resistance inspection upon request • Visual inspection for sharp edges, loose mesh or deformation • Packaging and labeling verification • Batch traceability and pre-shipment sampling |
