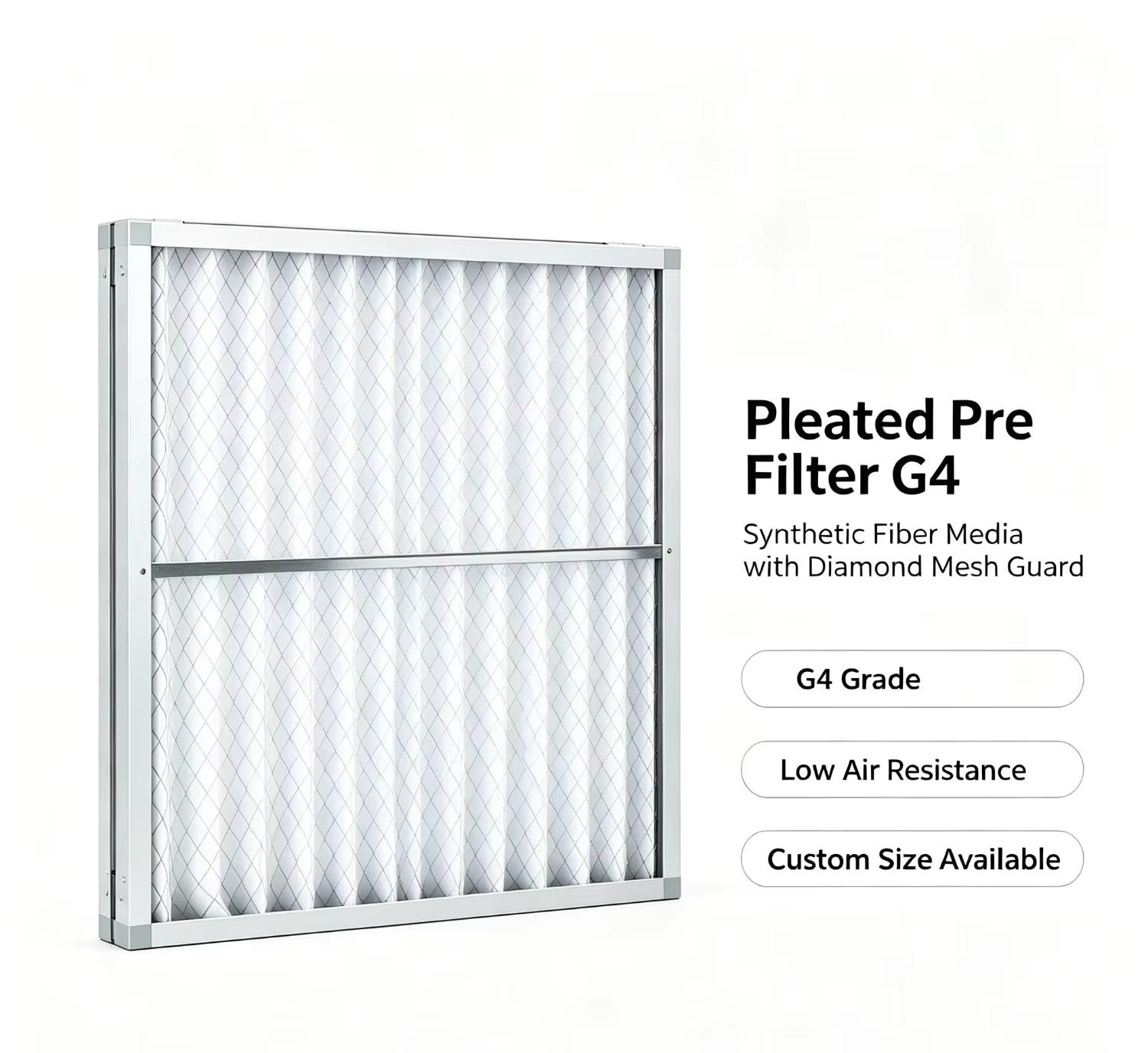

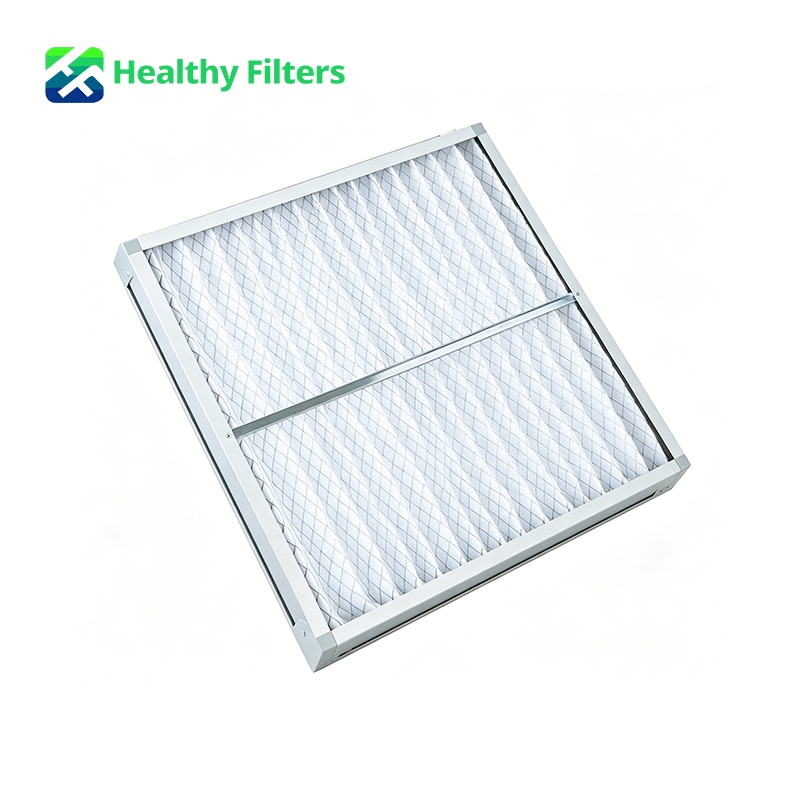

Low-Resistance G3/G4 Panel Pre-Filter for Energy Storage Container Ventilation Systems
Low-Resistance G3/G4 Panel Pre-Filter for Energy Storage Container Ventilation Systems
Features
- Developed for energy storage box and BESS ventilation systems
- G3 and G4 primary filtration grades available
- Pleated synthetic fiber media with high air permeability
- Low initial pressure drop supports battery cooling airflow
- High dust-holding capacity for longer maintenance intervals
- Captures coarse dust, fibers, lint and outdoor airborne debris
- Helps protect battery modules, cooling fans and heat exchangers
- Reduces dust loading on downstream medium-efficiency filters
- Compact panel design for limited enclosure installation space
- Aluminum-alloy and galvanized-steel frame options
- Suitable for fresh-air intake and equipment ventilation openings
- Standard and customized dimensions available
- OEM production for BESS integrators and enclosure manufacturers
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description

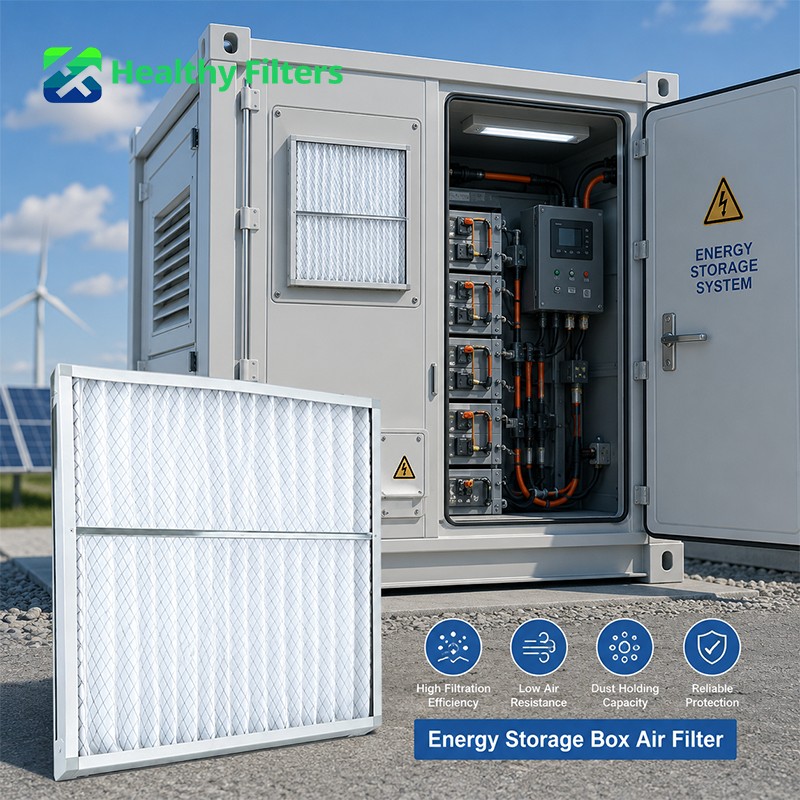

The G3/G4 Panel Pre-Filter is designed for primary air filtration in energy storage boxes, battery energy storage systems (BESS), containerized battery cabinets and power conversion equipment enclosures.
Installed at fresh-air inlets, cooling-air openings or ventilation sections, the filter captures coarse dust, fibers and other airborne contaminants before they enter battery compartments, cooling fans, heat exchangers, PCS modules and electrical control areas.
The pleated synthetic fiber media provides high air permeability, low initial pressure drop and good dust-holding capacity. These characteristics help maintain the continuous cooling airflow required by energy storage systems while reducing dust accumulation on internal equipment.
Standard G3 and G4 models are available with aluminum-alloy or galvanized-steel frames. Custom dimensions, frame structures and airflow configurations can be manufactured for different BESS container designs and enclosure ventilation requirements.
Technical Parameters
| Model | Size (mm) | Rated Airflow (m³/h) | Initial Pressure Drop (Pa) | Final Pressure Drop (Pa) | Average Arrestance | Frame | Media |
|---|---|---|---|---|---|---|---|
| HF-BS-G3 | 595 × 595 × 21 | 3,200 | 30 | 250 | 85% | Aluminum Alloy | G3 Synthetic Fiber Composite |
| HF-BS-G3 | 495 × 595 × 21 | 2,700 | 30 | 250 | 85% | Aluminum Alloy | G3 Synthetic Fiber Composite |
| HF-BS-G3 | 295 × 595 × 21 | 1,600 | 30 | 250 | 85% | Aluminum Alloy | G3 Synthetic Fiber Composite |
| HF-BS-G3 | 495 × 495 × 21 | 2,200 | 30 | 250 | 85% | Aluminum Alloy | G3 Synthetic Fiber Composite |
| HF-BS-G4 | 595 × 595 × 25 | 3,200 | 35 | 250 | 95% | Galvanized Steel | G4 Synthetic Fiber Composite |
| HF-BS-G4 | 495 × 595 × 25 | 2,700 | 35 | 250 | 95% | Galvanized Steel | G4 Synthetic Fiber Composite |
| HF-BS-G4 | 295 × 595 × 25 | 1,600 | 35 | 250 | 95% | Galvanized Steel | G4 Synthetic Fiber Composite |
| HF-BS-G4 | 495 × 495 × 25 | 2,200 | 35 | 250 | 95% | Galvanized Steel | G4 Synthetic Fiber Composite |
Standard Model Options
| Item | Description |
|---|---|
| Product Name | Panel Pre-Filter Mesh |
| Product Type | Pleated Primary Panel Air Filter |
| Model Series | HF-BS-G3 / HF-BS-G4 |
| Filtration Grade | G3 / G4 |
| Filter Media | G3/G4 Synthetic Fiber Composite Media |
| Frame Options | Aluminum Alloy / Galvanized Steel |

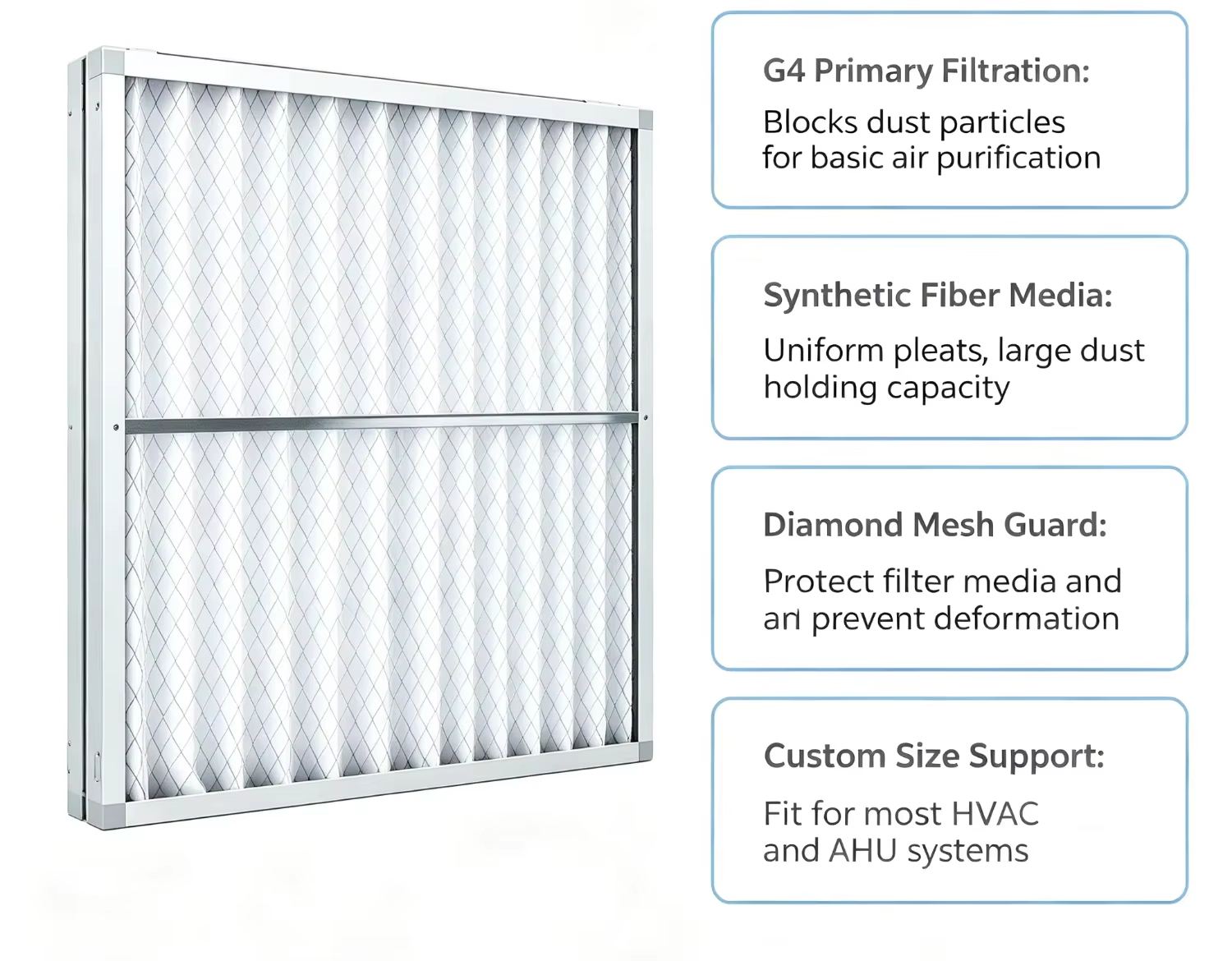

| Structure | Pleated Media with Protective Wire Mesh |
| Standard Depths | 21 mm / 25 mm |
| Main Function | Coarse Dust and Particle Filtration |
| Airflow Characteristic | High Air Permeability |
| Resistance Characteristic | Low Initial Pressure Drop |
| Dust-Holding Capacity | High |
| Installation Position | Fresh-Air Intake or Primary Filtration Section |
| Main Application | Energy Storage Boxes and Containerized BESS |
| Custom Sizes | Available |
| OEM / ODM | Supported |
Applications
| Containerized Battery Energy Storage | Battery Cabinet Cooling Systems | PCS and Electrical Compartments | OEM Energy Storage Integration |
|---|---|---|---|
| Used as the first-stage intake filter in containerized BESS units to reduce dust entry into battery racks, monitoring systems and thermal-management components. | Installed at fresh-air openings and cooling fan inlets to protect coils, heat exchangers and airflow passages from coarse particle accumulation. | Suitable for PCS modules, inverter cabinets, control compartments, UPS enclosures and auxiliary power sections requiring continuous filtered ventilation. | Designed for energy storage system integrators, battery cabinet manufacturers, container suppliers and ventilation equipment producers requiring standard or customized filters. |
Benefits for Energy Storage Boxes
| Stable Thermal Management | Battery and Equipment Protection | Low Fan Load | Reduced Maintenance |
|---|---|---|---|
| Low initial resistance helps preserve the airflow required to control battery and enclosure temperatures. | Coarse contaminants are intercepted before reaching battery racks, fans, coils, sensors and power electronics. | High-permeability media reduces unnecessary pressure loss and additional load on ventilation fans. | High dust-holding capacity can extend cleaning intervals and reduce contamination of internal cooling components. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom filter width, height and depth • G3 or G4 media configurations • Aluminum-alloy or galvanized-steel frames • Customized frame profile and reinforcement • Different pleat heights and pleat spacing • Protective mesh and support-grid options • Airflow and pressure-drop optimization • Compatibility with BESS fresh-air modules and louvers • Replacement development from drawings or samples • Custom model numbers, labels and barcodes • Neutral or private-label export packaging • Bulk OEM production for energy storage projects |
• Incoming inspection of media, frame and mesh materials • Filter dimension and frame-squareness verification • Pleat count, height and spacing inspection • Media-to-frame sealing and bonding checks • Protective mesh installation inspection • Rated airflow and initial pressure-drop testing • Arrestance testing upon request • Frame-strength and vibration-resistance evaluation upon request • Visual inspection for media damage or deformation • Packaging and labeling verification • Batch identification and production traceability • Pre-shipment random sampling inspection |
