Reusable G3/G4 Washable Panel Filter for Energy Storage Box Cooling Systems
Reusable G3/G4 Washable Panel Filter for Energy Storage Box Cooling Systems
Features
- Designed for energy storage box and BESS ventilation systems
- G3 and G4 primary filtration grades available
- Washable and reusable synthetic fiber media
- Flame-retardant media compliant with DIN 53438
- Low initial pressure drop for stable cooling airflow
- High dust-holding capacity
- Captures coarse dust, fibers, lint and airborne debris
- Helps protect battery modules, cooling coils and ventilation fans
- Reduces contamination of PCS, inverter and control compartments
- Suitable for repeated cleaning and maintenance cycles
- Rigid metal frame provides dimensional stability
- Standard and customized sizes available
- OEM manufacturing for BESS integrators and enclosure manufacturers
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description

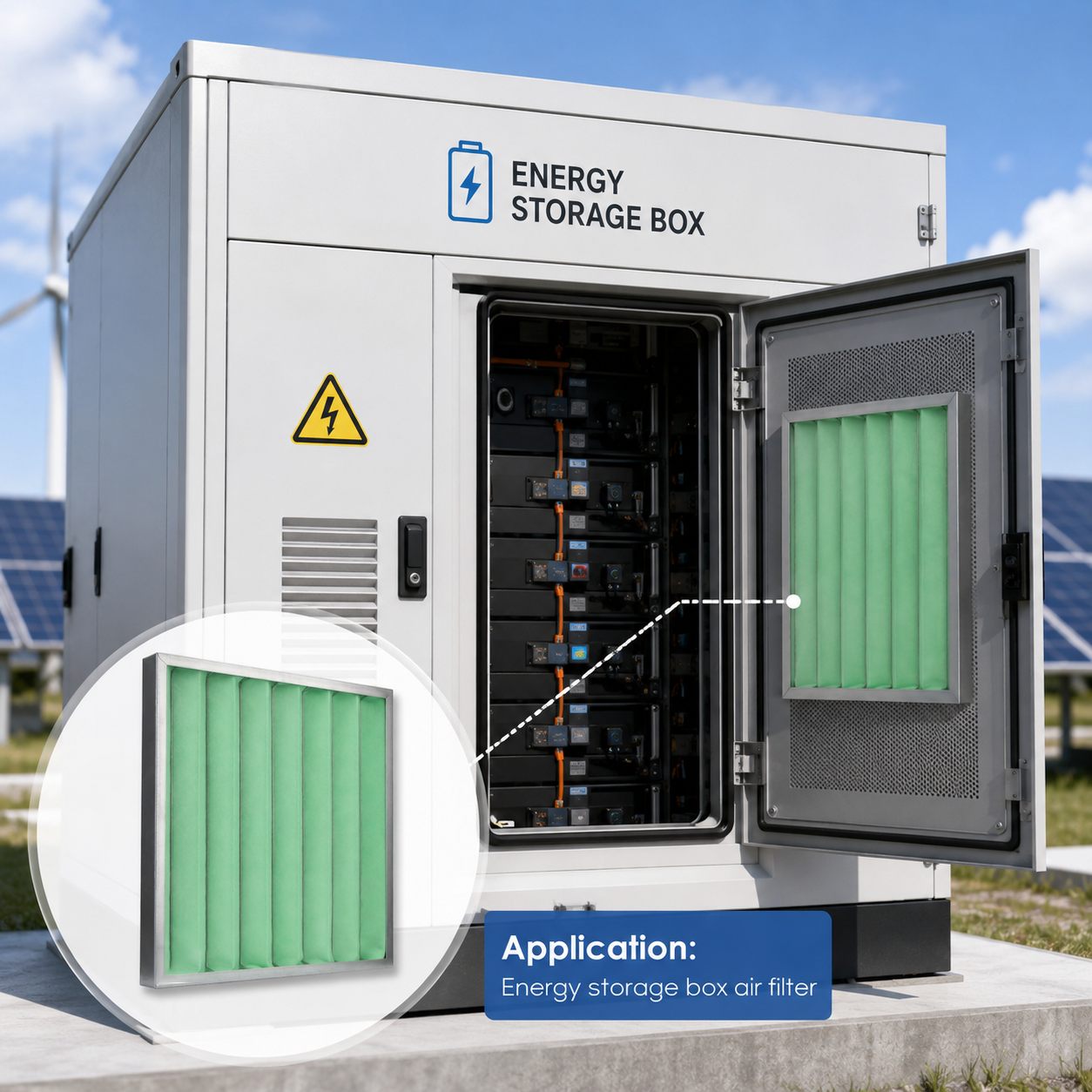

The G3/G4 Washable Panel Filter is designed for primary air filtration in energy storage boxes, containerized battery energy storage systems, battery cabinets and power conversion equipment enclosures.
Made with flame-retardant synthetic fiber media compliant with DIN 53438, the filter combines high dust-holding capacity with low airflow resistance. It helps maintain the cooling airflow required by batteries, PCS units, inverters and electrical control components while reducing the entry of dust, fibers and other coarse airborne contaminants.
Unlike disposable panel filters, this model can be cleaned and reused during scheduled maintenance. Its durable metal-frame construction makes it suitable for energy storage projects requiring repeated servicing, lower filter consumption and long-term operating cost control.

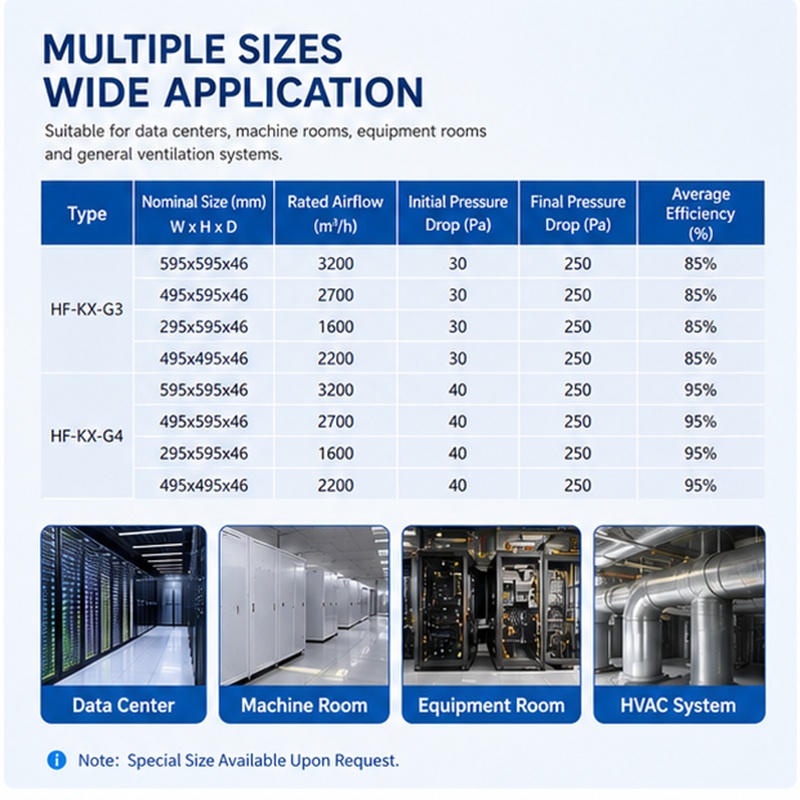

Technical Parameters
| Model | Size (mm) | Rated Airflow (m³/h) | Initial Pressure Drop (Pa) | Final Pressure Drop (Pa) | Average Arrestance |
|---|---|---|---|---|---|
| HF-KX-G3 | 595 × 595 × 46 | 3,200 | 30 | 250 | 85% |
| HF-KX-G3 | 495 × 595 × 46 | 2,700 | 30 | 250 | 85% |
| HF-KX-G3 | 295 × 595 × 46 | 1,600 | 30 | 250 | 85% |
| HF-KX-G3 | 495 × 495 × 46 | 2,200 | 30 | 250 | 85% |
| HF-KX-G4 | 595 × 595 × 46 | 3,200 | 40 | 250 | 95% |
| HF-KX-G4 | 495 × 595 × 46 | 2,700 | 40 | 250 | 95% |
| HF-KX-G4 | 295 × 595 × 46 | 1,600 | 40 | 250 | 95% |
| HF-KX-G4 | 495 × 495 × 46 | 2,200 | 40 | 250 | 95% |
The above values are nominal specifications. Actual airflow and pressure drop may vary according to installation conditions, filter cleanliness, face velocity and project design.
Standard Model Options
| Item | Description |
|---|---|
| Product Name | Washable Panel Filter Mesh |
| Product Type | Reusable Primary Panel Air Filter |
| Model Series | HF-KX-G3 / HF-KX-G4 |
| Filtration Grade | G3 / G4 |
| Filter Media | Flame-Retardant Synthetic Fiber |
| Flame-Retardancy Reference | DIN 53438 |
| Structure | Pleated Washable Media in Rigid Metal Frame |
| Standard Depth | 46 mm |
| Main Function | Primary Dust and Coarse Particle Filtration |
| Washability | Washable and Reusable |
| Airflow Characteristic | High Air Permeability |
| Pressure-Drop Characteristic | Low Initial Resistance |
| Dust-Holding Capacity | High |
| Installation Position | Fresh-Air Intake or First-Stage Filtration Section |
| Primary Application | Energy Storage Boxes and BESS Containers |
| Custom Sizes | Available |
| OEM / ODM | Supported |
Applications
| Containerized BESS Units | Battery Cabinet Cooling | PCS & Inverter Compartments | Energy Storage OEM Integration |
|---|---|---|---|

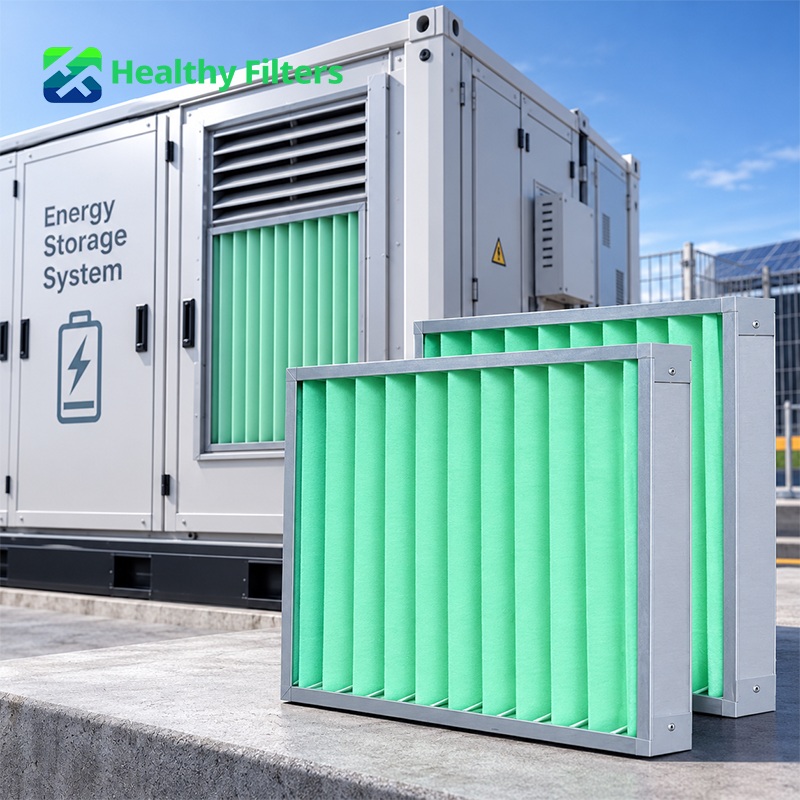

| Used as a reusable first-stage filter in containerized battery energy storage systems to reduce dust entry into battery racks and thermal-management areas. | Installed at fresh-air inlets and cooling fan openings to protect coils, heat exchangers and internal airflow passages. | Suitable for PCS modules, inverter cabinets, UPS compartments and electrical control sections requiring continuous filtered ventilation. | Designed for BESS integrators, battery cabinet manufacturers, enclosure suppliers and cooling-system producers requiring standard or customized washable filters. |
Benefits for Energy Storage Boxes
| Stable Cooling Airflow | Reusable Maintenance | Equipment Protection | Lifecycle Cost Reduction |
|---|---|---|---|
| Low initial resistance helps preserve the ventilation airflow required for battery and enclosure temperature control. | The washable media can be cleaned and reused during scheduled maintenance cycles. | Coarse contaminants are intercepted before reaching battery racks, fans, cooling coils and power electronics. | Repeated use can reduce disposable-filter consumption, maintenance inventory and long-term replacement costs. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom filter width, height and depth • G3 or G4 media configurations • Different synthetic media densities • Flame-retardant media options • Customized frame material and profile • Different pleat heights and pleat spacing • Protective mesh and reinforcement options • Airflow and pressure-drop optimization • Compatibility with BESS intake louvers and cooling modules • Development from equipment drawings or samples • Custom model numbers, labels and barcodes • Neutral or private-label export packaging • Bulk OEM production for energy storage projects |
• Incoming inspection of media, frame and support materials • Filter dimension and frame-squareness verification • Pleat count, height and spacing inspection • Media installation and sealing checks • Frame-strength and assembly inspection • Rated airflow and initial pressure-drop testing • Filtration performance testing upon request • Flame-retardancy documentation verification • Washability and structural-retention evaluation • Visual inspection for damage or deformation • Packaging and labeling verification • Batch traceability and pre-shipment sampling |
