Ultra Compact Panel Filter with Epm1and Epm10 Efficiencies
Ultra Compact Panel Filter with Epm1and Epm10 Efficiencies
Features
- Available in ISO 16890 ePM1 and ePM10 efficiency classes
- Compact pleated design maximizes filtration area
- Premium fiberglass filter media
- High dust-holding capacity for extended service life
- Low initial pressure drop reduces energy consumption
- Moisture-resistant rigid cardboard frame
- Hot-melt separator technology for stable pleat spacing
- Lightweight construction for easy installation
- Suitable for high-humidity environments
- Long replacement intervals reduce maintenance costs
- Standard and customized sizes available
- Compatible with front-access and side-access filter housings
- OEM and private-label manufacturing supported
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description

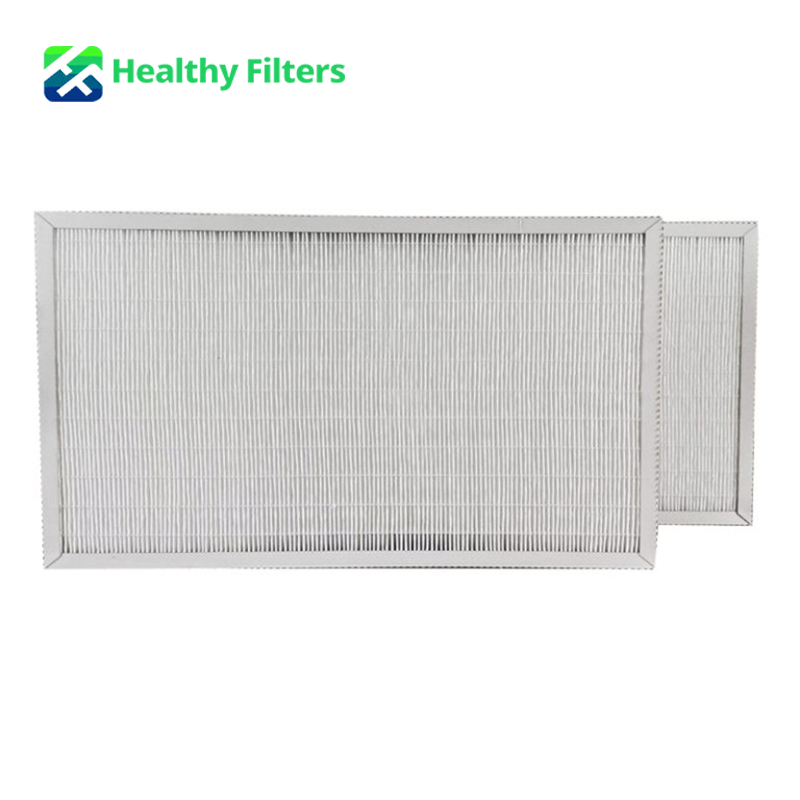

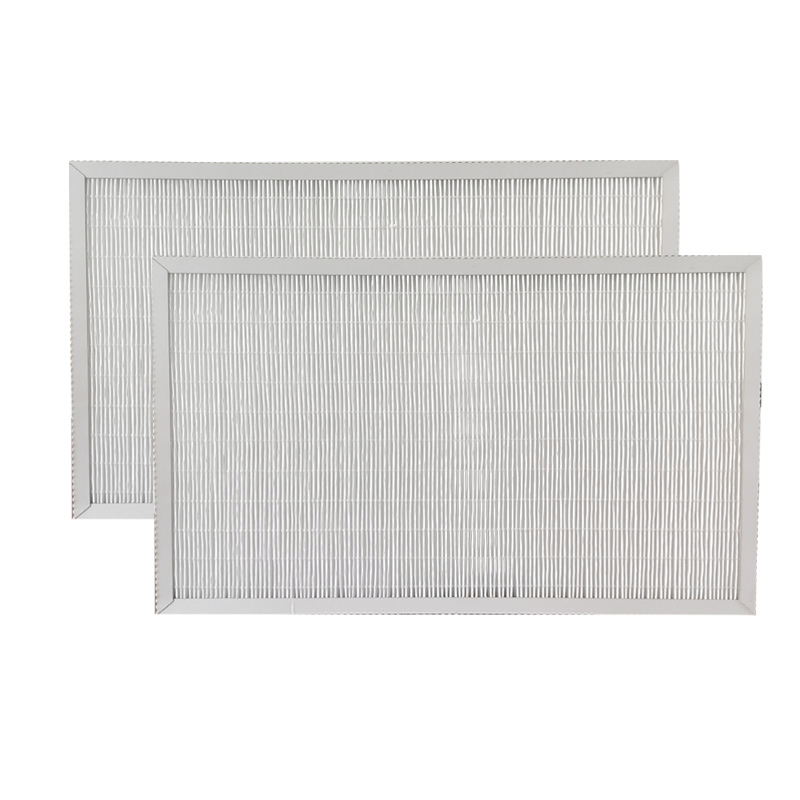

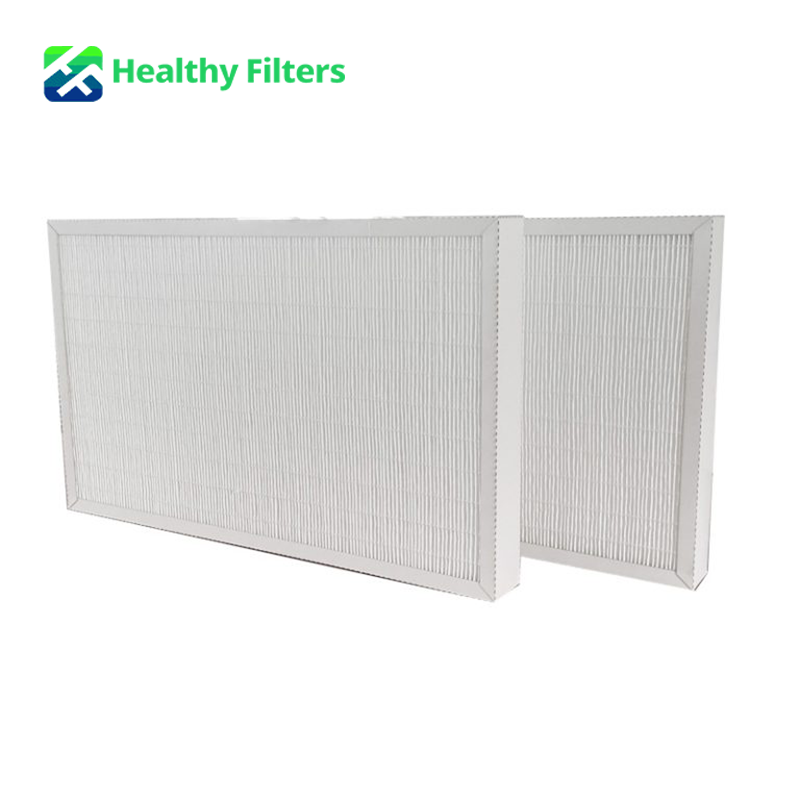

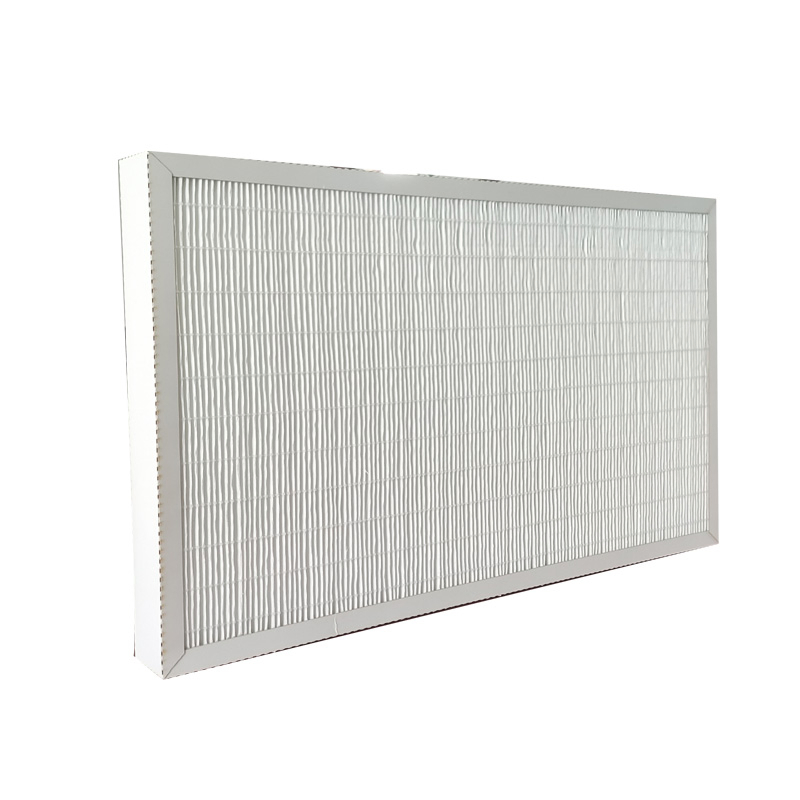

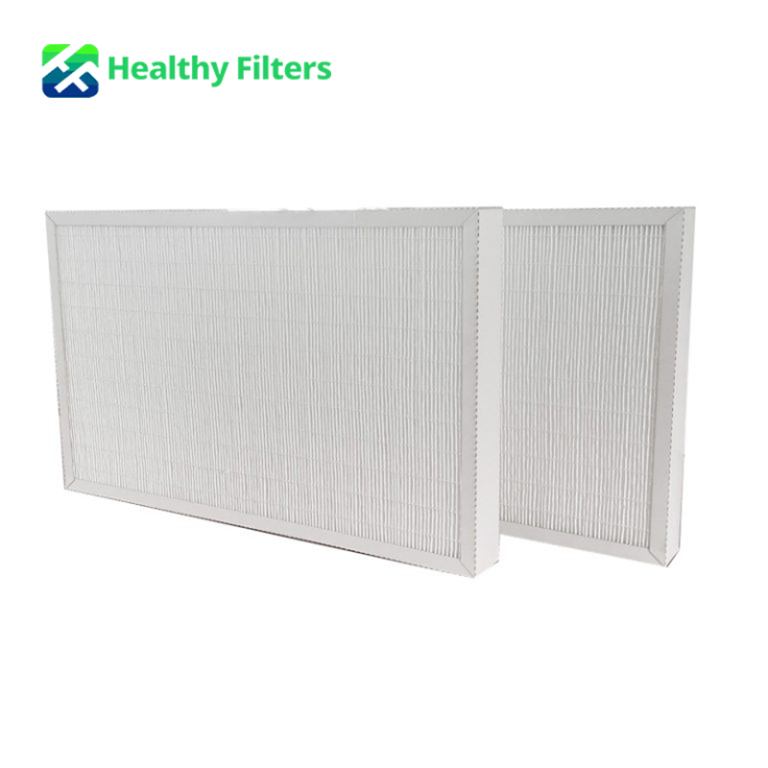

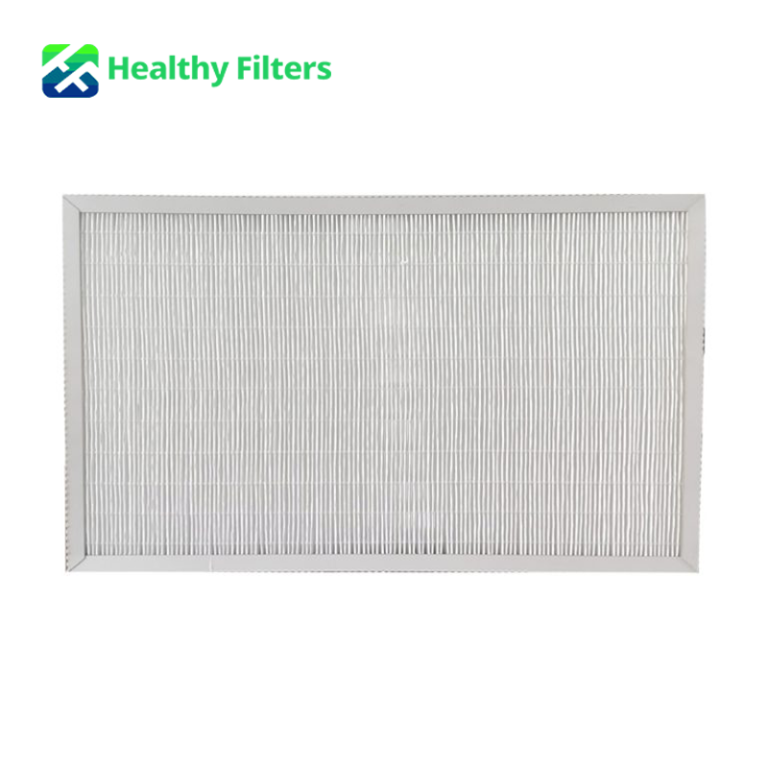

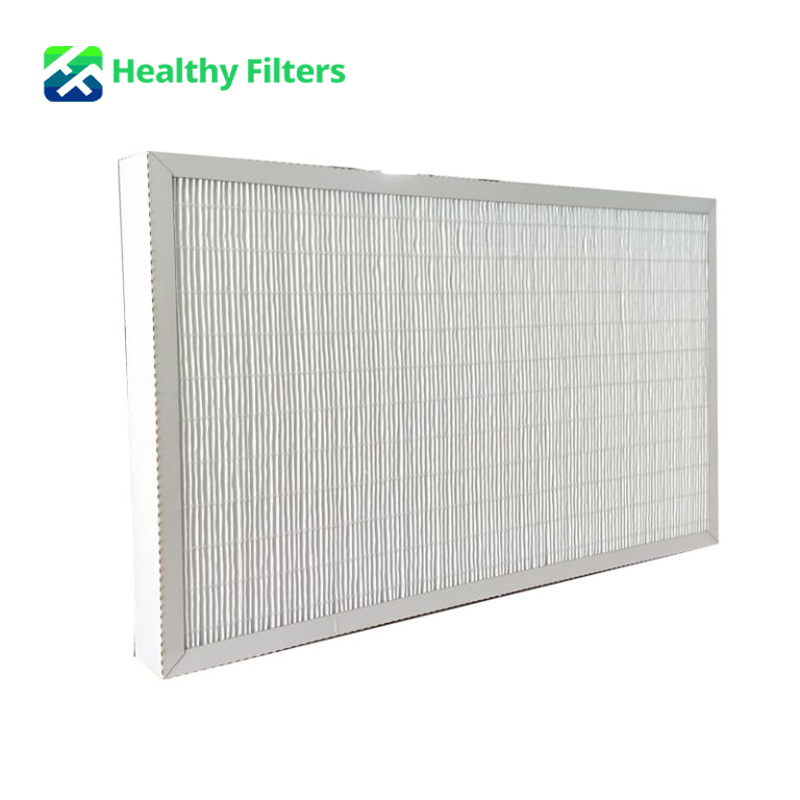

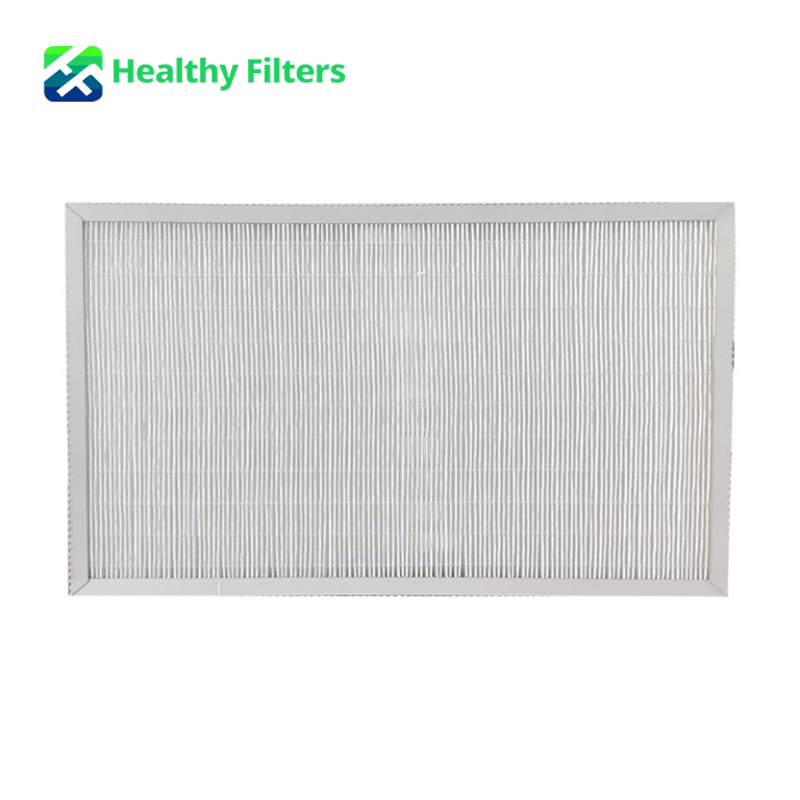

The Ultra Compact Pleated Panel Filter is designed for medium-efficiency air filtration in commercial HVAC systems, air handling units (AHUs), clean manufacturing facilities and laminar airflow systems. Manufactured with premium fiberglass filter media and a rigid moisture-resistant cardboard frame, the filter combines high dust-holding capacity with low pressure drop to improve energy efficiency and reduce maintenance frequency.
Designed in accordance with ISO 16890, the filter is available in ePM1 and ePM10 efficiency classes, making it suitable for applications requiring reliable fine-particle removal while maintaining compact installation dimensions.
Its lightweight yet rigid construction allows easy installation in both new HVAC equipment and retrofit projects.
Technical Parameters
| Medium Material | Fiberglass |
| Efficiency | Epm1 as Well as Epm10 E |
| Filtration Grade | Medium Filter |
| Frame | Rigid Water Resistant Cardboard |
| Application | Cleanroom/ Laminar Air Flow |
| Specification | 287*592*46mm |
| Separator | Hot-Melt |
| Transport Package | Carton Box and Pallets |
| Production Capacity | 1000PCS/Month |
Standard Model Options
| Item | Description |
|---|---|
| Product Name | Ultra Compact Pleated Panel Filter |
| Product Type | Medium-Efficiency Compact Air Filter |
| Efficiency Standard | ISO 16890 |
| Efficiency Class | ePM1 / ePM10 |
| Filter Media | Premium Fiberglass |
| Frame Material | Moisture-Resistant Rigid Cardboard |
| Separator | Hot-Melt |
| Structure | Compact Pleated Panel |
| Filtration Stage | Medium / Final Filtration |
| Dust Holding Capacity | High |
| Installation | AHU & HVAC Systems |
| OEM / ODM | Supported |
Applications
| Commercial HVAC Systems | Air Handling Units (AHUs) | Clean Manufacturing & Laminar Flow | Industrial Ventilation |
|---|---|---|---|
| Installed in office buildings, shopping malls, hospitals and public facilities to improve indoor air quality while maintaining energy-efficient airflow. | Used as an intermediate or final filtration stage in AHUs to protect downstream components and extend the service life of higher-efficiency filters. | Suitable for electronics manufacturing, pharmaceutical support areas, laboratories and laminar airflow systems requiring reliable fine-particle control. | Applied in industrial ventilation systems and process-air units where compact dimensions, high dust-holding capacity and long service life are required. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom filter width, height and depth • ePM1 and ePM10 efficiency options • Project-specific fiberglass media configurations • Different pleat heights and pleat spacing • Customized airflow and pressure-drop design • Moisture-resistant frame optimization • OEM branding and private-label production • Custom packaging and export labeling • Development from customer drawings or samples |
• Incoming inspection of fiberglass media and frame materials • Frame dimension and structural verification • Pleat spacing and hot-melt separator inspection • Airflow and initial pressure-drop testing • Filtration efficiency testing according to ISO 16890 upon request • Humidity resistance verification • Appearance and assembly inspection • Packaging verification and shipment quality audit • Batch traceability and production records |
