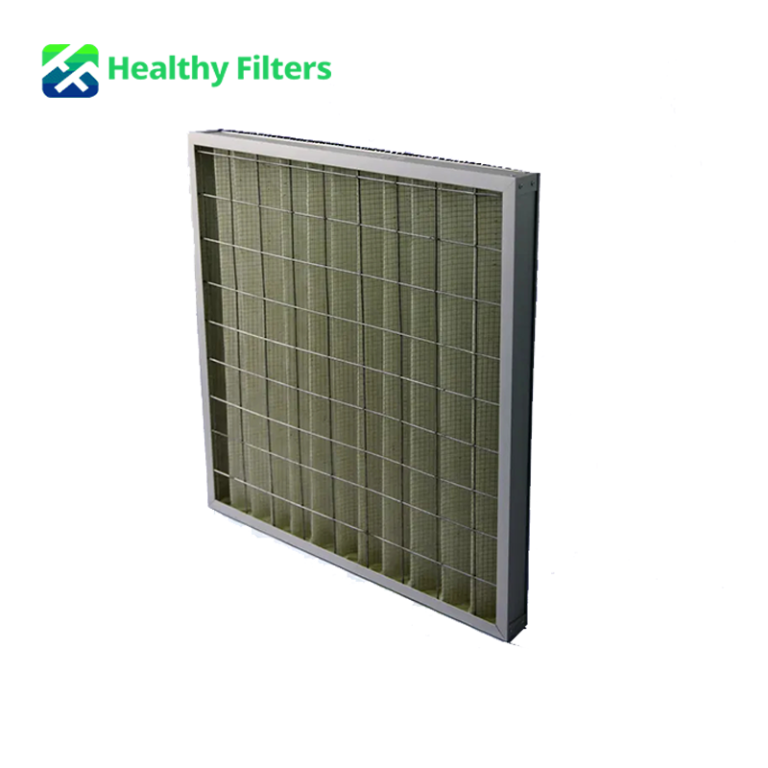

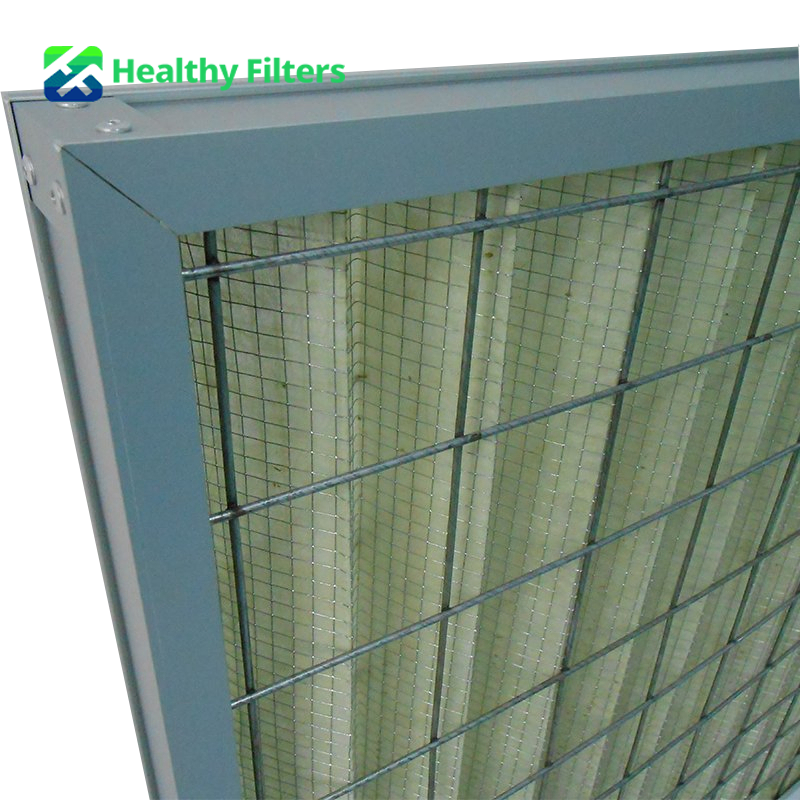

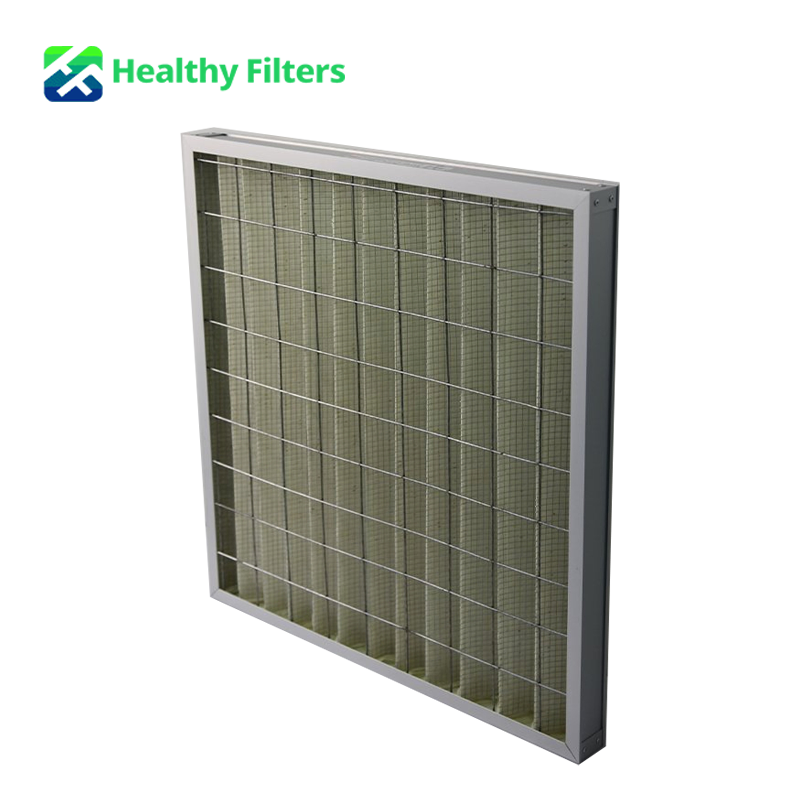

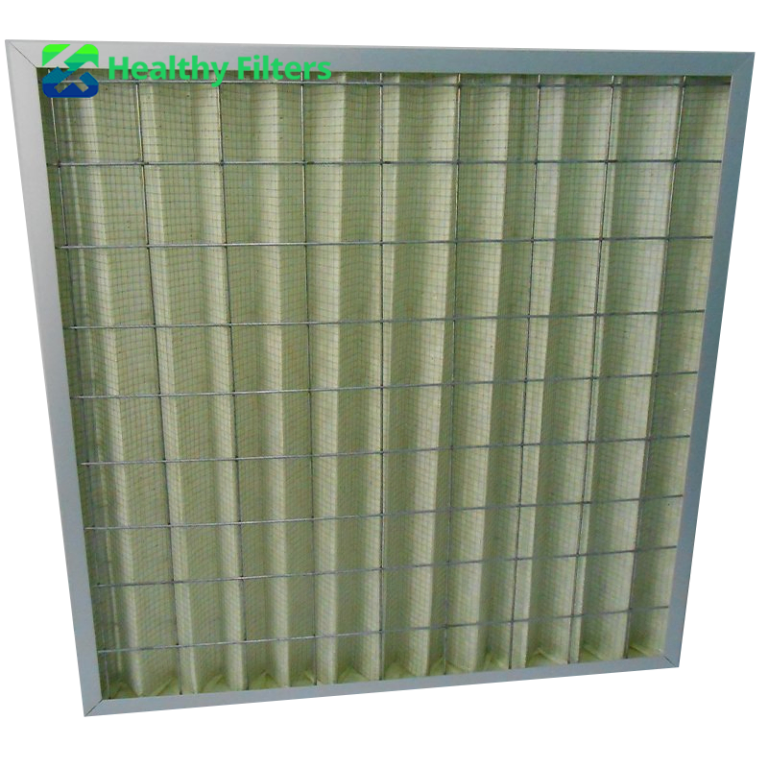

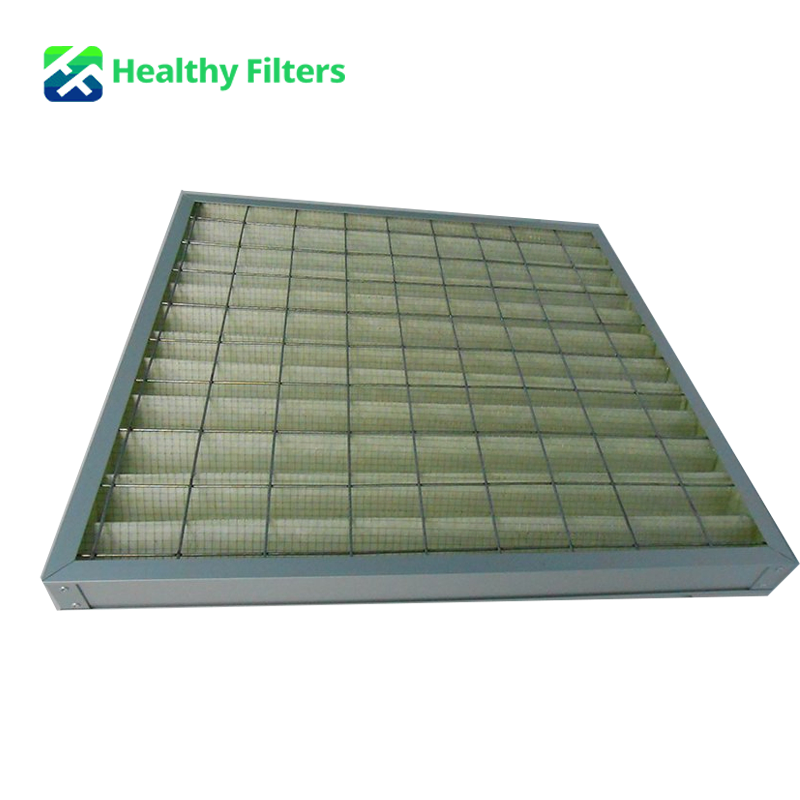

Advanced Medium Efficiency Concertina Air Filter Perfect for HVAC Systems Commercial Spaces & Industrial Use to Ensure Clean Air
Advanced Medium Efficiency Concertina Air Filter Perfect for HVAC Systems Commercial Spaces & Industrial Use to Ensure Clean Air
Features
- Compact V-bank (concertina) construction
- F5, F6, F7, F8 and F9 efficiency options
- Large effective filtration area
- High dust-holding capacity
- Low initial pressure drop
- Stable airflow under high-volume ventilation
- Pocket-free rigid structure eliminates bag deformation
- Long service life with reduced replacement frequency
- Suitable for continuous HVAC operation
- Available in multiple airflow capacities
- Durable galvanized steel or aluminum frame options
- Ideal as a pre-filter for HEPA systems
- Standard and customized dimensions available
- OEM and private-label manufacturing supported
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description
The Compact V-Bank Air Filter is engineered for medium-efficiency air filtration in commercial HVAC systems, air handling units (AHUs), clean manufacturing facilities and industrial ventilation equipment. Its compact V-bank (concertina) media design provides a significantly larger filtration area than conventional panel filters while maintaining low pressure drop and high airflow capacity.
Manufactured with premium synthetic or fiberglass filter media and supported by a rigid metal or plastic frame, the filter delivers stable filtration performance, excellent dust-holding capacity and extended service life. It is widely used as an intermediate or final filtration stage in modern HVAC systems and as a pre-filter for HEPA filtration.
Available in F5, F6, F7, F8 and F9 efficiency grades, the filter can be customized to meet project-specific airflow, pressure-drop and dimensional requirements.
Technical Parameters
| Size (W*H*D) (mm) |
Rated airflow (m³/h) |
Initial resistance (<=pa) |
Final resistance (pa) |
Filtration area (m²) |
Dust capacity (g) |
Efficiency |
| 592*592*46 | 630 | 50 | 250~300 | 0.97 | 175 | F5 |
| 592*592*46 | 630 | 65 | 250~300 | 0.97 | 155 | F6 |
| 592*592*46 | 630 | 80 | 300~400 | 0.97 | 135 | F7 |
| 592*592*46 | 630 | 105 | 300~400 | 0.97 | 117 | F8 |
| 592*592*46 | 630 | 120 | 400~450 | 0.97 | 107 | F9 |
| 287*592*46 | 330 | 50 | 250~300 | 0.52 | 93 | F5 |
| 287*592*46 | 330 | 65 | 250~300 | 0.52 | 83 | F6 |
| 287*592*46 | 330 | 80 | 300~400 | 0.52 | 72 | F7 |
| 287*592*46 | 330 | 105 | 300~400 | 0.52 | 62 | F8 |
| 287*592*46 | 330 | 120 | 400~450 | 0.52 | 57 | F9 |
| 490*592*46 | 550 | 50 | 250~300 | 0.86 | 155 | F5 |
| 490*592*46 | 550 | 65 | 250~300 | 0.86 | 138 | F6 |
| 490*592*46 | 550 | 80 | 300~400 | 0.86 | 120 | F7 |
| 490*592*46 | 550 | 105 | 300~400 | 0.86 | 103 | F8 |
| 490*592*46 | 550 | 120 | 400~450 | 0.86 | 95 | F9 |
| 592*592*96 | 750 | 50 | 250~300 | 1.17 | 211 | F5 |
| 592*592*96 | 750 | 65 | 250~300 | 1.17 | 187 | F6 |
| 592*592*96 | 750 | 80 | 300~400 | 1.17 | 164 | F7 |
| 592*592*96 | 750 | 105 | 300~400 | 1.17 | 140 | F8 |
| 592*592*96 | 750 | 120 | 400~450 | 1.17 | 130 | F9 |
| 287*592*96 | 380 | 50 | 250~300 | 0.59 | 105 | F5 |
| 287*592*96 | 380 | 65 | 250~300 | 0.59 | 95 | F6 |
| 287*592*96 | 380 | 80 | 300~400 | 0.59 | 82 | F7 |
| 287*592*96 | 380 | 105 | 300~400 | 0.59 | 70 | F8 |
| 287*592*96 | 380 | 120 | 400~450 | 0.59 | 65 | F9 |
| 490*592*96 | 680 | 50 | 250~300 | 1.05 | 190 | F5 |
| 490*592*96 | 680 | 65 | 250~300 | 1.05 | 168 | F6 |
| 490*592*96 | 680 | 80 | 300~400 | 1.05 | 147 | F7 |
| 490*592*96 | 680 | 105 | 300~400 | 1.05 | 126 | F8 |
| 490*592*96 | 680 | 120 | 400~450 | 1.05 | 116 | F9 |
Standard Model Options
| Item | Description |
|---|---|
| Product Name | Compact V-Bank Air Filter |
| Product Type | Medium-Efficiency Compact Filter |
| Filter Structure | Mini-Pleat Concertina (V-Bank) |
| Efficiency Options | F5 / F6 / F7 / F8 / F9 |
| Filter Media | Synthetic Fiber or Fiberglass |
| Frame Material | Galvanized Steel / Aluminum / Plastic (Optional) |
| Separator | Hot-Melt Technology |
| Filtration Stage | Intermediate / Final Filtration |
| Main Function | Fine Dust Removal |
| Installation Position | AHU / HVAC Systems |
| Dust Holding Capacity | High |
| OEM / ODM | Supported |
Applications
| Commercial HVAC Systems | Data Centers & Server Rooms | Healthcare & Clean Manufacturing | Industrial Ventilation |
|---|---|---|---|
| Installed in commercial air-handling units and central air-conditioning systems to remove fine airborne particles while maintaining high airflow and low energy consumption. | Used in precision cooling systems and server-room AHUs as an intermediate filtration stage to protect cooling coils and downstream high-efficiency filters. | Suitable for hospitals, pharmaceutical facilities, electronics manufacturing and precision production environments where consistent medium-efficiency filtration is required before HEPA stages. | Applied in industrial ventilation systems, manufacturing workshops, food-processing plants and machinery ventilation to improve air quality and extend equipment service life. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom filter width, height and depth • F5–F9 efficiency options • Synthetic or fiberglass media selections • Galvanized steel, aluminum or plastic frame options • Different pleat heights and media areas • Customized airflow and pressure-drop specifications • High dust-capacity media configurations • OEM branding and private-label production • Custom labels and export packaging • Development from customer drawings or samples |
• Incoming inspection of filter media and frame materials • Frame dimension and structural verification • Pleat spacing and hot-melt separator inspection • Media bonding and assembly inspection • Rated airflow testing • Initial pressure-drop testing • Filtration efficiency testing upon request • Dust-loading performance verification • Appearance inspection • Packaging verification • Batch traceability and final quality audit |
