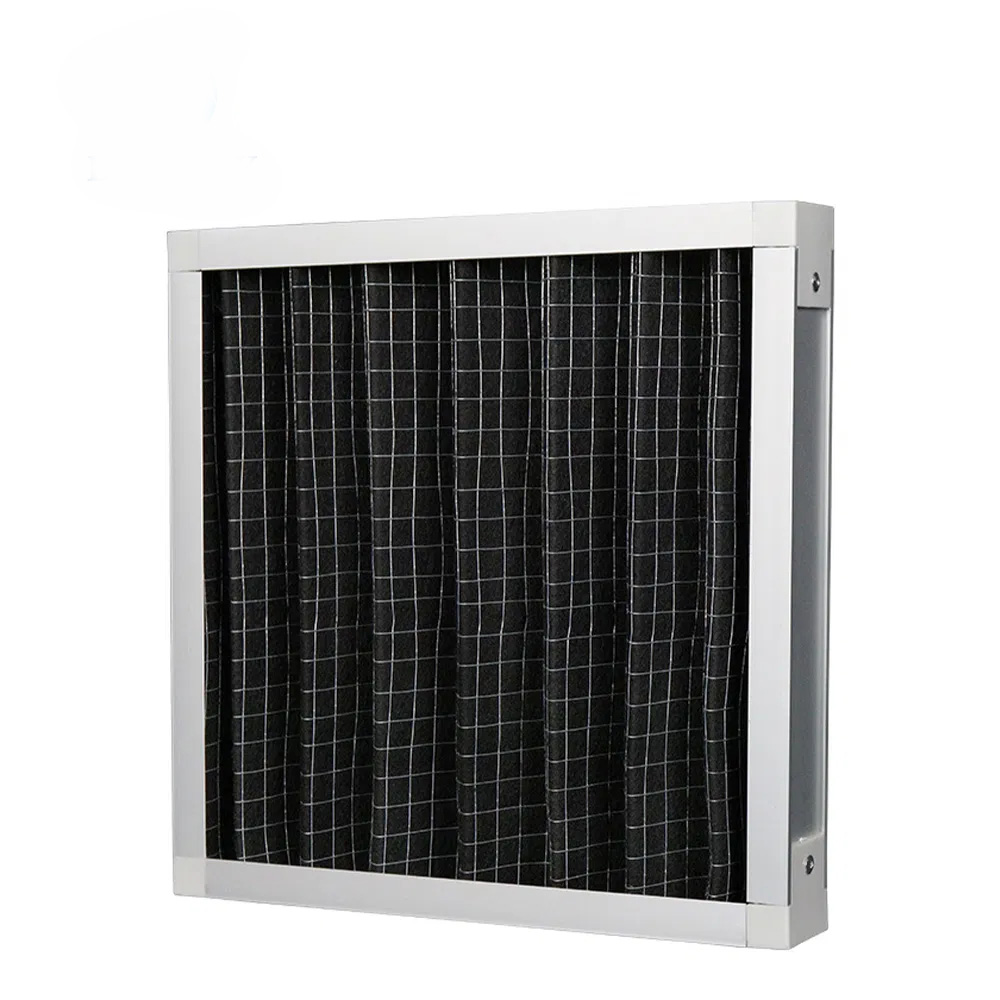

G3/G4 Activated Carbon Aluminum Frame HVAC Medium Efficiency Filter Plate for Air Conditioning Systems
G3/G4 Activated Carbon Aluminum Frame HVAC Medium Efficiency Filter Plate for Air Conditioning Systems
Features
- Combines particulate filtration with activated carbon adsorption
- Available in G3 and G4 filtration grades
- Removes dust, pollen, fibers and airborne particles
- Helps reduce odors, VOCs and gaseous contaminants
- Pleated media increases effective filtration area
- High dust-holding capacity for extended service life
- Low airflow resistance for energy-efficient HVAC operation
- Lightweight and corrosion-resistant aluminum frame
- Reinforced support grid improves structural stability
- Compatible with commercial and industrial HVAC systems
- Standard and custom dimensions available
- Easy installation and replacement
- OEM and private-label manufacturing supported
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description
The Activated Carbon Pleated Panel Filter combines particulate filtration with gas-phase adsorption to provide an efficient solution for commercial HVAC systems, air handling units (AHUs), fresh air ventilation systems and industrial air treatment applications.
Manufactured with pleated synthetic fiber media integrated with activated carbon material, the filter effectively captures coarse airborne particles while reducing odors, volatile organic compounds (VOCs) and other gaseous contaminants. The pleated structure increases the effective filtration area, resulting in higher dust-holding capacity and stable airflow performance.
Constructed with a lightweight aluminum frame and reinforced support mesh, the filter offers excellent mechanical strength, corrosion resistance and long service life. It is an ideal choice for buildings requiring both particulate control and improved indoor air quality.
Technical Parameters
| Part Name | Pre Efficiency Aluminium Frame Pleat Air Conditioner HVAC Filters |
| Part NO. | BS1317 |
| Sizes | 595x595x46mm(Customized) |
| Colour | Silver and White (Customized) |
| Structures | Aluminum or Iron Frame |
| Filtering Efficiency Grade | G3 G4 (Customized) |
| Special Properties | * Aluminum Alloy Frame:Aluminum Alloy Frame has High Strength, Good Toughness and is not Easy to Accumulate Dust,Corrosion Resistance is Strong
* High Quality Filter Material:Use Polyester Synthetic Fiber Filter Material, Air Volume, Good Permeability, High Dust Content(note: the Black Filter Material for Activated Carbon Fiber)
* Galvanized iron wire:Tightly arranged galvanized iron wire, fixed filter cotton, effectively keep the original state, increase the service life
* Mountain Folding Design:The Mountain Folding Filter Design Provides a 50 Percent Increase in Capacity Over Normal Flat Filters
|
| Packaging | (Customized) |
Standard Model Options
| Item | Description |
|---|---|
| Product Name | Activated Carbon Pleated Panel Filter |
| Product Type | Pleated HVAC Air Filter |
| Filtration Grade | G3 / G4 |
| Filter Media | Synthetic Fiber with Activated Carbon Layer |
| Frame Material | Aluminum Alloy (Galvanized Steel Optional) |
| Support Structure | Expanded Metal Mesh |
| Filter Structure | Pleated Panel |
| Main Function | Particle Filtration & Odor Removal |
| Odor Control | Yes |
| VOC Reduction | Suitable for Low-Concentration VOC Adsorption |
| Airflow Characteristic | High Airflow Capacity |
| Dust Holding Capacity | High |
| Installation Position | HVAC Pre-Filter or Secondary Filter |
| Replacement Type | Disposable |
| OEM / ODM | Supported |
Applications
| Commercial HVAC Systems | Office & Public Buildings | Healthcare & Education | Industrial Air Treatment |
|---|---|---|---|
| Installed in central air-conditioning systems and air handling units to improve indoor air quality while maintaining stable airflow. | Suitable for office buildings, shopping malls, hotels, airports and public facilities where both particulate control and odor reduction are required. | Used in hospitals, schools, laboratories and healthcare facilities to help reduce airborne particles and improve indoor comfort. | Applied in manufacturing plants, workshops and industrial ventilation systems where light VOC control and dust filtration are needed. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom width, height and depth • G3 or G4 efficiency options • Activated carbon loading customization • Synthetic media density selection • Aluminum or galvanized steel frame options • Different pleat heights and pleat counts • Support mesh customization • OEM branding and private labels • Retail and industrial packaging solutions • Product development from drawings or samples |
• Incoming inspection of filter media and activated carbon • Frame dimension verification • Pleat height and spacing inspection • Media bonding and frame assembly inspection • Initial pressure drop testing • Airflow performance verification • Filtration efficiency testing upon request • Appearance and structural inspection • Packaging verification • Batch traceability and pre-shipment quality audit |
