Panel Primary Air Filter HVAC System Effectively Filters Particulate Matter
Panel Primary Air Filter HVAC System Effectively Filters Particulate Matter
Features
- G3 and G4 primary filtration grades
- Pleated nonwoven synthetic filter media
- Double-sided wire mesh for media reinforcement
- High dust-holding capacity
- Low initial airflow resistance
- Stable performance under continuous ventilation
- Durable metal-frame construction
- Aluminum-profile and galvanized-steel frame options
- Compact panel structure for standard filter housings
- Suitable for AHUs and industrial ventilation systems
- Applicable as a gas turbine pre-filter
- Reusable-frame configurations available
- Standard and customized dimensions supported
- OEM and private-label production available
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description

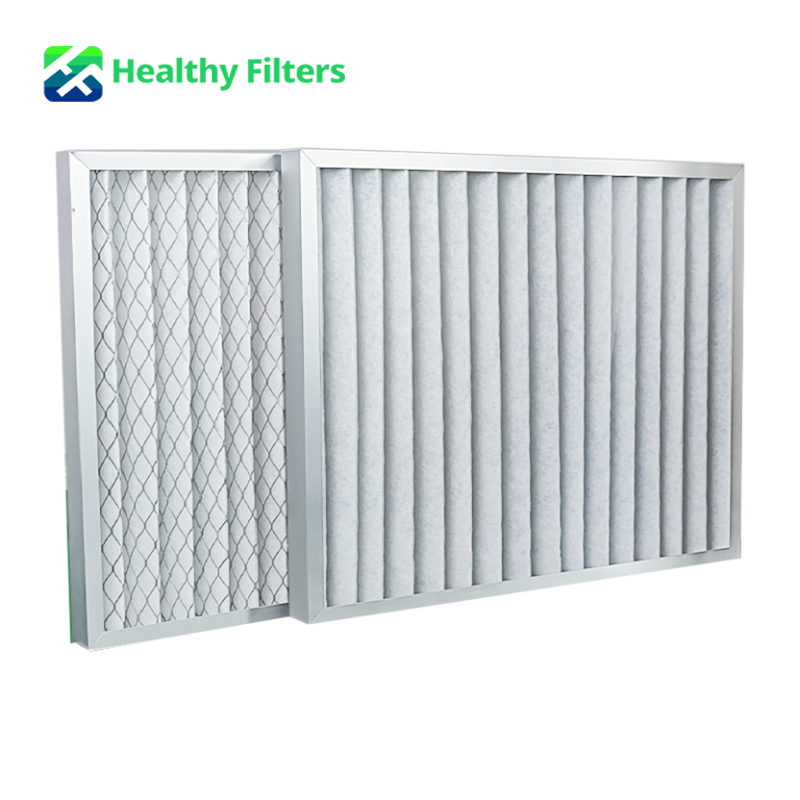

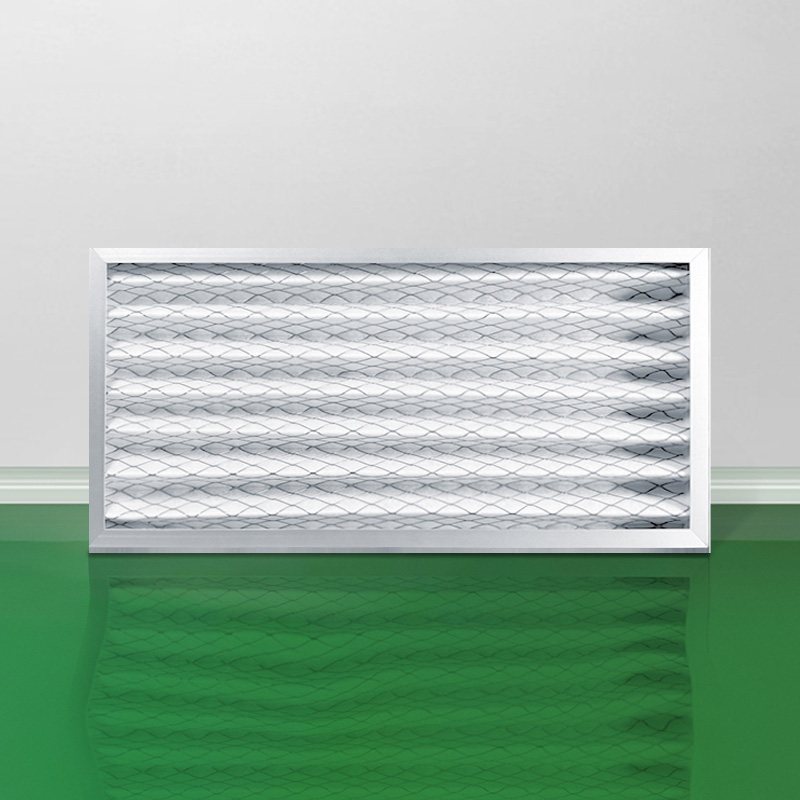

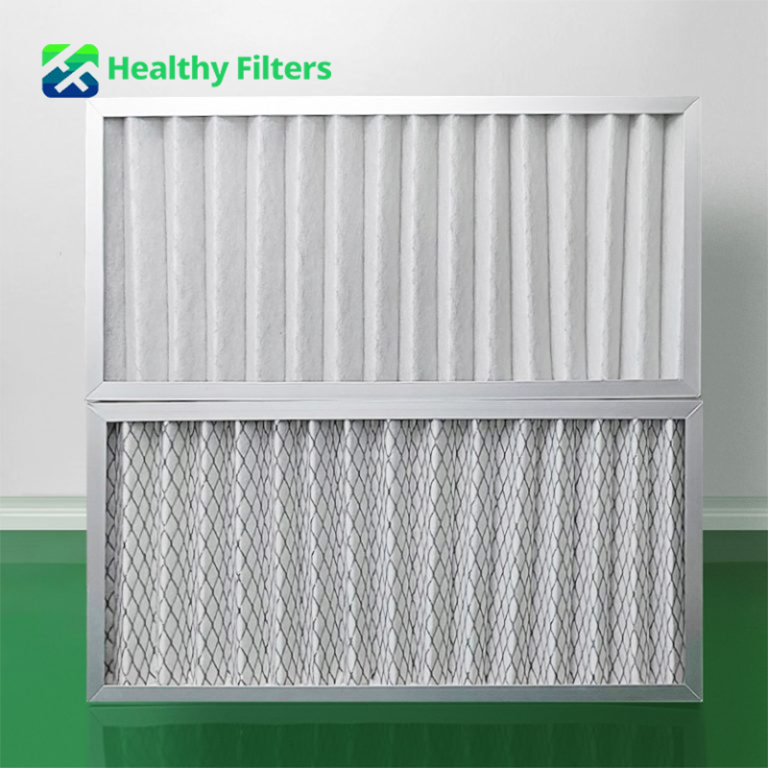

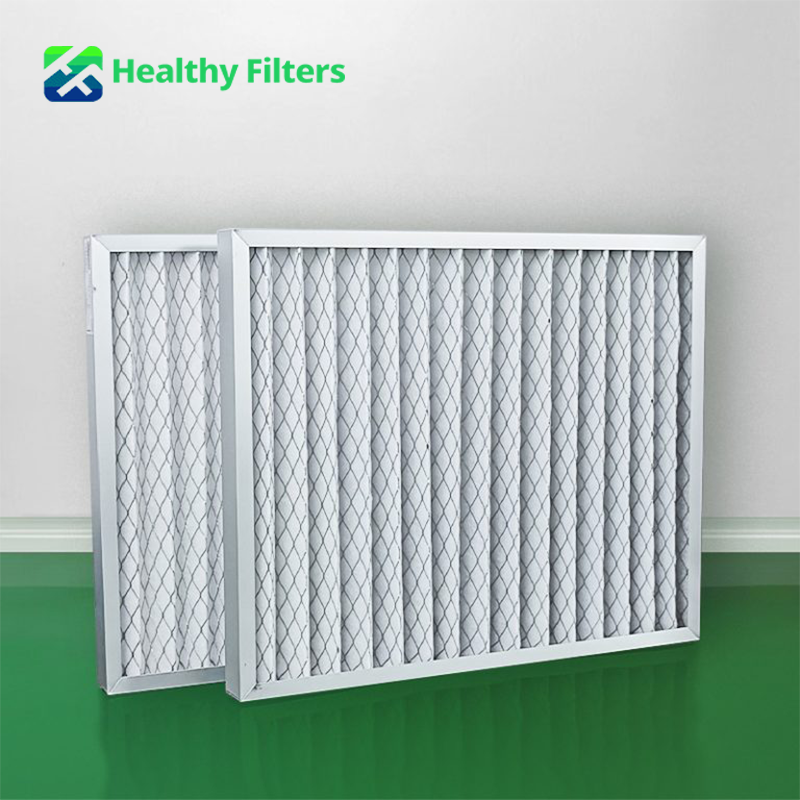

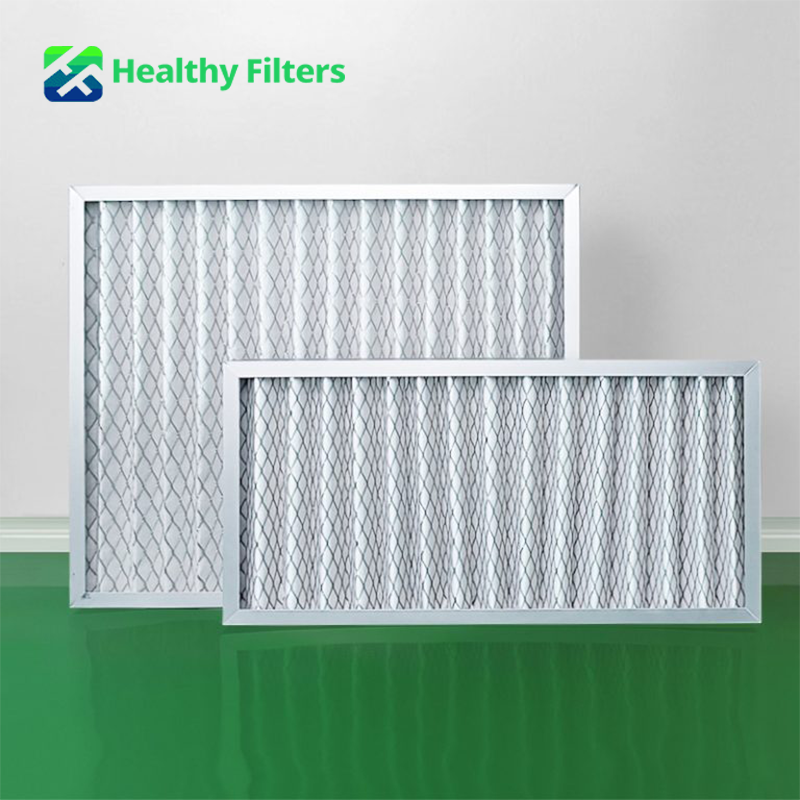

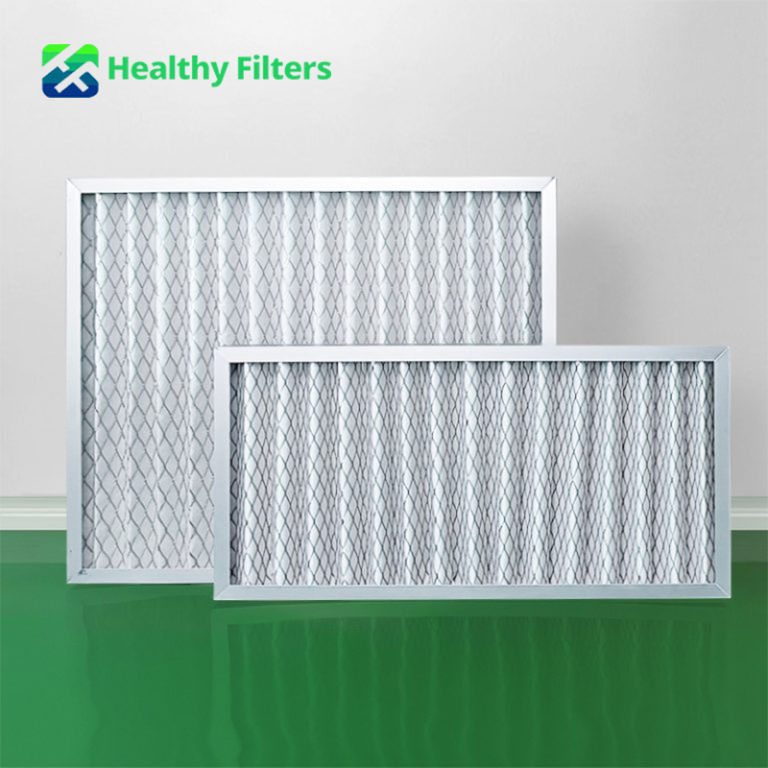

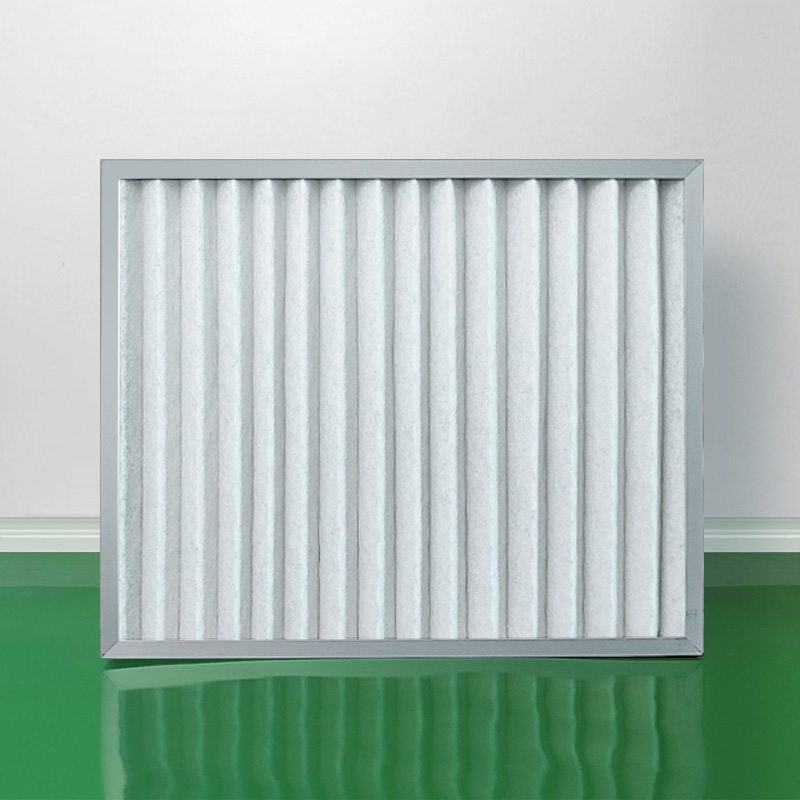

The G3/G4 Pleated Metal Panel Filter is designed for primary air filtration in air handling units, commercial HVAC systems, industrial ventilation equipment and gas turbine air intake systems.
The filter uses pleated nonwoven synthetic media supported by wire mesh on both sides. This reinforced structure helps maintain media stability under continuous airflow while providing low initial resistance and reliable coarse-particle capture.
A rigid metal frame, available in aluminum profile or galvanized steel, improves durability and allows the filter to be manufactured in a wide range of standard and custom dimensions. The filter can be supplied as a reusable-frame design, making it suitable for OEM equipment manufacturers, HVAC contractors and industrial filtration distributors.
Technical Parameters
| Efficiency | G3,G4(EN779) |
| Specifications | Metal frame/Pleated non-woven synthetic media with wire netting on two siders |
| Features | Reliable,international dimensions,compact structure,low initial resistance |
| Applications | Prefiters for AHUs and other venlation systems/Prefiters for gas turbines |
Standard Model Options
| Item | Description |
|---|---|
| Product Name | Pleated Metal Panel Air Filter |
| Product Type | Primary HVAC and Industrial Pre-Filter |
| Filter Classification | G3 / G4 |
| Reference Standard | EN 779 |
| Filter Media | Pleated Nonwoven Synthetic Fiber |
| Media Support | Wire Mesh on Both Sides |
| Frame Material | Aluminum Profile / Galvanized Steel |
| Structure | Pleated Panel with Double-Sided Mesh |
| Main Function | Coarse Particulate Filtration |
| Airflow Characteristic | Low Initial Resistance |
| Dust Capacity | High |
| Installation Position | First-Stage or Pre-Filtration Section |
| Frame Reusability | Available, depending on construction |
| Dimensions | Standard or Customized |
| OEM / ODM | Supported |
Applications
| Air Handling Units | Industrial Ventilation | Gas Turbine Air Intakes | Commercial HVAC Systems |
|---|---|---|---|
| Installed as the first filtration stage in AHUs to capture coarse dust before air reaches coils, fans and downstream filters. | Suitable for factories, warehouses, workshops and production facilities requiring durable primary filtration. | Used as a pre-filter to reduce the entry of dust, fibers and larger particles into turbine and compressor intake systems. | Applied in office buildings, shopping centers, hotels and public facilities using central air-conditioning equipment. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom filter width, height and depth • G3 or G4 media configurations • Aluminum-profile or galvanized-steel frames • Replaceable-media and reusable-frame structures • Different pleat heights and pleat spacing • Diamond or square wire-mesh options • Reinforcement for high-airflow applications • Airflow and pressure-drop optimization • Gas turbine intake compatibility • Development from drawings or physical samples • Custom labels, model numbers and barcodes • Neutral or private-label export packaging |
• Incoming inspection of media, mesh and frame materials • Dimensional and frame-squareness verification • Pleat count, height and spacing inspection • Wire-mesh positioning and attachment checks • Media-to-frame sealing inspection • Frame-joint and structural-strength inspection • Initial pressure-drop testing • Rated airflow verification • Filtration performance testing upon request • Visual inspection for media damage or deformation • Packaging and labeling verification • Batch traceability and pre-shipment sampling |
