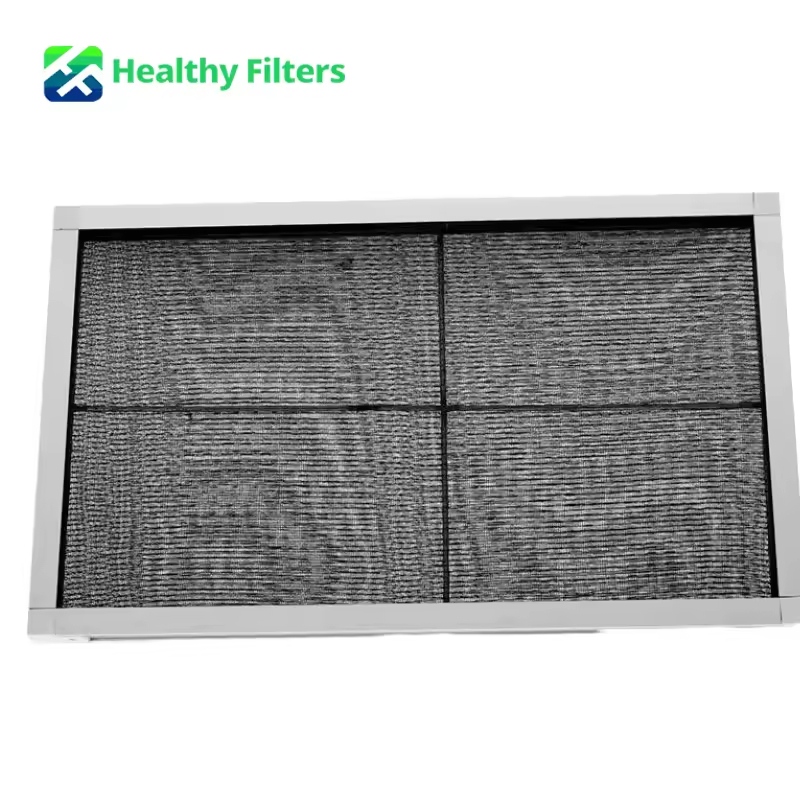

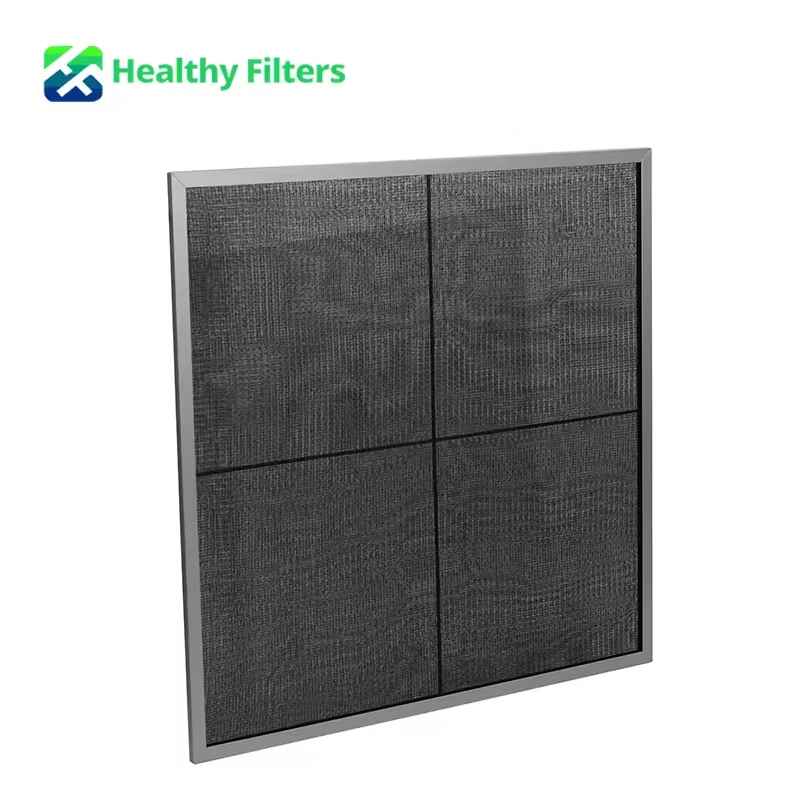

High-Performance Nylon Mesh Pre-Filter for Air Conditioning – Reusable, Aluminum Frame, Low Resistance
High-Performance Nylon Mesh Pre-Filter for Air Conditioning – Reusable, Aluminum Frame, Low Resistance
Features
- High airflow with low initial resistance
- Washable and reusable filter media
- Long service life and economical maintenance

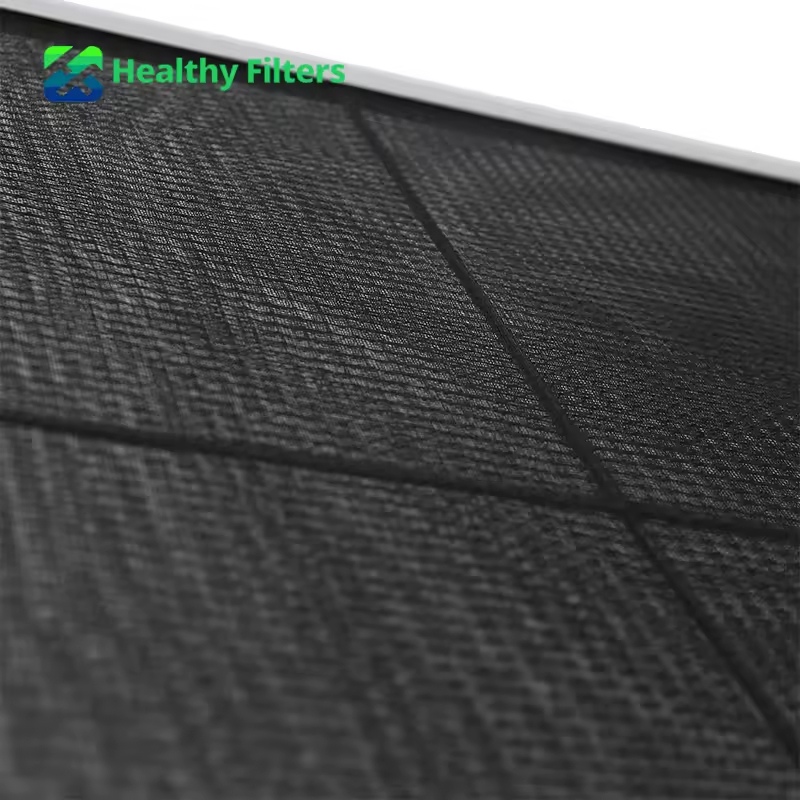

- PP fiber textile black nylon mesh

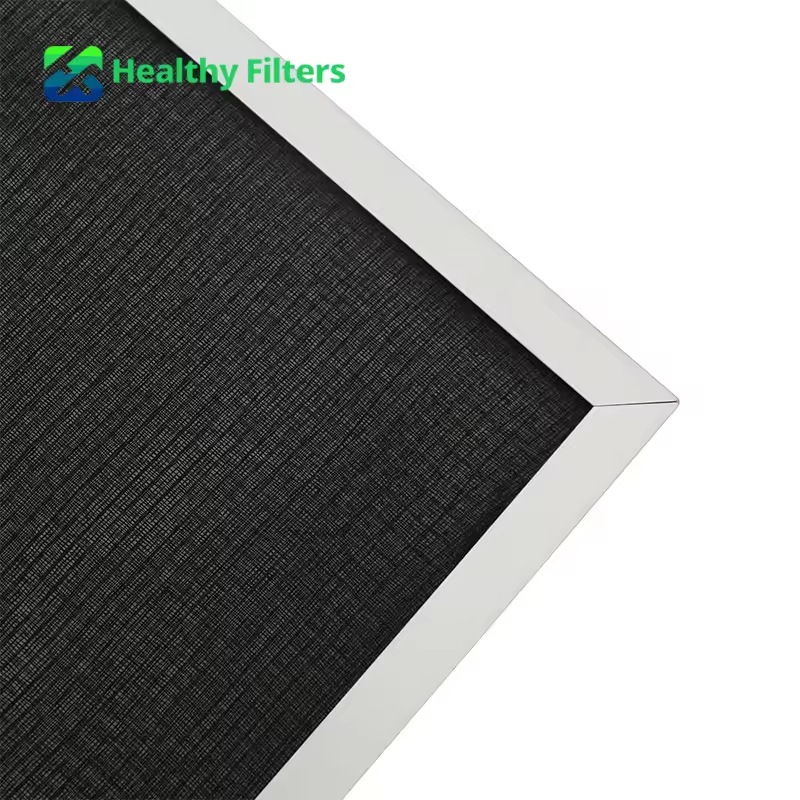

- Lightweight aluminum alloy frame
- Suitable for household, commercial, and industrial HVAC systems
- Easy to clean, install, and replace
- Ideal for coarse dust and large particle pre-filtration
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description
This nylon mesh pre-filter serves as the first line of defense in your air conditioning system, capturing dust, lint, and other airborne particles before they enter the main filter. Its black PP fiber mesh provides excellent filtration efficiency while maintaining airflow. The sturdy aluminum alloy frame ensures long-term durability and easy maintenance. Ideal for homes, offices, and industrial environments, this pre-filter helps extend the life of your HVAC equipment while improving indoor air quality.
Technical Parameters
| Model | Dimensions (mm) | Rated Airflow (m³/h) | Initial Resistance (Pa) |
|---|---|---|---|
| HF-NL | 595 × 595 × 8 | 3400 | 10 |
| HF-NL | 595 × 495 × 8 | 2800 | 10 |
| HF-NL | 595 × 295 × 8 | 1700 | 10 |
| HF-NL | 595 × 595 × 10 | 3400 | 12 |
| HF-NL | 595 × 495 × 10 | 2800 | 12 |
| HF-NL | 595 × 295 × 10 | 1700 | 12 |
| HF-NL | 595 × 595 × 21 | 3400 | 15 |
| HF-NL | 595 × 495 × 21 | 2800 | 15 |
| HF-NL | 595 × 295 × 21 | 1700 | 15 |
Standard Model Options
| Model | Size (mm) | Rated Airflow (m³/h) | Initial Resistance |
|---|---|---|---|
| HF-NL-59559508 | 595 × 595 × 8 | 3400 | 10 Pa |
| HF-NL-59549508 | 595 × 495 × 8 | 2800 | 10 Pa |
| HF-NL-59529508 | 595 × 295 × 8 | 1700 | 10 Pa |
| HF-NL-59559510 | 595 × 595 × 10 | 3400 | 12 Pa |
| HF-NL-59549510 | 595 × 495 × 10 | 2800 | 12 Pa |
| HF-NL-59529510 | 595 × 295 × 10 | 1700 | 12 Pa |
| HF-NL-59559521 | 595 × 595 × 21 | 3400 | 15 Pa |
| HF-NL-59549521 | 595 × 495 × 21 | 2800 | 15 Pa |
| HF-NL-59529521 | 595 × 295 × 21 | 1700 | 15 Pa |
Applications
| Central HVAC Systems | Commercial Buildings | Residential Air Conditioning | Industrial Ventilation |
|---|---|---|---|
| Pre-filtration for central air-conditioning and ventilation systems. | Coarse dust removal for offices, hotels, malls, and public spaces. | Washable return air filter for household air-conditioning units. | Protects fans, coils, and downstream filters from large particles. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom filter size and thickness • PP fiber textile nylon mesh customization • Aluminum alloy frame customization • Washable and reusable filter design • High-airflow and low-resistance requirement • OEM label, packaging, and project samples |
• Dimension and frame check • Nylon mesh surface inspection • Frame strength and assembly inspection • Airflow and resistance test • Washability and reusability inspection upon request • Packaging inspection before shipment |
