Replaceable Media Primary Panel Air Filter for AHUs, Cleanrooms & Data Centers
Replaceable Media Primary Panel Air Filter for AHUs, Cleanrooms & Data Centers
Features
- Reusable aluminum frame design
- Replaceable filter media reduces operating costs
- Pleated synthetic fiber media for increased filtration area
- High dust-holding capacity
- Low initial airflow resistance
- Lightweight yet durable metal frame
- G4 filtration efficiency according to EN779
- Suitable for continuous HVAC operation
- Excellent moisture resistance
- Easy filter media replacement without replacing the frame
- Aluminum, galvanized steel and stainless-steel frame options
- Standard and customized dimensions available
- OEM and private-label manufacturing supported
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description

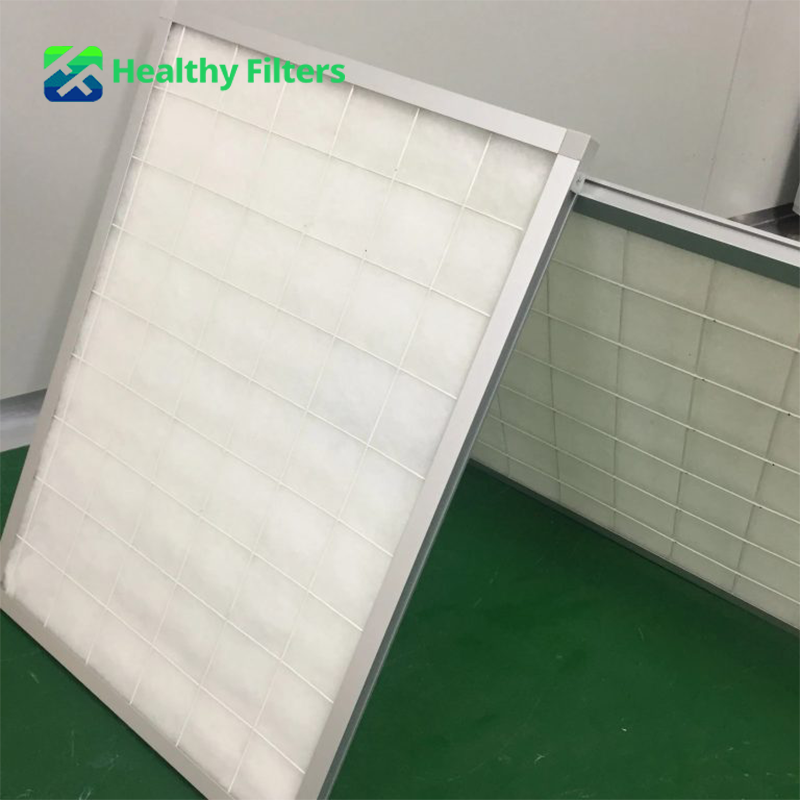

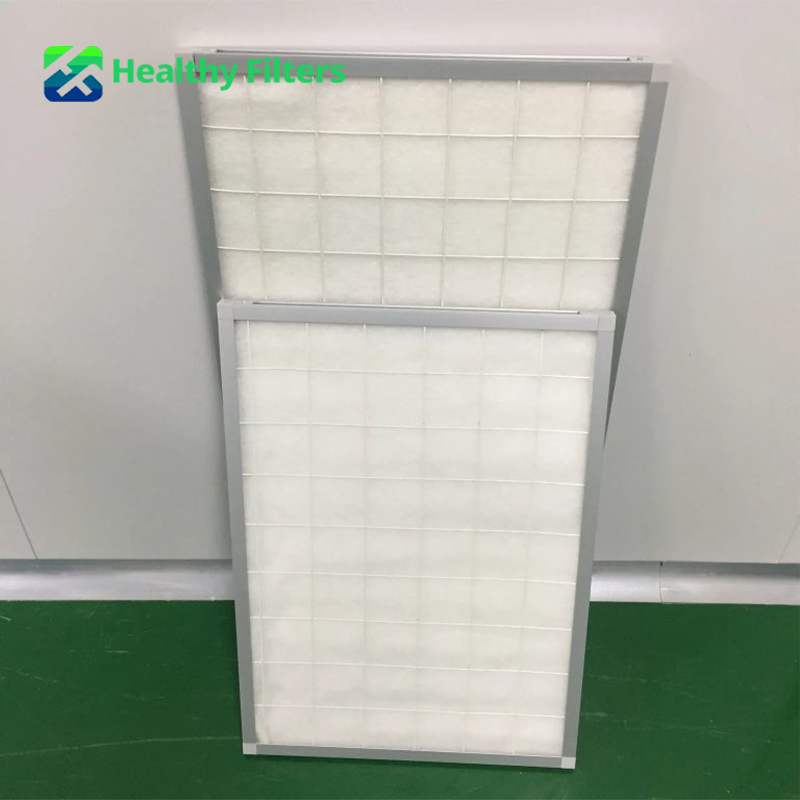

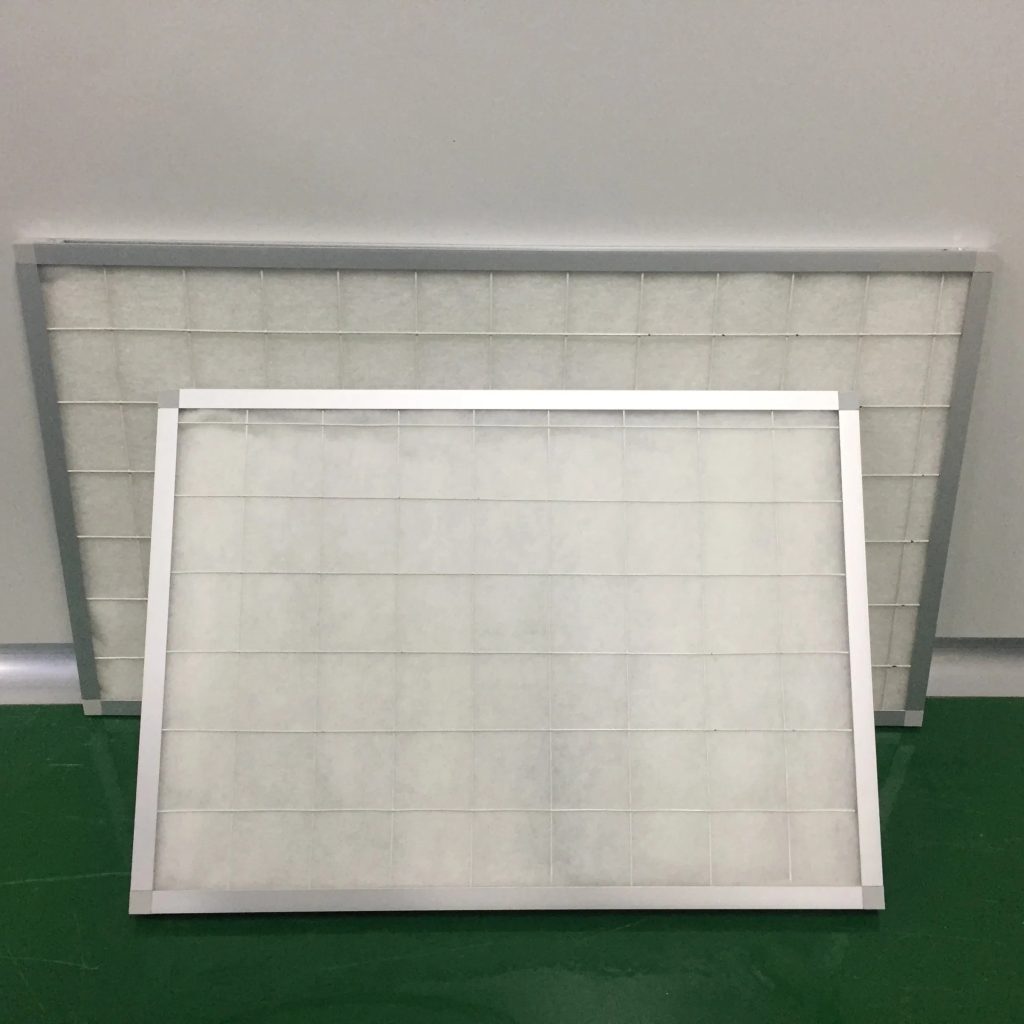

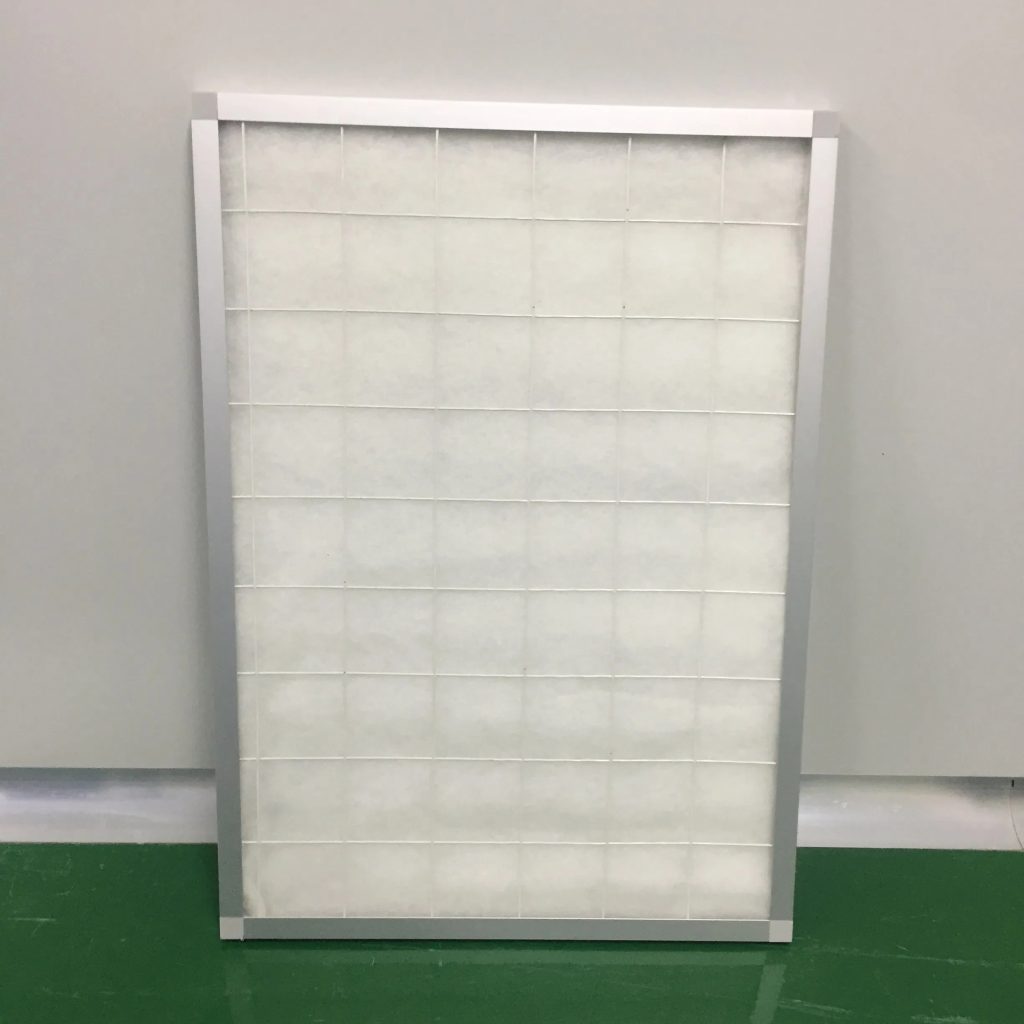

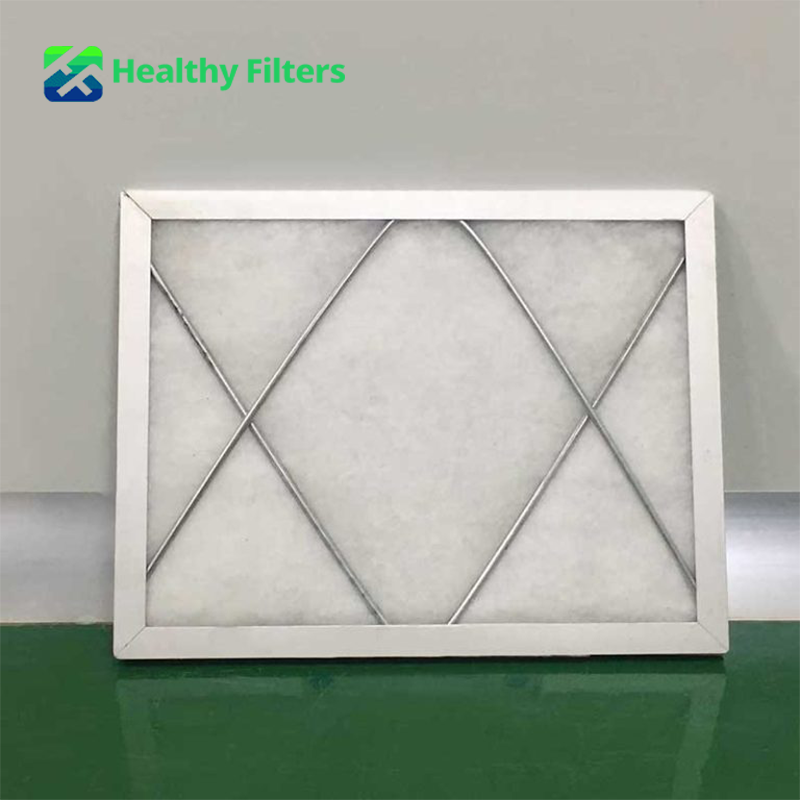

The Reusable Aluminum Frame Panel Filter is designed for primary air filtration in commercial HVAC systems, air handling units (AHUs), cleanrooms, data centers and industrial ventilation equipment. Featuring a removable filter media design, the filter allows the original frame to be reused while only the filter media is replaced, reducing maintenance costs and minimizing material waste.
Constructed with pleated polyester synthetic fiber media and a durable aluminum alloy frame, the filter provides high dust-holding capacity, low airflow resistance and reliable structural stability. Optional galvanized steel and stainless-steel frames are available for demanding operating environments.
The replaceable-media construction makes this filter an economical solution for facilities requiring frequent filter maintenance while maintaining consistent air filtration performance.
Technical Parameters
| Frame | Aluminium alloy /Galvanized steel/Stainless steel |
| Media | Polyester synthetic fiber |
| Structure | Panel /Pleated |
| Dimension | According to customers’ requirements |
| Maximum temperature | 98ºC |
| Maximum relative humidity | ≤100% |
| Fiber class according to EN779 | G4 ( particles ≥ 5microns ) |
| Certification | ISO9001, En779 |
| Filter Efficiency | 80-95% (Arrestance) |
Standard Model Options
| Item | Description |
|---|---|
| Product Name | Reusable Panel Air Filter |
| Product Type | Replaceable Media Primary Filter |
| Filtration Grade | G4 |
| Filter Media | Pleated Polyester Synthetic Fiber |
| Frame Material | Aluminum Alloy |
| Optional Frames | Galvanized Steel / Stainless Steel |
| Structure | Panel / Pleated |
| Media Replacement | Replaceable |
| Frame Reuse | Yes |
| Main Function | Primary Dust Filtration |
| Installation Position | AHU Primary Filter Section |
| OEM / ODM | Supported |
Applications
| Data Centers | Cleanrooms | Commercial HVAC | Industrial Ventilation |
|---|---|---|---|
| Installed as the primary filtration stage in precision cooling systems to protect servers, cooling coils and air-handling equipment from dust accumulation. | Used in cleanroom air supply systems and operating rooms to reduce coarse airborne particles before secondary and HEPA filtration stages. | Suitable for offices, shopping malls, hotels, airports and other commercial HVAC systems requiring reusable filtration solutions. | Applied in manufacturing plants, surface treatment facilities, chemical workshops and industrial ventilation systems where frequent filter replacement is required. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom filter width, height and thickness • Replaceable media configurations • Aluminum, galvanized or stainless-steel frames • Different pleat heights and pleat spacing • Customized airflow and pressure-drop design • Various media densities and efficiencies • Reinforced frame construction • OEM branding and private labels • Custom packaging solutions • Product development from drawings or samples |
• Incoming inspection of filter media and frame materials • Frame dimensional verification • Pleat height and spacing inspection • Frame assembly and corner strength inspection • Media replacement mechanism inspection • Initial pressure-drop testing • Airflow performance verification • Filtration efficiency testing upon request • Appearance inspection • Packaging verification • Batch traceability and pre-shipment inspection |
