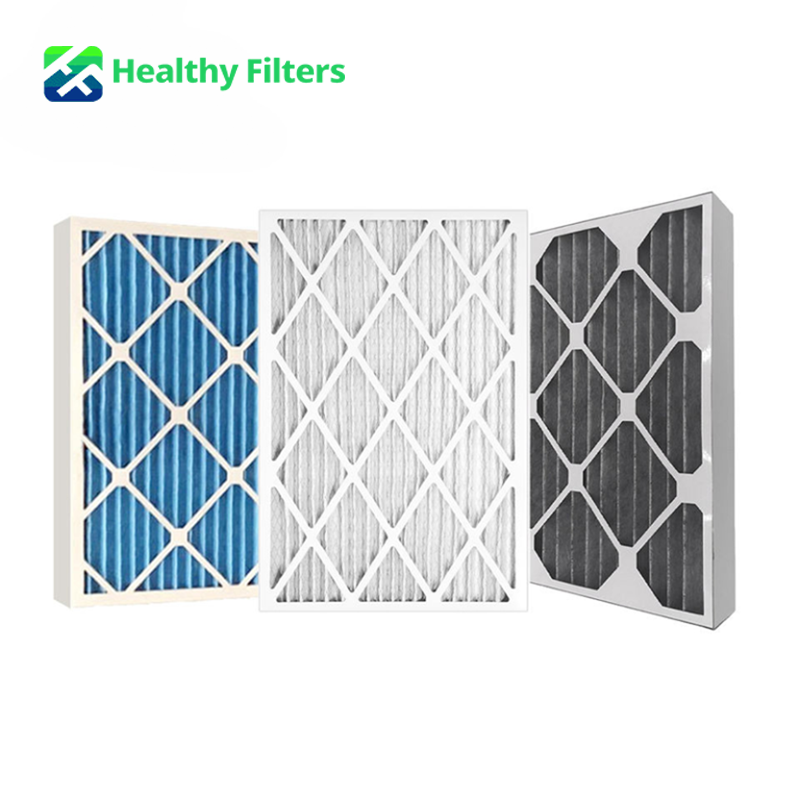

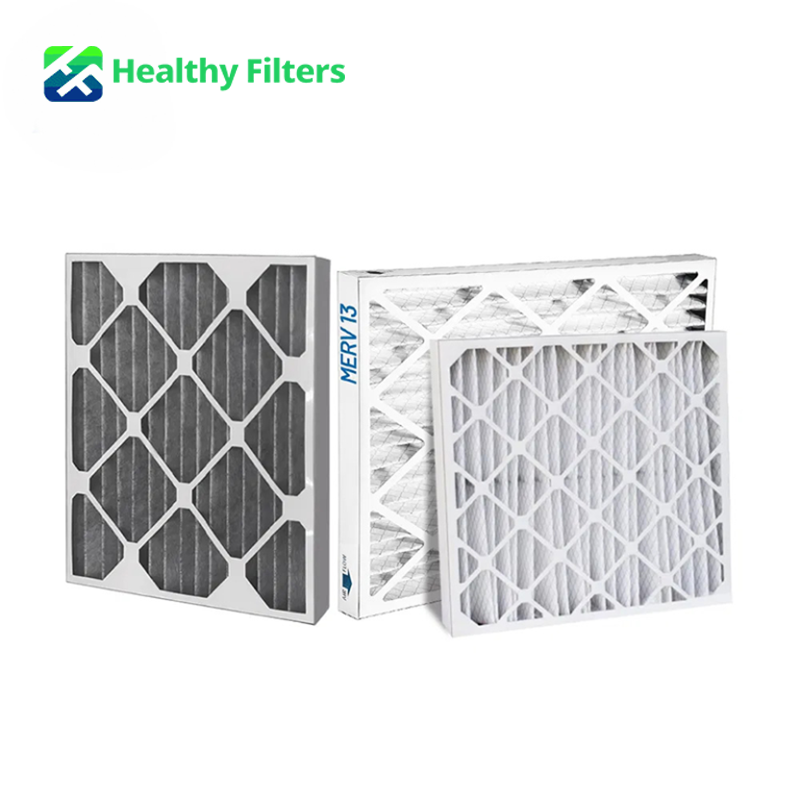

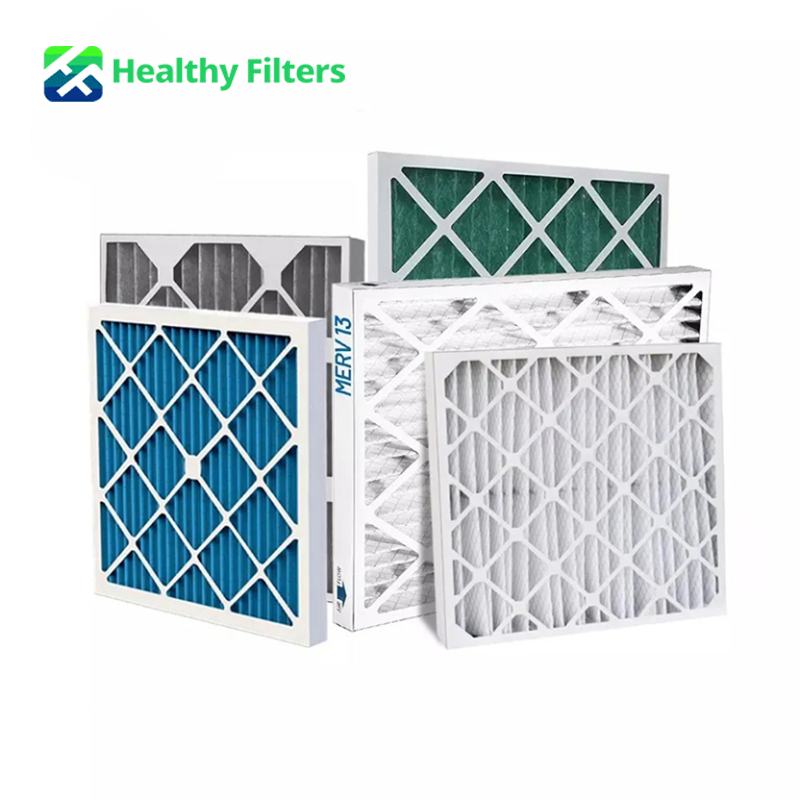

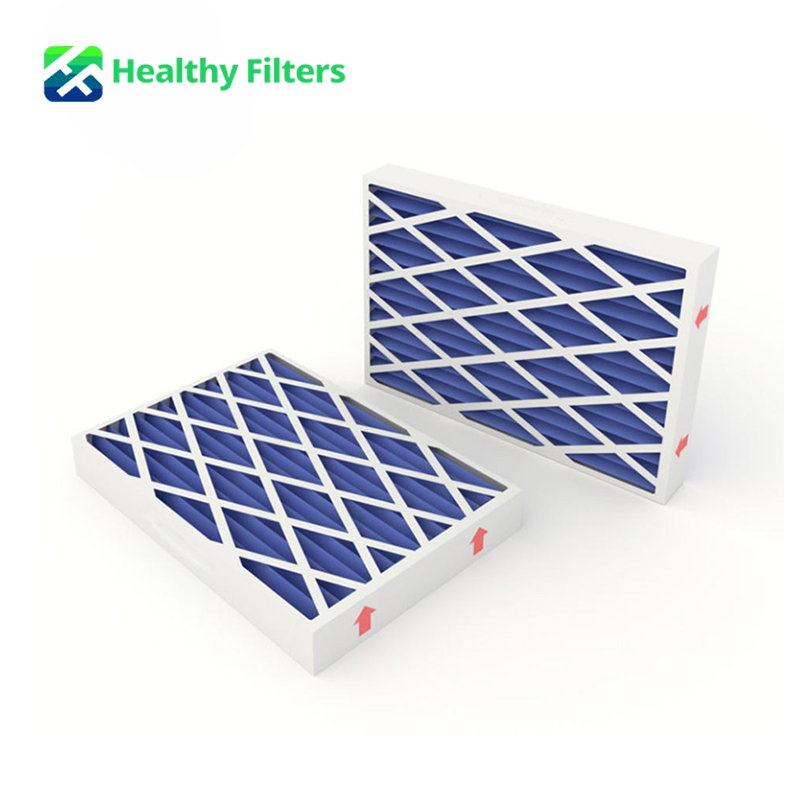

Customized Merv 6 Merv 8 Merv 11 Merv 13 Cardboard Frame Pleated Panel AC Furnace HVAC Air Filter
Customized Merv 6 Merv 8 Merv 11 Merv 13 Cardboard Frame Pleated Panel AC Furnace HVAC Air Filter
Features

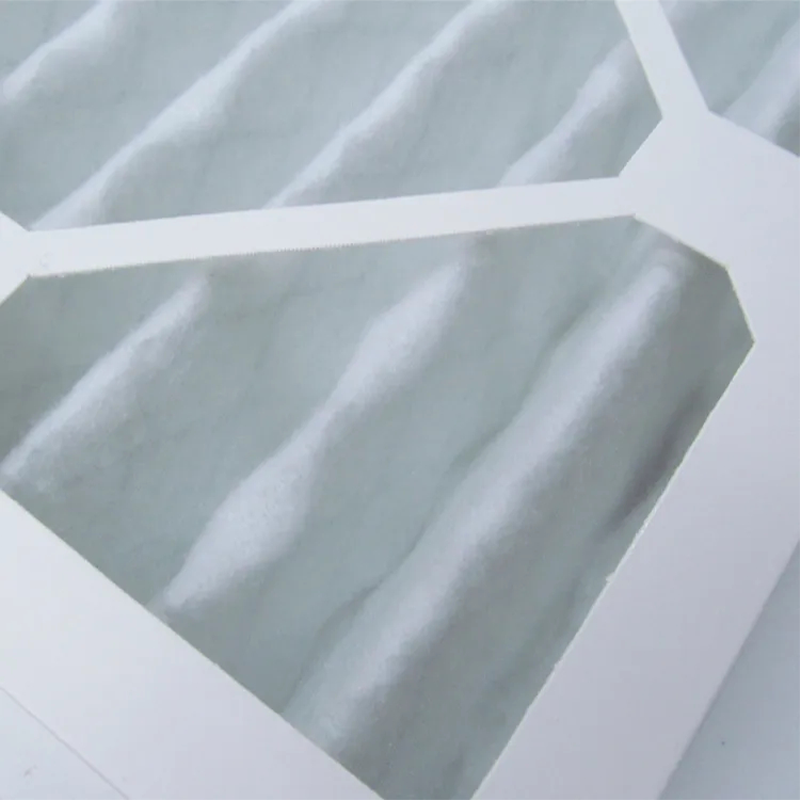

- Pleated panel construction provides a larger effective filtration area
- Nonwoven fabric and synthetic fiber filter media
- Available in multiple efficiency configurations
- MERV 6, MERV 8, MERV 11 and MERV 13 options available by specification
- G3, G4 and M5 configurations available according to EN 779 references
- High dust-holding capacity for extended maintenance intervals
- Low initial resistance supports normal HVAC airflow
- Double-layer moisture-resistant paper frame
- Galvanized-steel and aluminum-alloy frame options available

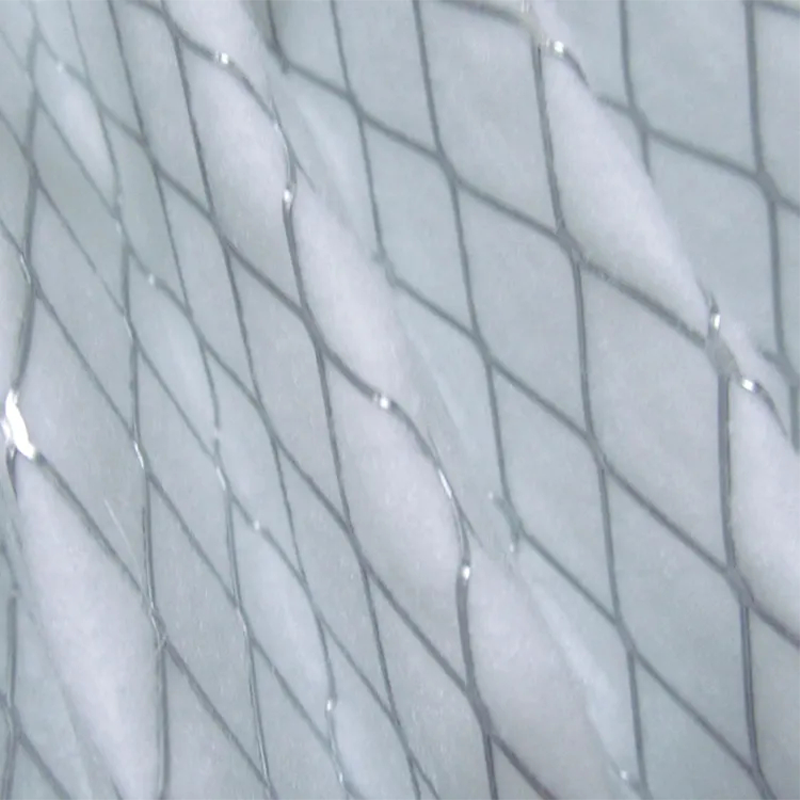

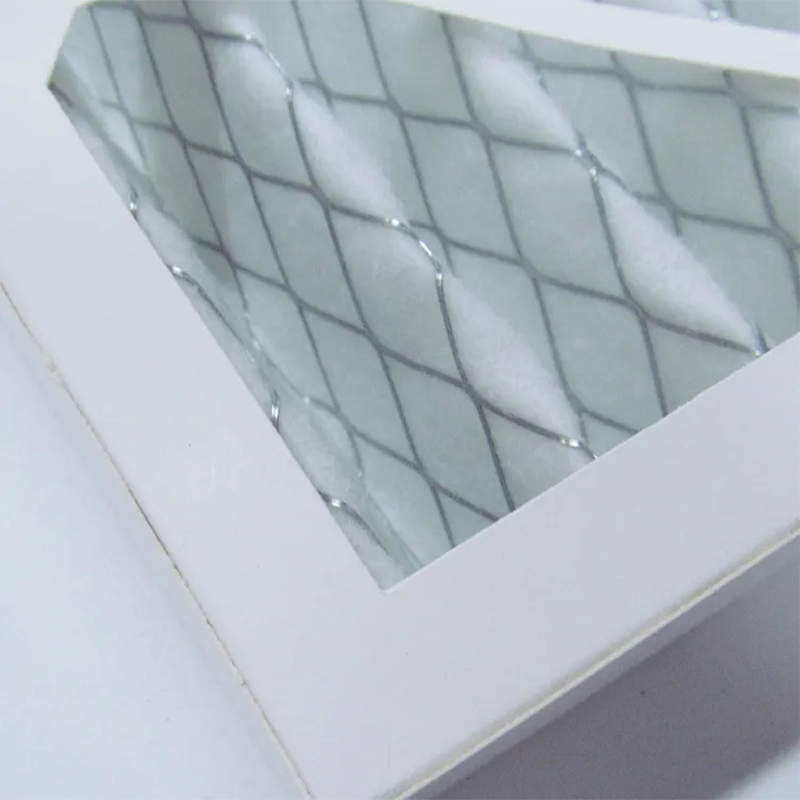

- Protective support grid helps maintain pleat stability
- Suitable for residential, commercial and industrial ventilation
- Multiple standard depths and face dimensions
- Easy to install and replace
- Custom branding, packaging and model development supported
- OEM production available for global HVAC filter programs
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description
The custom pleated cardboard air filter is designed for primary and intermediate particle filtration in residential furnaces, commercial HVAC systems, air-handling units and industrial ventilation equipment.
It uses a blended nonwoven and synthetic fiber medium formed into a compact pleated structure. The increased media area provides improved dust-holding capacity while helping maintain low airflow resistance. A double-layer moisture-resistant paper frame supports the filter during installation and operation, while galvanized-steel and aluminum-alloy frame options are available for demanding applications.
The filter can be supplied in different filtration grades, frame depths, dimensions and media colors. Standard and OEM configurations are available for furnace filter brands, HVAC manufacturers, wholesalers, distributors and building maintenance suppliers.
Technical Parameters
|
Outer frame
|
Double-layer moisture-proof paper frame (galvanized and aluminum alloy optional)
|
|
Filter media
|
Non-woven fabric & synthetic fiber
|
|
Filtration efficiency
|
G3/G4/M5(EN779)
|
|
Fire rating
|
Undergoing UL 900 certification
|
|
Continuous operating temperature
|
≤70℃
|
|
Suggested final resistance
|
≤250Pa
|
|
Main applications
|
Pre-filtration of ventilation and air conditioning systems for commercial and industrial use
|
|
Sealant
|
White emulsion
|
|
Thickness
|
1″,2″,4″(22/46/96mm)
|
|
dimensions of the product
|
289*289*22mm/289*489*22mm/289*594*22mm/492*492*22mm/594*594*96mm
|
|
Rated resistance
|
33-55
|
Standard Model Options
| Item | Description |
|---|---|
| Product Name | Pleated Cardboard-Frame Panel Air Filter |
| Product Type | Disposable HVAC and Furnace Filter |
| Filter Media | Nonwoven Fabric and Synthetic Fiber |
| Media Structure | Pleated |
| Efficiency Options | MERV 6 / MERV 8 / MERV 11 / MERV 13 |
| Alternative Grade Options | G3 / G4 / M5 |
| Reference Standard | EN 779 for specified G3, G4 and M5 configurations |
| Standard Frame | Double-Layer Moisture-Resistant Paperboard |
| Optional Frames | Galvanized Steel / Aluminum Alloy |
| Support Structure | Protective Grid |
| Sealant | White Emulsion |
| Standard Depths | 22 mm / 46 mm / 96 mm |
| Nominal Inch Depths | 1 in. / 2 in. / 4 in. |
| Continuous Operating Temperature | Up to 70°C for standard configurations |
| Suggested Final Resistance | Up to 250 Pa |
| Typical Initial Resistance Range | 33–55 Pa |
| Main Function | Primary and Intermediate Particle Filtration |
| Dimensions | Standard or Customized |
| OEM / ODM | Supported |
Applications
| Residential Furnace & HVAC | Commercial Building Ventilation | Industrial Air Systems | Institutional & Public Facilities |
|---|---|---|---|
| Used in furnace return-air systems, residential air conditioners and home ventilation equipment to capture dust, pollen, fibers and pet dander. | Suitable for offices, retail stores, hotels, shopping centers and central HVAC systems requiring reliable disposable filtration. | Applied in manufacturing facilities, workshops, equipment intakes and general industrial ventilation systems to reduce airborne particle loading. | Used in schools, healthcare buildings, transportation facilities and public buildings where different filtration grades may be required. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom width, height and depth • MERV 6, 8, 11 and 13 media options • G3, G4 and M5 configurations • Customized pleat height and pleat density • Nonwoven and synthetic media selection • Moisture-resistant paperboard frame options • Galvanized-steel or aluminum-alloy frames • Customized support-grid patterns • Airflow and pressure-drop optimization • Custom media and frame colors • Private labels, barcodes and model numbers • Retail packaging and master-carton customization • OEM development from drawings or samples |
• Incoming inspection of filter media and frame materials • Filter dimensions and squareness verification • Pleat count, height and spacing inspection • Media-to-frame bonding and seal inspection • Support-grid installation verification • Initial pressure-drop testing • Rated airflow verification • Filtration efficiency testing upon request • Moisture-resistance inspection for paper frames • Frame-strength and appearance inspection • Packaging and labeling verification • Batch traceability and pre-shipment sampling |
PRODUCT DETAILS
 |
 |
 |
