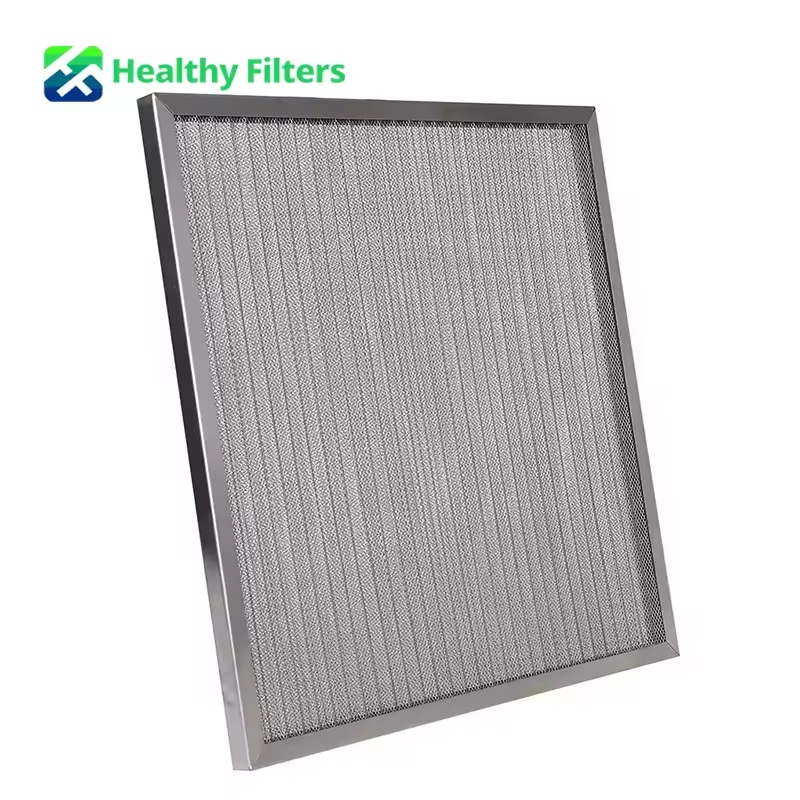

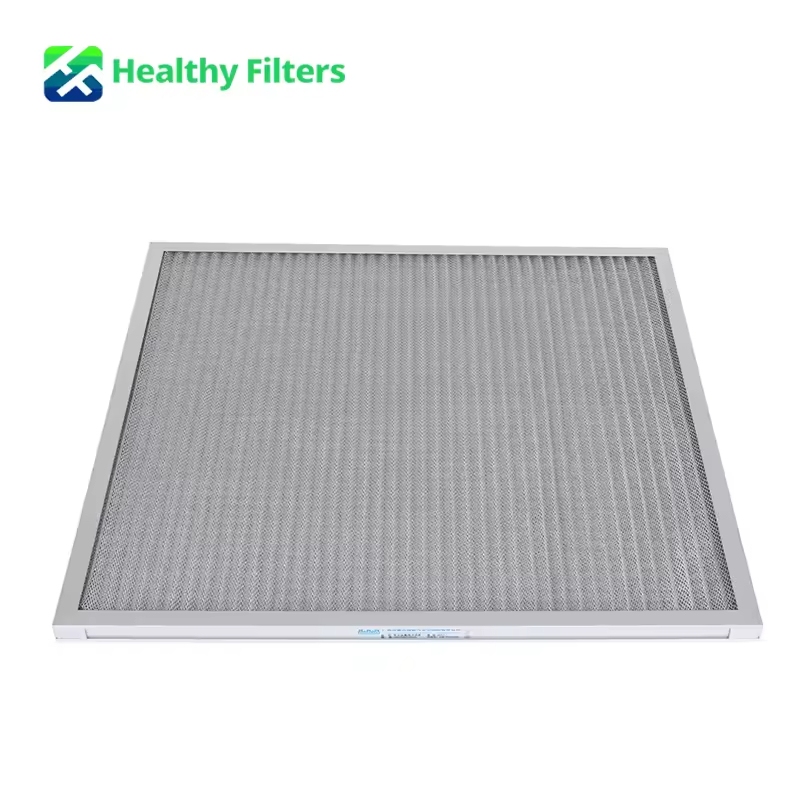

Metal Mesh Air Filter | Washable Aluminum & Stainless Steel Prefilter for HVAC Ventilation Systems
Metal Mesh Air Filter | Washable Aluminum & Stainless Steel Prefilter for HVAC Ventilation Systems
Features
- Low airflow resistance and high ventilation capacity
- Washable and reusable design
- Long service life and economical maintenance
- Suitable for high-temperature and humid environments
- Aluminum mesh or stainless steel expanded mesh available
- Strong metal frame structure
- Easy to clean, install, and replace
- Suitable for coarse particle filtration and equipment protection
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description
The Metal Mesh Filter is specifically engineered for primary air filtration applications where durability, high airflow, and easy maintenance are essential.

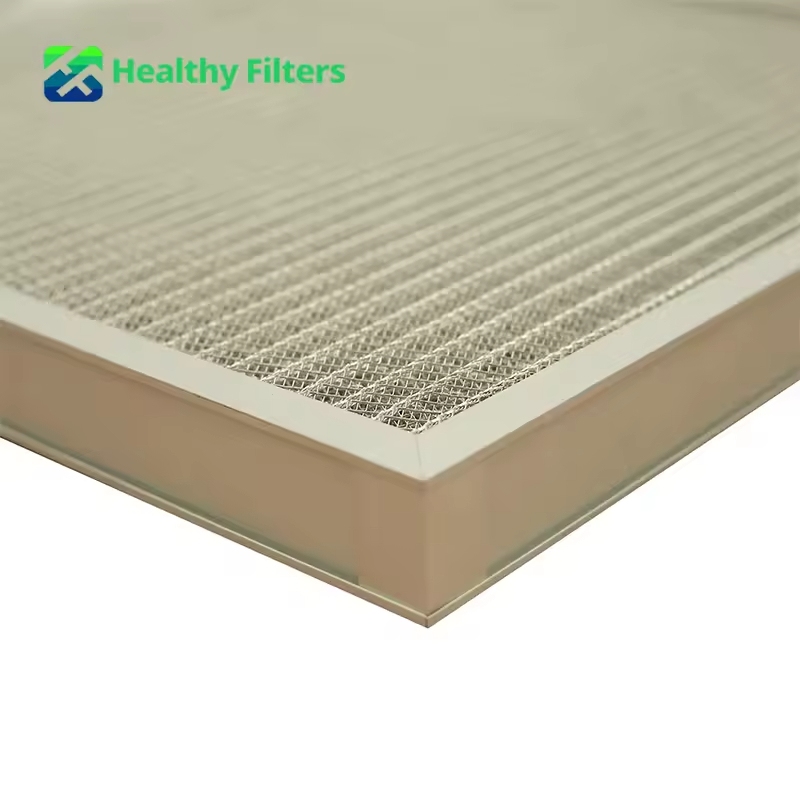

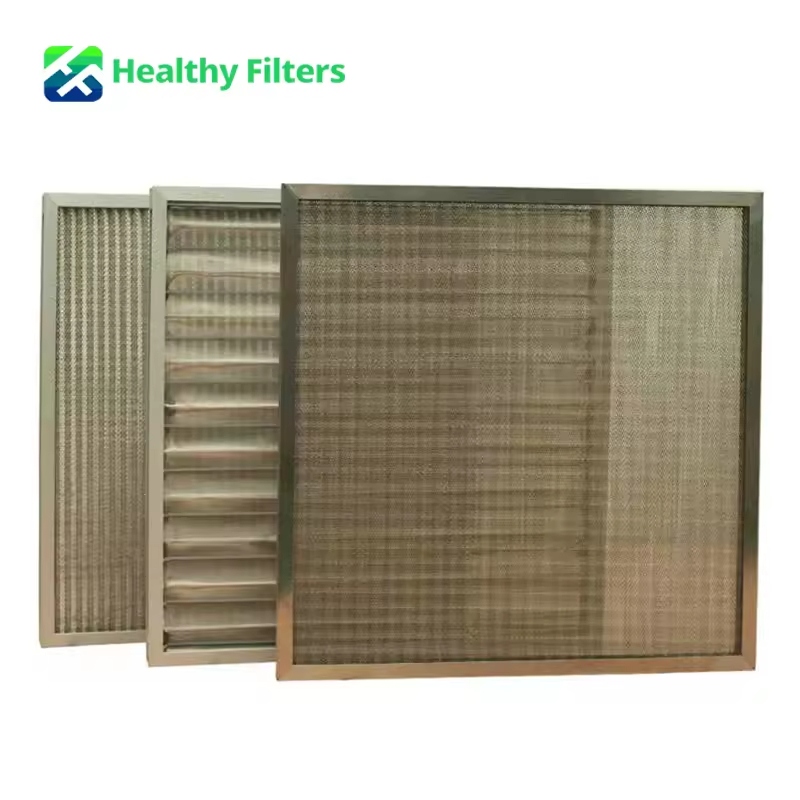

Manufactured with multiple layers of corrugated aluminum mesh or stainless steel expanded mesh, the filter provides excellent mechanical strength and particle capture efficiency while ensuring minimal pressure loss.
The washable construction makes it an economical and environmentally friendly choice for commercial and industrial facilities requiring continuous operation.
Available in custom dimensions and frame materials, the Metal Mesh Filter can be integrated into HVAC systems, air handling units (AHUs), exhaust systems, and industrial ventilation equipment.
Technical Parameters
| Model | Dimensions (mm) | Rated Airflow (m³/h) | Initial Resistance (Pa) |
|---|---|---|---|
| HF-JS | 595 × 595 × 21 | 3400 | 20 |
| HF-JS | 595 × 495 × 21 | 2800 | 20 |
| HF-JS | 595 × 295 × 21 | 1700 | 20 |
| HF-JS | 595 × 595 × 46 | 3400 | 40 |
| HF-JS | 595 × 495 × 46 | 2800 | 40 |
| HF-JS | 595 × 295 × 46 | 1700 | 40 |
Standard Model Options
| Model | Size (mm) | Rated Airflow (m³/h) | Initial Resistance |
|---|---|---|---|
| HF-JS-59559521 | 595 × 595 × 21 | 3400 | 20 Pa |
| HF-JS-59549521 | 595 × 495 × 21 | 2800 | 20 Pa |
| HF-JS-59529521 | 595 × 295 × 21 | 1700 | 20 Pa |
| HF-JS-59559546 | 595 × 595 × 46 | 3400 | 40 Pa |
| HF-JS-59549546 | 595 × 495 × 46 | 2800 | 40 Pa |
| HF-JS-59529546 | 595 × 295 × 46 | 1700 | 40 Pa |
Applications
| Spray Rooms | Automotive Assembly Workshops | High-Temperature Ventilation | Industrial HVAC Systems |
|---|---|---|---|
| Captures coarse particles and paint mist in spraying and coating environments. | Used in ventilation systems for automotive production and assembly areas. | Suitable for air filtration in hot, humid, or demanding operating environments. | Protects fans, coils, and downstream filters from large dust and debris. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom filter size and thickness • Aluminum mesh or stainless steel expanded mesh • Aluminum alloy or stainless steel frame • Single-layer or multi-layer mesh structure • High-temperature and washable design • OEM label, packaging, and project samples |
• Dimension and frame check • Mesh surface and layer inspection • Frame strength and assembly inspection • Airflow and resistance test • Cleaning and reusability inspection upon request • Packaging inspection before shipment |
