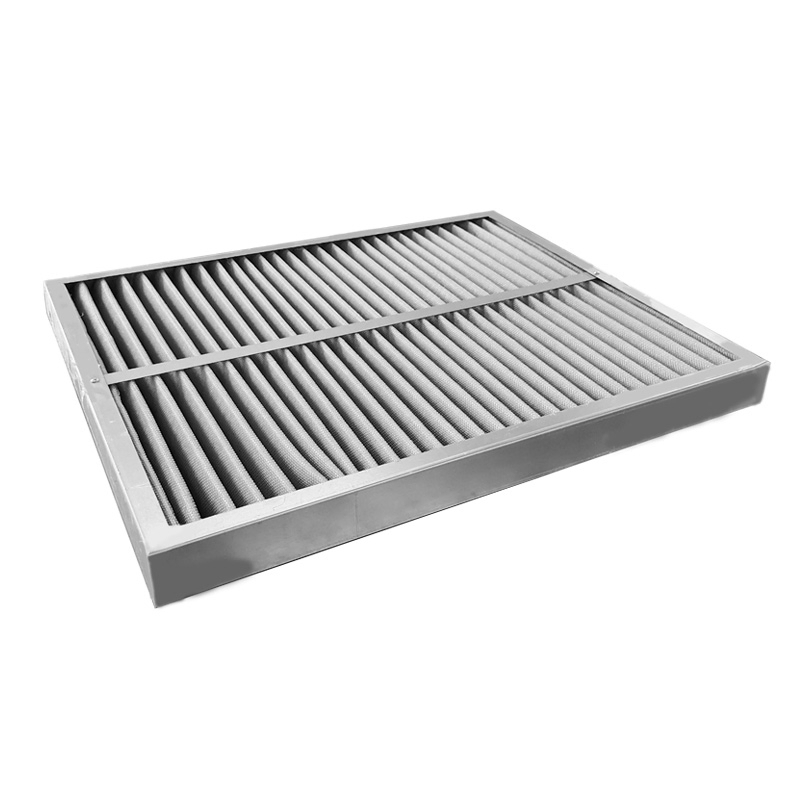

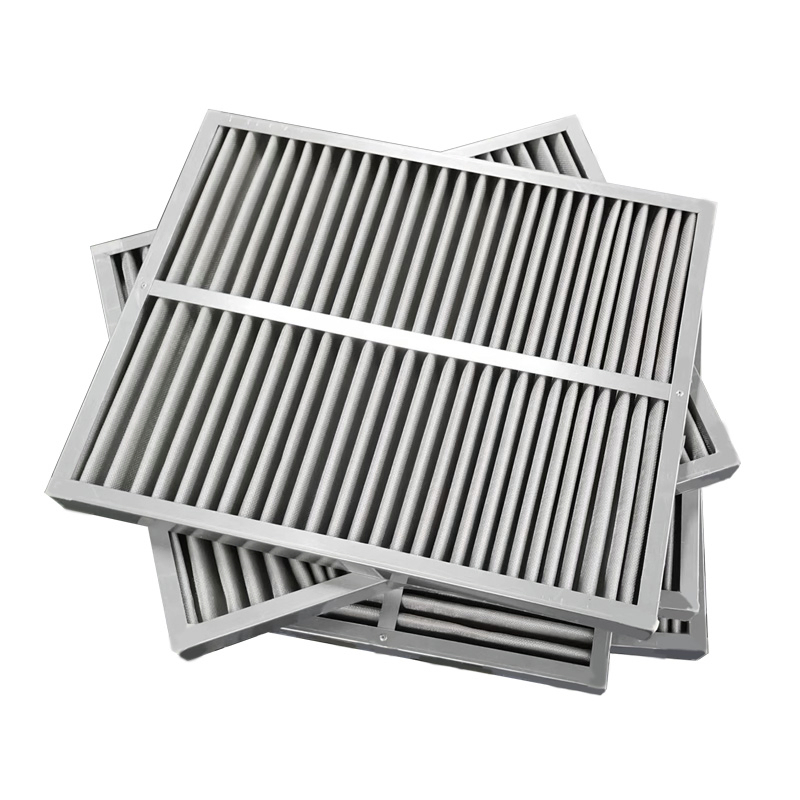

Customized Initial Effect Metal Filter G4 Aluminum Frame Panel Air Filter New Design Air Filter
Customized Initial Effect Metal Filter G4 Aluminum Frame Panel Air Filter New Design Air Filter
Features
- Available in F6, F7, F8 and F9 filtration configurations
- Optional MERV 10–15 performance levels by tested configuration
- Fine glass-fiber or application-specific filter media
- Deep pleated structure provides a large effective media area
- High dust-holding capacity for extended operating life
- Stable filtration performance under continuous airflow
- Aluminum, galvanized-steel and stainless-steel frame options
- Standard frame depths of 21, 25 and 46 mm
- Reinforced metal construction for industrial environments
- Suitable for HVAC intermediate and final filtration stages
- Operating-temperature options up to 150°C, subject to material selection
- Flame-retardant configurations available
- Custom sizes and performance specifications supported
- OEM and private-label manufacturing available
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description
The High-Capacity Pleated Metal-Frame Air Filter is designed for intermediate and fine particulate filtration in commercial HVAC systems, industrial air-handling units, clean manufacturing facilities and equipment ventilation systems.
The filter uses fine glass-fiber or project-specific synthetic media arranged in a deep pleated structure. This configuration increases the effective filtration area and provides stable particle-capture performance within a compact panel format.
A rigid aluminum, galvanized-steel or stainless-steel frame helps the filter withstand continuous airflow, elevated operating temperatures and demanding industrial conditions. Available in multiple efficiency grades and frame depths, the filter can be customized for OEM equipment, replacement programs and project-specific filtration systems.
Technical Parameters
| Efficiency | 99.995% |
| Filtration Grade | HEPA Filter, Medium Filter |
| Type | Panel Filter |
| Air Filter Dimension(L*W*H) | Customizable |
| Air Filter Material | Extruded Anodized Aluminium Profile/Galvanised |
| Applicable Industries | Hotels, Restaurant, Home Use, Factory, Hospital |
| Porosity | 0.3micron |
| Condition | New |
| Transport Package | Carton+Pallet |
Standard Model Options
| Item | Description |
|---|---|
| Product Name | Pleated Metal-Frame Air Filter |
| Product Type | Rigid Intermediate-Efficiency Panel Filter |
| Filtration Options | F6 / F7 / F8 / F9 |
| Optional MERV Range | MERV 10–15, subject to tested media |
| Filter Media | Fine Glass Fiber or Customized Media |
| Frame Materials | Aluminum / Galvanized Steel / Stainless Steel |
| Standard Frame Depths | 21 mm / 25 mm / 46 mm |
| Structure | Deep-Pleated Media in Rigid Metal Frame |
| Main Function | Fine Dust and Particulate Filtration |
| Installation Position | Intermediate or Final HVAC Filtration Stage |
| Recommended Final Pressure Drop | Up to 550 Pa for applicable configurations |
| Maximum Temperature | Up to 150°C, subject to complete material configuration |
| Fire-Retardant Option | DIN 53438 Class F1 configuration available |
| Dimensions | Standard or Customized |
| OEM / ODM | Supported |
Applications
| Commercial HVAC Systems | Industrial Manufacturing | Clean Production Areas | Equipment Air Intake |
|---|---|---|---|
| Used in AHUs, central air-conditioning systems and fresh-air units as an intermediate or final particle filtration stage. | Suitable for electronics, precision machinery, pharmaceutical support areas, food processing and other industrial ventilation systems. | Applied upstream of HEPA filters in controlled production areas to reduce fine-particle loading and extend downstream filter life. | Installed in process equipment, machinery ventilation modules and air-intake systems requiring a compact rigid filter. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom filter width, height and depth • F6, F7, F8 and F9 media options • Project-specific MERV configurations • Fine glass-fiber or alternative media selection • Aluminum, galvanized-steel or stainless-steel frames • Custom pleat height, spacing and media area • High-temperature construction options • Flame-retardant material configurations • Airflow and pressure-drop optimization • Development from drawings or physical samples • Custom model numbers, labels and barcodes • Neutral or private-label export packaging |
• Incoming inspection of media and metal-frame materials • Filter dimension and frame-squareness verification • Pleat count, depth and spacing inspection • Media uniformity and damage inspection • Frame-joint and structural-strength checks • Media-to-frame sealing inspection • Initial pressure-drop testing • Rated airflow verification • Filtration-efficiency testing upon request • Temperature-resistance verification for applicable models • Packaging and labeling inspection • Batch traceability and pre-shipment sampling |
