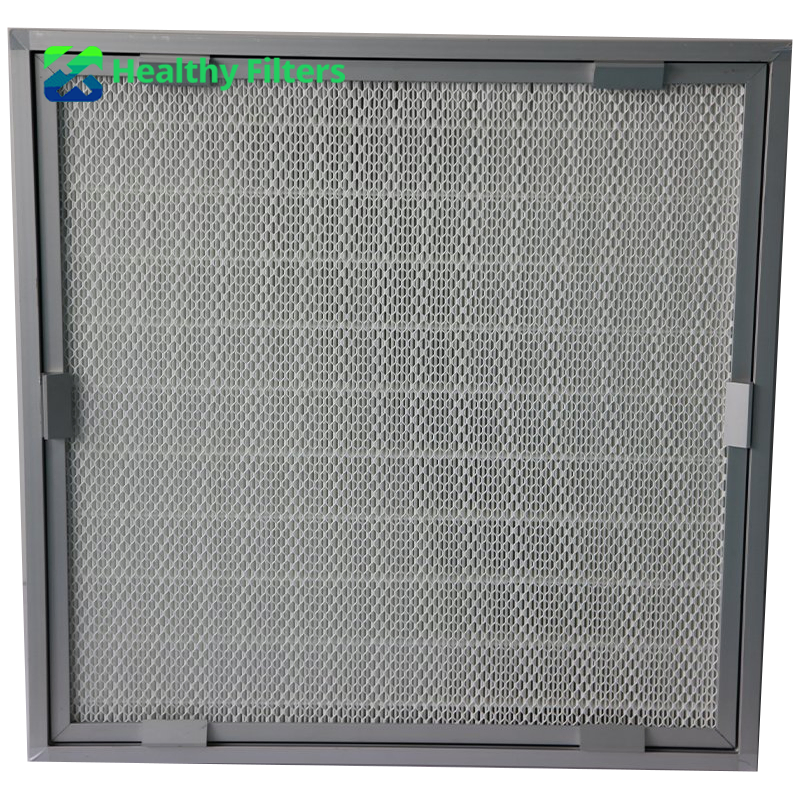

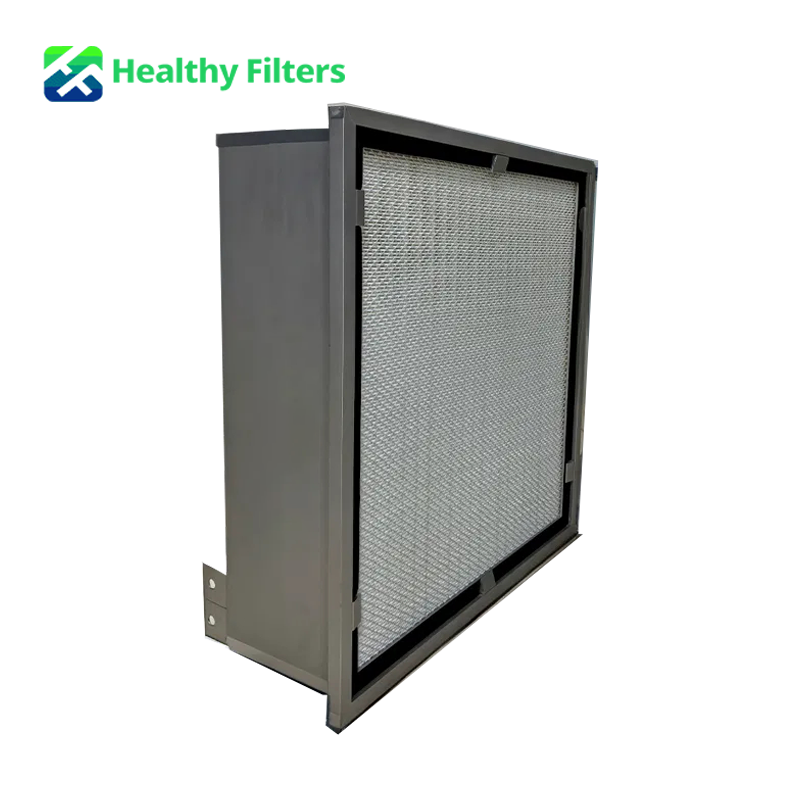

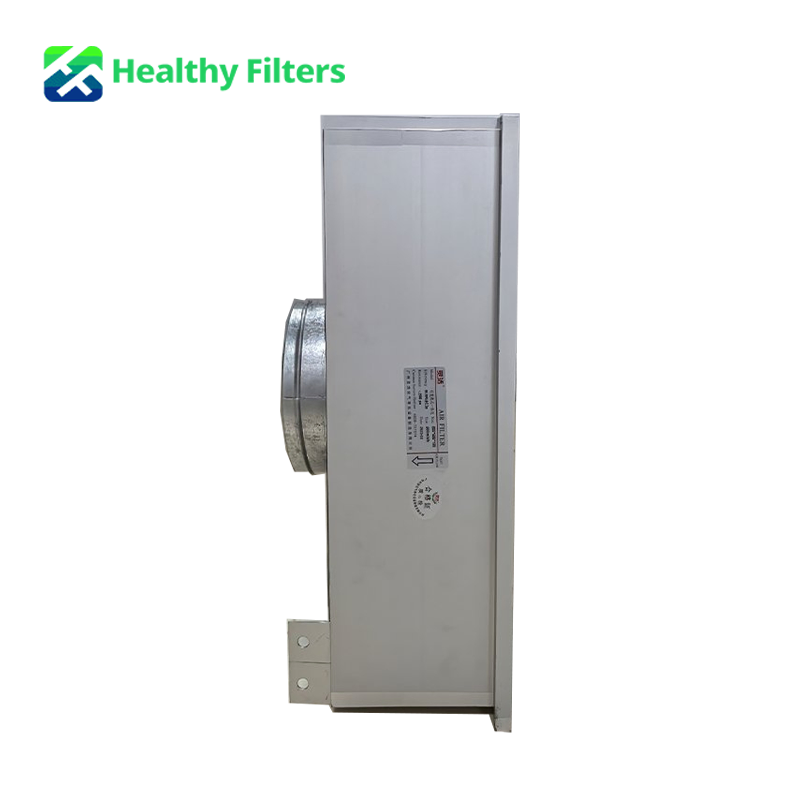

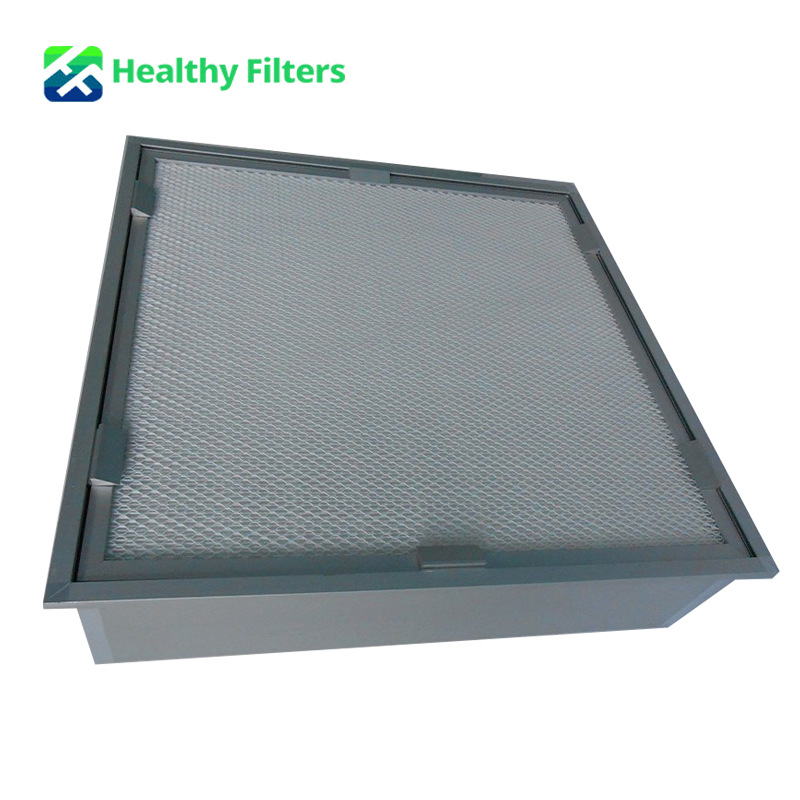

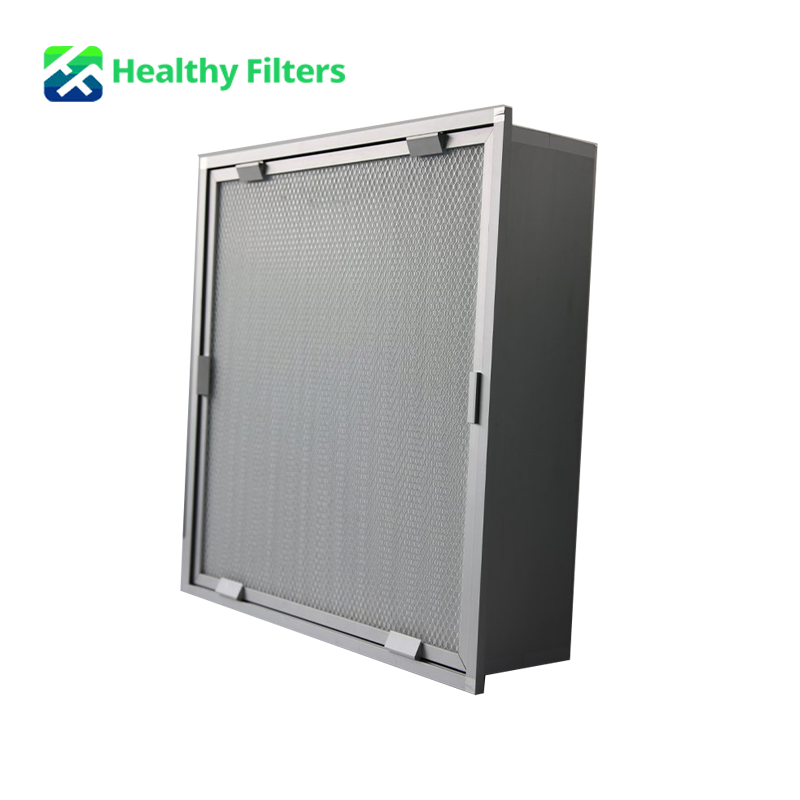

Replaceable Integrated Air Filter for Home Office Use High-Efficiency Easy to Install Long-Lasting
Replaceable Integrated Air Filter for Home Office Use High-Efficiency Easy to Install Long-Lasting
Features
- Integrated static pressure box and HEPA filter design
- Replaceable mini-pleat HEPA filter cartridge
- H13–H14 high-efficiency filtration
- Lightweight aluminum profile construction
- Large filtration area with low airflow resistance
- High dust holding capacity for extended service life
- Compact structure for easy installation
- Convenient maintenance and fast filter replacement
- Stable airflow distribution and low operating noise
- Corrosion-resistant aluminum housing
- Energy-efficient operation
- OEM and custom dimensions available
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description
Filter element:ultra fine glass fiber filter paper
Main box frame:aluminum profile
Back cover of box:aluminum sheet/ zinc-coated steel sheet
Air filter frame:aluminum profile(T=69mm)
Sealant:two-component polyurethane adhesive
Sealing strip:EVA/ Neoprene
Separator:polyolefin hot-melt adhesive
Filtration Efficiency:99.99%~99.999%@0.3μm
Available thickness(mm) of aluminum profile frame:150,180
Max.temperature applicable: 70℃
Max.humidity app
Technical Parameters
| Frame size (H*W*D) (mm) |
Filter size (H*W*D) (mm) |
Rated airflow(m³/h) | Initial resistance (<=pa) |
Final resistance (pa) |
Filtration area (m²) |
Dust capacity (g) |
Efficiency |
| 360*360*180 | 320*320*69 | 264 | 220 | 400~600 | 2.93 | 126 | H13~H14 |
| 524*524*180 | 484*484*69 | 600 | 220 | 400~600 | 6.61 | 397 | H13~H14 |
| 650*650*180 | 610*610*69 | 1000 | 220 | 400~600 | 10.44 | 627 | H13~H14 |
| 670*670*180 | 630*630*69 | 1050 | 220 | 400~600 | 11.13 | 668 | H13~H14 |
| 650*955*180 | 610*915*69 | 1500 | 220 | 400~600 | 15.42 | 925 | H13~H14 |
| 650*1260*180 | 610*1220*69 | 2000 | 220 | 400~600 | 20.4 | 1224 | H13~H14 |
| 670*1300*180 | 630*1260*69 | 2100 | 220 | 400~600 | 21.76 | 1306 | H13~H14 |
| 345*345*180 | 305*305*69 | 240 | 220 | 400~600 | 2.66 | 160 | H13~H14 |
| 345*650*180 | 305*610*69 | 500 | 220 | 400~600 | 5.09 | 305 | H13~H14 |
| 345*955*180 | 305*915*69 | 750 | 220 | 400~600 | 7.52 | 450 | H13~H14 |
| 640*640*180 | 600*600*69 | 980 | 220 | 400~600 | 10.11 | 607 | H13~H14 |
| 640*1240*180 | 600*1200*69 | 1980 | 220 | 400~600 | 19.74 | 1185 | H13~H14 |
| 650*1280*180 | 610*1240*69 | 2050 | 220 | 400~600 | 20.74 | 1244 | H13~H14 |
| 524*1008*180 | 484*968*69 | 1250 | 220 | 400~600 | 12.85 | 771 | H13~H14 |
Standard Model Options
| Item | Specification |
|---|---|
| Product Name | Replaceable Integrated HEPA Air Filter Housing |
| Filter Type | Mini-Pleat HEPA Terminal Filter |
| Efficiency Grade | H13 / H14 |
| Filter Media | Ultra-Fine Fiberglass Paper |
| Housing Material | Aluminum Profile |
| Structure | Integrated Static Pressure Box |
| Filter Replacement | Replaceable Cartridge Design |
| Initial Resistance | 220 Pa |
| Recommended Final Resistance | 400–600 Pa |
| Dust Holding Capacity | Up to 1306 g |
| Filtration Area | 2.66–21.76 m² |
| Installation | Ceiling Mounted / HVAC Terminal |
| Service Life | Long Operating Life |
Applications
| Cleanroom Ceiling Systems | Pharmaceutical & Healthcare | Electronics & Precision Manufacturing | Laboratories & Food Processing |
|---|---|---|---|
| Integrated terminal air supply for cleanroom ceilings, FFUs, and HVAC purification systems. | Clean air filtration for pharmaceutical rooms, operating theatres, isolation areas, and controlled medical spaces. | High-efficiency particle control for semiconductor, microelectronics, optical, and precision production environments. | Suitable for biological laboratories, research facilities, and food-processing areas with strict cleanliness requirements. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom housing width, height, and depth • H13 / H14 efficiency configurations • Custom filter size and rated airflow • Aluminum or stainless steel housing options • Customized inlet and outlet design • Ceiling, FFU, and HVAC terminal compatibility • OEM labels, branding, packaging, and project samples |
• Housing dimension and structural inspection • Filter media surface and pleat-spacing check • Replaceable cartridge fit inspection • Frame, sealant, and air-bypass inspection • Rated airflow and pressure-drop testing • Filtration efficiency and leak testing upon request • Final appearance and packaging inspection before shipment |
