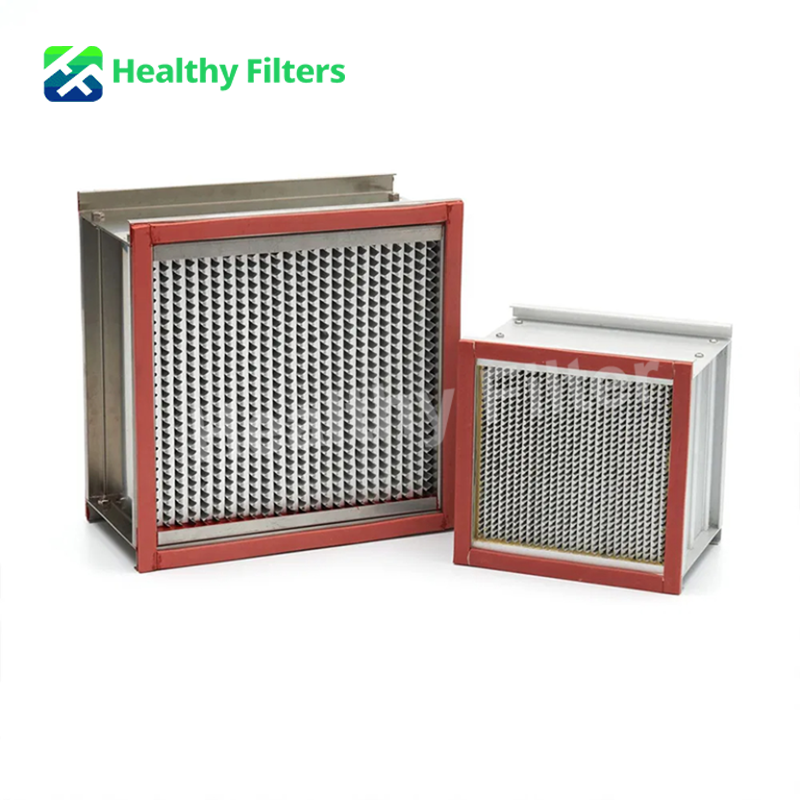

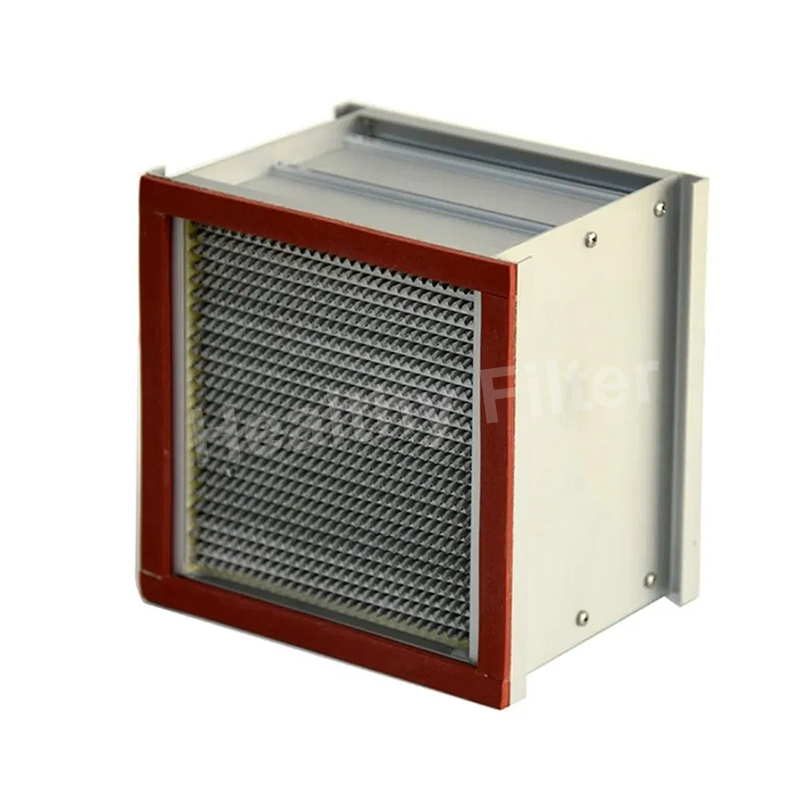

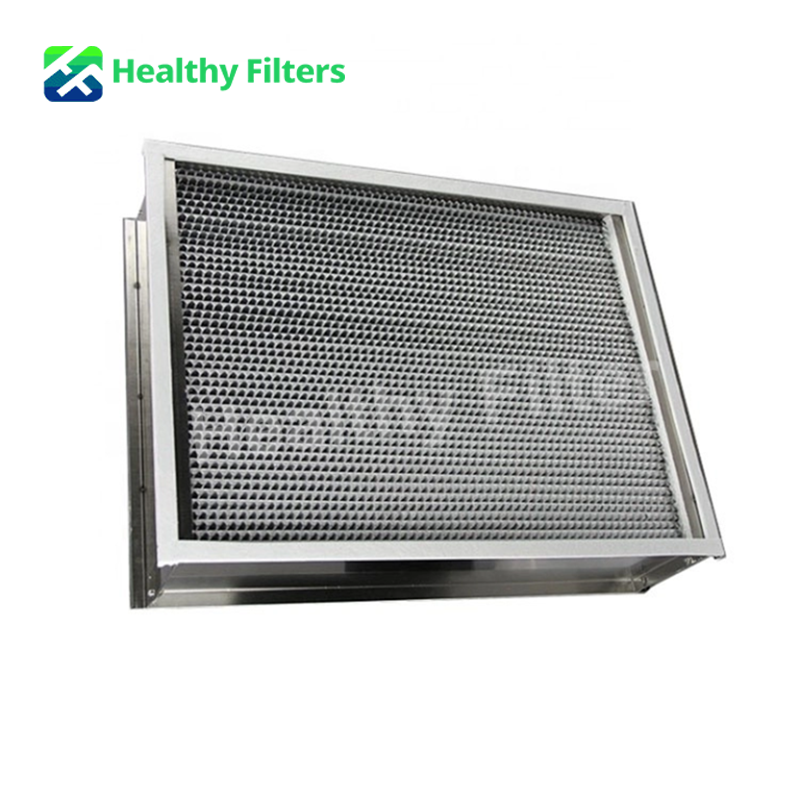

Glassfiber Media High Temperature HEPA Filter with Frame and Aluminum Separators
Glassfiber Media High Temperature HEPA Filter with Frame and Aluminum Separators
Features
- Maximum continuous operating temperature up to 350°C
- H11, H13, and H14 filtration grades
- High-temperature-resistant fiberglass filter media

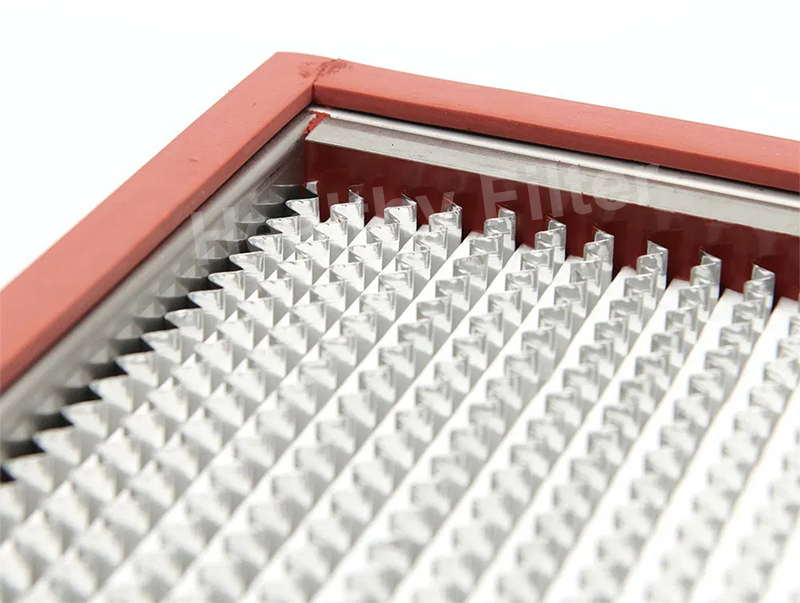

- Corrugated aluminum separators for uniform pleat spacing
- High mechanical stability under demanding operating conditions
- Hemmed separator edges help protect the filter media
- High airflow velocity up to 1.5 m/s
- Individually scan-tested at 20°C
- Heat-resistant sealing system for reliable operation

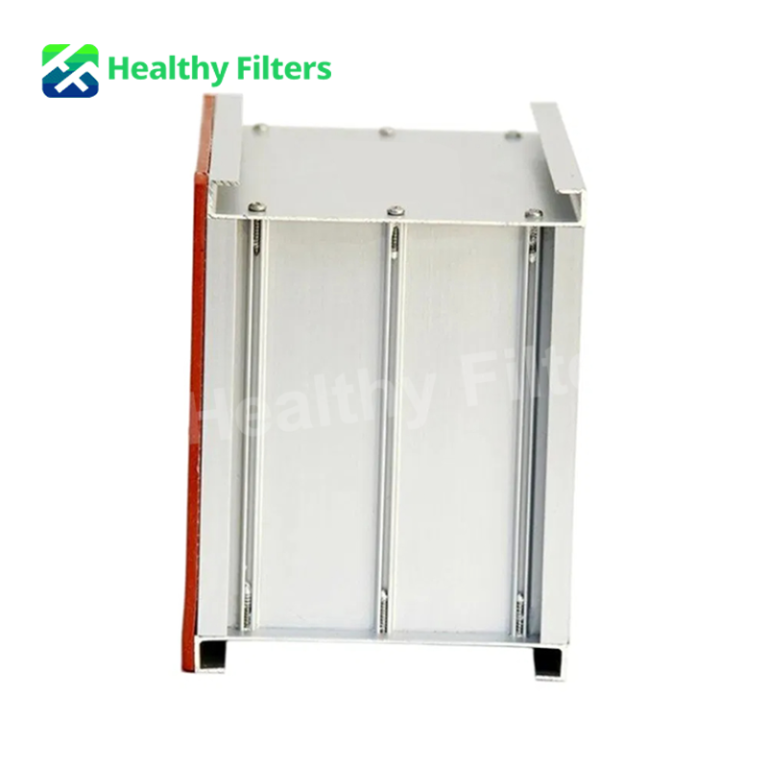

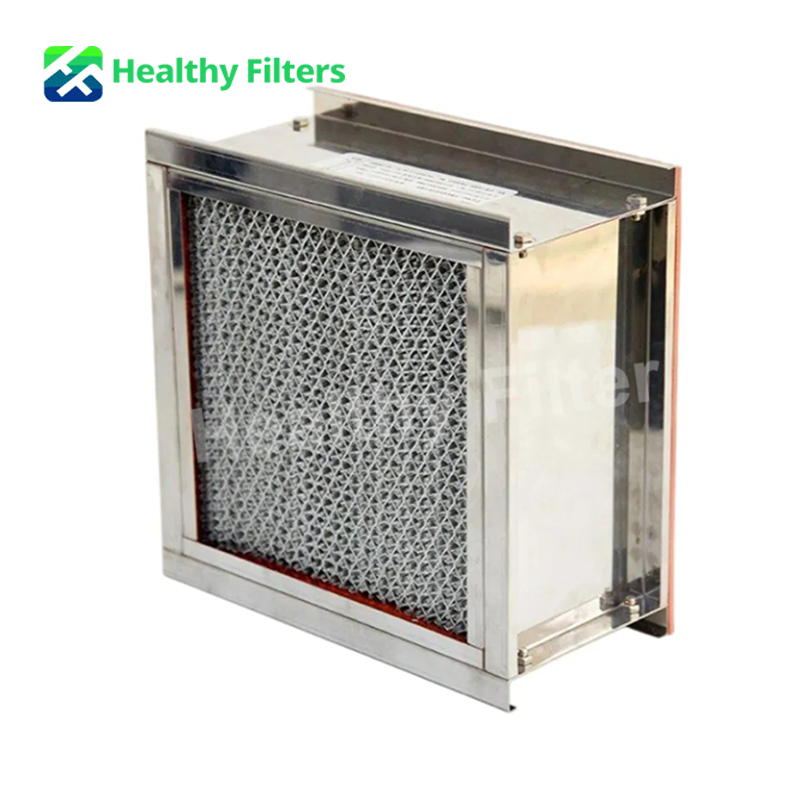

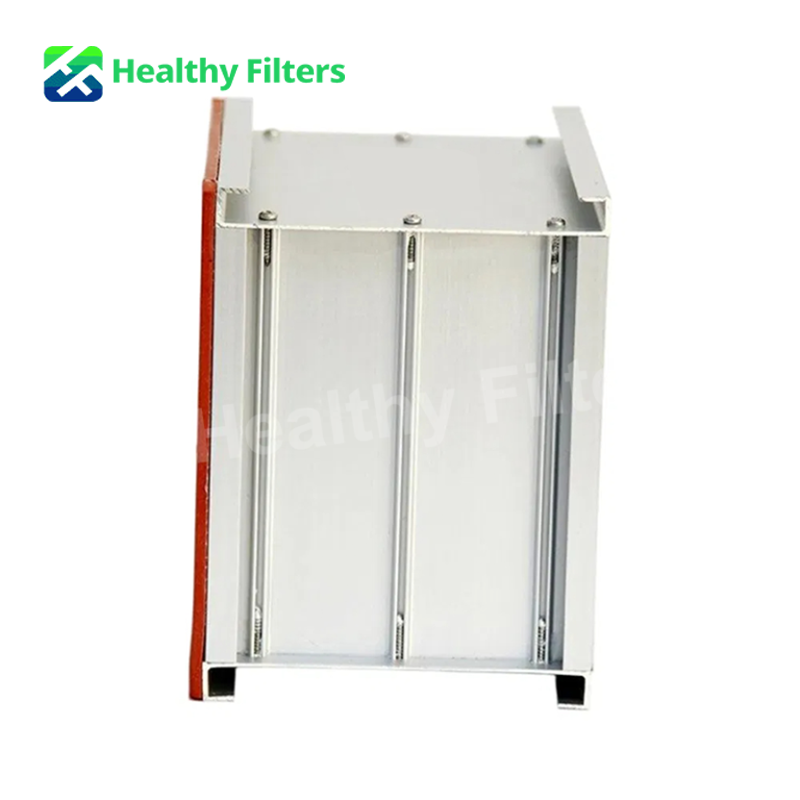

- Aluminum or stainless steel frame options
- Suitable for clean hot-air supply and exhaust filtration
- Custom dimensions and airflow capacities available
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description
The Healthy Filter high-temperature resistant filter uses ultra-fine glass fiber material as the filter material, with a filtration efficiency of 99.97% and 99.99% (sodium flame method)/H10/H11/H12 (EN1822). The outer frame is made of stainless steel material, using 0.03mm thick aluminum foil circular corrugated grooves as separators, and sealed with high-temperature resistant silicone sealant. Temperature resistance of 300 ºC (constant temperature), mainly used for specialized cleaning equipment with high temperature requirements, such as disinfection cabinets, dryers, etc. This product has the characteristics of high efficiency, low resistance, and high temperature resistance.
Technical Parameters
| Nominal size W×H×D ( in.) |
Actual size W×H×D ( mm) |
Filter Rating (EN779:2012) | Air flow (m³/h) | InitialP.D. (Pa) |
Rec Final P.D. (Pa) |
| 12×24×12 | 305×610×292 | H11 | 1700 | 250 | ≤500 |
| 24×24×6 | 610×610×150 | 1630 | |||
| 24×24×12 | 610×610×292 | 3400 | |||
| 12×24×12 | 305×610×292 | H13 | 1700 | 350 | |
| 24×24×6 | 610×610×150 | 1630 | |||
| 24×24×12 | 610×610×292 | 3400 | |||
| 12×24×12 | 305×610×292 | H14 | 1700 | 350 | |
| 24×24×6 | 610×610×150 | 1630 | |||
| 24×24×12 | 610×610×292 | 3400 | |||
| ★ Other sizes and air flow are available on request. | |||||
Standard Model Options
| Item | Specification |
|---|---|
| Product Name | High-Temperature HEPA Filter with Aluminum Separators |
| Filter Type | High-Temperature Deep-Pleat HEPA Filter |
| Model Series | HF-HTA |
| Efficiency Grades | H11 / H13 / H14 |
| Classification Standard | EN 1822 at 20°C |
| Filter Media | High-Temperature Fiberglass Paper |
| Separator Material | Corrugated Aluminum |
| Frame Material | Aluminum / Stainless Steel |
| Structure | Deep-Pleat Separator Type |
| Maximum Continuous Temperature | 350°C |
| Maximum Air Velocity | 1.5 m/s |
| Recommended Final Pressure Drop | ≤500 Pa |
| Testing | Individually Scan-Tested at 20°C |
| Main Function | High-Temperature Fine-Particle Filtration |
Applications
| Sterilization Tunnels | Industrial Ovens & Dryers | Chemical & Power Plants | Food & Pharmaceutical Processing |
|---|---|---|---|
| Final filtration of heated clean air used in sterilization tunnels and thermal disinfection systems. | Fine-particle filtration for baking ovens, drying chambers, furnaces, and hot-air circulation equipment. | Filtration of high-temperature process air and exhaust from catalytic, boiler, and turbine-related systems. | Sterile hot-air filtration for pharmaceutical drying, food processing, and temperature-controlled production areas. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom filter width, height, and depth • H11 / H13 / H14 efficiency grades • Aluminum or stainless steel frame • Corrugated aluminum separator configuration • Heat-resistant fiberglass media • Project-specific airflow and pressure drop • Heat-resistant gasket and seal options • OEM labels, packaging, and project samples |
• Dimension and frame inspection • Media surface and pleat-spacing check • Aluminum separator alignment inspection • Heat-resistant seal and assembly inspection • Airflow and initial-pressure-drop testing • Individual scan testing at 20°C • Efficiency and leakage testing upon request • Final appearance and packaging inspection |
