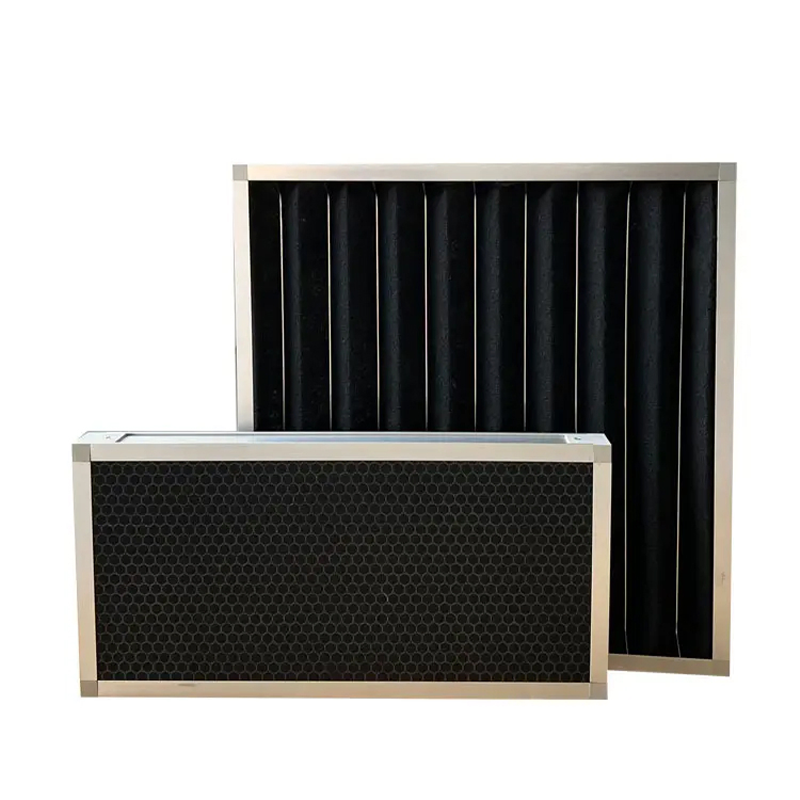

Metal-Backed Pleated Carbon Filters with Honeycomb Activated Carbon for Electronics Factories Odor Removal Solutions
Metal-Backed Pleated Carbon Filters with Honeycomb Activated Carbon for Electronics Factories Odor Removal Solutions
Features
- Activated Carbon Adsorption: Helps reduce odors, smoke, VOCs and low-concentration gaseous contaminants.
- Pleated Media Structure: Increases the effective filtration area within a compact panel depth.

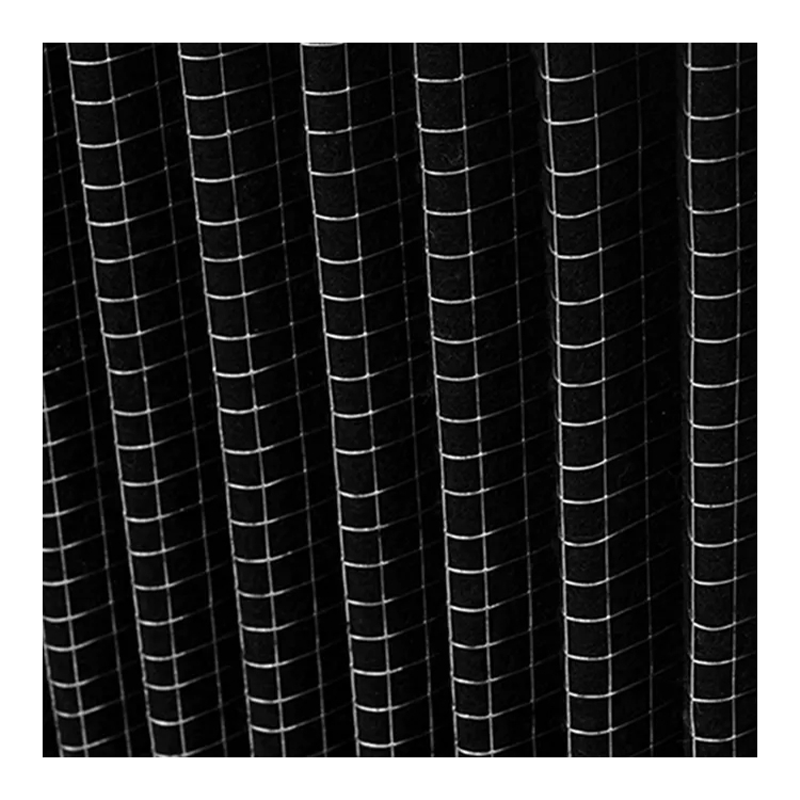

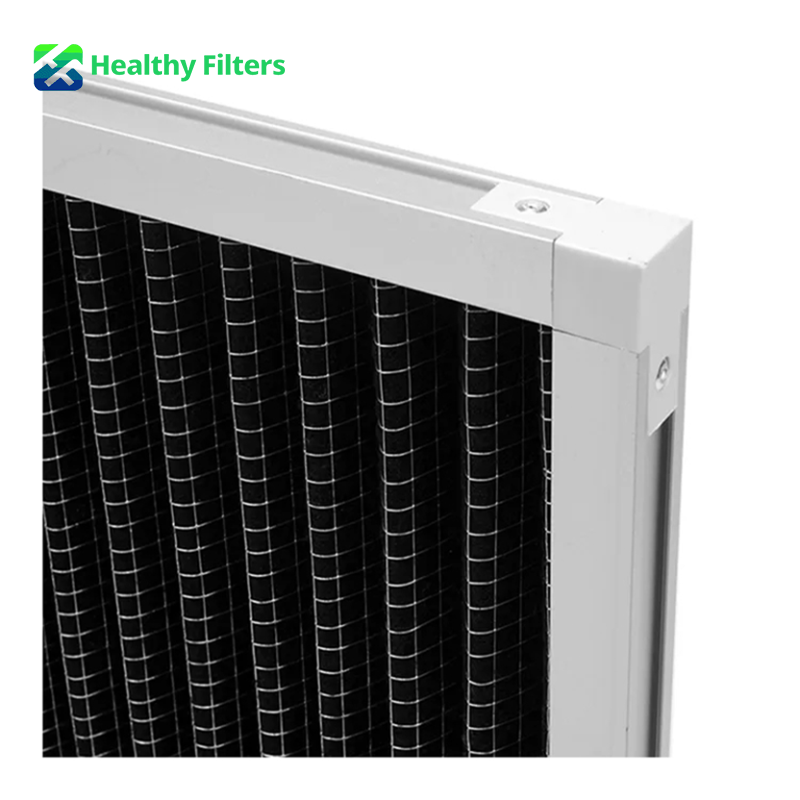

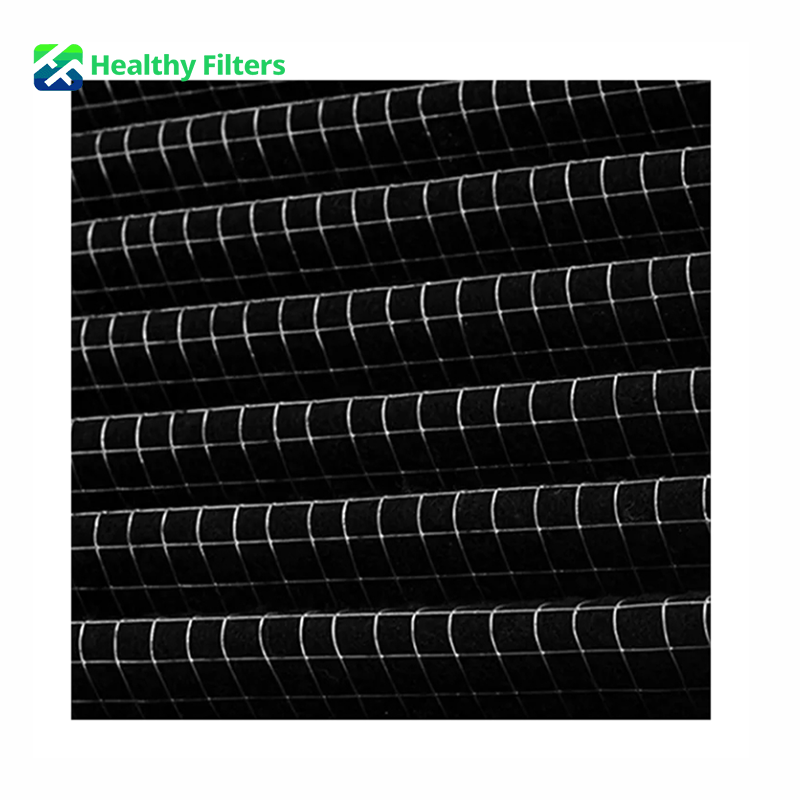

- Metal Support Backing: Reinforces the media and helps maintain filter shape under airflow.
- Low Initial Resistance: Supports energy-efficient operation in HVAC and ventilation equipment.
- High Rated Airflow: Available in configurations rated from approximately 800 to 3,200 m³/h.
- Compact 46 mm Depth: Suitable for systems with limited installation space.
- Multiple Carbon Media Options: Activated carbon particles and activated carbon felt are available.
- Easy Replacement: Panel construction simplifies installation, removal and routine maintenance.
- Custom Manufacturing: Dimensions, frame materials and carbon loading can be adapted to project requirements.
- OEM and Private Label Support: Suitable for distributors, HVAC contractors and equipment manufacturers.
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description
Panel Activated Carbon Chemical Air Filter The filter material adopts high-quality activated carbon felt or activated carbon fiber, which can quickly process and filter harmful gases and bacteria in the air, making the air clean and fresh Activated carbon fiber felt has rich microporous structure, efficient adsorption capacity, heat resistance, acid and alkali resistance Can be made into flat, foldable, or bag type junior high efficiency air filters The outer frame adopts a detachable design for easy replacement of filter materials, and the frame can be reused.
Technical Parameters
| Size
(mm) |
product resistance
@0.5m/s
|
(Pa) | Media | Rated Airflow
(m3/h) |
| 595*595*46 |
MA600
|
15 | activated carbon
particles/activated carbon felt |
3200 |
| 595*495*46 | MA800 | 20 | 2700 | |
| 595*295*46 | MA1000 | 30 | 1600 | |
| 495*495*46 | MC600 | 20 | 2200 | |
| 495*295*46 | MC800 | 25 | 1300 | |
| 295*295*46 | MC1000 | 40 | 800 |
Standard Model Options
| Item | Description |
|---|---|
| Product Name | Metal-Backed Pleated Activated Carbon Panel Filter |
| Filter Category | Activated Carbon Panel Air Filter |
| Main Function | Odor, smoke and VOC adsorption |
| Media Options | Activated Carbon Particles / Activated Carbon Felt |
| Structure | Pleated Media with Metal Support Backing |
| Standard Depth | 46 mm |
| Frame Options | Aluminum Alloy / Galvanized Steel / Stainless Steel |
| Support Grid | Galvanized or Expanded Metal Mesh |
| Rated Airflow Range | Approximately 800–3,200 m³/h |
| Initial Resistance | Approximately 15–40 Pa at specified test conditions |
| Installation Position | HVAC, AHU and ventilation filter sections |
| Replacement Method | Disposable or replaceable panel configuration |
| Custom Sizes | Available |
| OEM / ODM | Available |
Applications
| Electronics & Precision Manufacturing | Commercial HVAC & Public Buildings | Healthcare, Pharmaceutical & Laboratories | Transportation & Industrial Odor Control |
|---|---|---|---|
| Used in electronics factories, computer rooms and precision-production ventilation systems to reduce process odors and low-concentration VOCs that may affect the working environment. | Suitable for central air-conditioning systems, office buildings, hotels, shopping centers and other occupied spaces requiring compact odor-control filtration. | Applied in hospitals, pharmaceutical facilities, laboratories and healthcare support areas for controlling selected odors and gaseous contaminants in non-critical ventilation sections. | Suitable for airports, subways, vehicle air systems, sewage-treatment support areas and industrial ventilation equipment where nuisance odors need to be reduced. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom filter width, height and 46 mm or alternative depths • Aluminum, galvanized steel or stainless-steel frames • One-side or double-side metal support grids • Activated carbon particle or carbon-felt configurations • Coconut-shell, coal-based or impregnated carbon options • Carbon loading adjusted for adsorption capacity and resistance targets • Custom pleat count, pleat depth and media area • Optional particle pre-filter layer • Gasket, handle and mounting-hole options • Design based on customer drawings, samples or equipment dimensions • Custom labels, barcodes and private-label packaging • OEM production for HVAC and air-purifier manufacturers |
• Incoming inspection of activated carbon, media and frame materials • Carbon type, particle size and loading verification • Frame dimension and squareness inspection • Pleat spacing and media-area consistency checks • Metal-grid strength and edge-safety inspection • Media bonding and sealing inspection • Initial airflow-resistance testing • Rated airflow verification where required • Visual inspection for media damage, gaps and contamination • Optional adsorption-performance testing for specified gases • Packaging, labeling and quantity verification • Batch identification, traceability and pre-shipment sampling |
