Products

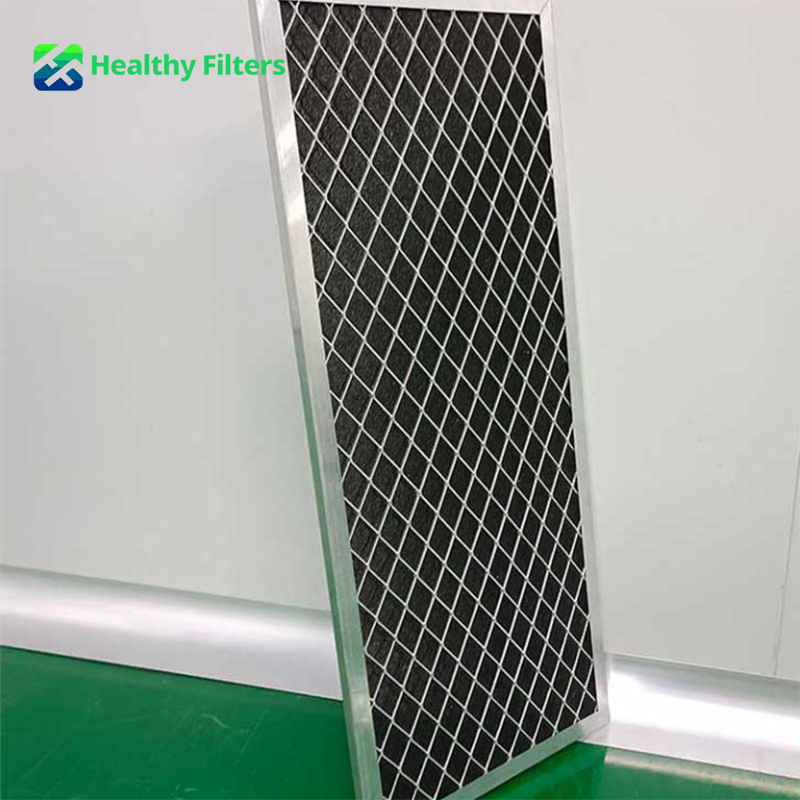

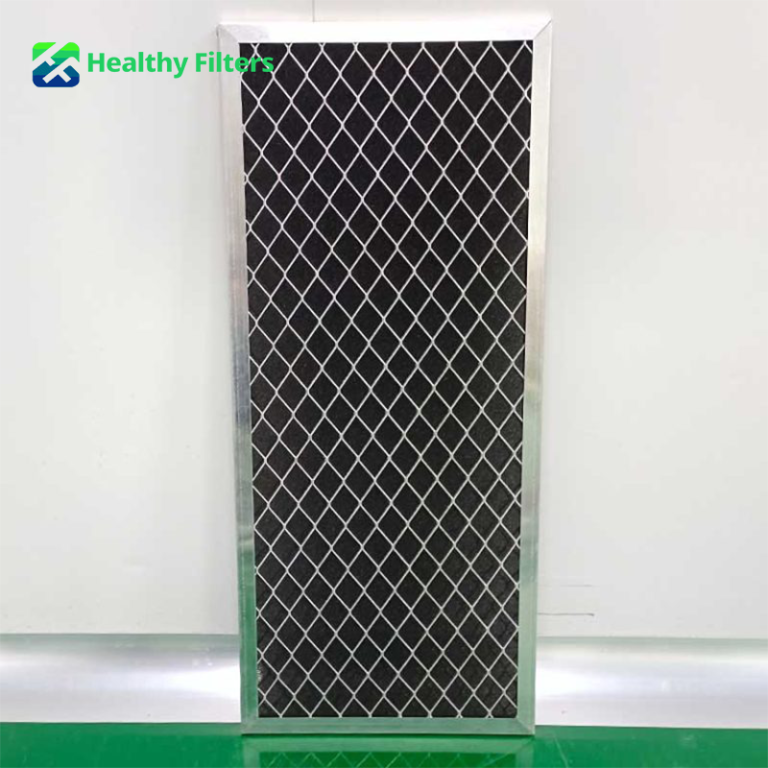

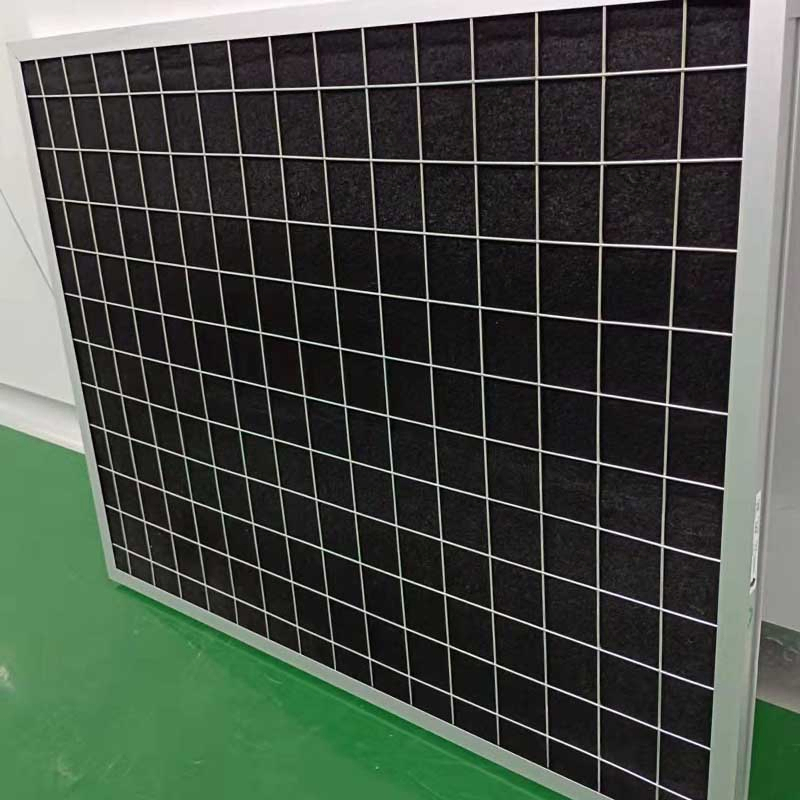

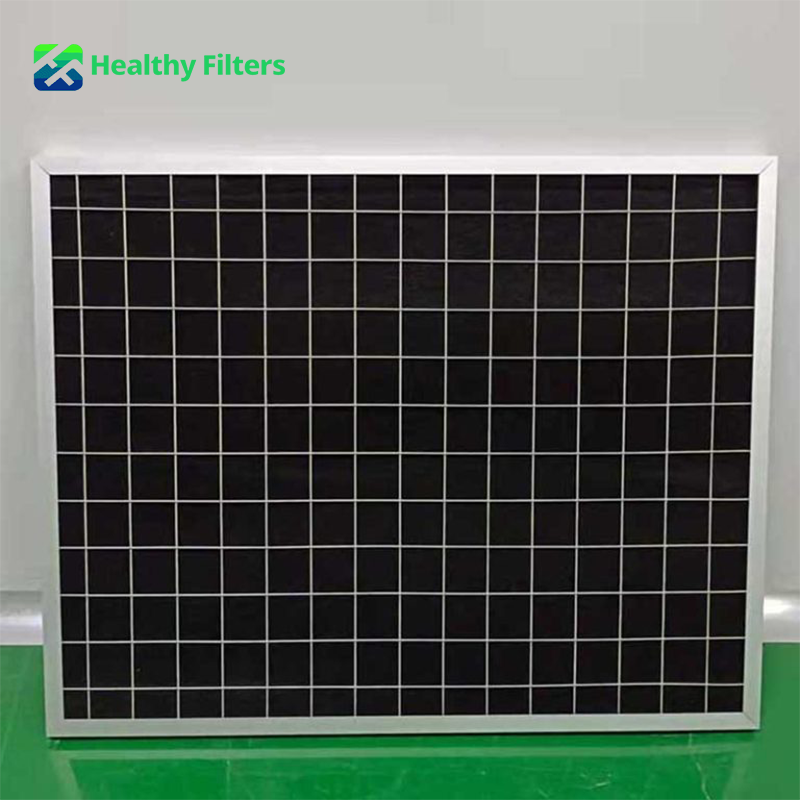

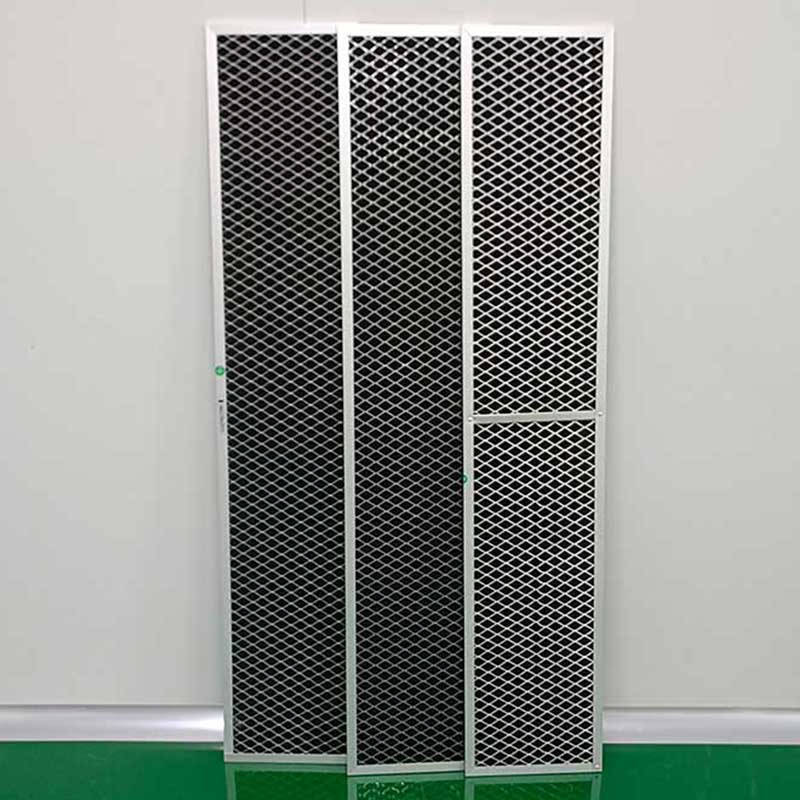

Odor Removal Panel Filter Activated Carbon Customized Filter
Odor Removal Panel Filter Activated Carbon Customized Filter
Features
- High-quality activated carbon media for effective odor and VOC removal
- Slim panel design for quick installation and replacement
- Low pressure drop for energy-efficient HVAC operation
- Durable aluminum, galvanized steel, or stainless steel frame options
- Lightweight yet rigid construction
- High dust holding capacity for extended service life
- Available in flat panel or pleated configurations
- Custom dimensions and filter thicknesses available
- Suitable for pre-filtration and molecular filtration applications
- OEM & ODM manufacturing supported
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description
The Activated Carbon Panel Air Filter combines particulate filtration with activated carbon adsorption to improve indoor air quality in HVAC and ventilation systems. The activated carbon media effectively captures unpleasant odors, smoke, VOCs, and other low-concentration gaseous pollutants while the synthetic fiber layer traps larger airborne particles.
Its compact panel structure makes it an ideal replacement filter for air handling units, fresh air systems, commercial ventilation equipment, and air purifiers. Compared with deeper bag or V-bank filters, the panel filter offers a space-saving design while maintaining stable airflow and reliable filtration performance.
Designed for long-term operation, the removable metal frame simplifies filter replacement and reduces maintenance costs. Various frame materials, filtration efficiencies, and dimensions are available to suit different installation requirements.
Technical Parameters
| Frame | Aluminium alloy /Galvanized steel/Stainless steel |
| Media | Polyester synthetic fiber |
| Structure | Panel /Pleated |
| Dimension | According to customers’ requirements |
| Maximum temperature | 98ºC |
| Maximum relative humidity | ≤100% |
| Fiber class according to EN779 | G4 ( particles ≥ 5microns ) |
| Certification | ISO9001, En779 |
| Filter Efficiency | 80-95% (Arrestance) |
Standard Model Options
| Item | Description |
|---|---|
| Product Name | Activated Carbon Panel Air Filter |
| Filter Type | Panel Air Filter |
| Filter Media | Activated Carbon Synthetic Fiber |
| Filter Structure | Flat Panel / Pleated Panel |
| Frame Material | Aluminum Alloy / Galvanized Steel / Stainless Steel |
| Filtration Function | Particle Filtration & Odor Removal |
| Filter Grade | G4 (Standard) / Custom Grades Available |
| Maximum Operating Temperature | 98°C |
| Maximum Relative Humidity | ≤100% RH |
| Installation | AHU / HVAC / Ventilation Systems |
| OEM / ODM | Available |
Applications
| Commercial HVAC & Fresh Air Systems | Residential & Indoor Air Purification | Industrial Ventilation & Process Air | Hospitality & Public Buildings |
|---|---|---|---|
| Installed in commercial HVAC systems, office buildings, shopping malls, schools, and air handling units to reduce odors, airborne particles, and VOCs while improving overall indoor air quality. | Ideal for homes, apartments, air purifiers, and fresh air systems where smoke, cooking odors, pet odors, and household gaseous pollutants need to be effectively controlled. | Suitable for manufacturing facilities, food processing plants, printing workshops, chemical processing areas, and industrial ventilation systems to reduce odors and low-concentration gaseous contaminants. | Widely used in hotels, restaurants, hospitals, airports, theaters, exhibition centers, and other public buildings where clean, fresh, and odor-free indoor air enhances occupant comfort. |
Customization & Quality Control
| Customization Services | Quality Assurance & Inspection |
|---|---|
| • Custom filter dimensions, thicknesses, and panel configurations • Aluminum alloy, galvanized steel, or stainless steel frame options • Flat or pleated filter structure selections • Customized activated carbon loading for enhanced odor and VOC adsorption • Various activated carbon media and synthetic fiber combinations • Optional flame-retardant, moisture-resistant, or washable media • OEM logo printing, private label packaging, and custom labeling • Production based on customer drawings or technical specifications • Export-standard packaging and pallet solutions • Flexible OEM and bulk manufacturing support |
• Incoming inspection of activated carbon media and frame materials • Filter media bonding and pleat uniformity inspection (for pleated models) • Dimensional accuracy and frame assembly verification • Airflow resistance and pressure-drop testing • Adsorption performance verification for odor and VOC removal (upon request) • Appearance, edge finishing, and structural integrity inspection • Packaging quality and labeling verification • Batch traceability and production record management • Random sampling for performance consistency • Final inspection before shipment |
