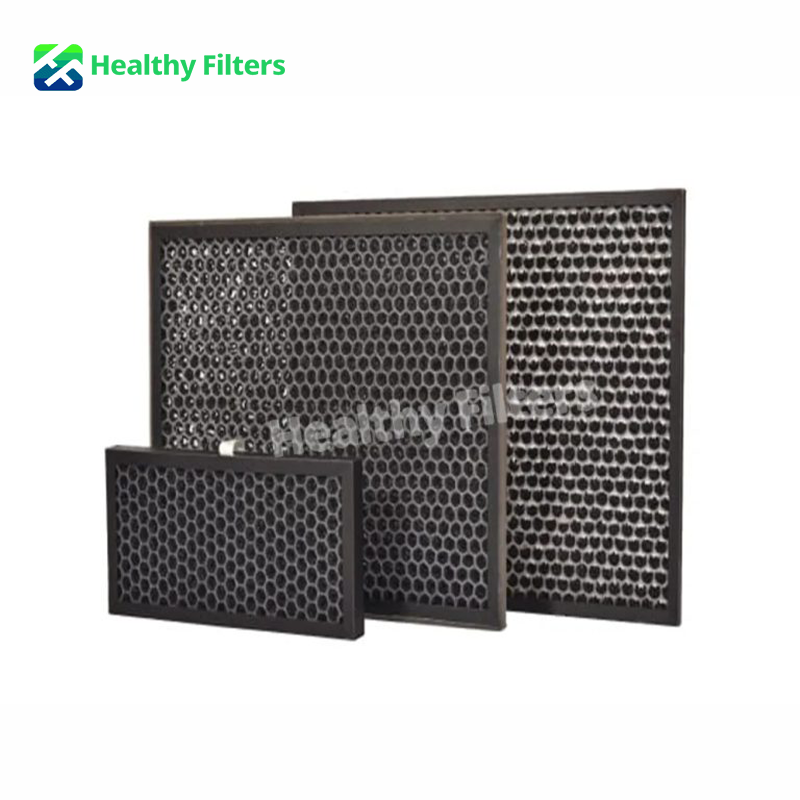

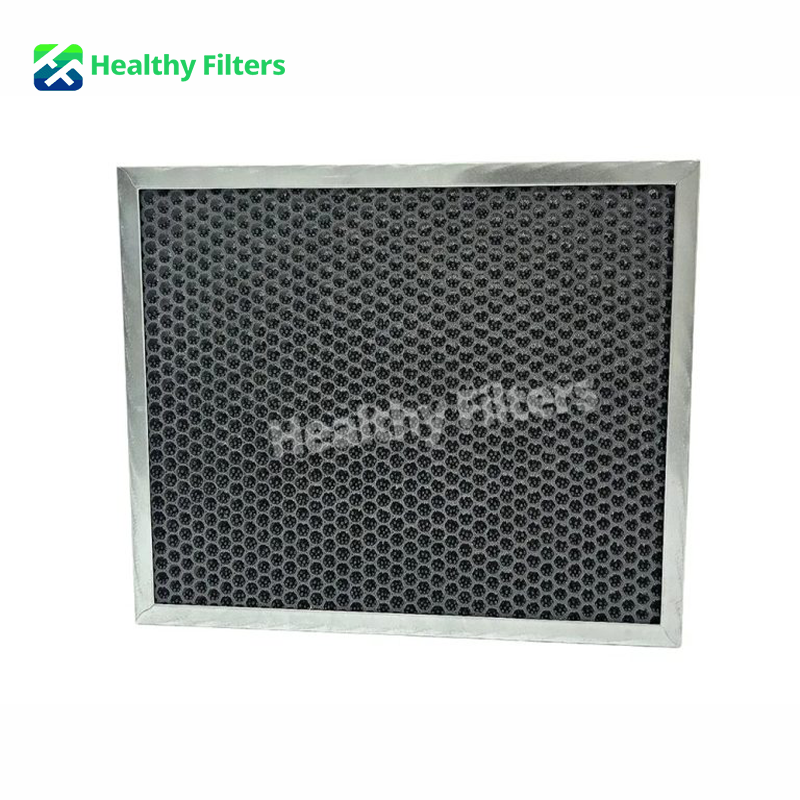

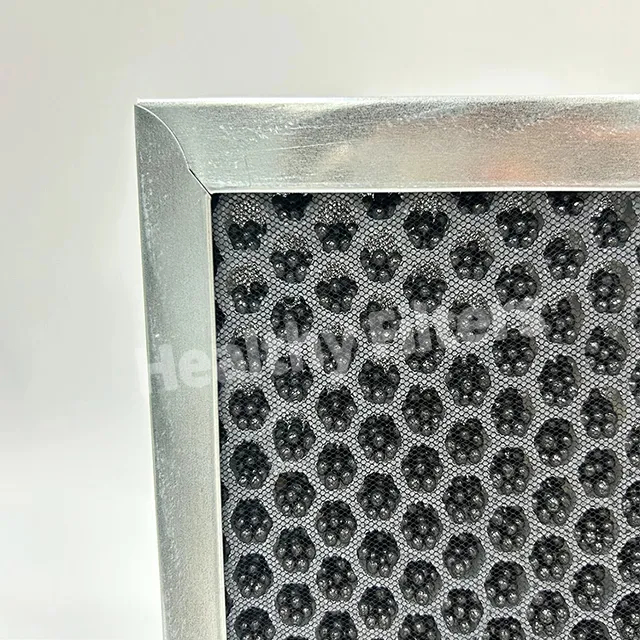

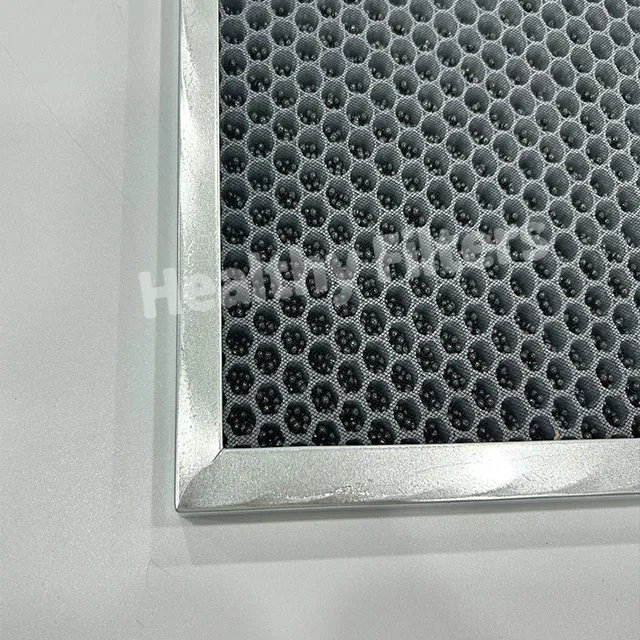

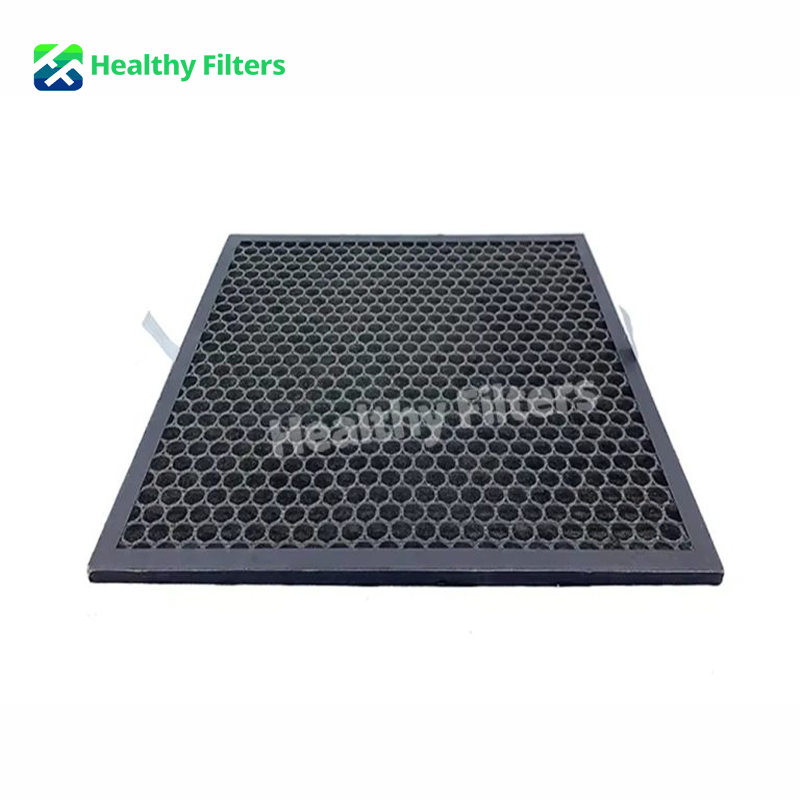

Aluminum Cardboard Frame Plastic Honeycomb Activated Carbon Particle Range Hood Ventilation System Plate Type Activated Carbon Filter
Aluminum Cardboard Frame Plastic Honeycomb Activated Carbon Particle Range Hood Ventilation System Plate Type Activated Carbon Filter
Features
- High-efficiency activated carbon adsorption for odors, VOCs, and harmful gases

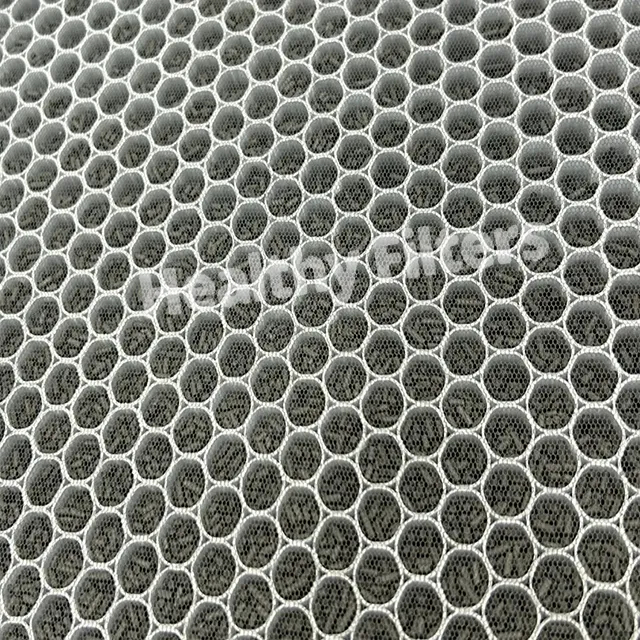

- Honeycomb structure provides large effective filtration area
- Low airflow resistance for improved energy efficiency
- Lightweight yet durable aluminum frame
- Multiple activated carbon media options available
- Stable chemical properties with long service life
- Easy installation and replacement
- Custom sizes, thicknesses, and carbon types available
- Suitable for primary or secondary air filtration
- OEM & ODM manufacturing supported
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description
The activated carbon air filter is a recently developed filter with high absorption and desorption efficiency. It undergoes special processing and heating to high temperatures for carbonization. Activated carbon fabric has a strong capacity for absorbing odors, particulates, and inorganic gases.
The activated carbon panel filter can be constructed with an aluminum frame, galvanized frame, or stainless steel frame, according to customer requirements. The filter material is made of high-quality activated felt or activated carbon fiber, which can be processed through an area-expanding pleating process or flat plate processing. After installation, the activated carbon panel filter has a large dust-holding capacity and low initial resistance due to its unique structure.
Technical Parameters
| Model | Carbon Media | Structure |
| HF-FW | Coconut Carbon, columnar coal, charcoal, bamboo charcoal | Plastic honeycomb carrier with cardboard frame |
| HF-JT | Sandwich carbon non-woven fabric | Mini pleated filter with cardboard frame |
| HF-TM | Carbon fiber or carbon foam | Flat media with cardboard frame |
Standard Model Options
| Item | Description |
|---|---|
| Product Name | Aluminum Frame Honeycomb Activated Carbon Filter |
| Filter Type | Honeycomb Activated Carbon Air Filter |
| Frame Material | Aluminum / Stainless Steel / Galvanized Steel (Optional) |
| Carbon Media | Coconut Shell Carbon, Columnar Carbon, Coal Carbon, Bamboo Charcoal, Carbon Fiber, Carbon Foam |
| Honeycomb Material | Plastic Honeycomb / Cardboard Honeycomb |
| Filtration Function | Odor Removal, VOC Removal, Gas Adsorption |
| Filter Grade | Primary Air Filtration |
| Airflow Resistance | Low |
| Size | Customized |
| Thickness | Customized |
| Installation | Easy Replacement |
| OEM/ODM | Available |
Applications
| Commercial Buildings & Office Ventilation | Hotels, Shopping Centers & Public Facilities | Healthcare, Laboratories & Cleanrooms | Industrial Air Purification Systems |
|---|---|---|---|
| Designed for HVAC and fresh air systems to reduce odors, VOCs, and indoor gaseous pollutants, creating a cleaner and more comfortable environment for occupants. | Ideal for hotels, shopping malls, restaurants, cinemas, and other public spaces where continuous odor control and improved indoor air quality are required. | Suitable for cleanrooms, pharmaceutical facilities, laboratories, and healthcare support areas to adsorb low-concentration chemical gases and improve air cleanliness. | Used in manufacturing plants, workshops, paint booths, printing facilities, waste treatment stations, and process ventilation systems for industrial odor and exhaust gas control. |
Customization & Quality Control
| Customization Services | Quality Assurance & Inspection |
|---|---|
| • Custom filter dimensions, thicknesses, and frame configurations • Aluminum, galvanized steel, or stainless steel frame options • Plastic or paper honeycomb carrier selection • Coconut shell, coal-based, bamboo, or impregnated activated carbon media • Adjustable carbon filling density for different adsorption capacities • Integrated pre-filter layer for extended service life • OEM logo printing and private label packaging • Custom airflow and pressure-drop optimization • Design and production based on customer drawings or samples • Bulk manufacturing with flexible packaging solutions |
• Incoming inspection of frame materials and activated carbon media • Honeycomb structure integrity and dimensional accuracy verification • Activated carbon loading consistency inspection • Filter assembly and bonding strength inspection • Pressure drop and airflow performance testing • Appearance and workmanship inspection before packaging • Random sampling for adsorption performance verification (upon request) • Packaging integrity and export standard inspection • Batch identification and full production traceability • Final quality inspection before shipment |
