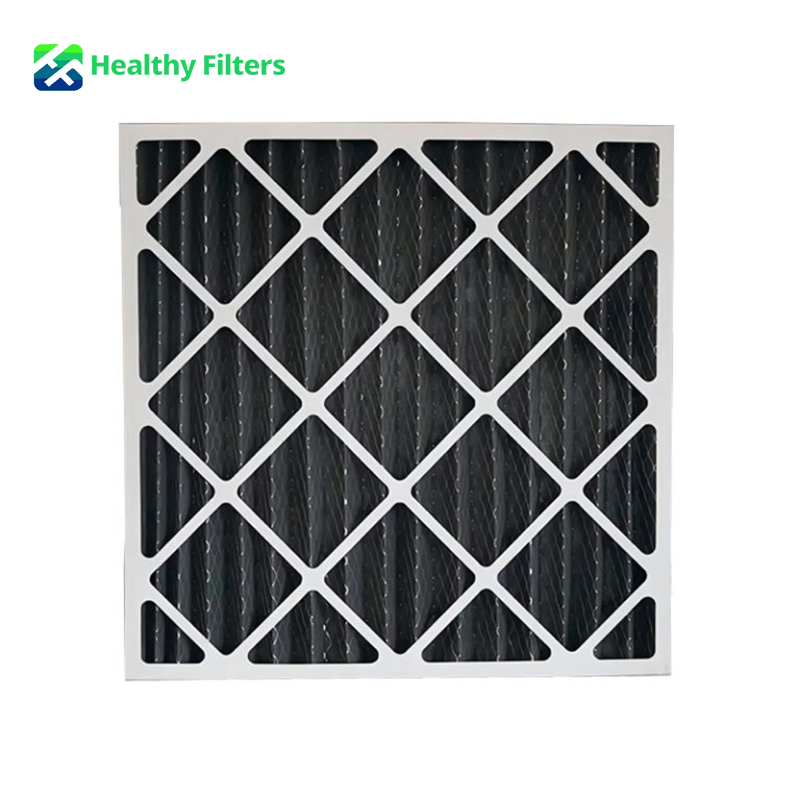

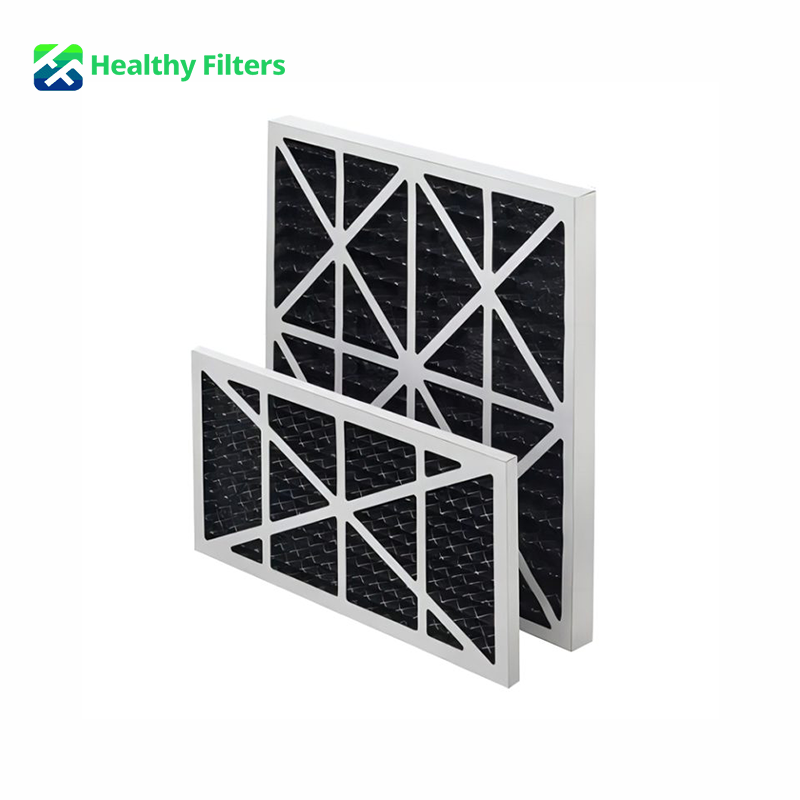

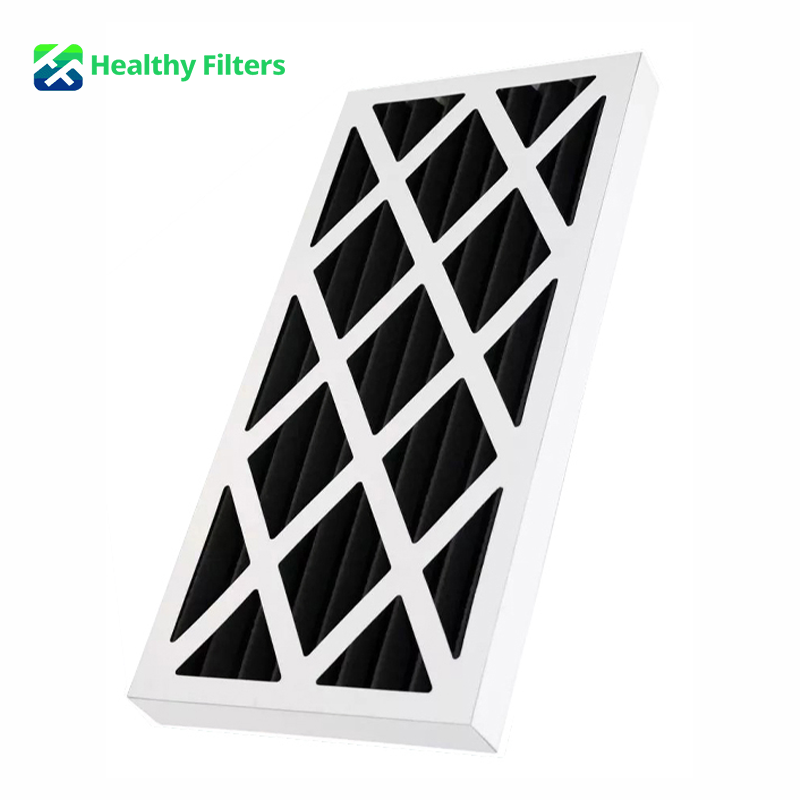

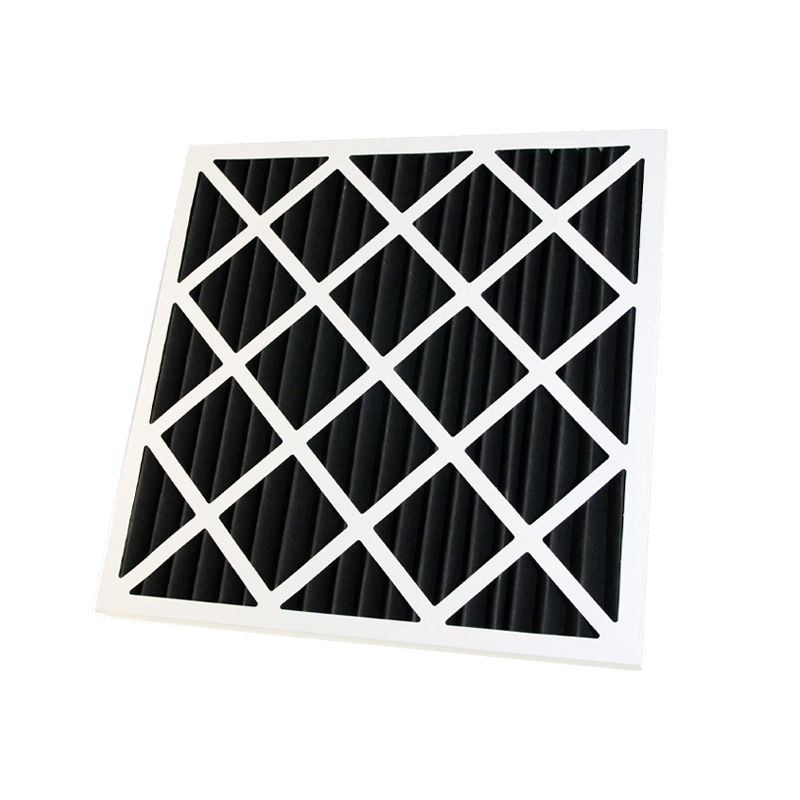

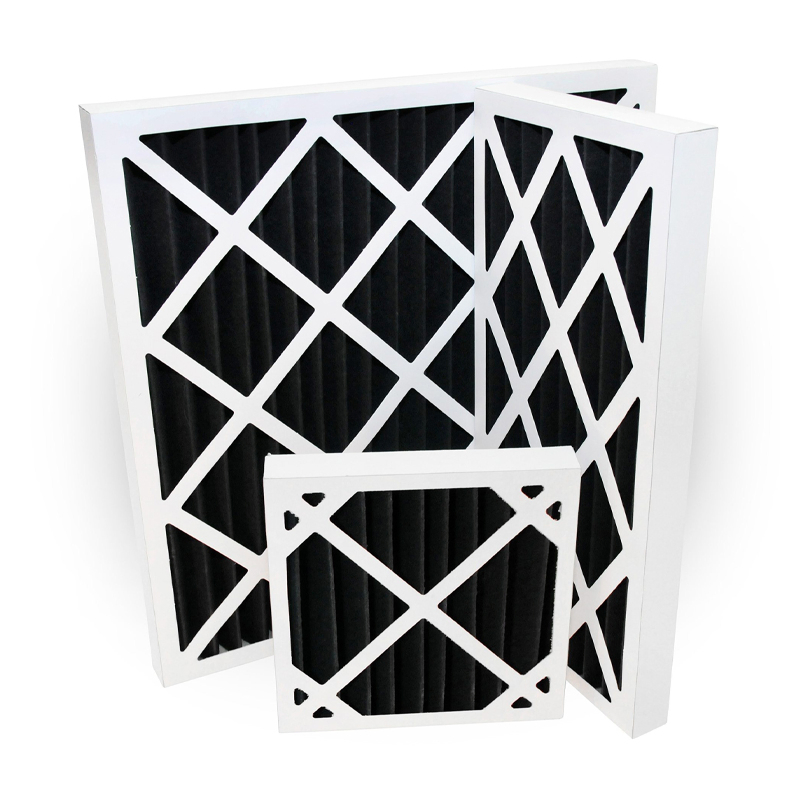

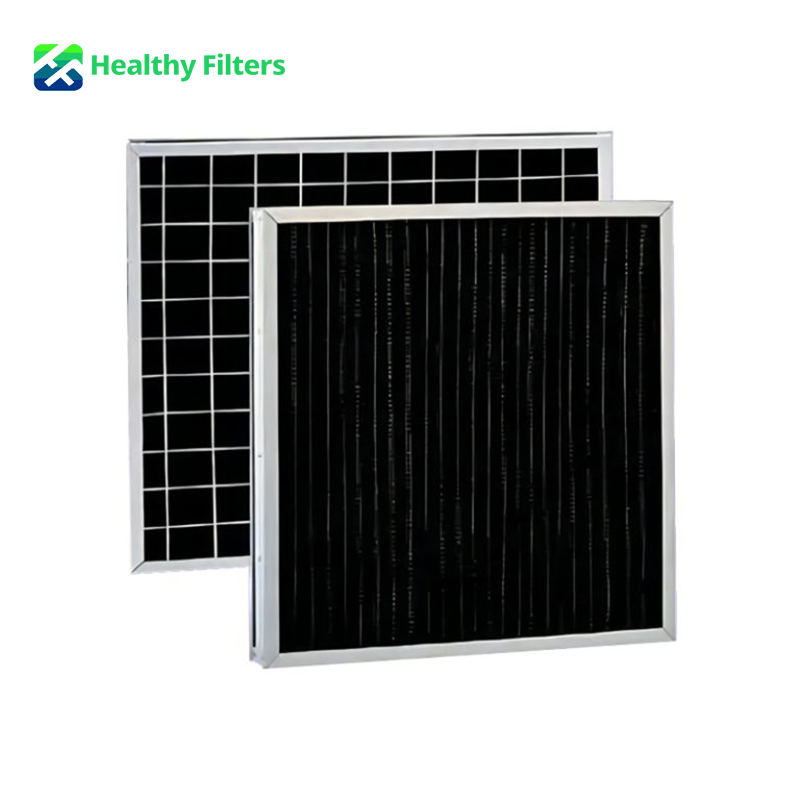

Odor Remover Panel Type Activated Carbon Filter for HVAC Systems Smoke, VOCs & Odor Control Solutions
Odor Remover Panel Type Activated Carbon Filter for HVAC Systems Smoke, VOCs & Odor Control Solutions
Features
- Premium activated carbon polyester media for odor and VOC adsorption
- Pleated media design increases effective filtration area
- High dust holding capacity for extended service life
- Low pressure drop for energy-efficient HVAC operation
- Efficient removal of smoke, formaldehyde, VOCs, and household odors
- Available with cardboard, aluminum, or galvanized steel frames
- Lightweight yet durable construction
- Easy installation and replacement
- Suitable for pre-filtration and molecular filtration applications
- OEM & ODM manufacturing supported
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description
Activated carbon air filters can strongly adsorb gaseous pollutants such as formaldehyde, benzene, and TVOC, as well as odors. At the same time, they are combined with fiber filter layers to intercept dust, pollen and other particulate matter.
This filter features low air resistance and large dust holding capacity. It is widely used in residential, office building, industrial waste gas treatment and other scenarios, especially suitable for newly renovated environments or spaces with high air quality requirements.
Technical Parameters
|
Frame
|
Cardboard/Aluminium/Galvanized
|
|
Media
|
Polyester + active carbon
|
|
Efficiency
|
G4 (EN 779) / MERV 8 (ASHRAE 52.2)
|
|
Sealant
|
Polyurethane
|
|
Max. Temperature
|
70℃Max.
|
|
Max. Relative Humidity
|
95% RH Rec.
|
Standard Model Options
| Item | Description |
|---|---|
| Product Name | Pleated Activated Carbon Panel Air Filter |
| Filter Type | Pleated Panel Air Filter |
| Filter Media | Polyester Synthetic Fiber + Activated Carbon |
| Filter Structure | Pleated Panel |
| Frame Material | Cardboard / Aluminum Alloy / Galvanized Steel |
| Sealant | Polyurethane |
| Filtration Function | Particle Filtration & Gas Adsorption |
| Filter Grade | G4 (EN779) / MERV 8 (ASHRAE 52.2) |
| Installation | AHU / HVAC / Air Purifiers |
| OEM / ODM | Available |
Applications
| Commercial HVAC & Air Handling Units | Residential Air Purification & Fresh Air Systems | Industrial Ventilation & Process Air | Healthcare, Hospitality & Public Buildings |
|---|---|---|---|
| Designed for office buildings, shopping malls, schools, and central HVAC systems to remove dust, odors, VOCs, and improve overall indoor air quality. | Ideal for homes, apartments, fresh air units, and air purifiers to reduce cooking odors, smoke, pet odors, and formaldehyde commonly found in newly renovated spaces. | Suitable for manufacturing facilities, food processing plants, printing workshops, chemical processing areas, and industrial ventilation systems requiring reliable particulate filtration and gas adsorption. | Widely used in hospitals, hotels, restaurants, airports, exhibition centers, laboratories, and public facilities where cleaner, fresher indoor air contributes to occupant comfort and operational efficiency. |
Customization & Quality Control
| Customization Services | Quality Assurance & Inspection |
|---|---|
| • Custom filter dimensions, thicknesses, and pleat depths • Cardboard, aluminum alloy, galvanized steel, or stainless steel frame options • Customized activated carbon loading for specific odor and VOC removal requirements • Optional coconut shell, coal-based, or impregnated activated carbon media • Different filter grades (G3–F7 / MERV 8–13) • Flame-retardant, moisture-resistant, or antimicrobial media options • OEM logo printing, private labeling, and retail packaging • Manufacturing based on customer drawings or technical specifications • Export-standard packaging and pallet solutions • Flexible OEM production with low MOQ support |
• Incoming inspection of activated carbon media and frame materials • Pleat spacing, bonding, and structural integrity verification • Dimensional accuracy and frame assembly inspection • Airflow resistance and pressure-drop testing • Activated carbon distribution and adsorption consistency inspection • Appearance, edge finishing, and packaging quality inspection • Batch traceability and production record management • Random sampling for filtration performance verification • Final inspection before shipment to ensure consistent quality |
