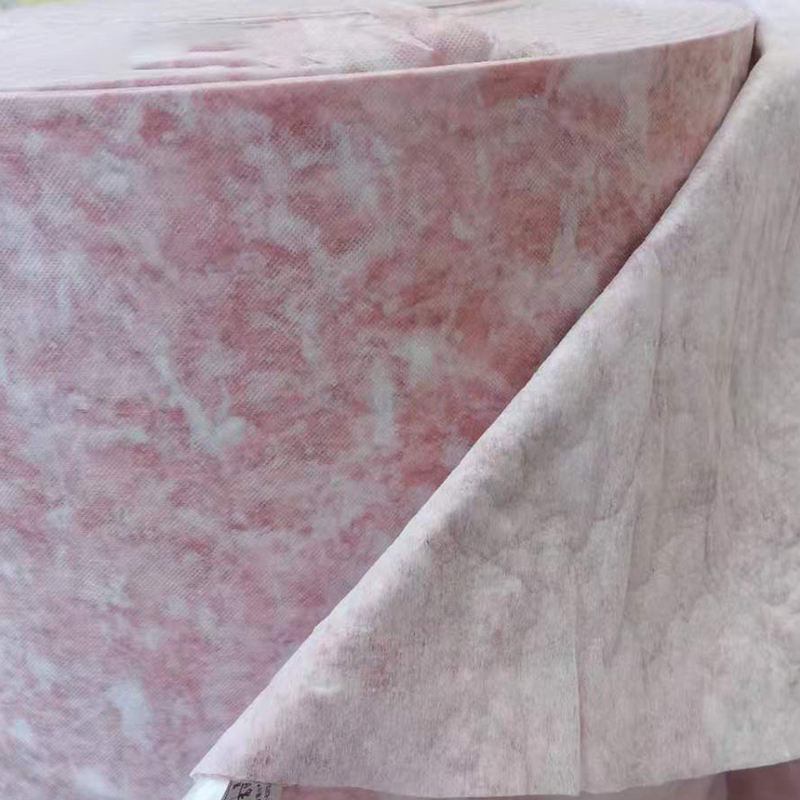

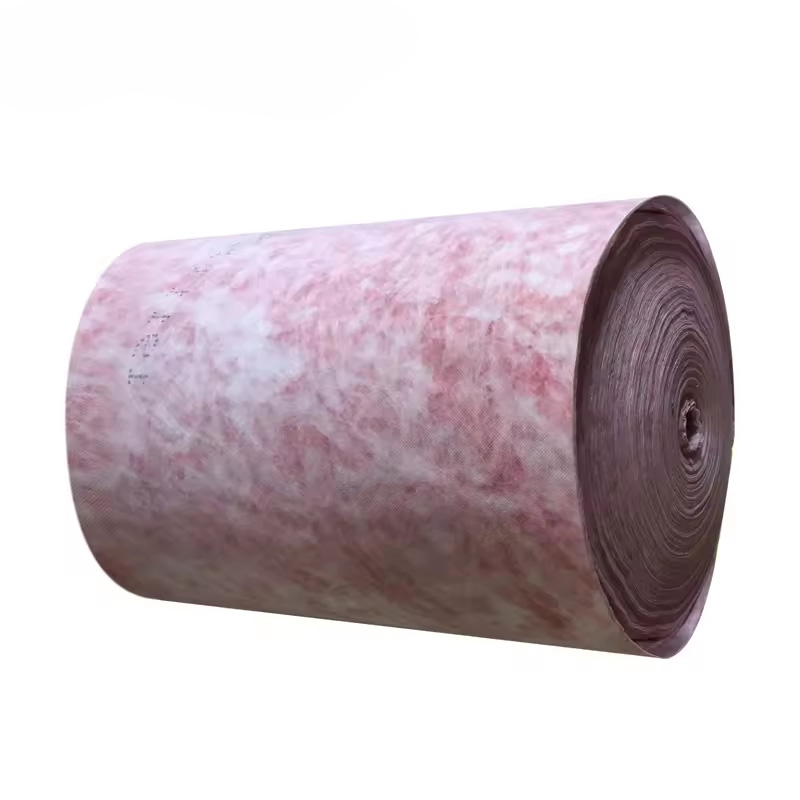

Manufacturer F8 Fiberglass Pocket Media for Air Filter
Manufacturer F8 Fiberglass Pocket Media for Air Filter
Features
F8 Fiberglass Pocket Filter Media, manufacturer – direct. High – efficiency filtration for residential, commercial, and industrial applications.
- Filtration grades from M5 to F9
- F8 high-efficiency pocket filter media available
- Three-dimensional microporous fiberglass structure
- High porosity and large effective filtration area
- High dust-holding capacity
- Low initial airflow resistance
- Stable filtration efficiency
- Suitable for bag and pleated panel filter production
- Good high-temperature resistance
- Resistant to selected chemical fumes and corrosion
- Formaldehyde-free construction
- Good electrical insulation
- Non-static media characteristics
- Consistent basis weight and thickness
- Custom roll dimensions and grade-identification colors available
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description
Made from durable fiberglass, our pocket filter media offers superior performance and reliability. The pocket design increases surface area for better filtration efficiency and lower pressure drop. Available in various sizes and configurations, it meets diverse air quality requirements. Manufacturer – direct supply ensures you get the best value for your investment.
Long-period
High dust holding capacity and low pressure;
Three-dimensional microporous structure, high porosity, large filtering area;
Stable efficiency;
High temperature resistance;
No formaldehyde and environmental protection;
Good insulation, no static electricity;
Technical Parameters
| Type | Filter class | Average Efficiency | Initial Resistance(pa) | Gram Weight(g/m²) | Thinckness(mm) | colour |
| SHW-HF | M5 | 45% | ≤30 | 80±5 | 2.5±0.5 | light yellow |
| M6 | 65% | ≤40 | 80±5 | 2.5±0.5 | apricot yellow | |
| F7 | 85% | ≤70 | 80±5 | 2.5±0.5 | light purple | |
| F8 | 95% | ≤100 | 80±5 | 2.5±0.5 | light yellow | |
| F9 | 985 | ≤140 | 80±5 | 2.5±0.5 | light yellow |
Standard Model Options
| Item | Specification |
|---|---|
| Product Name | Fiberglass Pocket Filter Media Roll |
| Product Type | Bag Filter / Pocket Filter Raw Material |
| Model Series | HF-SHW |
| Main Material | Fiberglass |
| Available Grades | M5 / M6 / F7 / F8 / F9 |
| Standard F8 Efficiency | 95% |
| Standard Basis Weight | 80 ± 5 g/m² |
| Standard Thickness | 2.5 ± 0.5 mm |
| Initial Resistance Range | ≤30–140 Pa, Depending on Grade |
| Media Structure | Three-Dimensional Microporous Fiber Network |
| Standard Colors | Light Yellow / Apricot Yellow / Light Purple |
| Supply Form | Roll / Sheet |
| Main Use | Pocket Filters, Bag Filters and Pleated Panel Filters |
| Processing | Cutting, Sewing, Pleating and Laminating |
| OEM / ODM | Available |
Applications
| HVAC & Air-Handling Units | Pocket & Bag Filter Manufacturing | Industrial Ventilation | Hot-Air & Chemical Environments |
|---|---|---|---|
| Used in commercial and industrial HVAC systems, AHUs, fresh-air units, and central ventilation equipment. | Suitable as raw material for multi-pocket bag filters, sewn pocket filters, and pleated panel filters. | Applied in factories, workshops, warehouses, manufacturing plants, and general exhaust or supply-air systems. | Suitable for hot-air filtration and selected environments containing dust or mildly corrosive chemical fumes, subject to compatibility confirmation. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom roll width and roll length • M5 / M6 / F7 / F8 / F9 filtration grades • Custom basis weight and thickness • Light yellow, apricot yellow, light purple, or custom colors • Roll, sheet, or pre-cut pocket media formats • Custom airflow resistance and efficiency targets • Sewing, pleating, and lamination compatibility • OEM labels, private branding, roll cores, and export packaging |
• Fiberglass raw-material verification • Roll width, length, thickness, and basis-weight inspection • Color consistency and grade-identification check • Surface uniformity and defect inspection • Initial resistance testing • Filtration-efficiency verification • Mechanical strength and processability inspection • Final roll winding, quantity, and packaging inspection |
