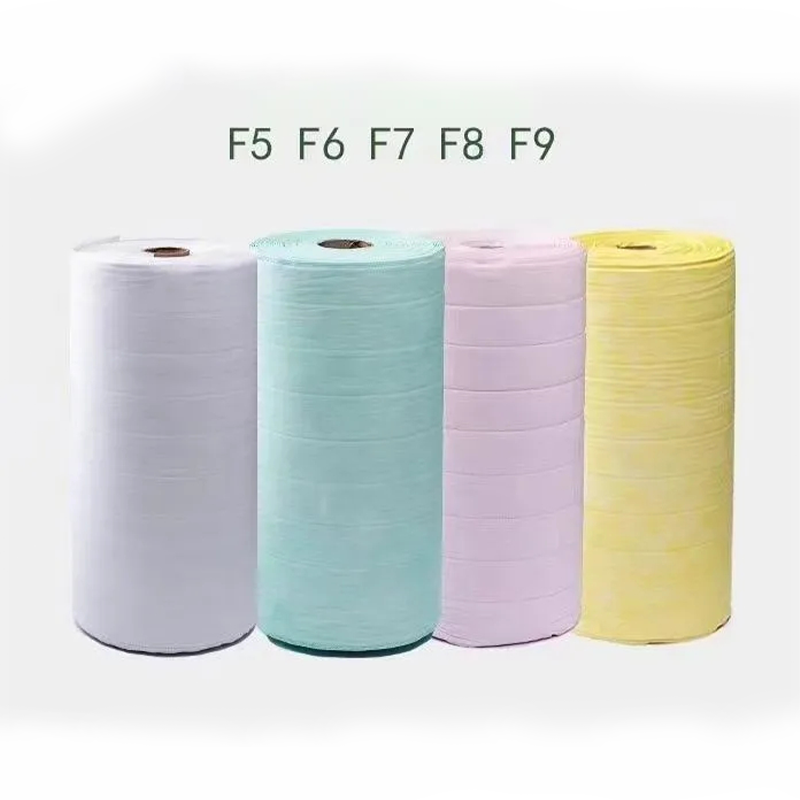

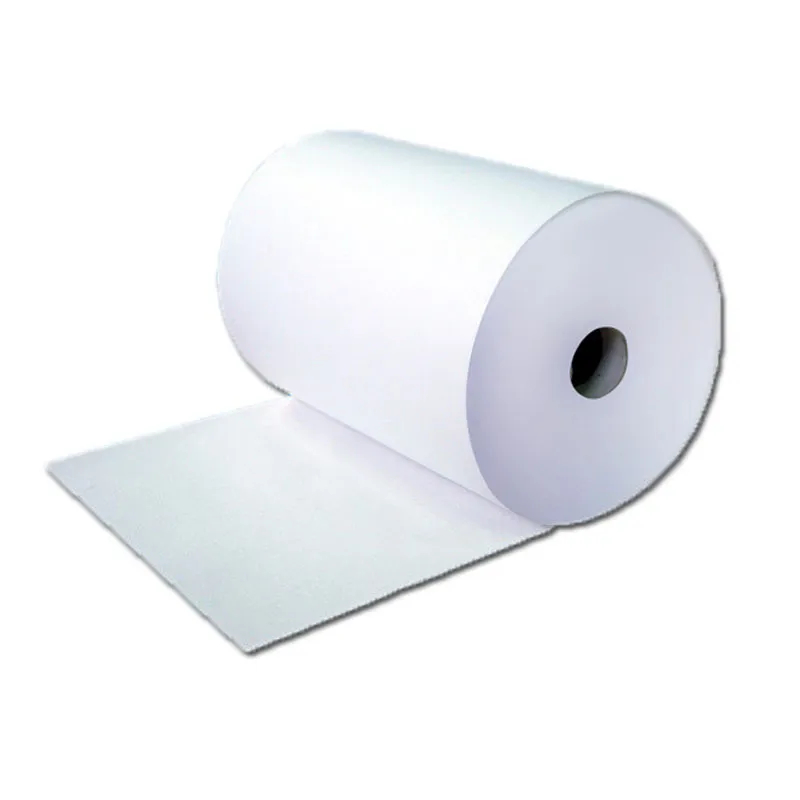

M5/M6/F7/F8/F9 Fiberglass Pocket Media for Air Filter
M5/M6/F7/F8/F9 Fiberglass Pocket Media for Air Filter
Features
M5 – M9 Fiberglass Pocket Filter Media for high – efficiency air filtration. Durable, efficient, and suitable for a wide range of applications.
- Available in M5, M6, F7, F8, and F9 filtration grades
- High particle capture efficiency with low pressure drop
- Premium fiberglass media for stable long-term performance
- Large effective filtration surface after pocket fabrication
- High dust-holding capacity extends service life
- Excellent airflow performance and energy efficiency
- Uniform fiber distribution for consistent filtration
- Suitable for pocket filter and bag filter manufacturing
- Resistant to moisture and dimensional deformation
- Lightweight and easy to process
- Available in multiple color identifications by efficiency grade
- OEM sizes and custom specifications available
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description
Made from durable fiberglass, our pocket filter media offers superior performance and reliability. Available in various filtration grades (M5 to M9), it meets diverse air quality requirements. Ideal for HVAC systems, air handling units, and other air filtration applications.
-
High – Efficiency Filtration: Captures fine particles and contaminants across multiple filtration grades (M5 – M9).
-
Durable Fiberglass Material: Long – lasting and resistant to wear, ensuring reliable performance.
-
Pocket Design: Increases surface area for better filtration efficiency and lower pressure drop.
-
Customizable Options: Available in various filtration grades to meet specific air quality needs.
Technical Parameters
| Type | Filter class | Average Efficiency | Initial Resistance(pa) | Gram Weight(g/m²) | Thinckness(mm) | colour |
| NF-HF | M5 | 45% | ≤30 | 80±5 | 2.5±0.5 | light yellow |
| M6 | 65% | ≤40 | 80±5 | 2.5±0.5 | apricot yellow | |
| F7 | 85% | ≤70 | 80±5 | 2.5±0.5 | light purple | |
| F8 | 95% | ≤100 | 80±5 | 2.5±0.5 | light yellow | |
| F9 | 985 | ≤140 | 80±5 | 2.5±0.5 | light yellow |
Standard Model Options
| Item | Specification |
|---|---|
| Product Name | Fiberglass Pocket Filter Media |
| Product Type | Glass Fiber Filter Media Roll |
| Brand | Healthy Filters |
| Filter Grades | M5 / M6 / F7 / F8 / F9 |
| Media Material | Fiberglass Microfiber |
| Media Structure | Nonwoven Glass Fiber |
| Product Form | Roll Material |
| Application | Pocket Filter Manufacturing |
| Color Options | Grade Identification Colors |
| Width | Customized |
| Length | Customized |
| OEM & ODM | Supported |
Applications
| HVAC & Air-Handling Systems | Commercial & Public Buildings | Industrial Ventilation | Pre-Filtration Before HEPA |
|---|---|---|---|
| Used as pocket-filter media in AHUs, central air-conditioning systems, fresh-air units, and general ventilation equipment. | Suitable for offices, hotels, shopping malls, airports, schools, hospitals, and other buildings requiring reliable indoor air filtration. | Applied in manufacturing plants, workshops, warehouses, food-processing facilities, pharmaceutical production, and electronics factories. | Installed upstream of high-efficiency and HEPA filters to capture medium and fine particles, reduce downstream dust loading, and extend final-filter service life. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom roll width and roll length • M5 / M6 / F7 / F8 / F9 filtration grades • Custom basis weight and thickness • Light yellow, apricot yellow, light purple, or custom colors • Roll, sheet, or pre-cut pocket media formats • Custom efficiency and resistance targets • Sewing and ultrasonic-welding compatibility • OEM labels, private branding, roll cores, and export packaging |
• Fiberglass raw-material verification • Roll width, length, thickness, and basis-weight inspection • Color consistency and grade-identification check • Surface uniformity and defect inspection • Initial resistance testing • Filtration-efficiency verification • Mechanical strength and processing-performance inspection • Final roll winding, quantity, and packaging inspection |
