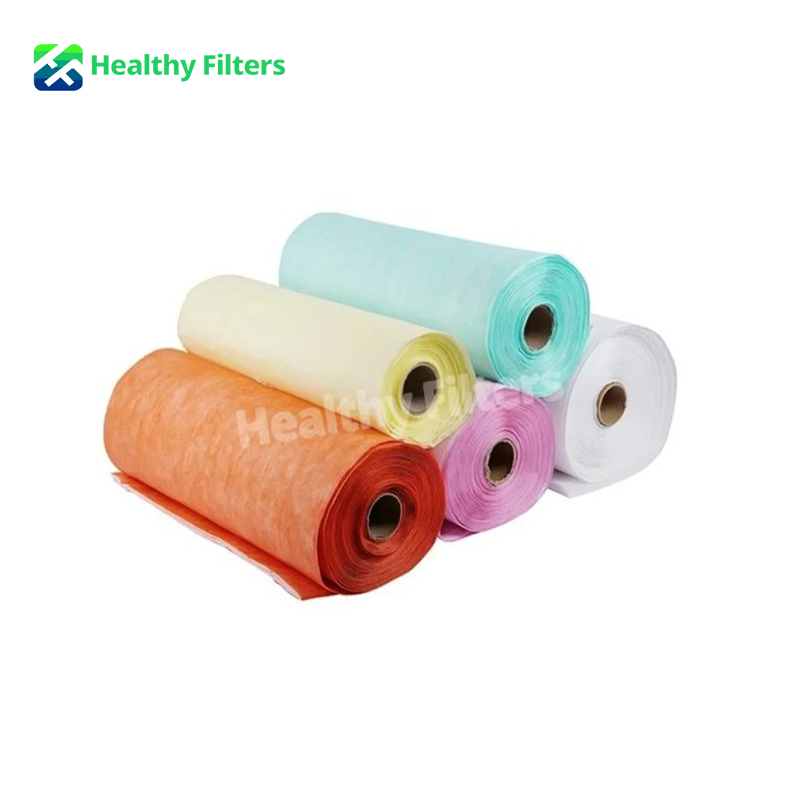

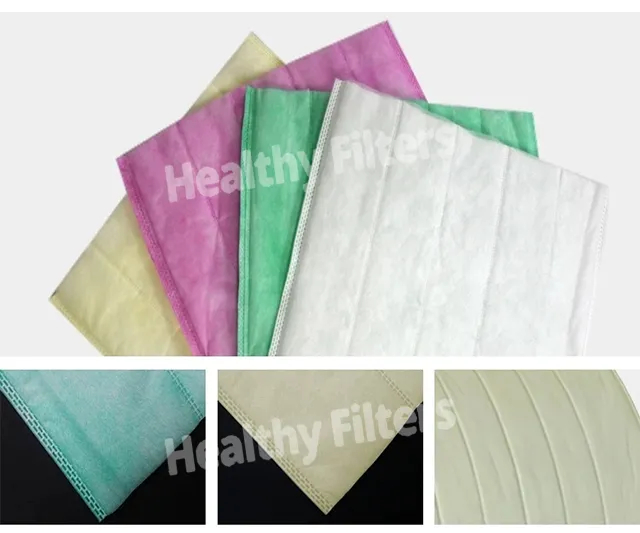

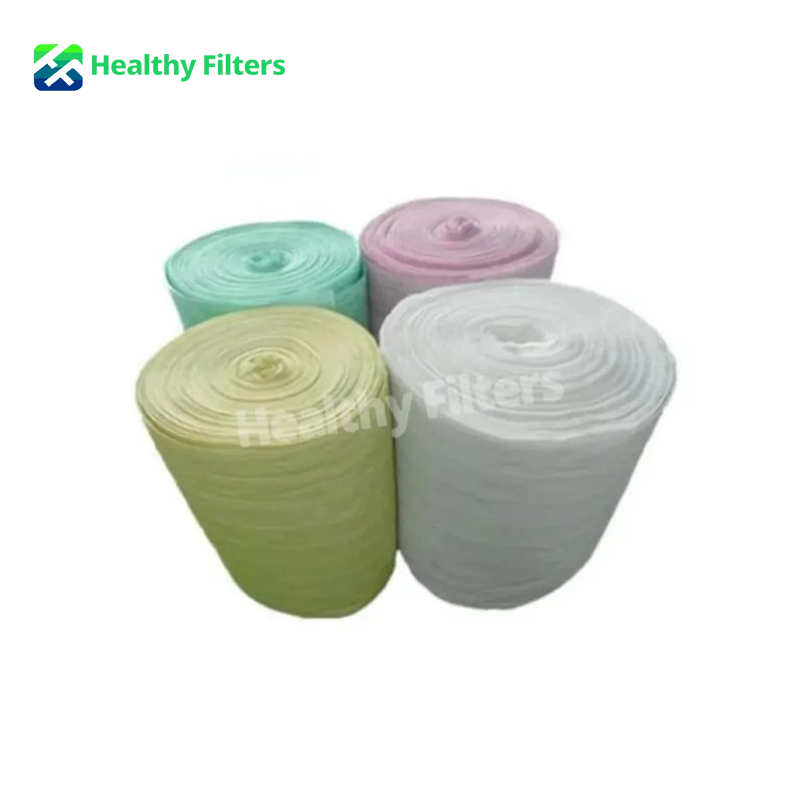

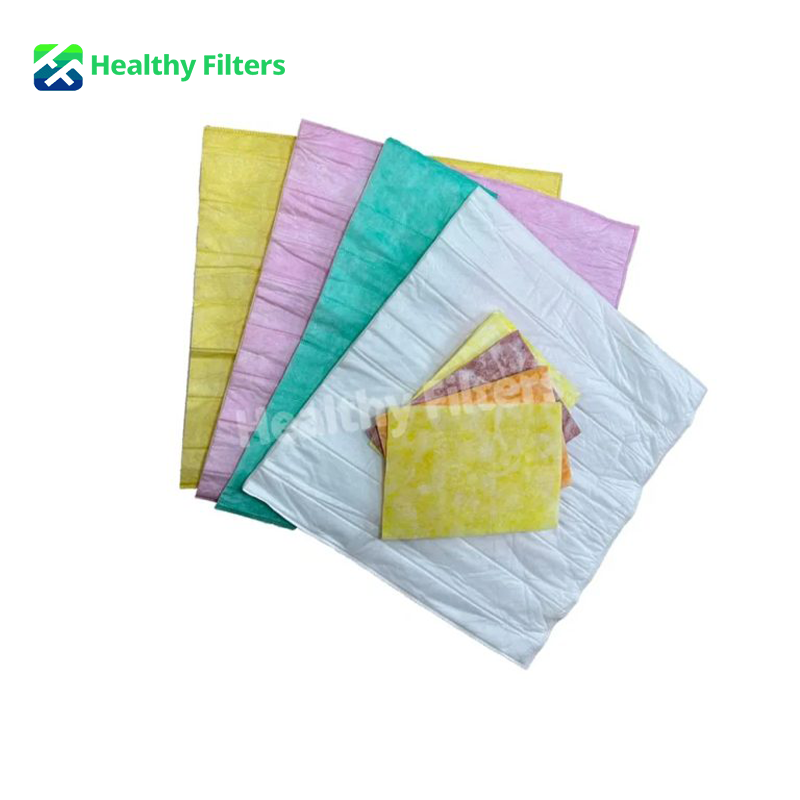

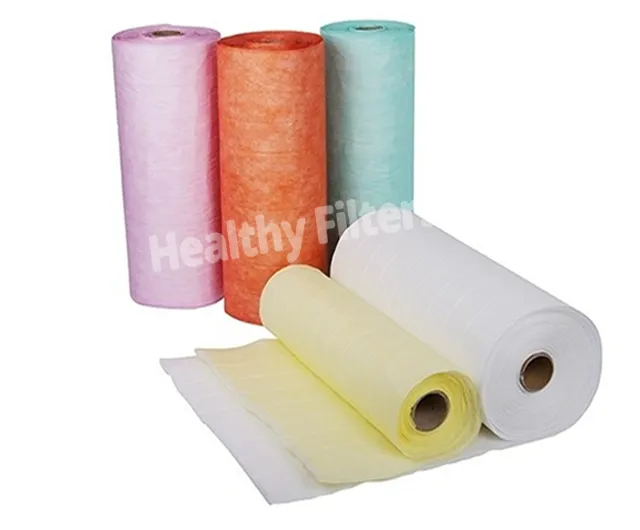

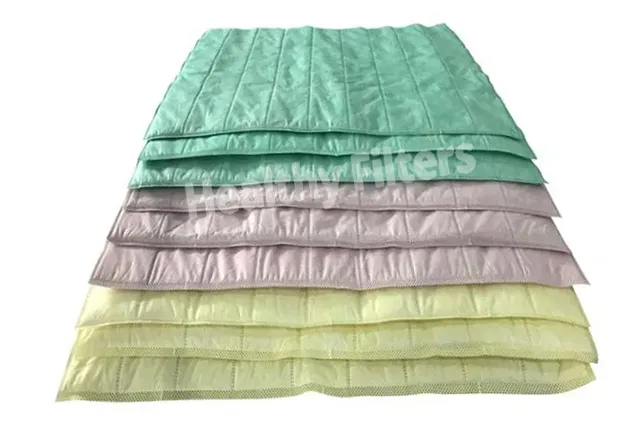

G4 F5 F6 F7 F8 F9 Synthetic Fiber Roll Pocket Filter Material Air Filter Paper Media for HVAC Ventilation
G4 F5 F6 F7 F8 F9 Synthetic Fiber Roll Pocket Filter Material Air Filter Paper Media for HVAC Ventilation
Features
Composite bag filter media is made from various types of polypropylene, making it an economical choice as polypropylene is one of the most cost-effective synthetic materials. The polypropylene used is flat and dull, posing no risk to the environment and allowing for safe disposal. The material features a three-dimensional net structure and forms both rough and fine filter layers. This media offers high air filtration efficiency and adapts to the demands of multilayered filter material and gradient filtration, which helps to prolong the product’s lifespan. It can be widely used for bag filters and panel filters in general ventilation systems.
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description
Our bag-type air filter media material specifications are as follows: The outer layer is made of 100% high-strength non-woven fabric, with color customizable according to customer requirements. The dual-component (PP+PET) layer utilizes a “Z”-shaped blend of ultra-fine meltblown fibers and PET fibers, providing higher filtration efficiency, excellent compression resilience, higher air permeability, and dust holding capacity while reducing pressure drop during use. This innovative filter media is designed for applications requiring both high dust holding capacity and low resistance. The inner non-woven fabric layer, made of needle-punched or composite non-woven media, filters larger particles at a lower initial pressure drop, enhancing maximum dust holding capacity and extending the filter bag’s service life. The central partition ensures that air pressure is evenly distributed throughout the entire bag, improving filtration performance.
- Surface layer: 100% high strength PP spun-bond media, color can make to order
- Melt-blown layer: fine filtration layer to capture sub-micron particles
- Dust holding layer: needle punched media or compound media applied, design to filter the larger particles at lower initial
pressure drop and enhance to reach the max dust volume - Inner protective layer: longger service life
- Low resistance with high air flow
- High dust holding capacity and extended service life
- Economical in cost
- Operates effectively at high temperatures and humidity up to 80°C and 80% RH
- Achieves G3-F9 efficiency levels with a particle capture range of 45-95% @ 0.5 micron
- Recommended final resistance range: 300-400 Pa
Technical Parameters
| Standard | Flow rate 32L/min | Weight(g/m2)±10% | Color | |||
| Air Velocity@5.3cm/s | ||||||
| China | Euro | EURO | Initial Resistance | Initial Efficiency | ||
| GB/T14295-93 | EN779:2002 | EN779:2012 | (mmH2O) | (%) | ||

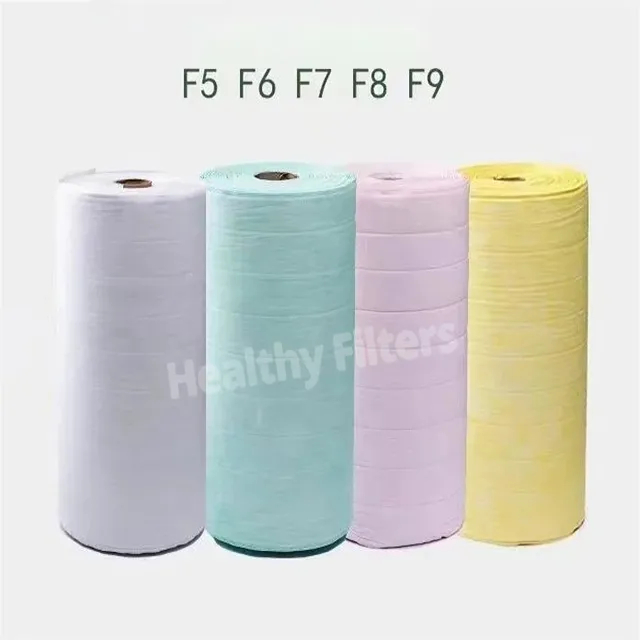

| Medium | F5 | M5 | 1 | 55 | 150 | White |
| Medium | F6 | M6 | 1.8 | 70 | 200 | Green |
| Medium | F7,F8 | F7,F8 | 2 | 85 | 220 | F7-Pink |
| F8-Light Yellow | ||||||
| Senior Medium | F9 | F9 | 2.4 | 90 | 240 | Dark Yellow |
Standard Model Options
| Item | Specification |
|---|---|
| Product Name | Synthetic Pocket Filter Media Roll |
| Product Type | Multi-Layer HVAC Bag Filter Material |
| Model Series | HF-WFD |
| Main Material | PP Spunbond + Melt-Blown + Nonwoven Composite |
| Available Grades | G4 / F5 / F6 / F7 / F8 / F9 |
| Standard Test Flow | 32 L/min |
| Reference Air Velocity | 5.3 cm/s |
| Basis Weight Range | Approximately 150–240 g/m² |
| Initial Efficiency Range | Approximately 55–90% |
| Operating Temperature | Up to Approximately 80°C |
| Humidity Resistance | Up to Approximately 80% RH |
| Recommended Final Resistance | 300–400 Pa |
| Supply Form | Roll / Sheet / Cut Media |
| Main Use | Pocket Filters, Bag Filters and Panel Filters |
| OEM / ODM | Available |
Applications
| Commercial HVAC Systems | Cleanrooms & Healthcare | Electronics & Semiconductor | Industrial & Food Processing |
|---|---|---|---|
| Used to manufacture pocket and bag filters for AHUs, central air-conditioning systems, commercial buildings, hotels, and ventilation equipment. | Suitable for hospitals, pharmaceutical production, laboratories, cleanroom pre-filtration, and controlled indoor environments. | Applied in electronics plants, semiconductor manufacturing, wafer fabrication, optics, and precision production areas. | Used in food processing, industrial workshops, baking systems, manufacturing plants, and other ventilation applications requiring medium-efficiency filtration. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom roll width and length • G4–F9 filtration configurations • Custom basis weight and media thickness • White, green, pink, yellow, or custom colors • Spunbond, melt-blown, and dust-layer combinations • Custom airflow and resistance targets • Sewing, ultrasonic-welding, and lamination compatibility • OEM labels, roll cores, branding, and export packaging |
• PP raw-material and layer-composition verification • Roll width, length, basis-weight, and thickness inspection • Color consistency and grade-identification check • Layer bonding and structural-strength inspection • Airflow-resistance testing • Initial filtration-efficiency verification • Dust-holding and service-life testing upon request • Final roll winding and packaging inspection |
