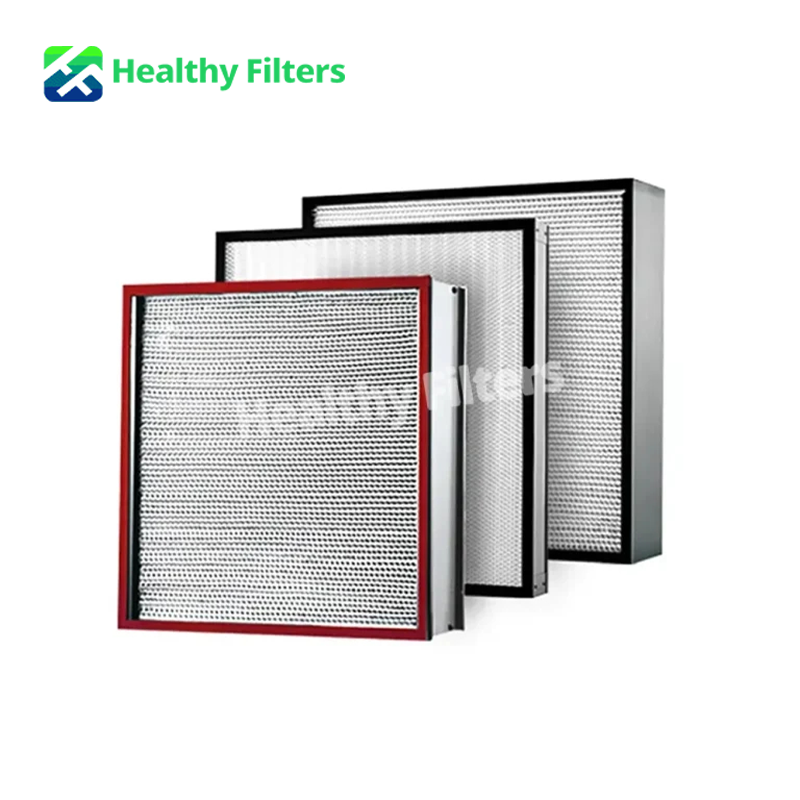

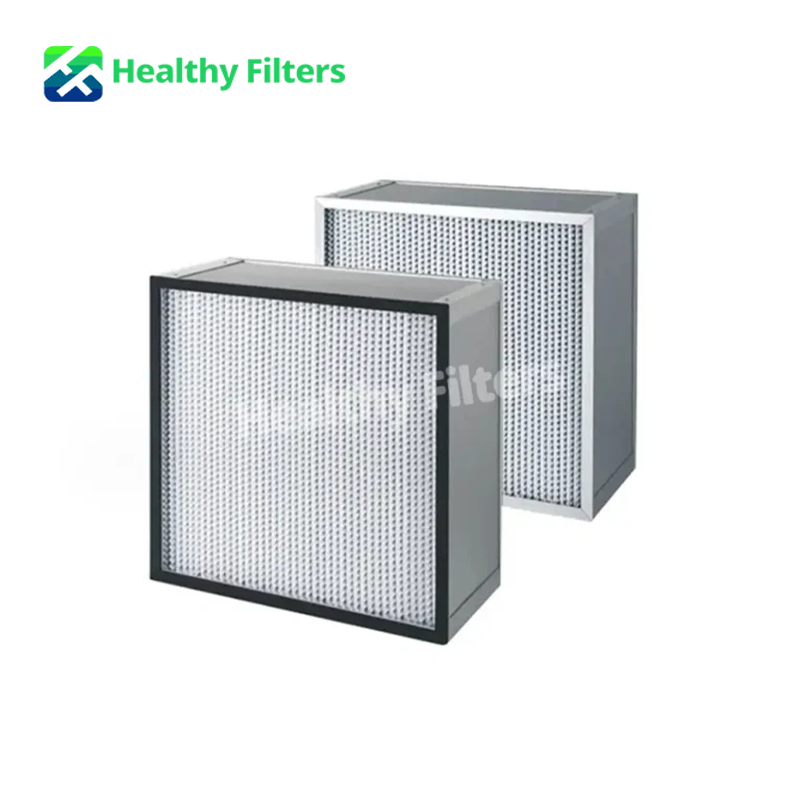

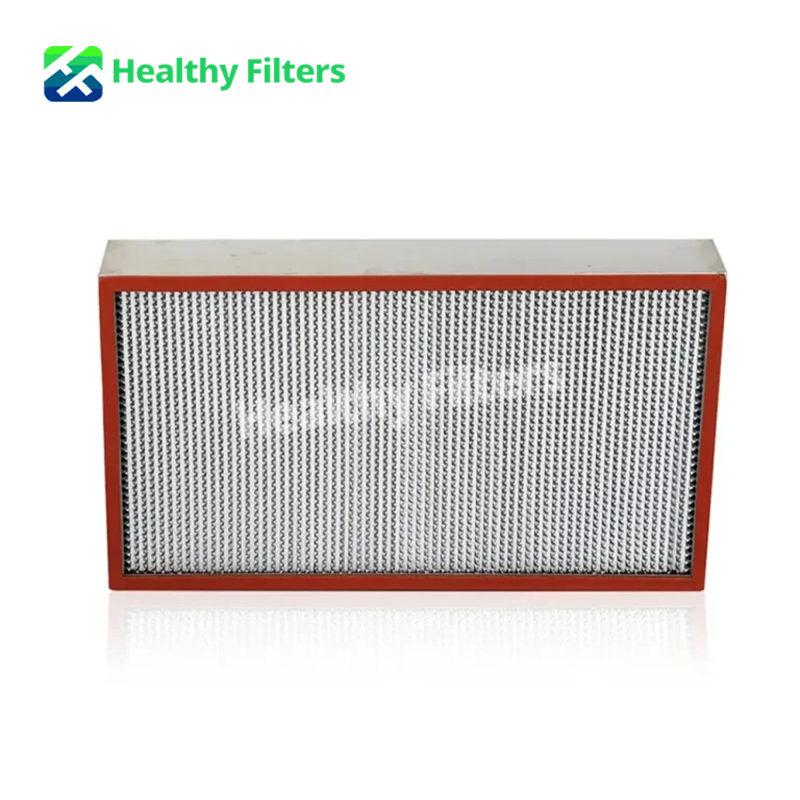

Healthy Filters Deep Pleated Paper Separate H14 High Efficiency HEPA Air Filter

Healthy Filters Deep Pleated Paper Separate H14 High Efficiency HEPA Air Filter

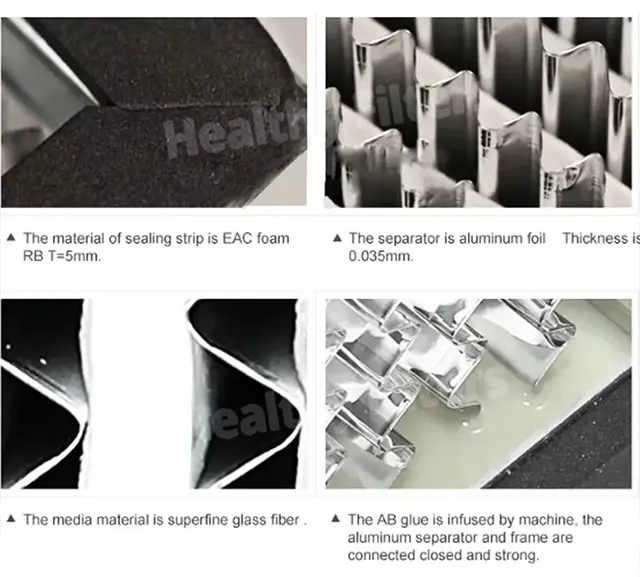

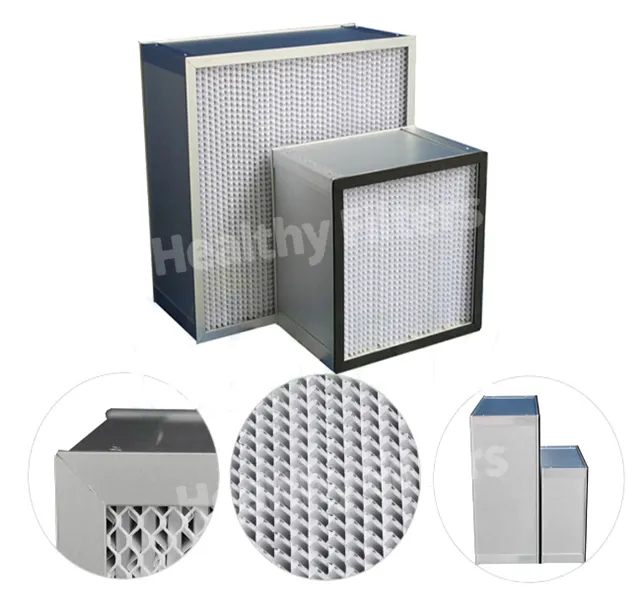

Deep Pleated Hepa filter is the final filtration in a clean room, designed to filter particles larger than 0.3um. It uses ultra-thin glass fiber as the filter media and hot-melt glue to space each pleat evenly, ensuring high dust volume efficiency. The entire media area can be utilized effectively. 1. To prevent the bypass of unfiltered air, deep pleated HEPA filters are equipped with gaskets or seals along the perimeter of the frame. These seals ensure a tight fit within the filter housing and minimize leakage. 2. The deep pleats in the filter media facilitate the interception, impaction, and diffusion of airborne particles, ensuring thorough filtration and clean air output. 3. The compact design of deep pleated HEPA filters allows them to fit into standard filter housings or air handling units without compromising airflow performance

Features

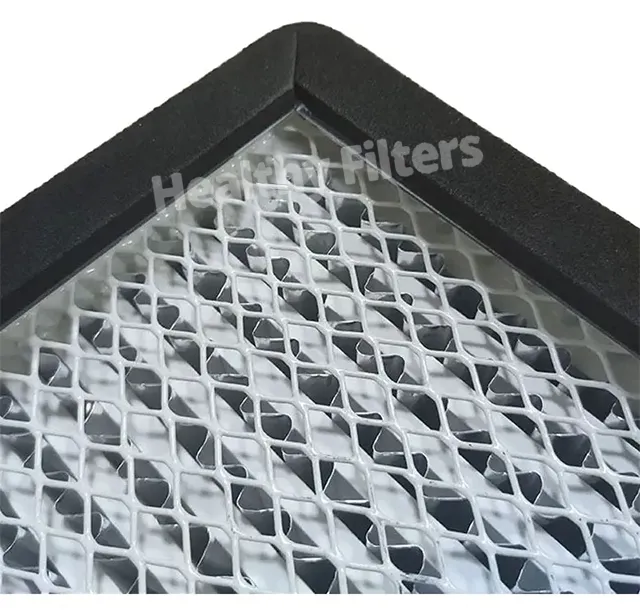

● High-capacity ● 99.97%, 99.99%, and 99.999% efficiency options available in moisture-resistant media ● One-piece seamless urethane gasket for leak-free sealing ● Sturdy structure ● Frame: galvanized/Aluminum steel frame for durability ● Filter: Fiberglass

Chat Now

Message

Fast Sampling Support

Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.

Advanced Production Equipment & Stable Quality

Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.

Mass Production & On-Time Shipment

Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.

ISO Standard Strict Quality Control

All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.

Description

The deep pleated compact filter is a high-efficiency air filtration device suitable for various high-demand air filtration environments. Its deep pleat design greatly increases the filtration area, thereby improving filtration efficiency and service life. This filter is compact and easy to install and replace. Its excellent filtration performance can effectively remove particles in the air and ensure air quality. In addition, deep-pleated compact filters offer low operating costs and simple maintenance, making them ideal for high-efficiency air filtration.

High-efficiency filter (HEPA) generally refers to the particle size greater than or equal to 0.3um particles of the capture efficiency of 99.97% or more of the filter, usually as a pharmaceutical company clean room end filtration devices, to provide clean air. Whether the clean room can reach and maintain the designed clean level is, to a certain extent, related to the performance of high-efficiency filters and their installation. Therefore, leak testing of HEPA filters in cleanrooms to ensure compliance is one of the most important means of ensuring a clean environment in a cleanroom, and the FDA has also pointed out in the Guidelines for the Manufacture of Sterile Drugs that leak testing should be performed after the installation of HEPA filters to check the sealing of the filter gasket, frame and filter media, etc. Leak testing of HEPA filters should be performed periodically in sterile preparation production plants.

Technical Parameters

Type	Size(mm)	Rated Airflow(m³/h)	Filter Class(m2)	Initial Pressure Drop(Pa)	Final Pressure Drop(Pa)	Average arrestance
HF-YGB	484x484x150	530	6	<220	400	>99.97%
	610x610x150	1000	9.7	<220	400	>99.97%
	1220x610x150	2000	19.3	<220	400	>99.97%
	484x484x220	1000	9.8	<220	400	> 99.97%
	610x610x220	1600	15.8	<220	400	>99.97%
	1220x610x220	3000	31.6	<220	400	>99.97%
	610610292	1700	17.6	<220	400	>99.97%
	1220610292	3400	33.6	<220	400	>99.97%

Applications

Pharmaceutical Cleanrooms	Semiconductor Manufacturing	Hospitals & Operating Rooms	Research Laboratories
Final filtration for GMP clean areas, filling rooms, and sterile production zones.	High-efficiency air purification for precision electronics and controlled manufacturing.	Clean air supply for operating rooms, isolation rooms, and controlled medical areas.	Final-stage particle filtration for biological, chemical, and research environments.

Customization & Quality Control

Customization Available	Quality Inspection
• Custom filter size and depth • 99.97%, 99.99%, and 99.999% efficiency options • Fiberglass media customization • Galvanized or aluminum steel frame • Gasket or seal configuration • Airflow and pressure drop requirements • OEM label, packaging, and project samples	• Dimension and frame check • Media surface and pleat spacing inspection • Gasket and sealing inspection • Airflow and resistance test • Efficiency and leak test upon request • Final pressure drop verification • Packaging inspection before shipment
