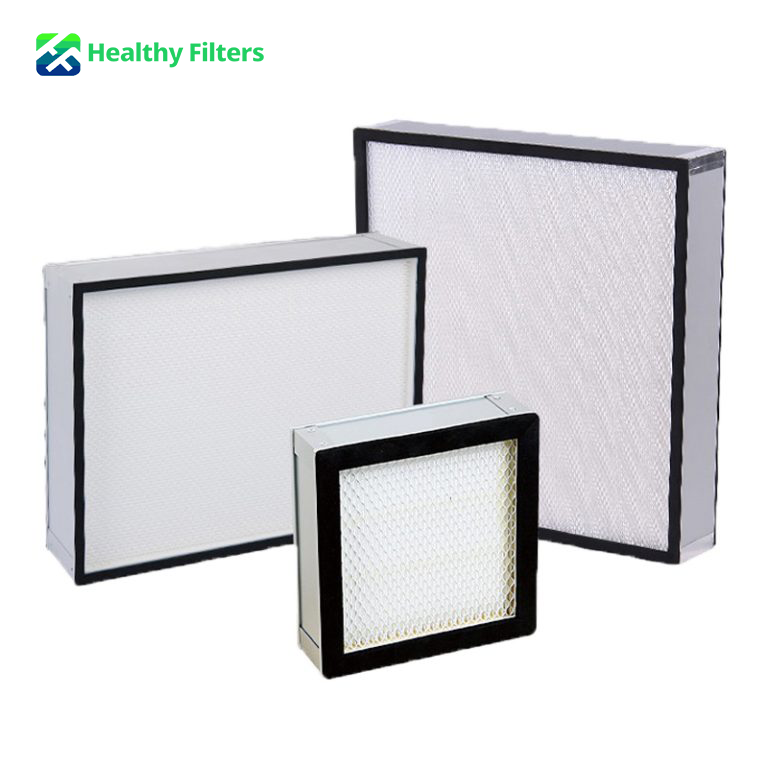

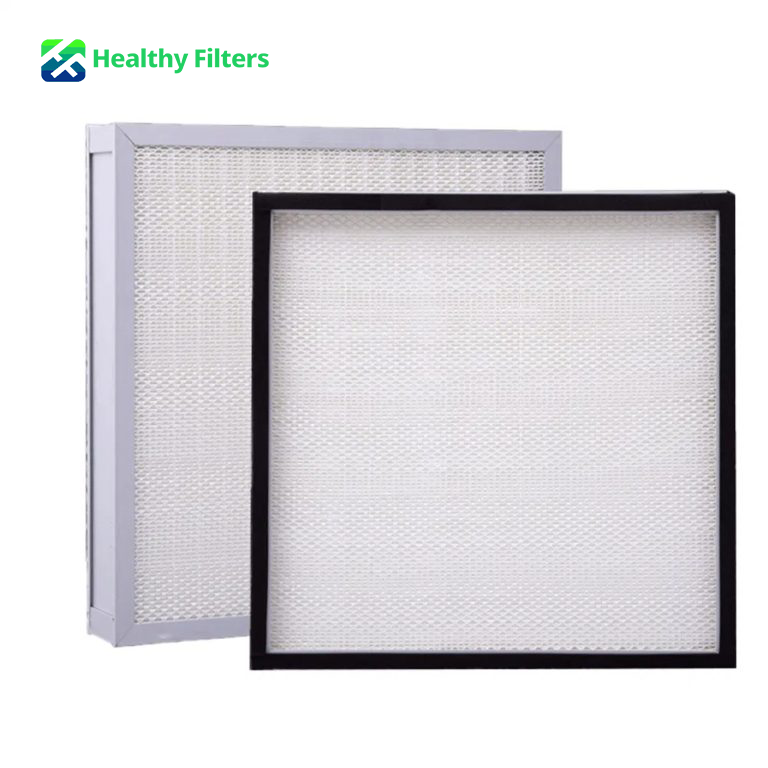

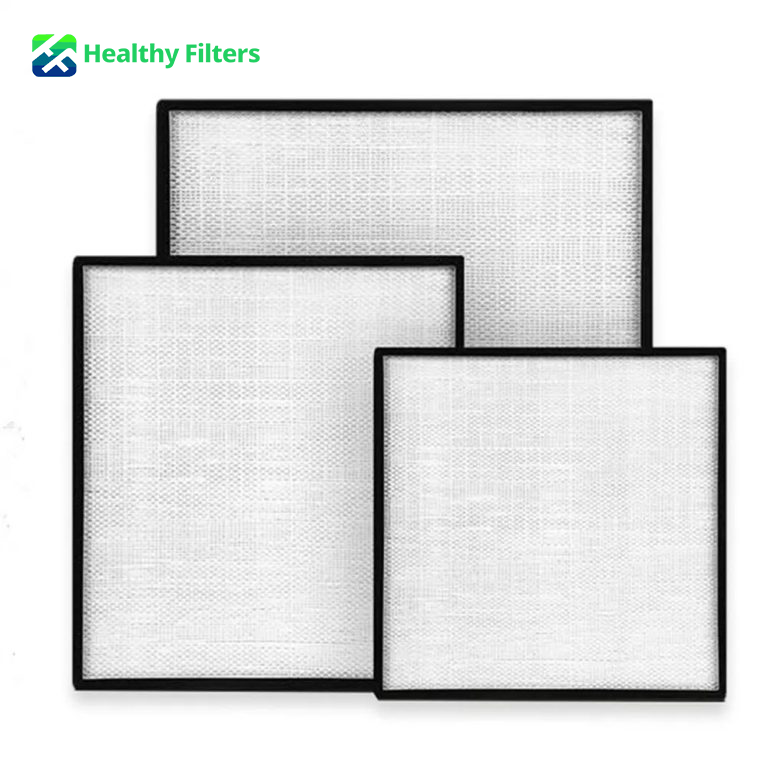

Customized Industry and Clean Room Use H13 H14 Cleanroom HEPA Air Filter
Customized Industry and Clean Room Use H13 H14 Cleanroom HEPA Air Filter
Features
- Features:low wind resistance, high dust holding capacity, high filtration precision, and it can be processed into various sizes and shapes according to customer needs, and suitable for different models.
- Usage:HEPA is widely used in air purifiers, central air conditioning, clean plant and other fields, and it is used to remove dust and pollen.
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description

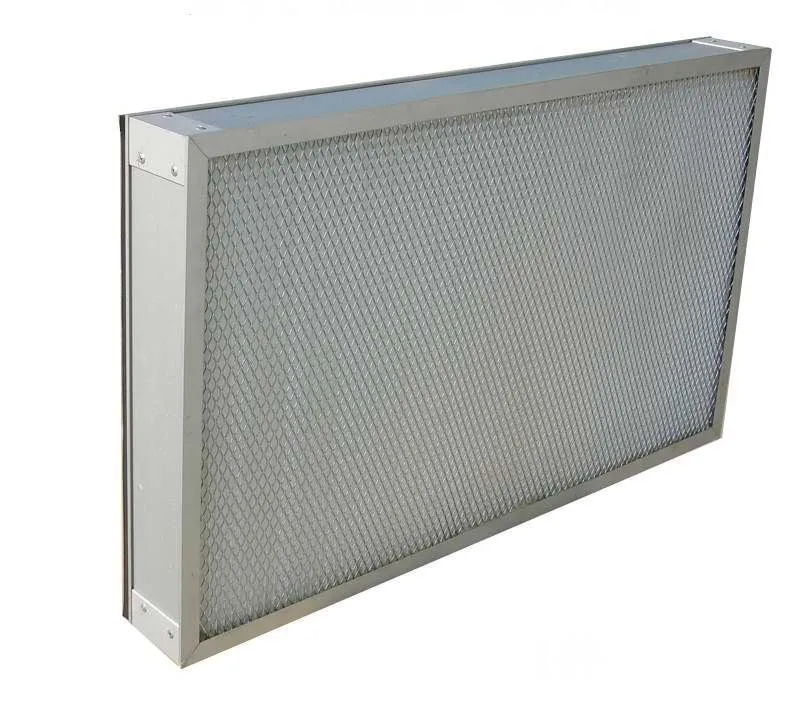

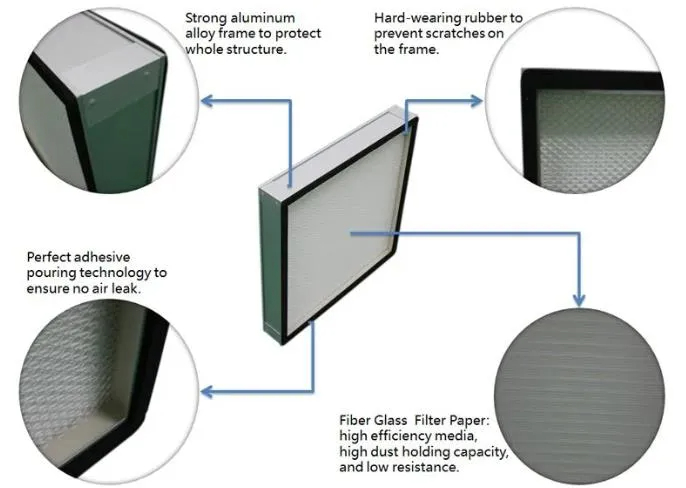

The HEPA air filter, devoid of a separator, is meticulously crafted from ultra-fine fiberglass, aluminum alloy, and hot melt glue. This specialized glue ensures precise intervals between each pleat of the filtration material, facilitating optimal airflow and maximizing dust holding capacity. The external aluminum frame is thoroughly sealed with an environmentally friendly resin or polyurethane, guaranteeing integrity. Additionally, protective screening can be incorporated at both the air inlet and outlet to shield the filtration material from potential damage.
Employing high-quality glass fiber for the filtration element, sealed with a unique concrete interface agent, ensures exceptional performance. With a filtration efficiency exceeding 99.99% for particles as small as 0.3 micrometers, this filter stands as a reliable choice for various applications requiring stringent air quality standards.
Technical Parameters
|
Type |
Size(mm)
|
Rated Airflow(m3/h) |
Filter HFea(m2) |
Dust Holding Capacity (g/m2) |
Initial Pressure Drop(Pa) |
Final Pressure Drop(Pa) |
Average arrestance |
|
HF-WGB
|
484x484x50 |
500 |
4.6 |
300 |
<220 |
400 |
>99.99% |
|
610x610x50 |
800 |
7.5 |
450 |
<220 |
400 |
>99.99% | |
|
305x305x69 |
260 |
2.5 |
150 |
<220 |
400 |
>99.99% | |
|
484x484x69 |
700 |
6.6 |
400 |
<220 |
400 |
>99.99% | |
|
610x610x69 |
1100 |
10.7 |
650 |
<220 |
400 |
>99.99% | |
|
915x610x69 |
1600 |
16 |
950 |
<220 |
400 |
>99.99% | |
|
610x610x90 |
1500 |
14.9 |
900 |
<220 |
400 |
>99.99% | |
|
1220x610x69 |
2200 |
21.3 |
1000 |
<220 |
400 |
>99.99% | |
|
915x610x90 |
2000 |
22.3 |
1200 |
<220 |
400 |
>99.99% | |
|
1220x610x90 |
2800 |
29.8 |
1800 |
<220 |
400 |
>99.99% |
Standard Model Options
| Item | Specification |
|---|---|
| Product Name | Customized Cleanroom Mini-Pleat HEPA Air Filter |
| Filter Type | Mini-Pleat HEPA Air Filter |
| Model | HF-WGB |
| Efficiency Grade | H13 / H14 |
| Average Efficiency | >99.99% |
| Filter Media | PP Filter Paper / Fiberglass / PP + PET Composite Media |
| Frame Material | Aluminum / Galvanized Steel / Customized Frame |
| Structure | Compact Mini-Pleat Panel Type |
| Initial Pressure Drop | <220 Pa |
| Recommended Final Pressure Drop | 400 Pa |
| Main Advantages | High Efficiency, Low Resistance, Large Air Volume, Lightweight |
| Applications | Cleanroom, HVAC, FFU, AHU, Industrial Purification Systems |
Applications
| Electronics & Semiconductor | Pharmaceutical Cleanrooms | Hospitals & Laboratories | Food & Precision Manufacturing |
|---|---|---|---|
| Terminal filtration for electronics assembly, chip production, optical equipment, and sensitive component manufacturing. | Final-stage air filtration for GMP production rooms, filling areas, laboratories, and sterile processing zones. | Clean air supply for operating rooms, isolation spaces, research laboratories, and controlled medical environments. | Fine-particle control for food processing, precision machinery, cosmetics, and other clean production facilities. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom filter width, height, and depth • H13 / H14 efficiency configurations • PP, fiberglass, or PP + PET composite media • Aluminum or galvanized steel frame • Custom gasket and sealing structure • Project-specific airflow and resistance • Special shapes and housing compatibility • OEM labels, packaging, and project samples |
• Dimension and frame inspection • Media surface and pleat-spacing inspection • Frame strength and assembly check • Gasket, sealant, and air-bypass inspection • Rated airflow and pressure-drop testing • Filtration efficiency testing upon request • Leakage or scan testing upon request • Final appearance and packaging inspection |
