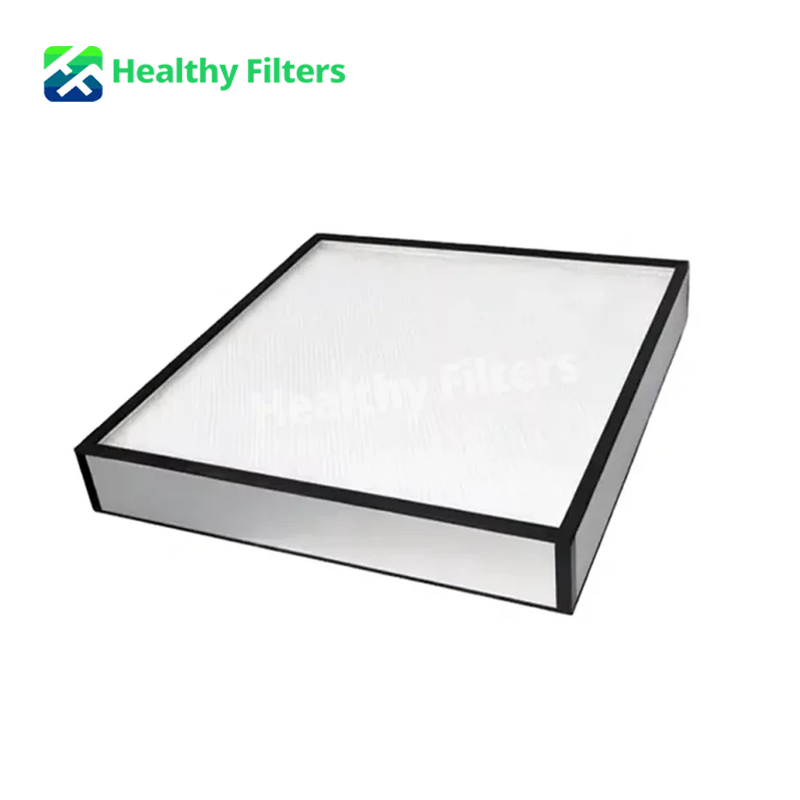

Custom Industrial HEPA H14 Pleated Air Filter FFU for Dust Collector or Electronic Factory
Custom Industrial HEPA H14 Pleated Air Filter FFU for Dust Collector or Electronic Factory
Features

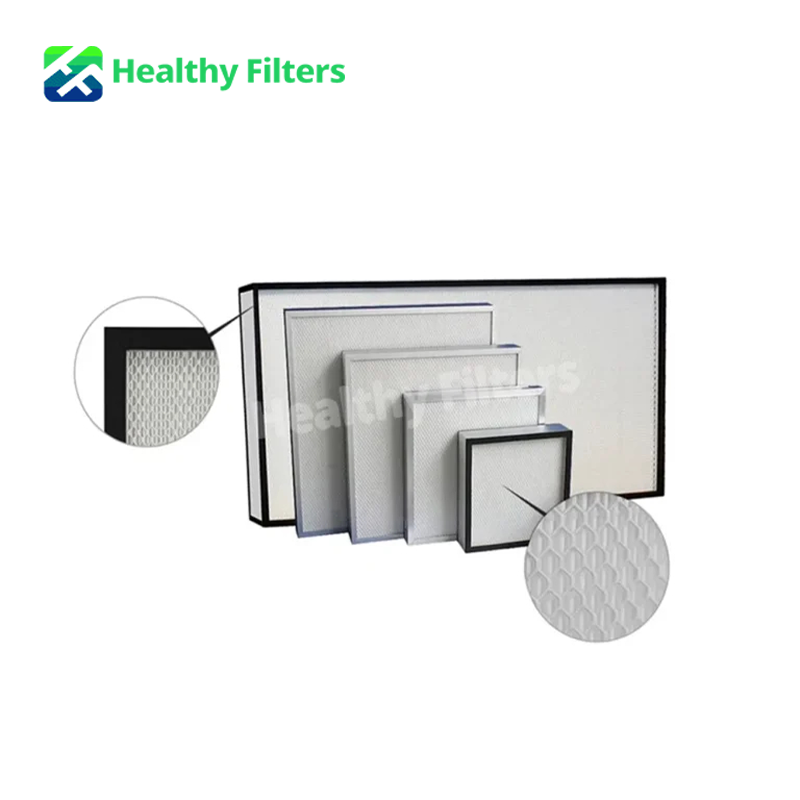

- Pleated Design: The pleated design increases the surface area of the filter, allowing for greater particle capture while maintaining airflow. Mini pleating maximizes the filter area within a compact space.
- Rigid Construction: Mini-pleated HEPA filters are typically constructed with a rigid frame made of materials such as aluminum or galvanized steel. This ensures durability and integrity under various operating conditions.

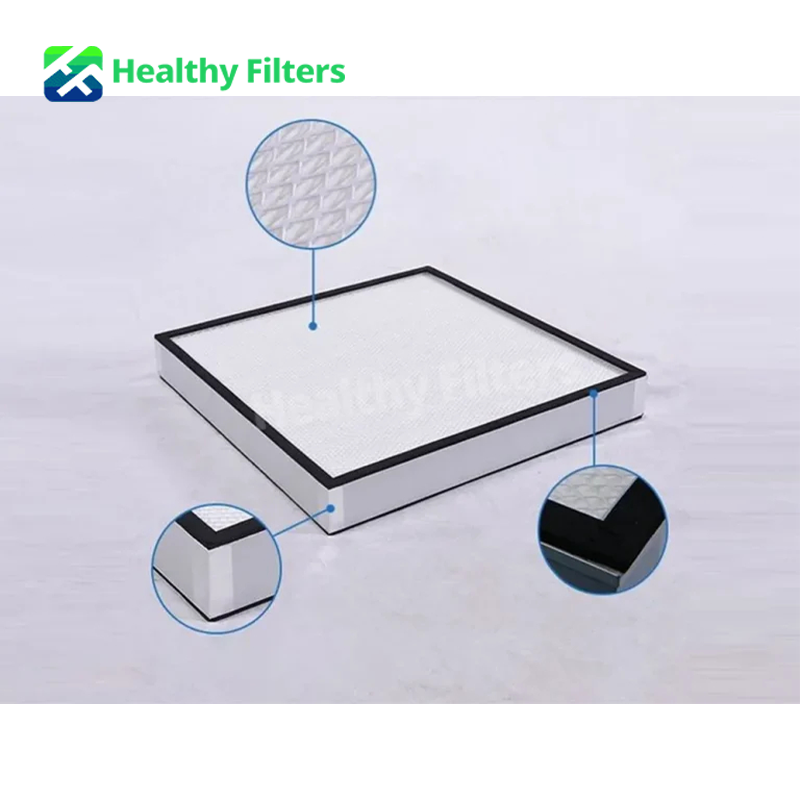

- Sealing: Proper sealing is essential to prevent bypass of unfiltered air. Mini pleated HEPA filters are equipped with gaskets or seals to ensure a tight fit and prevent leakage around the filter frame.
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description

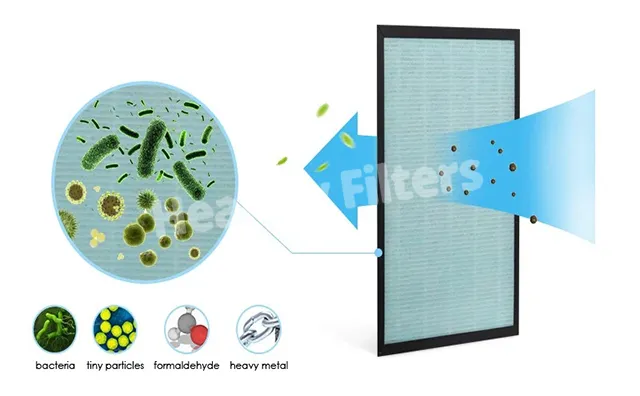

The Mini Pleated Cleanroom Panel is a specialized air filtration device for cleanroom environments. It utilizes advanced mini-pleat technology to enhance filter media area, thus improving filtration efficiency. This panel is lightweight, compact, and easy to install and maintain. It effectively removes airborne particles and ensures clean air quality in clean rooms. Additionally, it has a long service life and low operating costs, making it suitable for efficient cleanroom operations.
Recognizing the HEPA filter as a consumable component, replacement intervals typically range from 6 to 12 months, especially in areas affected by severe haze. Crafted from ultra-fine glass fiber filter paper and featuring protective plastic spray nets at the inlet and outlet, the purifier guarantees efficient performance.
The robust aluminum profile frame, resistant to high temperatures and corrosion, ensures durability and flexibility to meet customer needs. Additionally, polyurethane foam sealing tape ensures thorough sealing without any blind spots, mitigating the risk of leakage.
Technical Parameters
|
Type |
Size(mm)
|
Rated Airflow(m3/h) |
Filter HFea(m2) |
Dust Holding Capacity (g/m2) |
Initial Pressure Drop(Pa) |
Final Pressure Drop(Pa) |
Average arrestance |
|
HF-WGB
|
484x484x50 |
500 |
4.6 |
300 |
<220 |
400 |
>99.99% |
|
610x610x50 |
800 |
7.5 |
450 |
<220 |
400 |
>99.99% | |
|
305x305x69 |
260 |
2.5 |
150 |
<220 |
400 |
>99.99% | |
|
484x484x69 |
700 |
6.6 |
400 |
<220 |
400 |
>99.99% | |
|
610x610x69 |
1100 |
10.7 |
650 |
<220 |
400 |
>99.99% | |
|
915x610x69 |
1600 |
16 |
950 |
<220 |
400 |
>99.99% | |
|
610x610x90 |
1500 |
14.9 |
900 |
<220 |
400 |
>99.99% | |
|
1220x610x69 |
2200 |
21.3 |
1000 |
<220 |
400 |
>99.99% | |
|
915x610x90 |
2000 |
22.3 |
1200 |
<220 |
400 |
>99.99% | |
|
1220x610x90 |
2800 |
29.8 |
1800 |
<220 |
400 |
>99.99% |
Standard Model Options
| Item | Specification |
|---|---|
| Product Name | Industrial Mini-Pleated HEPA Air Filter |
| Filter Type | Compact Mini-Pleated HEPA / ULPA Filter |
| Model | HF-WGB |
| Efficiency Grade | H14–U16 |
| Filter Media | Fiberglass |
| Frame Material | Aluminum or Galvanized Steel |
| Structure | Mini-Pleated Panel Type |
| Initial Pressure Drop | <220 Pa |
| Recommended Final Pressure Drop | 400 Pa |
| Average Filtration Efficiency | >99.99% |
| Main Advantages | Lightweight, High Efficiency, High Dust-Holding Capacity |
| Application System | FFU, Cleanroom, AHU, Industrial Ventilation and Dust Collection |
Applications
| FFU & Cleanroom Ceilings | Electronics Manufacturing | Pharmaceutical & Healthcare | Industrial Ventilation |
|---|---|---|---|
| Terminal filtration for fan filter units, ceiling modules, and controlled cleanroom areas. | Fine-particle control for semiconductor, electronics, precision assembly, and component production. | Clean air filtration for production rooms, laboratories, hospitals, and controlled medical spaces. | Final-stage filtration for AHUs, dust collection equipment, and industrial air-conditioning systems. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom filter width, height, and depth • H14 / U15 / U16 efficiency options • Fiberglass media configuration • Aluminum or galvanized steel frame • Gasket and sealing configuration • Airflow and pressure-drop requirements • FFU and cleanroom ceiling compatibility • OEM labels, packaging, and project samples |
• Dimension and frame inspection • Media surface and pleat-spacing inspection • Gasket, seal, and assembly check • Airflow and pressure-drop testing • Filtration efficiency testing upon request • Leakage or scan testing upon request • Final appearance and packaging inspection |

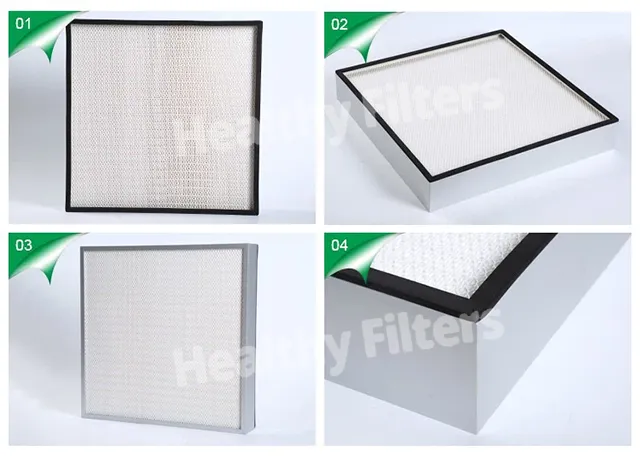

PRODUCT DETAILS
 |
 |
