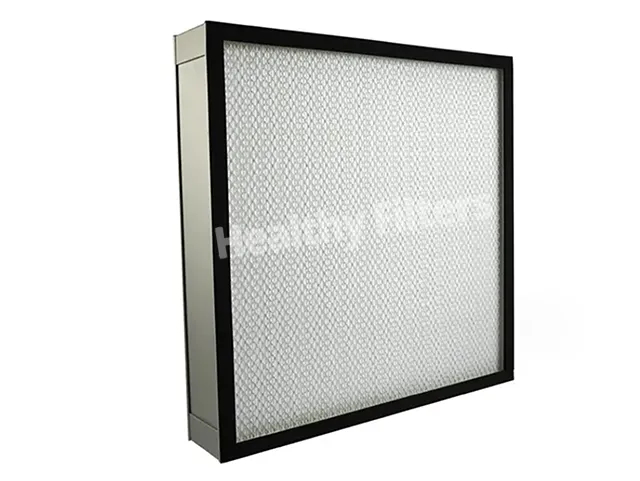

Aluminum Frame Air Filter HVAC Industry Mini-Pleat HEPA Filter
Aluminum Frame Air Filter HVAC Industry Mini-Pleat HEPA Filter
Features
Primarily utilized in ventilation systems, these filters effectively trap particles, dust, bacteria, and more. They boast a long lifespan and dependable performance, making them ideal for industrial air filtration. Additionally, they offer energy-saving features and come at an affordable price for commercial air filtration needs.
- High Efficiency: HEPA filters are highly efficient at capturing particles as small as 0.3 microns with an efficiency rating of 99.97% or higher. This means they can trap a high percentage of airborne contaminants.
- Pleated Design: The pleated design of these filters increases the surface area available for filtration, allowing for more efficient particle capture without significantly impeding airflow.
- Low Resistance: Despite their high efficiency, mini pleated HEPA filters are designed to maintain low airflow resistance, allowing for efficient air circulation without putting too much strain on the HVAC system or air purifier.
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description

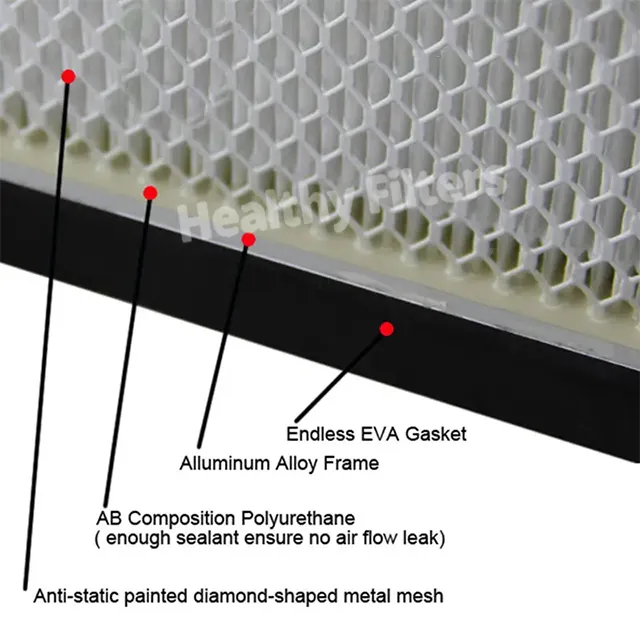

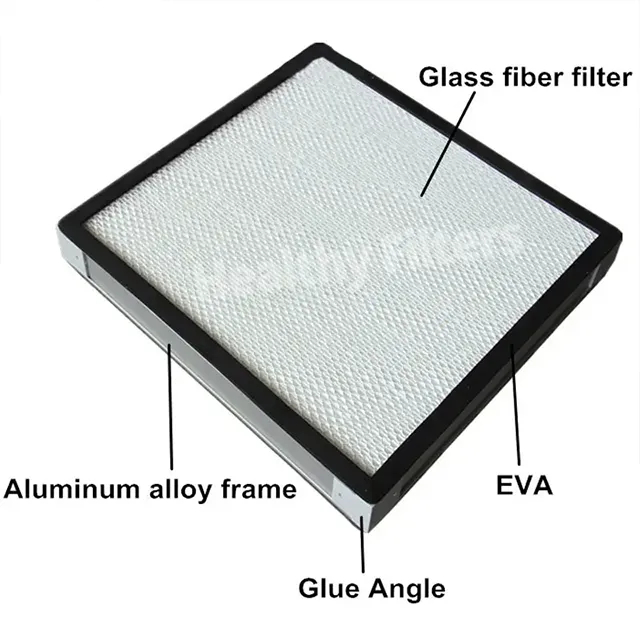

The HEPA air filter, devoid of a separator, is meticulously crafted from ultra-fine fiberglass, aluminum alloy, and hot melt glue. This specialized glue ensures precise intervals between each pleat of the filtration material, facilitating optimal airflow and maximizing dust holding capacity. The external aluminum frame is thoroughly sealed with an environmentally friendly resin or polyurethane, guaranteeing integrity. Additionally, protective screening can be incorporated at both the air inlet and outlet to shield the filtration material from potential damage.
The high-efficiency air filter without separator features a compact design with a large filtration area, ensuring low resistance and high efficiency. This filter employs hot melt glue to separate the filtration material, ensuring stronger performance and durability. Moreover, protective screening can be seamlessly integrated at the inlet and outlet to safeguard the filtration paper from potential damage, further enhancing the longevity and reliability of the filter.
Technical Parameters
| Type | Size(mm) | Rated Airflow(m3/h) | Filter HFea(m2) | Dust Holding Capacity (g/m2) | Initial Pressure Drop(Pa) | Final Pressure Drop(Pa) | Average arrestance |
| HF-WGB | 484x484x50 | 500 | 4.6 | 300 | <220 | 400 | >99.99% |
| 610x610x50 | 800 | 7.5 | 450 | <220 | 400 | >99.99% | |
| 305x305x69 | 260 | 2.5 | 150 | <220 | 400 | >99.99% | |
| 484x484x69 | 700 | 6.6 | 400 | <220 | 400 | >99.99% | |
| 610x610x69 | 1100 | 10.7 | 650 | <220 | 400 | >99.99% | |
| 915x610x69 | 1600 | 16 | 950 | <220 | 400 | >99.99% | |
| 610x610x90 | 1500 | 14.9 | 900 | <220 | 400 | >99.99% | |
| 1220x610x69 | 2200 | 21.3 | 1000 | <220 | 400 | >99.99% | |
| 915x610x90 | 2000 | 22.3 | 1200 | <220 | 400 | >99.99% | |
| 1220x610x90 | 2800 | 29.8 | 1800 | <220 | 400 | >99.99% |
Standard Model Options
| Item | Specification |
|---|---|
| Product Name | Aluminum Frame Mini-Pleat HEPA Filter |
| Filter Type | Mini-Pleat HEPA Air Filter |
| Model | HF-WGB |
| Filter Media | Fiberglass |
| Frame Material | Aluminum or Galvanized Steel |
| Structure | Compact Mini-Pleat Panel Type |
| Average Filtration Efficiency | >99.99% |
| Particle Size Reference | Down to 0.3 μm |
| Initial Pressure Drop | <220 Pa |
| Recommended Final Pressure Drop | 400 Pa |
| Main Advantages | High Efficiency, Low Resistance, Lightweight, Long Service Life |
| Application System | HVAC, Cleanroom, Purification Equipment, Industrial Ventilation |
Applications
| Cleanroom Terminal Filtration | Electronics & Semiconductor | Pharmaceutical Production | Precision Manufacturing |
|---|---|---|---|
| Final-stage air filtration for cleanroom ceilings, purification units, and controlled production areas. | Fine-particle control for semiconductor, electronics, optical, and component manufacturing. | Clean air filtration for pharmaceutical production rooms, laboratories, and packaging areas. | Air purification for precision machinery, cosmetics manufacturing, and other sensitive processes. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom width, height, and depth • Project-specific filtration efficiency • Fiberglass media configuration • Aluminum or galvanized steel frame • Gasket and sealing options • Airflow and pressure-drop requirements • Cleanroom and HVAC housing compatibility • OEM labels, packaging, and project samples |
• Dimension and frame inspection • Media surface and pleat-spacing inspection • Frame strength and assembly check • Gasket and sealing inspection • Rated airflow and pressure-drop testing • Filtration efficiency test upon request • Leakage test upon request • Final appearance and packaging inspection |
