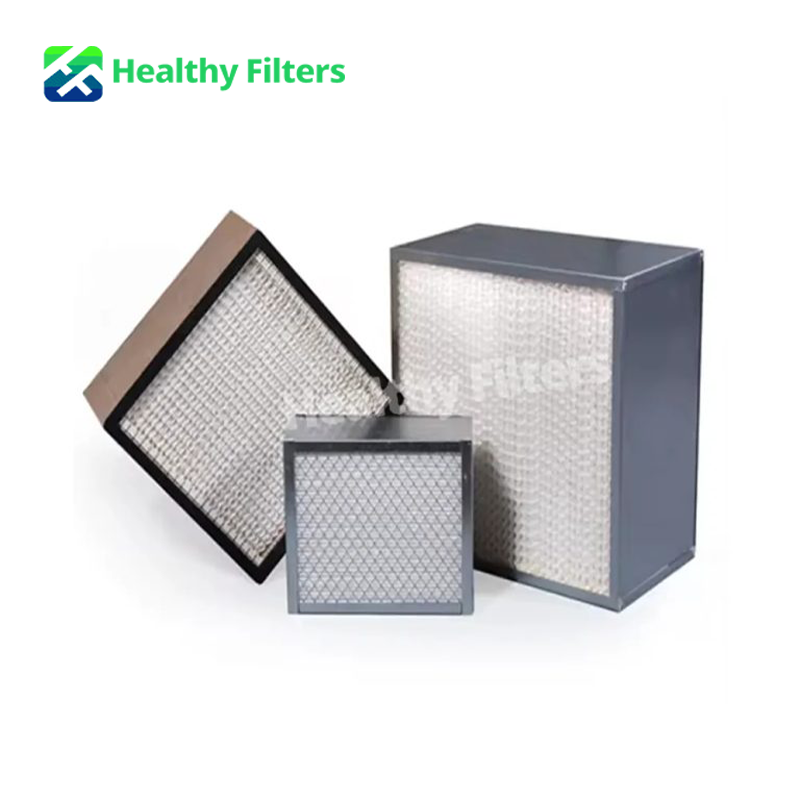

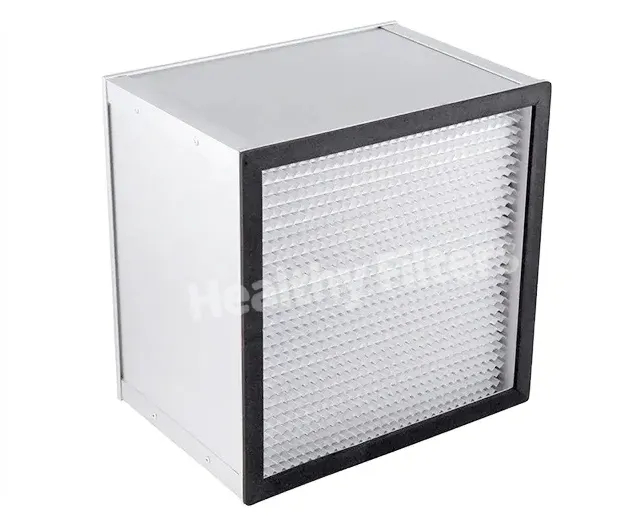

High Efficiency Industrial HVAC H13 Filtering 0.3 Microns Deep Pleated Fiberglass Hepa Filter
High Efficiency Industrial HVAC H13 Filtering 0.3 Microns Deep Pleated Fiberglass Hepa Filter
Features
Deep pleated HEPA filters are highly efficient in capturing particles as small as 0.3 microns with a minimum efficiency of 99.97%. This includes a wide range of particulate matter such as dust, pollen, mold spores, bacteria, and viruses.

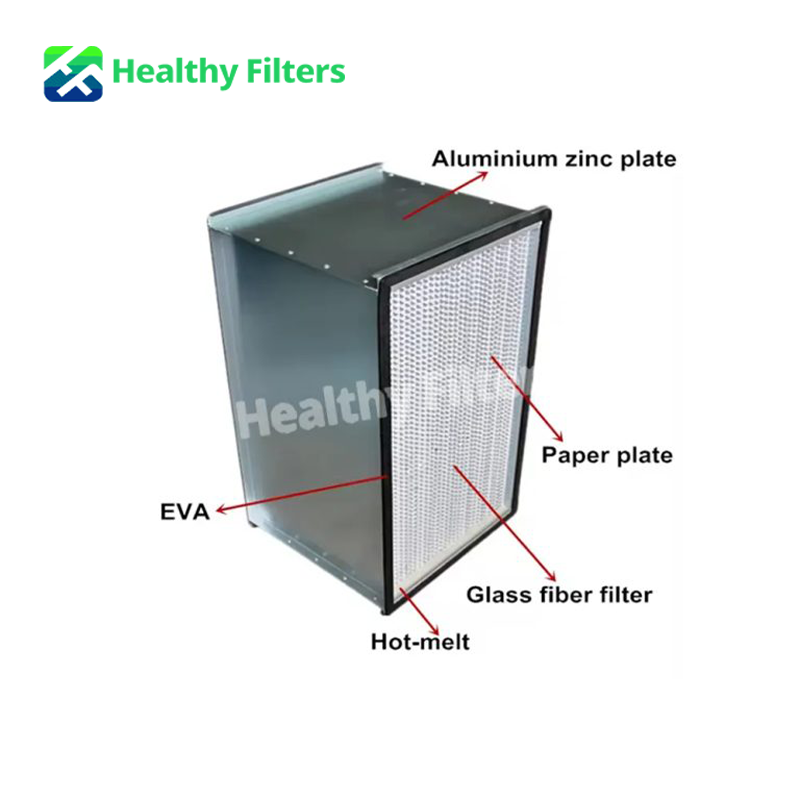

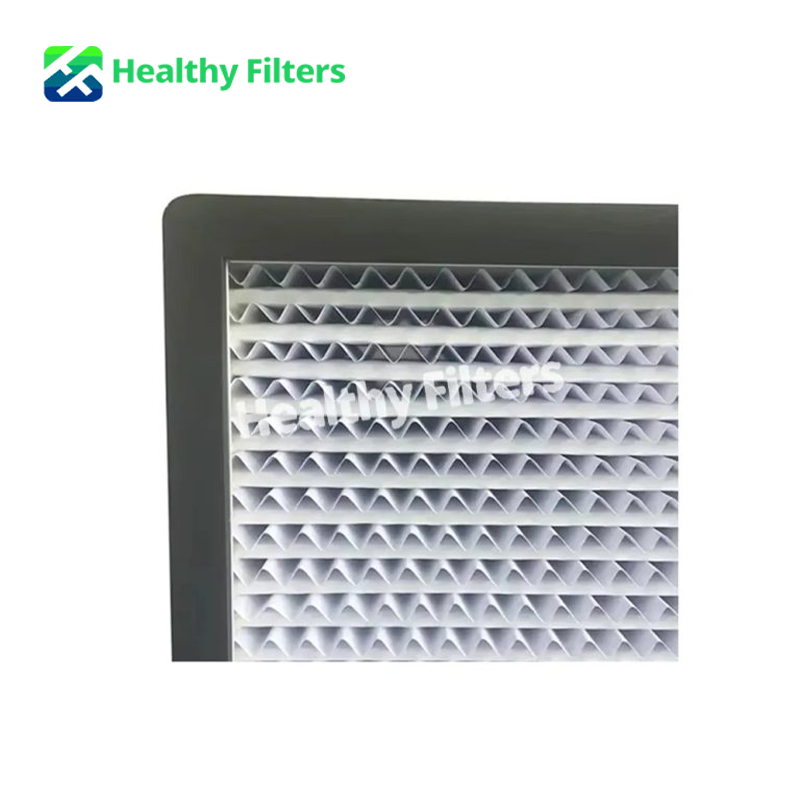

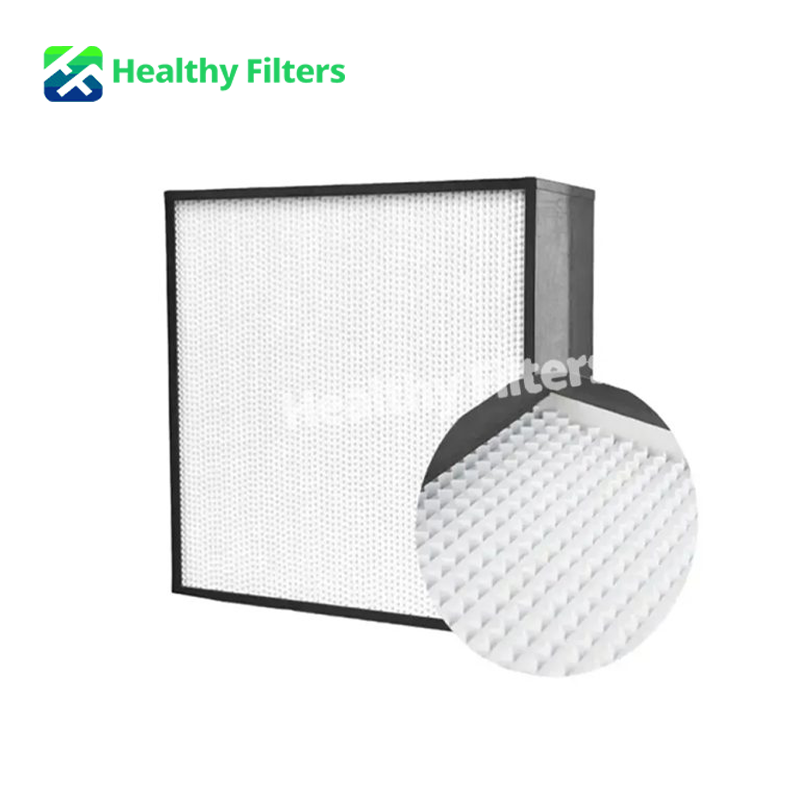

- The filter media used in deep pleated HEPA filters is typically composed of ultra-fine glass fibers arranged in a dense mat. This media is folded into deep pleats, which increases the filtration surface area while maintaining a compact form factor.
- Deep pleated HEPA filters feature a rigid frame typically constructed from materials such as aluminum or galvanized steel. This frame provides structural support and ensures the integrity of the filter during operation.
- Despite their high filtration efficiency, deep pleated HEPA filters are designed to maintain a low pressure drop. This means they allow air to pass through with minimal resistance, ensuring efficient airflow within the air handling system.
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description
High Capacity HEPA filters are specifically designed to be used in applications with higher air flow rates, up to 500 FPM. These filters provide several operational and cost benefits. The increased capacity of these filters is achieved by incorporating 50% more media compared to standard capacity HEPAs. The height of the corrugated separators is reduced, allowing for more pleats and more media to be contained within the filter.

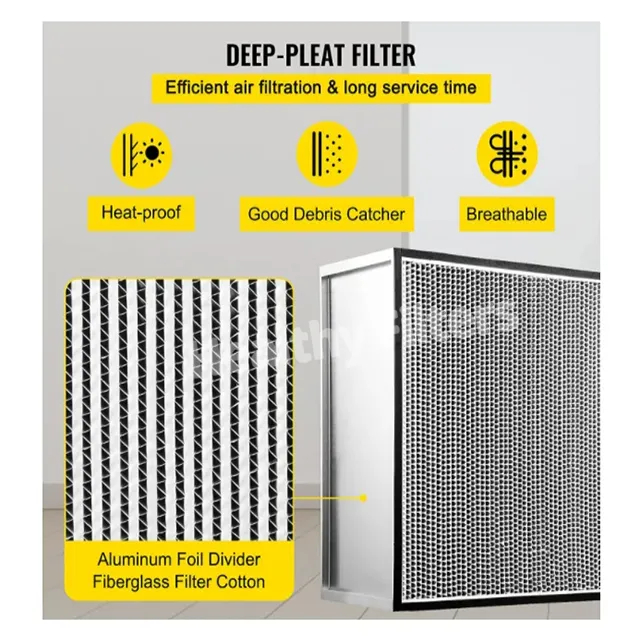

Deep pleated HEPA filters outperform traditional separator-pleated HEPA filters in terms of airflow, initial resistance, and dust-holding capacity. The concentrated pleat design extends service life and reduces pressure drop. Deep pleated HEPA filters are ideal for clean rooms, workstations, and bench FFUs.
Technical Parameters
| Item | Deep Pleated Hepa Filter |
| Media | Fiberglass Paper |
| Instantaneous temperature resistance | ≤120℃ |
| Filtration efficiency: | H10-U16 |
| Size: | Custtomized |
| Frame | Aluminum or Galvanized |
Standard Model Options
| Item | Specification |
|---|---|
| Product Name | Deep Pleated Fiberglass HEPA Air Filter |
| Filter Type | Deep-Pleated HEPA / ULPA Air Filter |
| Model | HF-DPH |
| Filter Media | Fiberglass Paper |
| Efficiency Grade | H10–U16 |
| Frame Material | Aluminum or Galvanized Steel |
| Structure | Deep-Pleated Panel Type |
| Size | Customized |
| Instantaneous Temperature Resistance | ≤120°C |
| Main Function | Fine-Particle Filtration and Final Air Purification |
| Main Advantages | High Airflow, High Dust-Holding Capacity, Low Resistance |
| Application System | HVAC, AHU, Cleanroom and Industrial Purification Systems |
Applications
| Hospitals & Medical Facilities | Pharmaceutical Cleanrooms | Industrial HVAC Systems | Sensitive Manufacturing |
|---|---|---|---|
| Final air filtration for operating rooms, isolation rooms, laboratories, and controlled medical areas. | High-efficiency particle control for sterile production, filling, and packaging environments. | Terminal filtration for AHUs, ventilation systems, and industrial air-purification equipment. | Clean air supply for electronics, precision machinery, food processing, and other controlled production areas. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom filter width, height, and depth • H10 / H11 / H12 / H13 / H14 / U15 / U16 grades • Fiberglass media configuration • Aluminum or galvanized steel frame • Project-specific airflow and resistance • Gasket and sealing options • OEM labels, packaging, and project samples |
• Dimension and frame inspection • Media surface and pleat-spacing inspection • Frame strength and assembly check • Sealant and gasket inspection • Airflow and pressure-drop testing • Filtration efficiency testing upon request • Leakage testing upon request • Final appearance and packaging inspection |
