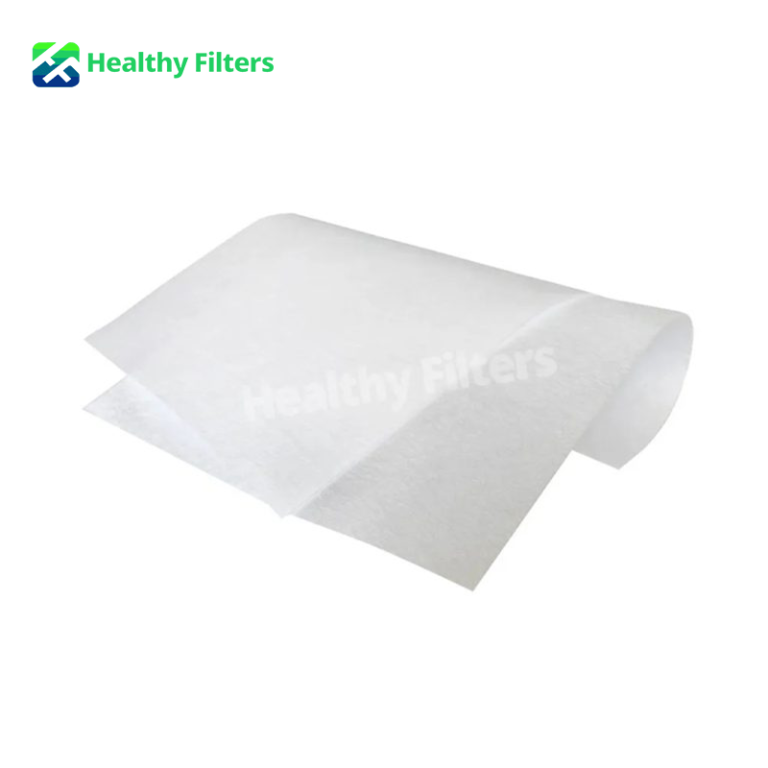

H13 H14 Fiberglass PP Material Fiber Media Mini Pleat HEPA Filter Paper Roll Media Pack
H13 H14 Fiberglass PP Material Fiber Media Mini Pleat HEPA Filter Paper Roll Media Pack
Features
- Melt-blown PP + PET composite filter media

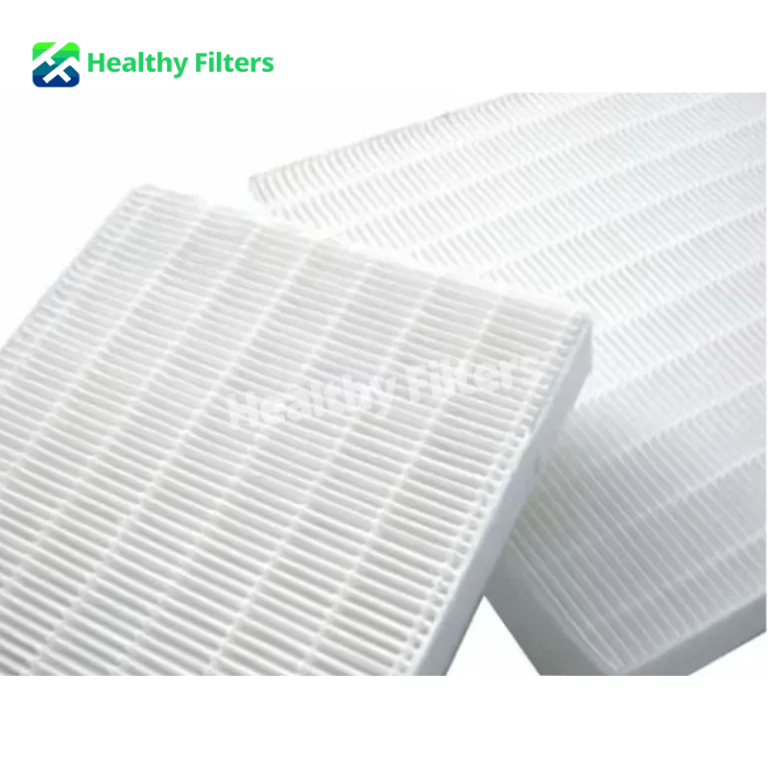

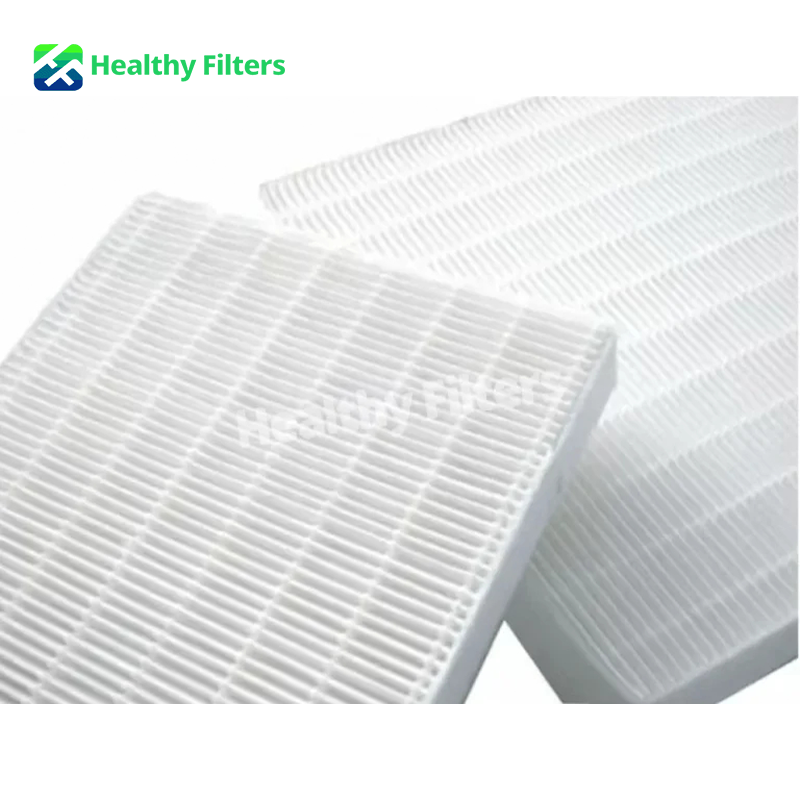

- Suitable for mini-pleat HEPA filter production
- H11, H12, and H13 standard media options
- Higher-efficiency media available upon technical confirmation
- High longitudinal and transverse tensile strength
- Low airflow resistance
- High particle filtration efficiency
- Smooth and uniform media surface
- Acid-resistant, non-toxic, and non-radioactive material
- Good air permeability
- Consistent color and material performance
- Precision roll slitting for stable downstream processing
- Suitable for pleating, cutting, bonding, and filter assembly
- Custom roll width, length, weight, and efficiency available
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.

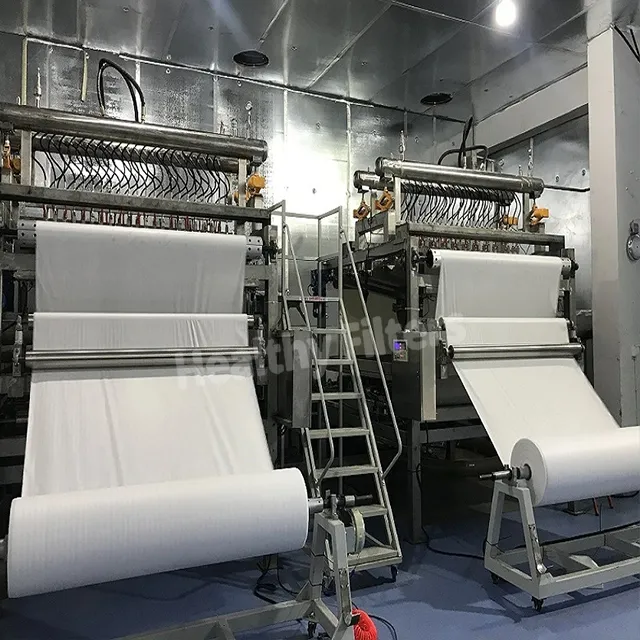

Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description
The filter material is made of waterproof ultra-fine glass fiber filter paper or PP high-efficiency filter paper. Special hot melt adhesive separators ensure optimal airflow. The filter features a large dust holding capacity, a large filtration area, and a high air volume with low resistance. It provides high efficiency and can withstand humidity up to 100%. Additionally, it offers a long lifespan, is lightweight, compact, and easy to install.
High strength with minimal difference between longitudinal and transverse directions
● Acid-resistant, non-toxic, non-radiative, and harmless to human physiology
● Excellent breathability
● Master batch dyeing ensures the color never fades
● Media: Melt-Blown Non-Woven PP+PET
● Smooth, bright color, roll slitting for ease of use and consistent quality
Technical Parameters
| Application | Model | Resistance
(Pa) |
0.3μm Efficiency
PFE(%) |
Weight
(g/㎡) |
| Facemask | PFE95 | ≦20 | ≧80 | 25±1 |
| PFE99 | ≦25 | ≧95 | 25±1 | |
| Air Purifer Filter | H11 | ≦10 | ≧95 | 20±1 |
| H12 | ≦19 | ≧99.5 | 20±1 | |
| H13 | ≦28 | ≧99.97 | 30±1 |
Standard Model Options
| Item | Specification |
|---|---|

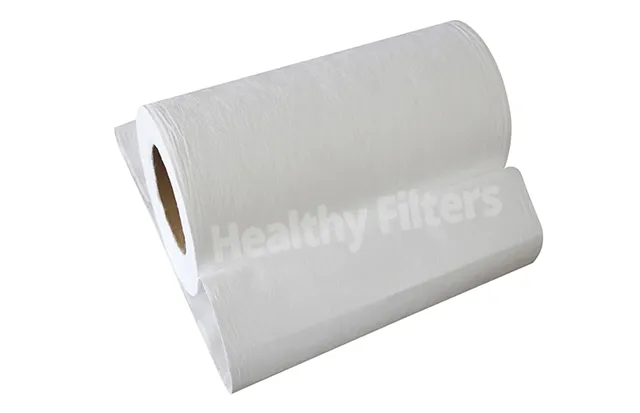

| Product Name | HEPA Filter Media Roll |
| Product Type | Mini-Pleat Filter Paper / Air Filter Raw Material |
| Model Series | HF-HM |
| Filter Material | Melt-Blown Non-Woven PP + PET |
| Standard Efficiency Options | H11 / H12 / H13 |
| Custom Efficiency | H14 or Other Grades Subject to Confirmation |
| Reference Particle Size | 0.3 μm |

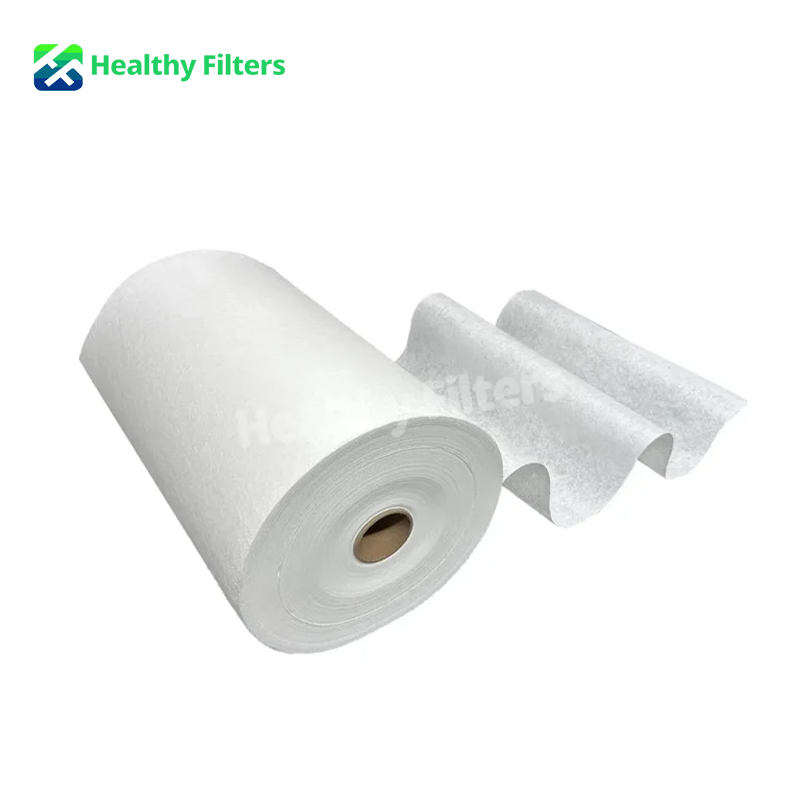

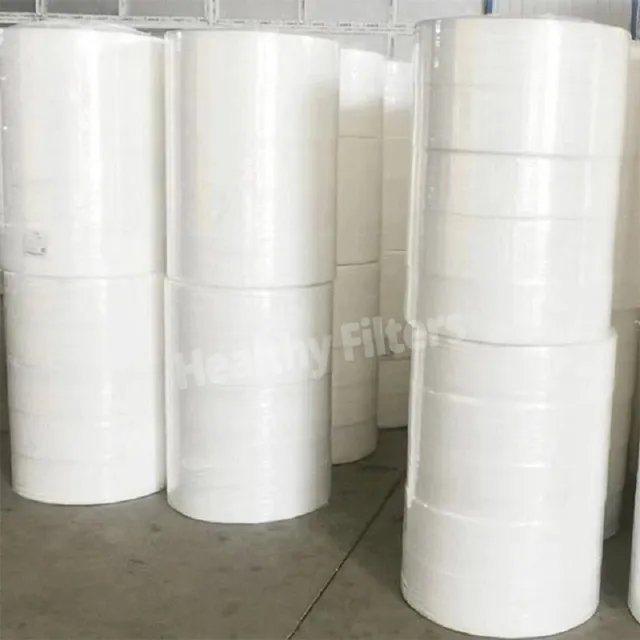

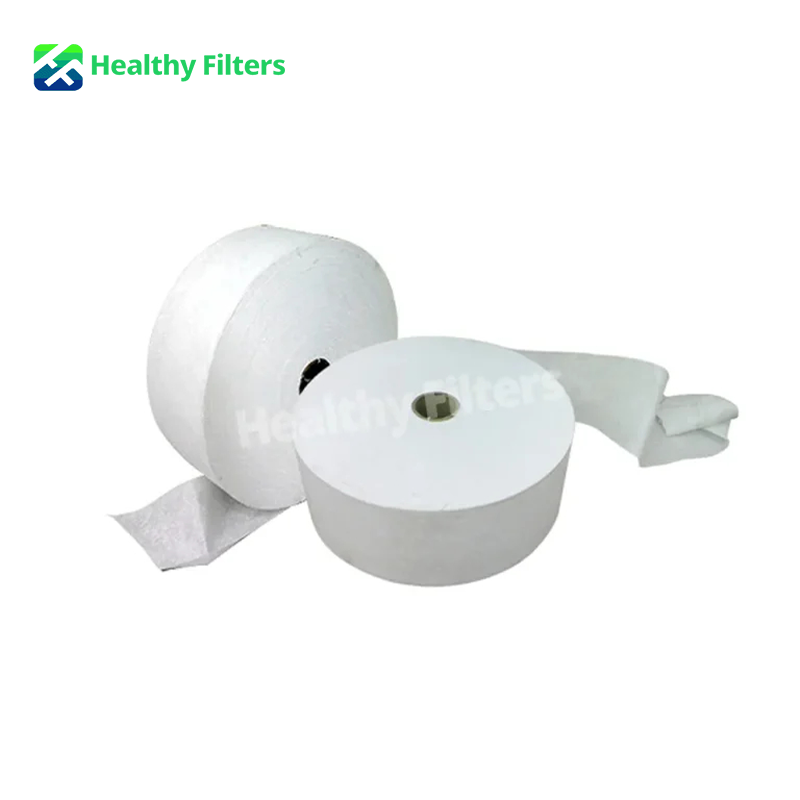

| Supply Form | Roll Media |
| Media Color | White |

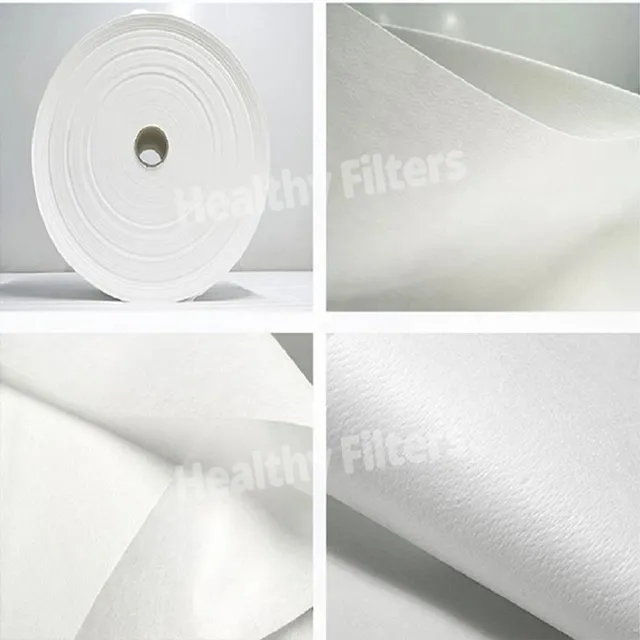

| Surface | Smooth and Uniform |

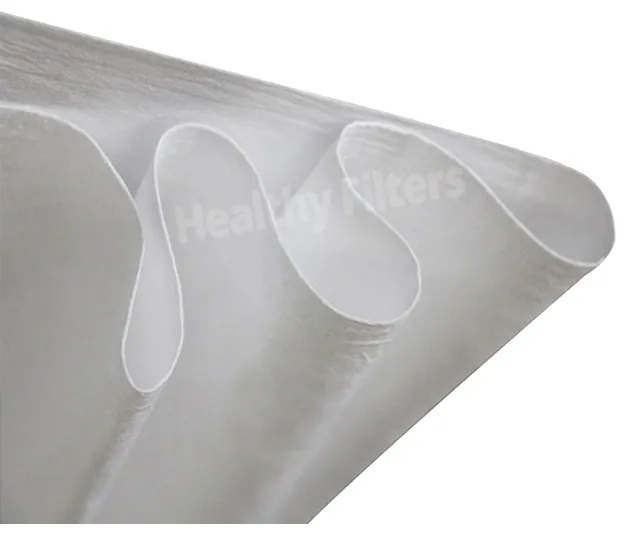

| Processing Methods | Pleating, Slitting, Cutting, Bonding |
| Main Advantages | High Efficiency, Low Resistance, High Strength |
| Intended Use | Air Purifier, FFU, HEPA Filter and Cleanroom Filter Production |
Applications
| Air Purifier Manufacturing | FFU & Cleanroom Filters | HVAC Terminal Filtration | Industrial Filter Production |
|---|---|---|---|
| Raw media for household, commercial, and portable high-efficiency air purifier filters. | Used to manufacture mini-pleat filter packs for FFUs, ceiling modules, and cleanroom terminal filters. | Suitable for final or high-efficiency filtration in AHUs, central air-conditioning systems, and air supply terminals. | Used in electronics, optics, semiconductor, pharmaceutical, automotive, coating, and precision manufacturing filter production. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom roll width and roll length • H11 / H12 / H13 efficiency options • Customized H14 media subject to testing • Custom media weight and thickness • PP and PET fiber ratio customization • Project-specific airflow resistance • Custom slitting and roll-core dimensions • OEM labels, private branding, and export packaging |
• Raw PP and PET material verification • Roll width, length, and weight inspection • Media thickness and basis-weight testing • Surface uniformity and defect inspection • Longitudinal and transverse strength testing • Airflow-resistance testing • PFE and efficiency testing upon request • Roll winding and packaging inspection before shipment |
