Laminated Mesh Air Filter Media Roll G3 G4 Class Metal Mesh Filter Media With Mesh
Laminated Mesh Air Filter Media Roll G3 G4 Class Metal Mesh Filter Media With Mesh
Features
- Reinforced synthetic filter media with laminated support mesh
- MERV 8, MERV 11, MERV 13, and MERV 14 options
- Low airflow resistance
- Large effective filtration area after pleating
- High dust-holding capacity
- Break-resistant PET synthetic fibers
- Stable three-dimensional non-woven structure
- Good rigidity and dimensional stability
- Excellent elastic recovery
- Minimal fiber shedding
- Resistant to corrosion and deformation
- Temperature resistance up to 80°C
- Suitable for pleating, cutting, bonding, and thermal processing

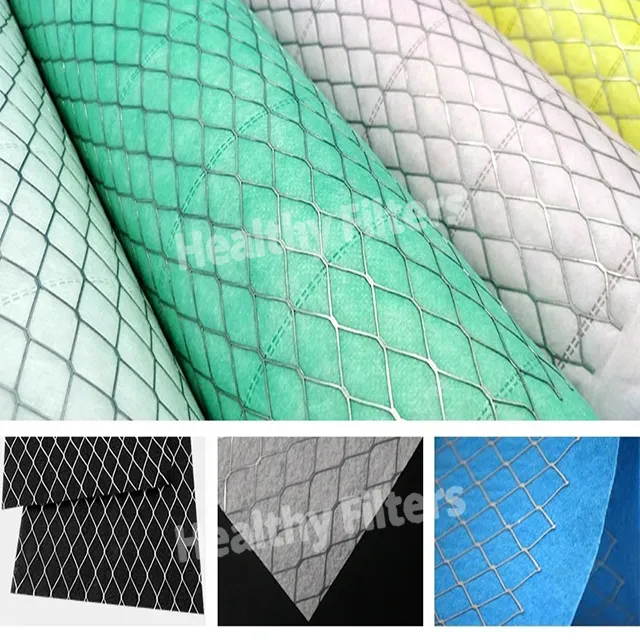

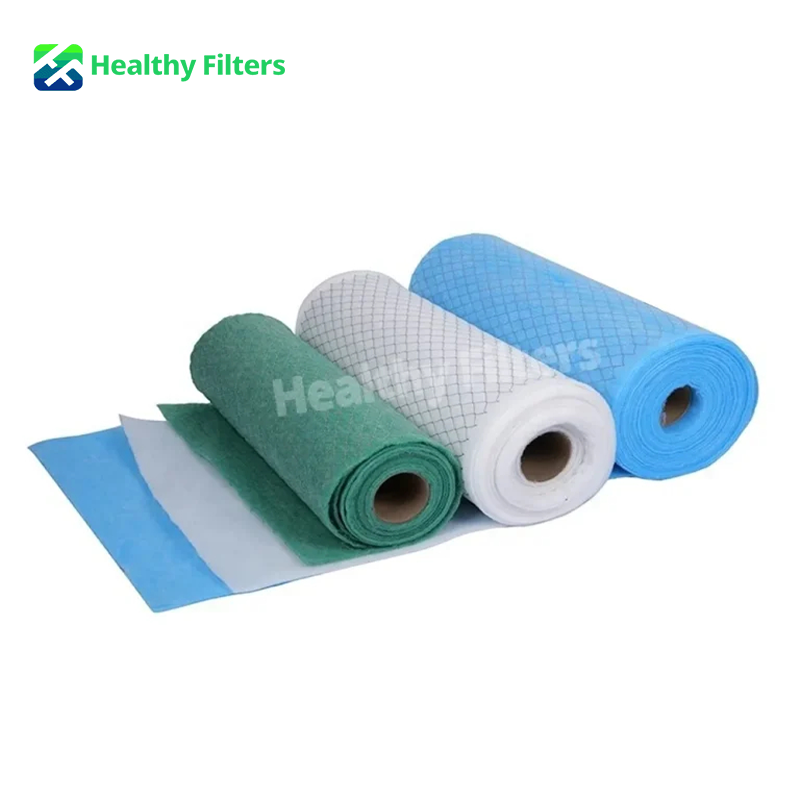

- Custom colors, dimensions, and performance specifications available
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description

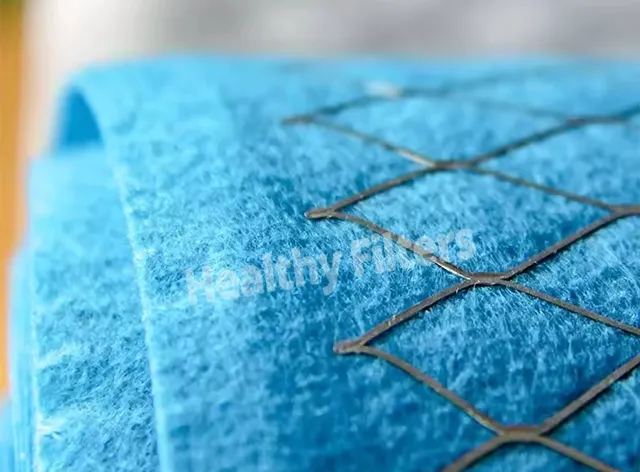

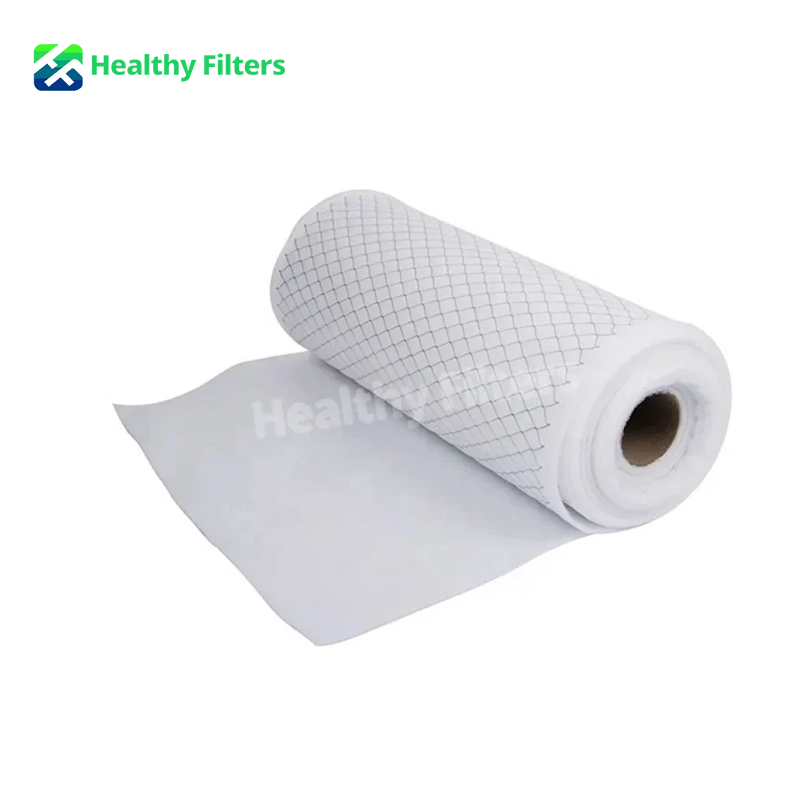

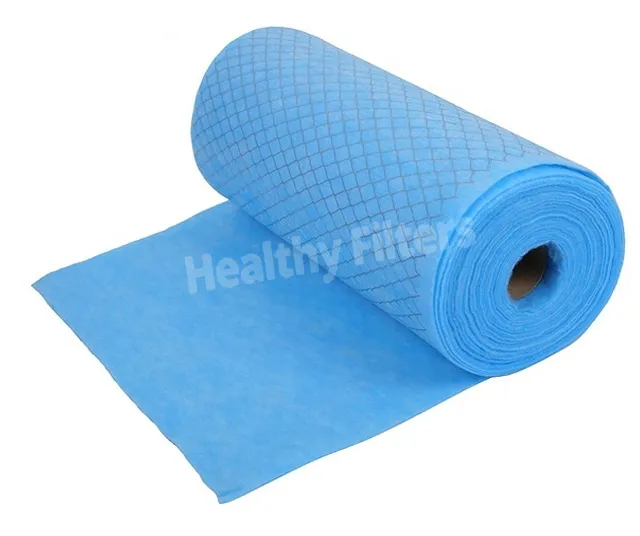

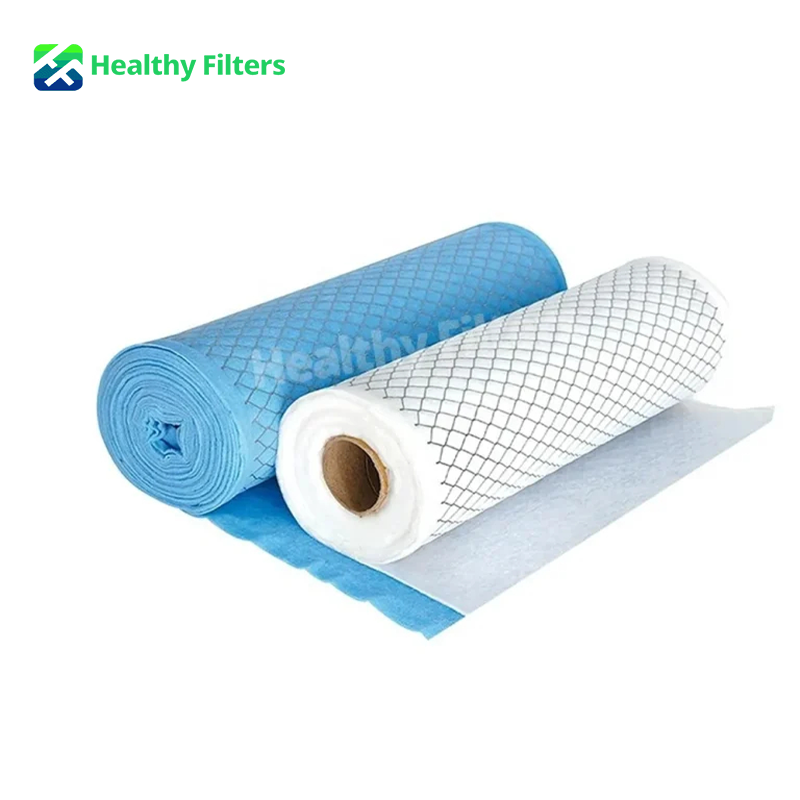

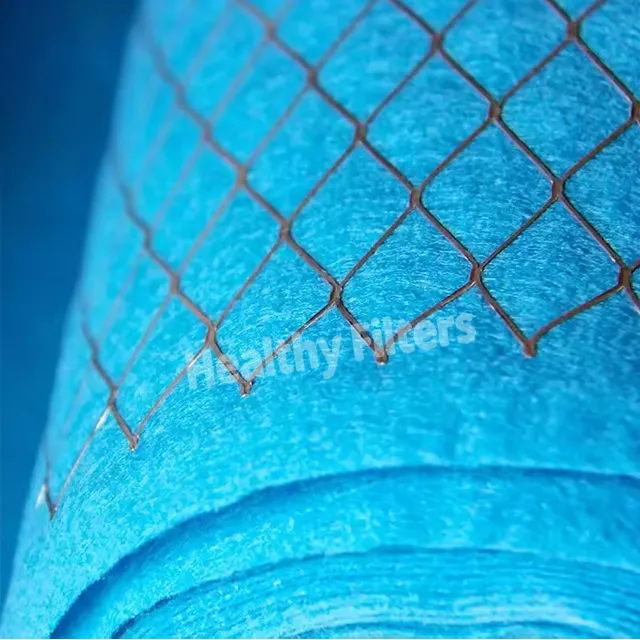

Laminated air filter media rolls, classified as G3 and G4, are crafted from durable, non-breakable synthetic fibers reinforced with a mesh layer. This design enhances the media’s stiffness and structural integrity, making it ideal for high-pollution environments. The reinforced structure ensures superior filtration efficiency and a longer filter life, reducing the need for frequent changes and lowering overall costs. These attributes make the media perfect for pre-filters or primary filters in HVAC systems, providing a reliable solution for maintaining clean and healthy air.
● Large Filtration area
● High dust ohlding capacity
● Grade: G3, G4, M5, M6, F7, F8, F9
● Synthetic fibers
● Frame Options: Cardboard, aluminum and galvanized steel
● Heat resistance: 80℃
Technical Parameters
| Model | Filter Grade | Filter Efficiency | Resistance (Pa) | Thickness | Filter Media Weight (g/㎡) |
| HF-M8 | MERV 8 | 40-45% | 4 | 1.5mm | 110gsm |
| HF-M11 | MERV 11 | 60-65% | 4 | 2mm | 95gsm |
| HF-M13 | MERV 13 | 85-90% | 5 | 2mm | 95gsm |
| HF-M14 | MERV 14 | 90-95% | 6 | 2.5mm | 135gsm |
Standard Model Options
| Item | Specification |
|---|---|
| Product Name | Laminated Mesh Synthetic Air Filter Media Roll |
| Product Type | Reinforced Synthetic Filter Media |
| Model Series | HF-M |
| Filter Grades | MERV 8 / MERV 11 / MERV 13 / MERV 14 |
| Filter Material | PET Synthetic Fiber |
| Reinforcement | Laminated Support Mesh |
| Structure | Non-Woven Three-Dimensional Fiber Structure |
| Supply Form | Roll Material |
| Standard Thickness | 1.5–2.5 mm |
| Media Weight | 95–135 g/m² |
| Resistance | 4–6 Pa |
| Temperature Resistance | Up to 80°C |
| Processing | Pleating, Cutting, Bonding, Thermal Bonding |
| Intended Use | Panel Filters, Pleated Filters, HVAC Filter Manufacturing |
Applications
| Pleated Panel Filter Production | Commercial HVAC Systems | Industrial Ventilation | Air Purification Equipment |
|---|---|---|---|

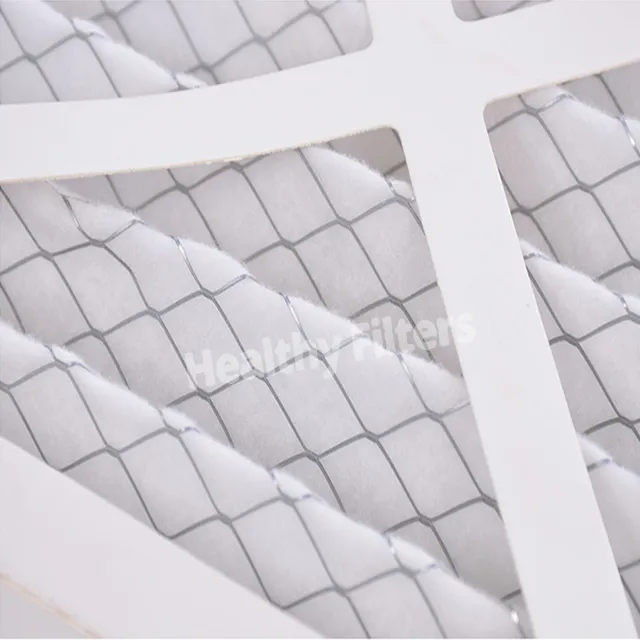

| Raw material for manufacturing cardboard-, aluminum-, plastic-, and galvanized-frame pleated filters. | Used in central air-conditioning systems, AHUs, offices, hotels, shopping malls, and public buildings. | Suitable for factories, workshops, warehouses, machinery rooms, and general industrial air filtration. | Used in air purifiers, fan coil units, ventilation equipment, and replacement filter production. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom roll width and length • MERV 8 / 11 / 13 / 14 efficiency options • Custom thickness and media weight • PET fiber density customization • Support mesh material and pattern options • Custom media color • Resistance and efficiency requirements • OEM roll labels, packaging, and private branding |
• Raw fiber and mesh material verification • Roll width, length, and thickness inspection • Media weight and density testing • Mesh lamination and bonding inspection • Surface uniformity and fiber-shedding check • Airflow resistance testing • Filtration efficiency testing upon request • Roll winding and packaging inspection before shipment |
