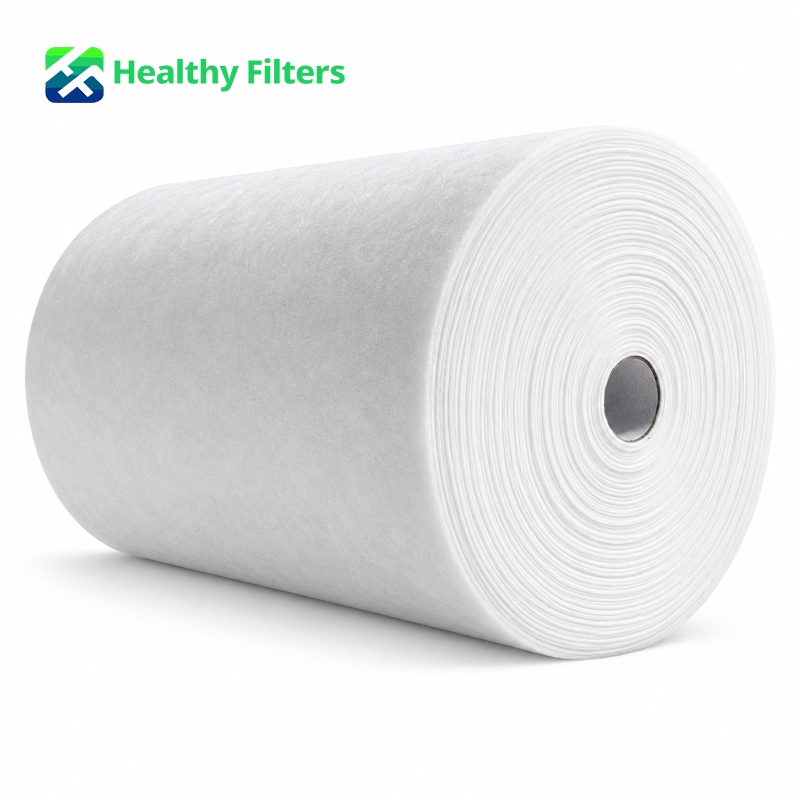

PP+PET Electrostatic Filter Media
PP+PET Electrostatic Filter Media
Features
PP+PET Electrostatic Filter Media combines electrostatically charged PP fibers with protective and PET backing layers for particulate air filtration.
The composite design supports particle capture with low initial airflow resistance, making it suitable for ventilation systems, air purifiers, automotive cabin filters and other OEM filtration applications.
Material grades and configurations can be selected to match filtration efficiency, pressure drop and converting requirements.Features & Advantages
- Electrostatic Particle Capture: Charged fibers enhance particle capture.
- Low Initial Resistance: Published reference grades show low pressure drop under defined test conditions.
- PET Backing Support: Composite construction with a dedicated supporting layer.
- Flexible OEM Formats: Roll supply with customizable carrier construction.
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Features & Advantages
- Electrostatic Filtration: Charged PP fibers enhance airborne particle capture.
- Low Airflow Resistance: Designed to support efficient filtration with low initial pressure drop.
- PET Backing Support: Composite construction improves material support and handling.
- Versatile Applications: Suitable for air purifiers, automotive cabin filters, HVAC systems and ventilation equipment.
- Customizable Options: Available with different filtration efficiency targets, thicknesses, basis weights and roll dimensions.
Our PP+PET electrostatic filter media offers a practical combination of particle filtration, airflow performance and flexible OEM customization.
Specifications
| Parameter | HF-PD45% | HF-PD65% | HF-PD90% | HF-PD95% |
|---|---|---|---|---|
| Basis Weight | 110 ± 10 | 110 ± 10 | 130 ± 10 | 140 ± 10 |
| Thickness, mm | 1.05 ± 0.1 | 1.05 ± 0.1 | 1.30 ± 0.1 | 1.35 ± 0.1 |
| Initial Efficiency | ≥45% | ≥65% | ≥90% | ≥95% |
| Pressure Drop | ≤4 Pa | ≤5 Pa | ≤6 Pa | ≤6 Pa |
| Max. Width | 1500 mm | 1500 mm | 1500 mm | 1500 mm |
| Max. Roll Length | 250 m | 250 m | 250 m | 250 m |
Specific Applications
| Application | Finished Products |
|---|---|
| Automotive Cabin Filtration | Pleated cabin air filter elements |
| Residential Air Purification | Composite air purifier cartridges |
| HVAC Ventilation | Panel and pleated ventilation filters |
| Appliance Air Filtration | Cut-to-size filter pads and compact modules |
OEM & Customization Options
We offer flexible material customization options for different air filtration applications, including:
- Material composition and layer structure
- Filtration efficiency and pressure drop targets
- Basis weight, thickness and air permeability
- Roll width, length and custom-cut dimensions
- Slitting, lamination and filter converting options
Technical Specifications Notice
All specifications shown are general reference values based on selected published material grades. Actual product performance and availability depend on the material construction, test conditions and manufacturing feasibility.
Contact us for customized specifications, technical consultation, product samples and OEM inquiries.
