G3/G4 High-Temperature Panel Filter for Generator Boxes, Industrial Dryers and Thermal Ventilation Systems
G3/G4 High-Temperature Panel Filter for Generator Boxes, Industrial Dryers and Thermal Ventilation Systems
Features
- Designed for generator boxes and power generation ventilation systems
- Suitable for elevated-temperature air intake environments
- G3 and G4 primary filtration options
- Imported organic synthetic fiber media
- High airflow capacity with controlled pressure drop
- Strong structural stability under continuous ventilation

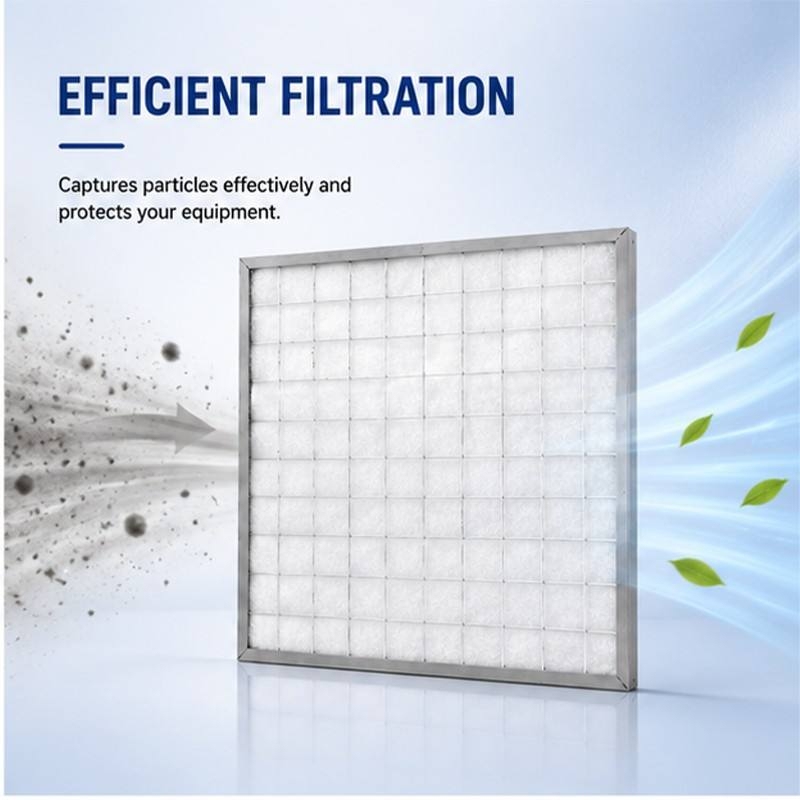

- Helps capture dust, fibers and larger airborne contaminants
- Protects radiators, cooling fans and electrical components
- Suitable for generator intake, exhaust-air and recirculation sections

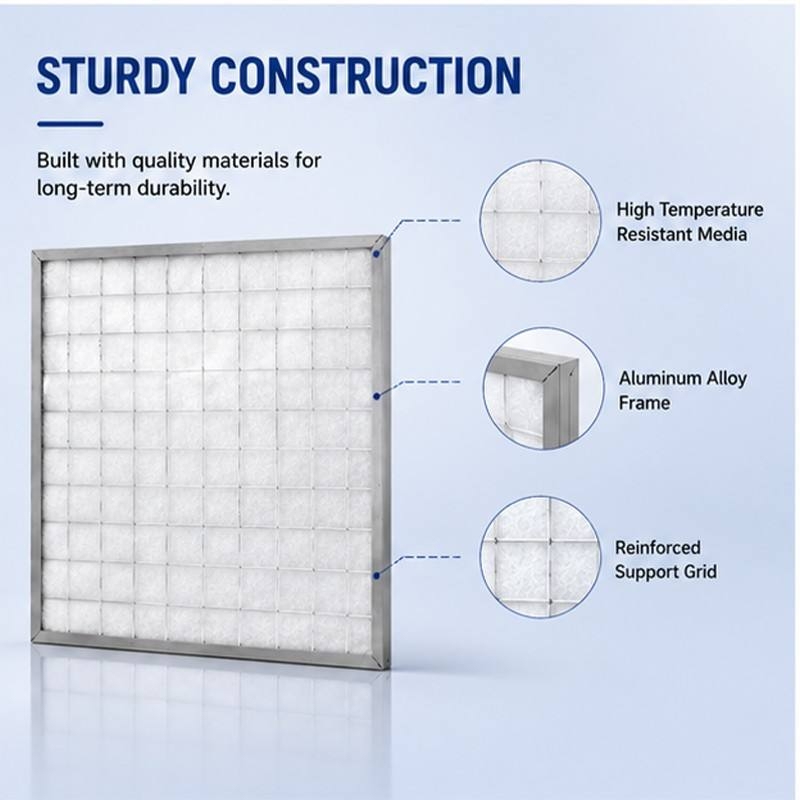

- Rigid aluminum-alloy or galvanized-steel frame options
- Multiple depths available for different installation spaces
- Standard and customized dimensions supported
- OEM manufacturing for generator and enclosure suppliers
- Suitable for use upstream of medium- or high-efficiency filters
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description
This high-temperature panel filter provides a stable first-stage filtration solution for such operating conditions. Its synthetic fiber media captures coarse particles while maintaining the airflow required for cooling. The rigid metal frame helps the filter retain its shape during installation and operation.
The filter can be installed in:

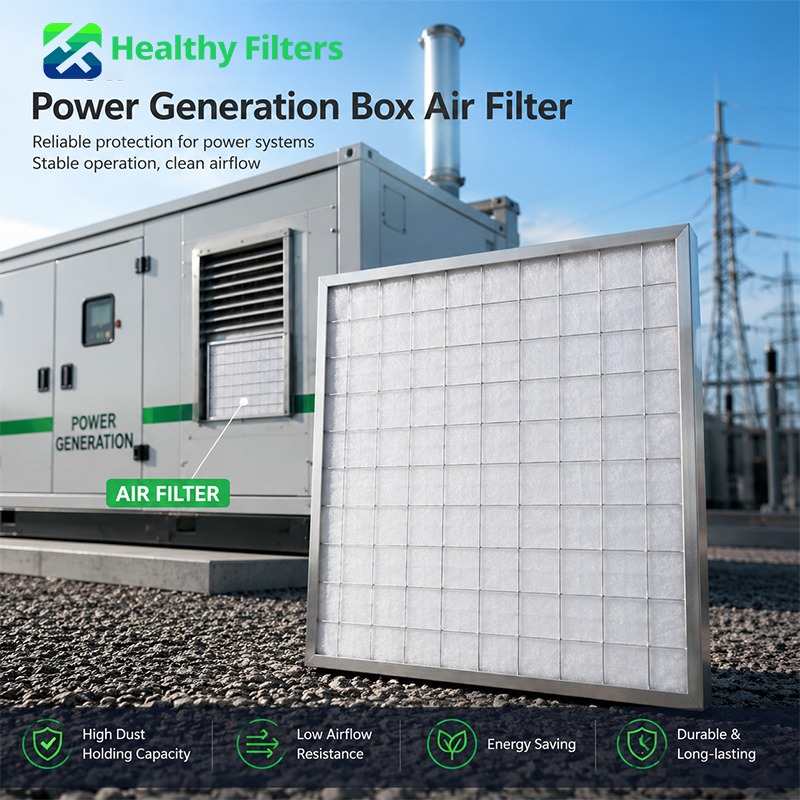

- Generator enclosure air intakes
- Power generation box ventilation openings
- Radiator cooling-air sections
- Mobile power station containers
- Industrial heater and dryer ventilation systems
- Multi-stage power equipment filtration modules
For dusty installations, it can be combined with a washable metal mesh pre-filter or a downstream fine filter to create a complete air filtration system.
Technical Parameters
| Grade | Size (mm) | Rated Airflow (m³/h) | Average Arrestance | Initial Pressure Drop (Pa) | Recommended Final Resistance (Pa) | Frame |
|---|---|---|---|---|---|---|
| G3 | 500 × 500 × 15 | 1,000 | 86% | 45 | 180 | Aluminum Alloy / Galvanized Steel |
| G4 | 500 × 500 × 25 | 1,200 | 90% | 50 | 200 | Aluminum Alloy / Galvanized Steel |
| G4 | 500 × 500 × 46 | 1,200 | 90% | 50 | 200 | Aluminum Alloy / Galvanized Steel |
The values above are nominal specifications. Actual airflow resistance and service life may vary according to operating temperature, airflow velocity, dust concentration, installation sealing and maintenance conditions.
Standard Model Options
| Item | Description |
|---|---|
| Product Name | High-Temperature Panel Filter |
| Product Type | Heat-Resistant Primary Panel Air Filter |
| Filtration Grades | G3 / G4 |
| Filter Media | Imported Organic Synthetic Fiber |
| Frame Options | Aluminum Alloy / Galvanized Steel |
| Standard Sizes | 500 × 500 mm Face Size |
| Available Depths | 15 mm / 25 mm / 46 mm |
| Main Function | Coarse Dust and Particle Filtration |
| Airflow Characteristic | High Airflow Capacity |
| Pressure-Drop Characteristic | Low to Moderate Initial Resistance |
| Structural Performance | Rigid Panel Construction |
| Installation Position | Generator Intake or Primary Filtration Section |
| Primary Application | Power Generation Boxes and Generator Enclosures |
| Additional Applications | Spray Dryers, Industrial Dryers and Thermal Ventilation Equipment |
| Custom Sizes | Available |
| OEM / ODM | Supported |
Applications
| Generator Enclosure Air Intakes | Radiator and Cooling Sections | Power Equipment Containers | Industrial Thermal Equipment |
|---|---|---|---|
| Used as a primary filter in diesel and gas generator boxes to reduce dust entry while maintaining the cooling airflow required by the genset. | Installed upstream of radiators, cooling fans and heat exchangers to limit contamination and support stable heat dissipation. | Suitable for mobile power stations, electrical containers, UPS modules and auxiliary power cabinets exposed to elevated internal temperatures. | Applied in spray dryers, industrial drying equipment and other ventilation systems requiring heat-resistant coarse filtration. |
Benefits for Power Generation Boxes
| Heat-Resistant Operation | Cooling Airflow Protection | Equipment Cleanliness | Flexible System Integration |
|---|---|---|---|
| Synthetic fiber media and rigid framing support stable operation in warmer ventilation sections. | Controlled pressure drop helps preserve the airflow needed to cool engines, alternators and radiators. | Coarse contaminants are captured before reaching heat-transfer surfaces and electrical components. | Multiple grades, depths and frame options allow the filter to be integrated into different generator enclosure designs. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom filter width, height and depth • G3 or G4 filtration configurations • Project-specific media density and thickness • Aluminum-alloy or galvanized-steel frames • Customized frame profile and reinforcement • Airflow and pressure-drop optimization • Heat-resistant media selection for different operating conditions • Compatibility with generator louvers and radiator sections • Development from drawings or physical samples • Custom model numbers, labels and barcodes • Neutral or private-label export packaging • Bulk OEM production for power equipment manufacturers |
• Incoming inspection of synthetic fiber media • Verification of frame material and dimensions • Filter thickness and squareness inspection • Media installation and support-grid inspection • Initial pressure-drop testing • Rated airflow verification • Arrestance testing upon request • Heat-exposure and structural-retention evaluation upon request • Frame-joint and assembly inspection • Visual inspection for damage or deformation • Packaging and labeling verification • Batch traceability and pre-shipment sampling |
