Activated Carbon Odor-Control Filter for Generator Boxes and Power Equipment Enclosures
Activated Carbon Odor-Control Filter for Generator Boxes and Power Equipment Enclosures
Features
- Designed for power generation boxes and generator ventilation systems
- Activated carbon composite media for odor and gas adsorption
- Helps reduce fuel, lubricant, exhaust and equipment-related odors
- Suitable for selected VOC and gaseous contaminant control
- Pleated construction provides an increased adsorption surface
- Nominal initial pressure drop of 40 Pa
- Supports high-volume ventilation in enclosed power equipment
- Rigid metal frame maintains structural stability
- Suitable for fresh-air, recirculation and exhaust-air treatment
- Easy-to-replace panel design
- Can be combined with a pre-filter to extend carbon media life
- Multiple standard face sizes available
- Custom dimensions, carbon loading and frame configurations supported
- OEM production for generator and enclosure manufacturers
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description
The HF-HXT activated carbon filter provides an adsorption stage within the enclosure ventilation system. As air passes through the pleated carbon media, odor-causing molecules and selected gaseous pollutants are retained on the activated carbon surface.
For best operating performance, the activated carbon filter is normally installed downstream of a coarse particulate pre-filter. The upstream filter removes dust and fibers before they reach the carbon media, helping preserve the available adsorption surface and extend service life.
Typical installation positions include:

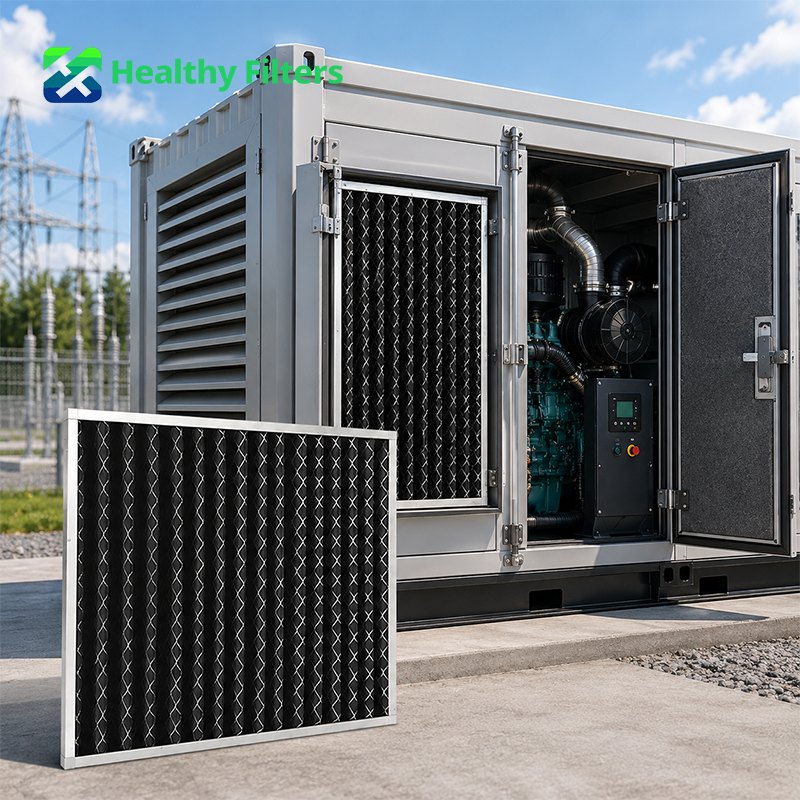

- Generator enclosure air outlets
- Power generation box exhaust sections
- Ventilation and recirculation cabinets
- Acoustic enclosure air paths
- Generator-room air treatment units
- Multi-stage intake and exhaust filtration modules
Activated carbon filters should be replaced according to odor breakthrough, operating hours, contaminant concentration and site ventilation conditions.
Technical Parameters
| Model | Size (mm) | Rated Airflow (m³/h) | Initial Pressure Drop (Pa) | Frame | Media |
|---|---|---|---|---|---|
| HF-HXT | 595 × 595 × 46 | 3,200 | 40 | Aluminum Alloy or Galvanized Steel | Activated Carbon |
| HF-HXT | 595 × 495 × 46 | 2,700 | 40 | Aluminum Alloy or Galvanized Steel | Activated Carbon |
| HF-HXT | 595 × 295 × 46 | 1,600 | 40 | Aluminum Alloy or Galvanized Steel | Activated Carbon |
| HF-HXT | 495 × 495 × 46 | 2,200 | 40 | Aluminum Alloy or Galvanized Steel | Activated Carbon |
| HF-HXT | 495 × 295 × 46 | 1,300 | 40 | Aluminum Alloy or Galvanized Steel | Activated Carbon |
| HF-HXT | 295 × 295 × 46 | 800 | 40 | Aluminum Alloy or Galvanized Steel | Activated Carbon |
The listed values are nominal specifications. Actual airflow resistance and adsorption service life depend on contaminant type, gas concentration, temperature, humidity, carbon loading and operating airflow.
Standard Model Options
| Item | Description |
|---|---|
| Product Name | Activated Carbon Panel Filter |
| Model Series | HF-HXT |
| Product Type | Gas-Phase and Odor-Control Air Filter |
| Filter Media | Activated Carbon Composite Media |

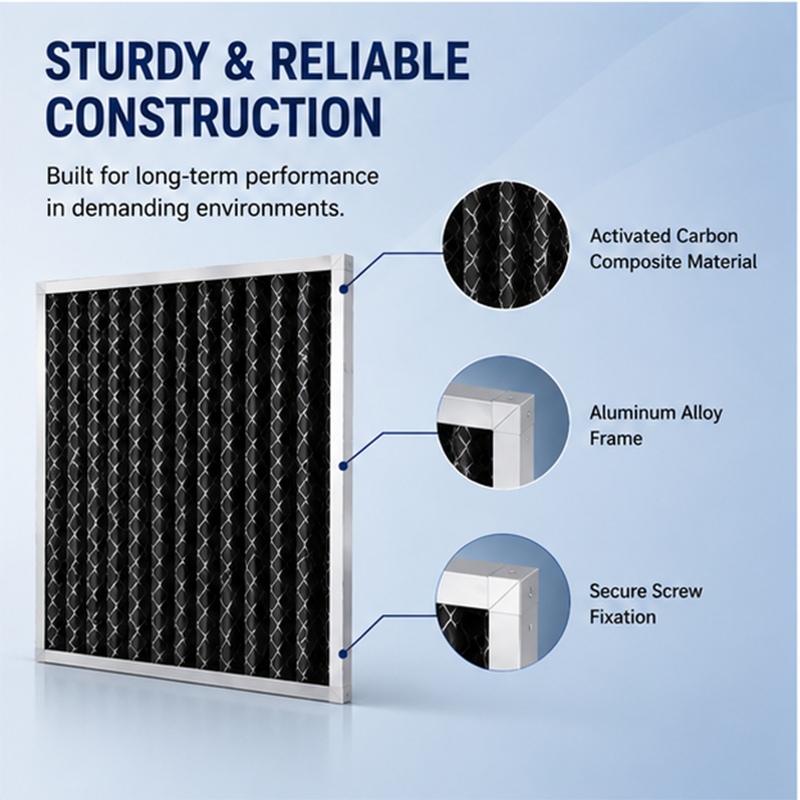

| Structure | Pleated Carbon Media with Protective Mesh |
| Frame Options | Aluminum Alloy / Galvanized Steel |
| Standard Depth | 46 mm |
| Main Function | Odor and Gaseous Contaminant Adsorption |
| Nominal Initial Pressure Drop | 40 Pa |
| Installation Position | Ventilation Intake, Recirculation or Exhaust Section |
| Recommended Pre-Filtration | Coarse Panel or Metal Mesh Pre-Filter |
| Primary Application | Power Generation Boxes and Generator Enclosures |
| Replacement Method | Disposable Media / Replace When Saturated |
| Custom Sizes | Available |
| OEM / ODM | Supported |
Applications
| Generator Box Odor Control | Ventilation and Exhaust Treatment | Power Equipment Enclosures | OEM Power-System Integration |
|---|---|---|---|
| Installed in diesel and gas generator boxes to reduce fuel, lubricant and equipment-related odors released through the ventilation system. | Used in exhaust-air, recirculation and make-up-air sections to adsorb selected gaseous contaminants before air is discharged or returned. | Suitable for power cabinets, UPS rooms, transformer enclosures, mobile power stations and auxiliary equipment compartments. | Developed for generator manufacturers, acoustic-enclosure suppliers, ventilation integrators and power-system contractors requiring standard or customized carbon filters. |
Benefits for Power Generation Boxes
| Odor Reduction | Ventilation Compatibility | Equipment Integration | Multi-Stage Filtration |
|---|---|---|---|
| Activated carbon media helps reduce odors associated with fuel vapor, lubricants, engine operation and enclosed equipment areas. | The pleated panel structure provides a larger adsorption surface while maintaining a nominal initial pressure drop of 40 Pa. | Multiple standard sizes and custom frame options allow integration into generator louvers, exhaust cabinets and ventilation modules. | The carbon panel can be installed downstream of metal mesh, nylon mesh or G3/G4 filters to improve service life and overall filtration performance. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom filter width, height and depth • Activated carbon type and loading adjustment • Media thickness and pleat-count customization • Aluminum-alloy or galvanized-steel frames • Customized frame profile and reinforcement • Airflow and pressure-drop optimization • Odor- or VOC-specific media selection upon request • Compatibility with generator ventilation cabinets • Development from equipment drawings or samples • Custom labels, model numbers and barcodes • Neutral packaging and private-label packaging • Bulk OEM production for generator manufacturers |
• Incoming inspection of activated carbon media • Carbon loading and media uniformity verification • Filter dimension and frame-squareness inspection • Pleat spacing and effective media-area inspection • Media sealing and frame assembly checks • Rated airflow and initial pressure-drop testing • Adsorption performance testing upon request • Frame-strength and structural inspection • Visual inspection for carbon loss or media damage • Packaging and labeling verification • Batch identification and production traceability • Pre-shipment random sampling inspection |
Product Details
 |
 |
 |
